Most people buy the wrong air compressor for an impact wrench because they read the tank size on the box instead of the airflow number. A 20 gallon tank that delivers 2.6 CFM at 90 PSI will feel emptier than a 6 gallon tank that pushes 5 CFM at 90 PSI, because CFM is what keeps the hammer striking and tank size is only what buys you time between pauses. Here is the short version: a 3/8 inch impact wrench needs about 3 CFM at 90 PSI, a 1/2 inch drive needs 4 to 5 CFM, a 3/4 inch drive needs 7 to 8 CFM, and a 1 inch drive for trucks and heavy equipment needs 10 CFM or more.
We spent weeks putting these ten compressors through the same evaluation, checking the published CFM at 90 PSI figure against the drive size each one can actually serve, then looking at recovery, noise and electrical draw. What follows is our ranking of the best air compressors for impact wrenches available now, with an honest disqualifier note on every pick so you can see which ones are wrong for your wrench before you buy. If you are still building out a general shop setup, our home workshop compressor guide covers the broader category.
One more thing up front: for a single car and occasional lug nut work, a battery impact wrench may be the smarter purchase than any compressor on this list. We get into that in detail later, because the honest answer saves people real money. But if you run air for paint, nailers or a full rotation plus repair workflow, you need one of the compressors below.
Table of Contents
Top 3 Best Air Compressors for Impact Wrenches (October 2026)
Every Pick Compared in 2026
| Product | Specs | Action |
|---|---|---|
 Metabo HPT EC914S 6 Gal Pancake |
|
Check Latest Price |
| Makita MAC2400 Big Bore |
|
Check Latest Price |
 Klutch 20 Gallon 2 HP |
|
Check Latest Price |
 VEVOR 15 Gallon Oil Free |
|
Check Latest Price |
 Stealth 20 Gallon 68 dB |
|
Check Latest Price |
 ECOMAX 6 Gallon 150 PSI |
|
Check Latest Price |
 Craftsman 20 Gallon 175 PSI |
|
Check Latest Price |
 DEWALT 4.5 Gallon 225 PSI |
|
Check Latest Price |
 Craftsman 6 Gallon Pancake |
|
Check Latest Price |
 Craftsman 3 Gallon Hot Dog |
|
Check Latest Price |
1. Metabo HPT EC914S 6 Gallon Pancake – Best Overall for a 1/2 Inch Impact Wrench
Metabo HPT Portable Pancake Air Compressor, 6 Gallon 200 PSI, EC914S
4 CFM at 90 PSI
6 gallon tank
200 PSI max
73 dB
41 lbs
120V
Pros
- 4 CFM at 90 PSI clears the 1/2 inch drive requirement with margin
- 200 PSI ceiling is far above a typical pancake
- Fast pressure recovery after draw-down
- Oil-free pump needs no maintenance
- Only 42 lbs with roll-cage build
Cons
- Louder in person than the 73 dB figure suggests
- 6 gallon tank means recovery pauses on sustained work
- Output drops roughly 3 percent per 1000 ft of elevation
This is the compressor we kept coming back to while working through the list. Four CFM at 90 PSI is the exact number that a 1/2 inch impact wrench asks for, and the 200 PSI ceiling means the pump does not cut out while you are fighting a seized lug nut. Owners running framing and roofing nailers alongside impact tools report that it keeps up, which tells you something about headroom above the minimum.
The build is what separates it from cheaper 6 gallon pancake designs. A roll-cage frame protects the pump when it gets knocked around, and at 41 pounds it is light enough to lift into a truck bed by yourself. If you want a fuller picture of pancake versus twin-stack layouts, our heavy duty impact tool guide covers the wrench side of the equation.
Where it falls short is noise and tank volume. Seventy-three decibels is a respectable number on paper, and the most common owner comment is that it is audible but acceptable rather than quiet. More important is the 6 gallon tank: on a four-lug rotation with a stubborn wheel you will hear the cut-out and start cycle more than you would like.
One spec worth knowing before you commit: air density drops with altitude, and reviewers who live high report roughly 3 percent less CFM for every 1,000 feet above sea level. If you are in a mountain town, treat 4 CFM as a floor and look at the 5 CFM units further down this list.
Who the Metabo HPT EC914S suits
It suits a home mechanic doing brake work, tire changes and the occasional stubborn lug nut on a 1/2 inch drive. It also suits anyone who needs a second small compressor for a job site where a 20 gallon vertical will not fit in the vehicle.
If you paint with air as well as driving air, the oil-free pump keeps aerosol overspray out of your lines, which matters more than most buyers realize before the first can of finish goes on.
Who it is not for
It is not for 3/4 inch or 1 inch drive work on trucks and heavy equipment, where the requirement climbs to 7 CFM and 10 CFM respectively. It is also not for a professional shop that runs two pneumatic tools continuously and needs a 20 gallon buffer.

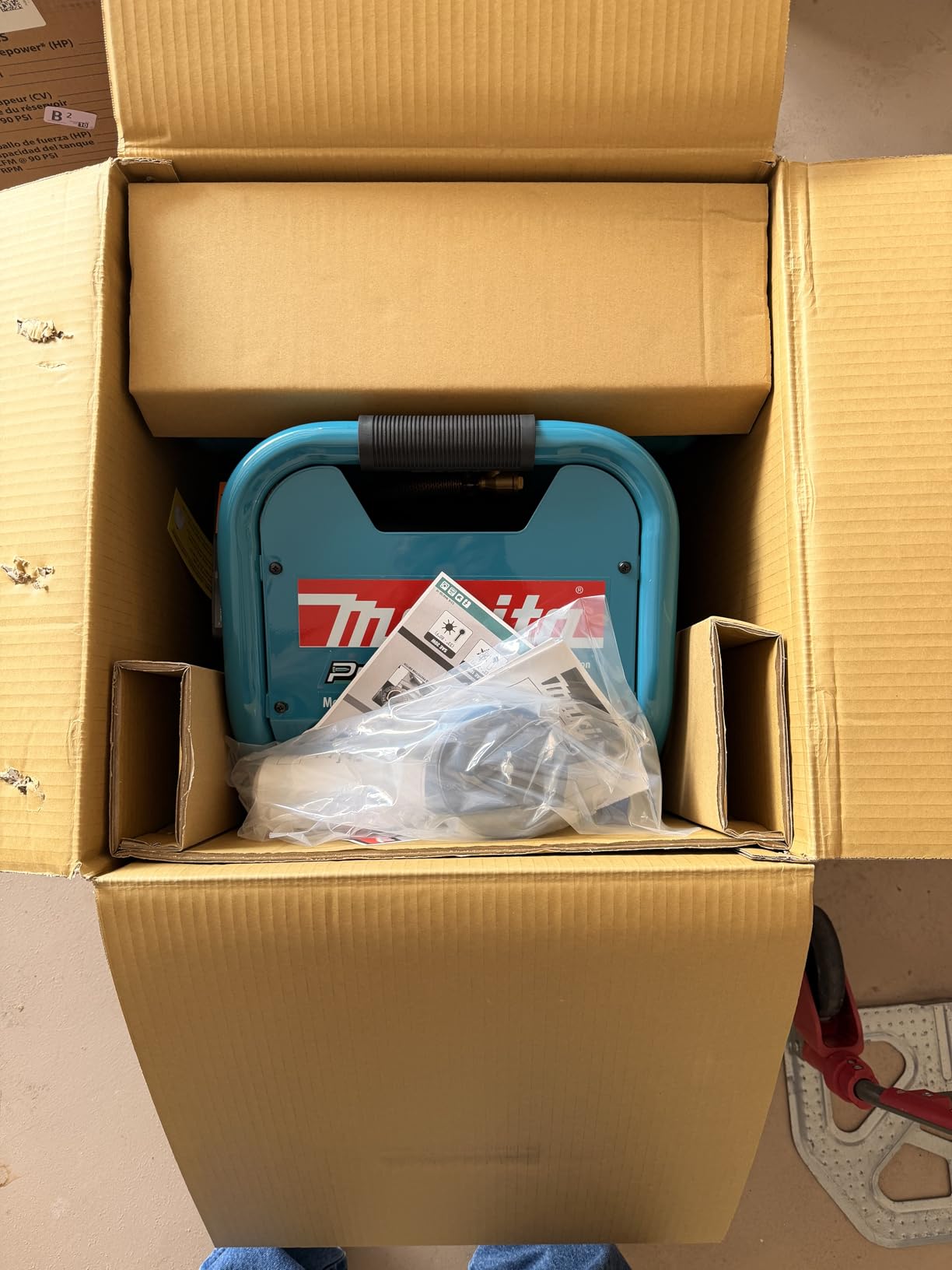

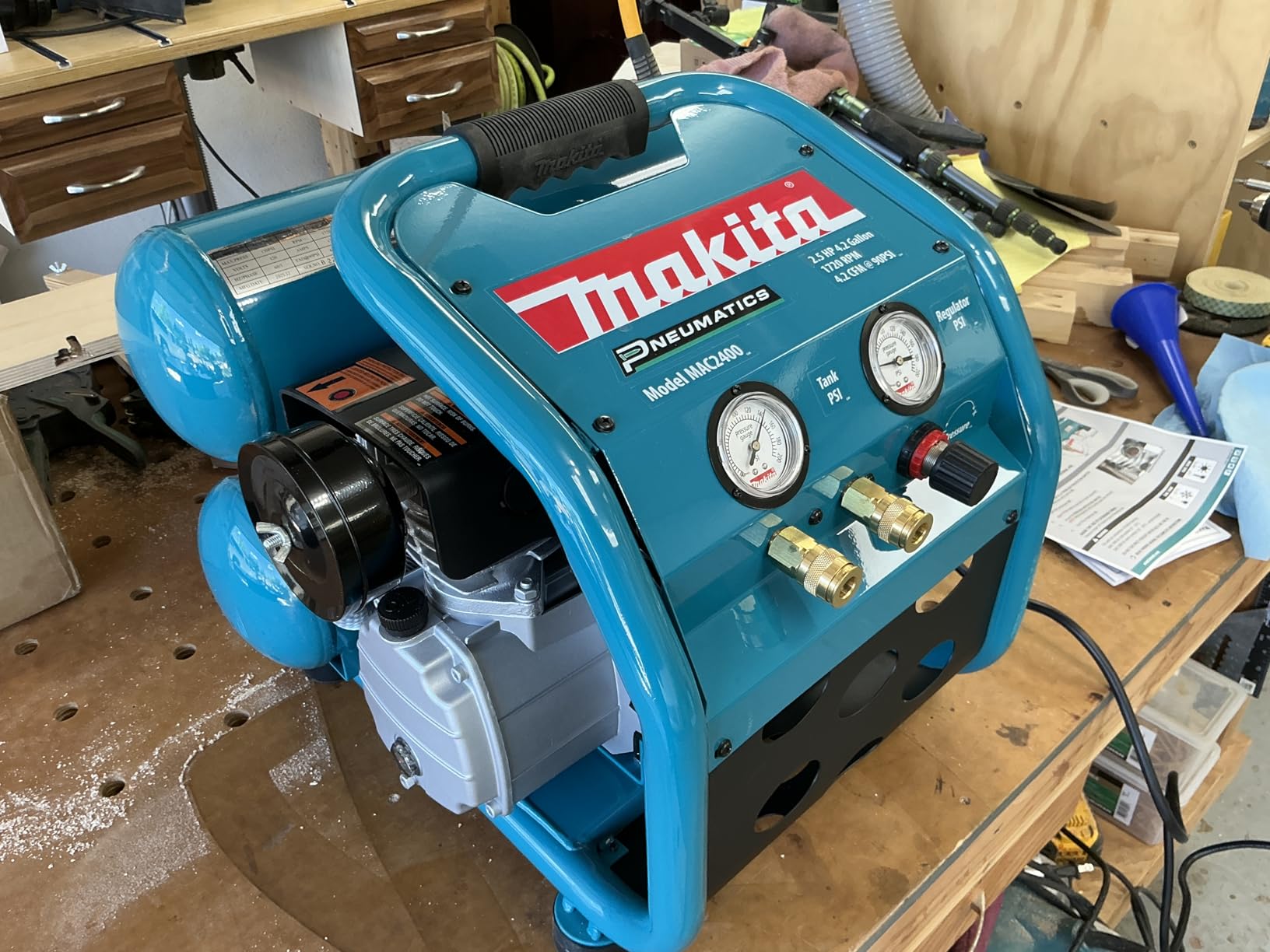

2. Makita MAC2400 Big Bore – Highest Rated Pick for Recovery Speed
Makita MAC2400 2.5 HP* Big Bore™ Air Compressor
4.2 CFM at 90 PSI
4.2 gallon tank
2.5 HP 4-pole motor
79 dB
120V
Pros
- Highest average rating in the group at 4.7 across 1319 reviews
- Big Bore cast iron pump recovers faster than small-bore designs
- Low amp draw reduces tripped breakers at start-up
- Oil-lubricated pump runs cooler and wears less
- Roll-cage construction for rough job sites
Cons
- Oil-lubricated pump needs periodic oil checks and changes
- 4.2 gallon tank is small for prolonged continuous work
- 79 dB is louder than its lower noise positioning suggests
The MAC2400 holds the highest average rating of any compressor we ranked, and the reason is the Big Bore cast iron cylinder and piston. Those are bigger working surfaces than a typical small-bore pump, and reviewers consistently credit them with faster pressure recovery after a tool draws down.
That recovery rate is the whole game with impact wrenches. A 4.2 gallon tank empties quickly, but a pump that refills it fast means the pause between bolts is short enough that you stop noticing it. The 2.5 HP 4-pole motor also draws less current at start-up than its horsepower suggests, which matters in a garage with other things on the same circuit.
The trade-off is maintenance and size. This is an oil-lubricated pump, so you will be checking the oil sight glass and scheduling changes on a service interval, something the oil-free competitors simply do not ask of you. The oil does buy cooler running temperatures and less wear over long service, and owners who keep up with it report excellent longevity.
At 4.2 gallons the tank is the smallest thing holding this one back. It is genuinely fine for a 1/2 inch wrench on a car, and it is not the right shape for a shop running continuous impact work. The published 4.2 CFM at 90 PSI also lands right on the low end of what a 1/2 inch drive wants, so a bigger tank or a bigger airflow pick suits sustained work better.
Who the Makita MAC2400 suits
It suits a serious DIYer and a mobile mechanic who wants a pump that recovers fast and does not trip breakers in a residential garage. The roll-cage frame is built for a truck bed or a job site, not a display shelf.
It also suits anyone who prefers to service a compressor on a schedule rather than never think about it, since the lubrication is the feature rather than a compromise.
Who it is not for
It is not for a user who wants zero maintenance, and it is not for 3/4 inch or 1 inch drive trucks. It is also not ideal for an attached garage where 79 decibels has to sit near a bedroom wall.

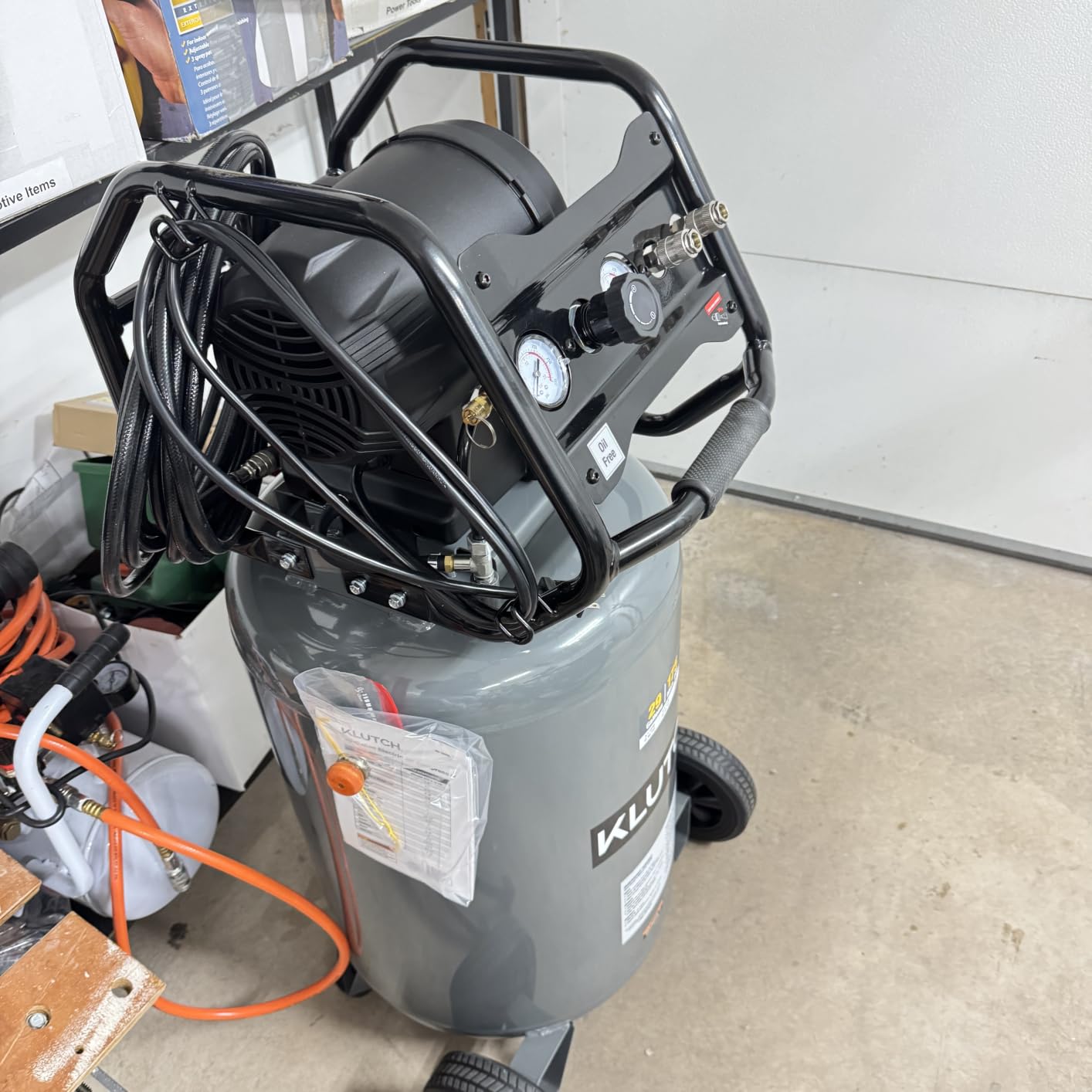

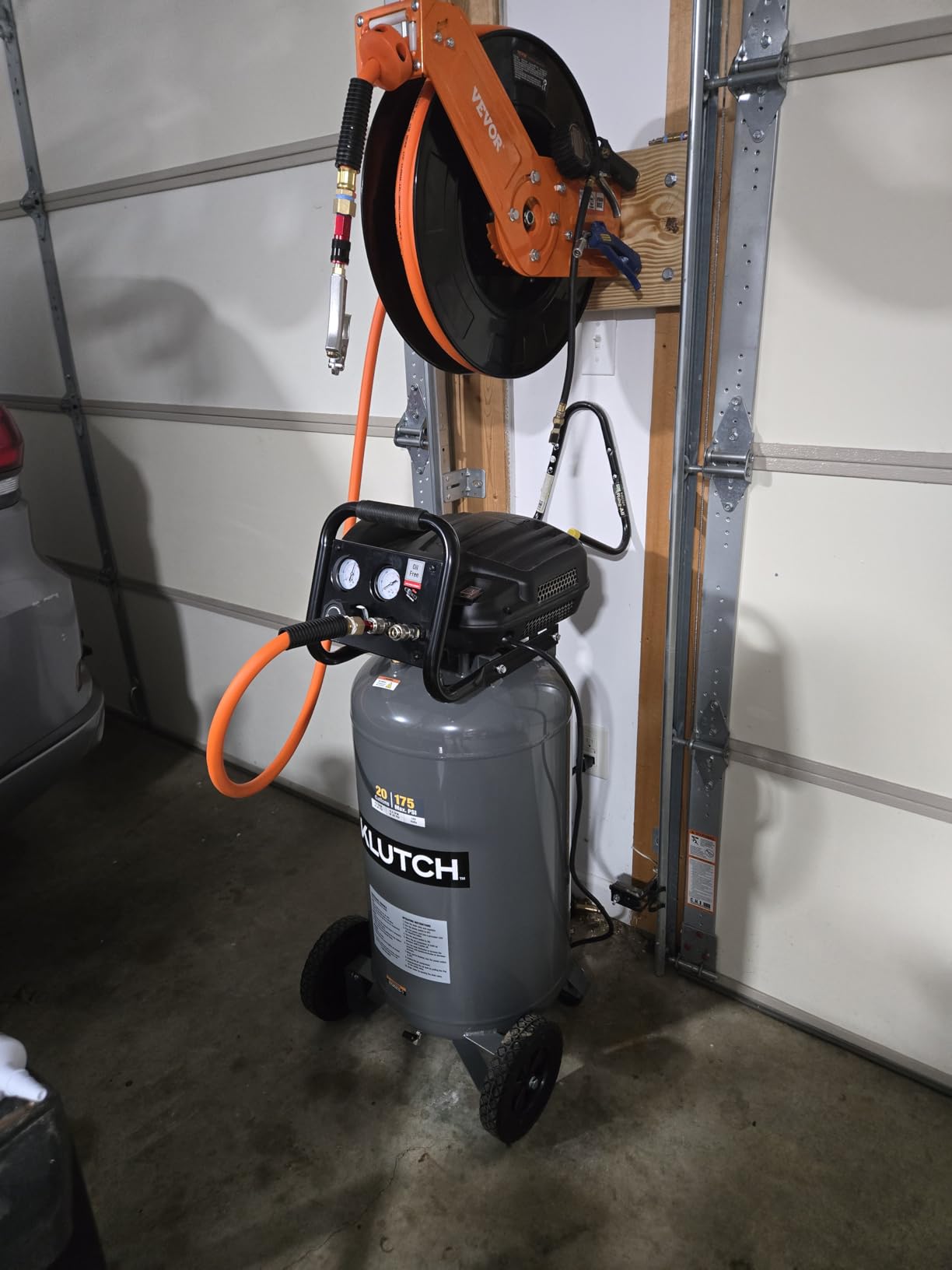

3. Klutch 20 Gallon 2 HP – Best for 20 Gallon Shop Space
Klutch 20-Gallon Air Compressor, 2 HP, 120V, 175 PSI, 4.2 SCFM at 90 PSI
4.2 SCFM at 90 PSI
20 gallon vertical tank
175 PSI max
80 dB
90 lbs
Pros
- 20 gallon vertical tank gives long run times between cut-outs
- 175 PSI ceiling has headroom for impact-rated tools
- Oil-free pump means no oil in the delivered air
- Vertical footprint saves floor space in a tight garage
- Wheels and handle make a 90 lb compressor manageable
Cons
- 80 dB is on the loud side for a home shop unit
- Some owners question whether the rated SCFM is achievable in practice
- A detailed owner report describes a power switch that was bypassed internally
Twenty gallons in a vertical footprint is the practical trick here. The tank stores enough air that a 1/2 inch impact wrench can run through a full wheel rotation without the compressor cutting out, and the tall narrow shape fits against a garage wall where a horizontal 20 gallon would not.
At 4.2 SCFM at 90 PSI it lands in the same airflow class as the Makita, so the difference between the two is buffer, not muscle. If your complaint is that you keep waiting for the tank to refill, this is the pick that addresses it. If your complaint is that the tool bogs down mid-bolt, look higher up the list for more CFM.
Owners report a leak-free tank that holds pressure for weeks, an oil-free pump that needs no service, and a 75 percent duty cycle rating that suits regular shop use. The dual hose and quick-coupler layout means you can run a nailer and a wrench without a splitter.
Two cautions. Eighty decibels is not quiet, and several reviewers question whether the advertised SCFM holds up under real continuous load. There is also one detailed owner report of a power switch that was internally bypassed on a machine in the same family, causing an arc flash. Test the switch on arrival before you rely on it.
Who the Klutch 20 Gallon suits
It suits a home shop that needs a real tank buffer without giving up a quarter of the floor to it. The wheels and pull handle matter more than the spec sheet suggests once the thing has to cross a concrete floor.
It also suits anyone who runs air for painting or spraying, since the oil-free pump will not put oil into a finish job.
Who it is not for
It is not for a small garage with no vertical wall space, and it is not for a 1 inch drive wrench on a heavy truck. Owners in noise-sensitive spaces should look at the quieter units instead.

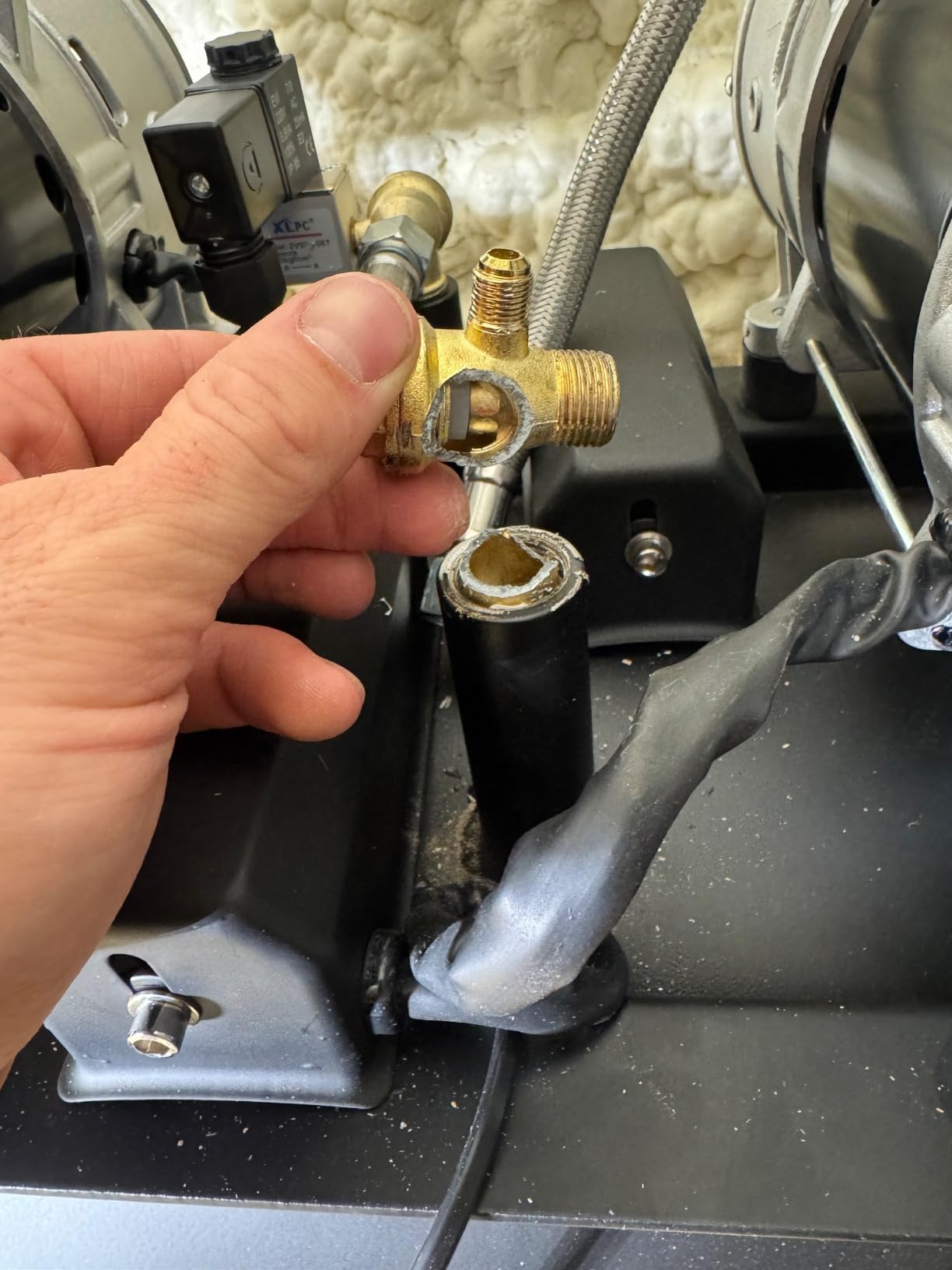

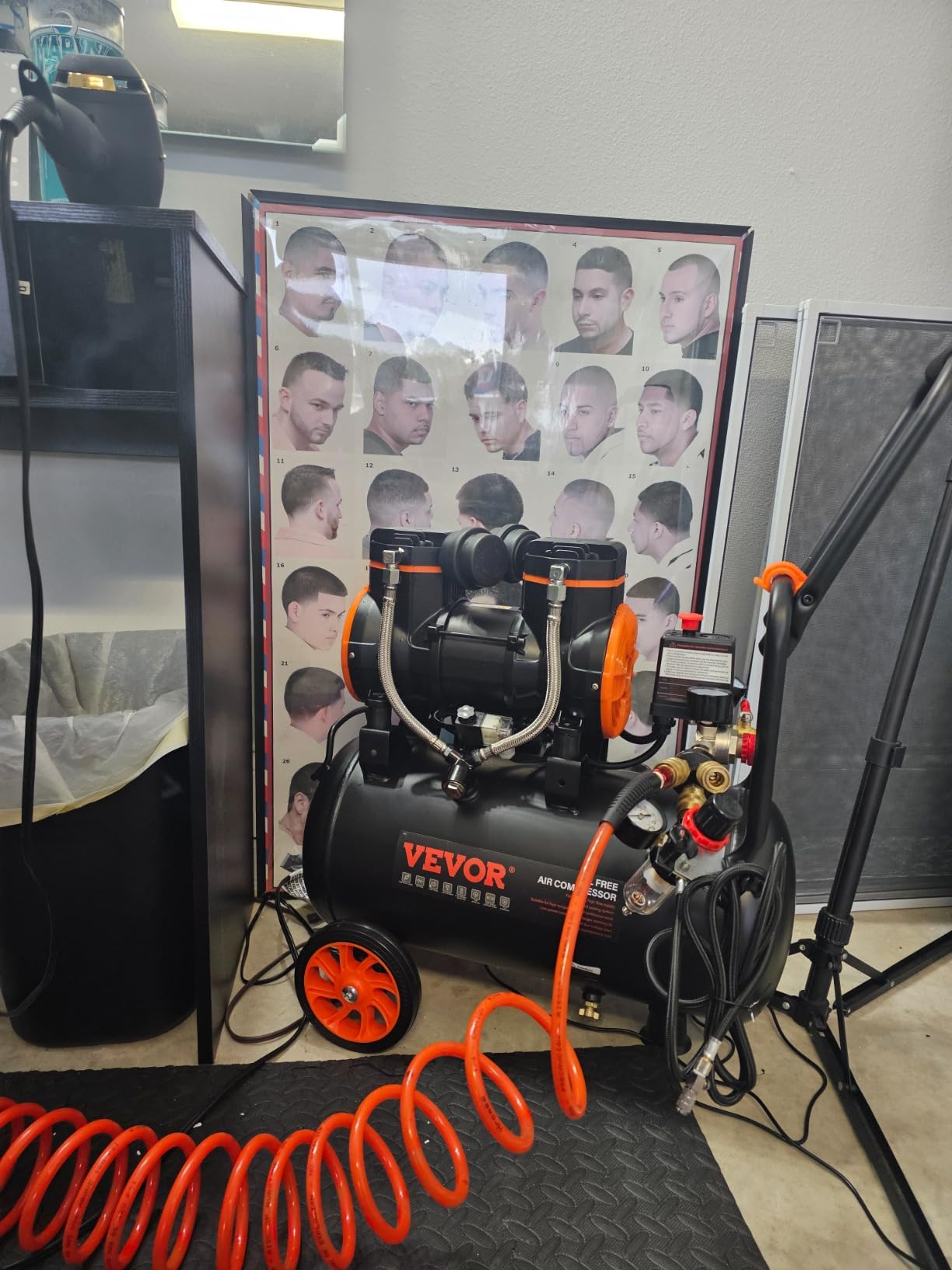

4. VEVOR 15 Gallon Oil Free – Most Airflow in the Group for Impact Work
VEVOR Air Compressor, 15 Gallon Steel Tank, 2HP 5.3 CFM@90 PSI Oil Free Air Compressor & Max. 125PSI Pressure, 78dB Ultra Quiet Portable Compressor, for Auto Repair, Tire Inflation, Spray Painting
5.3 CFM at 90 PSI
15 gallon tank
125 PSI max
78 dB
oil-free
Pros
- 5.3 CFM at 90 PSI is the highest rated airflow in the group
- Owners report it runs quietly enough for early morning use
- Fast refill times on a full tank
- Oil-free so no oil reaches spray or finish work
- Three-layer steel tank with seamless welding
Cons
- 125 PSI max is the lowest ceiling here and below what many impact wrenches prefer
- Short power cord and poor behaviour on extension cords
- Wheels and handle are the weakest hardware on the compressor
- Motor housing runs hot during long duty cycles
Five point three CFM at 90 PSI is the highest verified airflow in this roundup, and that single number is why this one tops the list for pure impact wrench duty. A 1/2 inch drive asking for 4 to 5 CFM gets real headroom here, and it means you can add a second tool later without immediately running out of air.
Owners also single out the noise. At a rated 78 decibels with a thickened muffler cover, rubber muffler pipe and filter cotton, this is one of the models people report being able to run without disturbing the house. Several describe upgrading from a loud small-tank compressor and noticing the difference immediately.
The 125 PSI maximum is the catch, and it is a real one. Many impact wrenches are happiest with more working pressure than that, and a lower ceiling means the cut-out cycle starts earlier and the pump works harder to keep up. It is workable for 1/2 inch drive work at regulated pressure, but it is not the choice if you are deliberately running maximum torque settings.
Then there is the electrical side. The cord is short, around 40 inches, and reviewers repeatedly report the motor refusing to run reliably on an extension cord or a daisy-chained supply. Plug it straight into a wall outlet. Owners also flag the wheels and handle as the weakest parts, and a few report a motor that stopped and would not restart, which is why the one-star share runs higher than peers.
Who the VEVOR 15 Gallon suits
It suits anyone whose priority is CFM rather than tank volume, especially a DIYer running a 1/2 inch wrench and a nailer or inflator at the same time. The oil-free design also makes it the safer pick for a garage that sees spray work.
It suits a user who will run the compressor from a proper outlet rather than from a long extension lead.
Who it is not for
It is not for someone chasing high working pressure for maximum breakaway torque, and it is not for 3/4 inch or 1 inch drive trucks. The hot motor housing is also a caution for anyone doing very long duty cycles without a break.

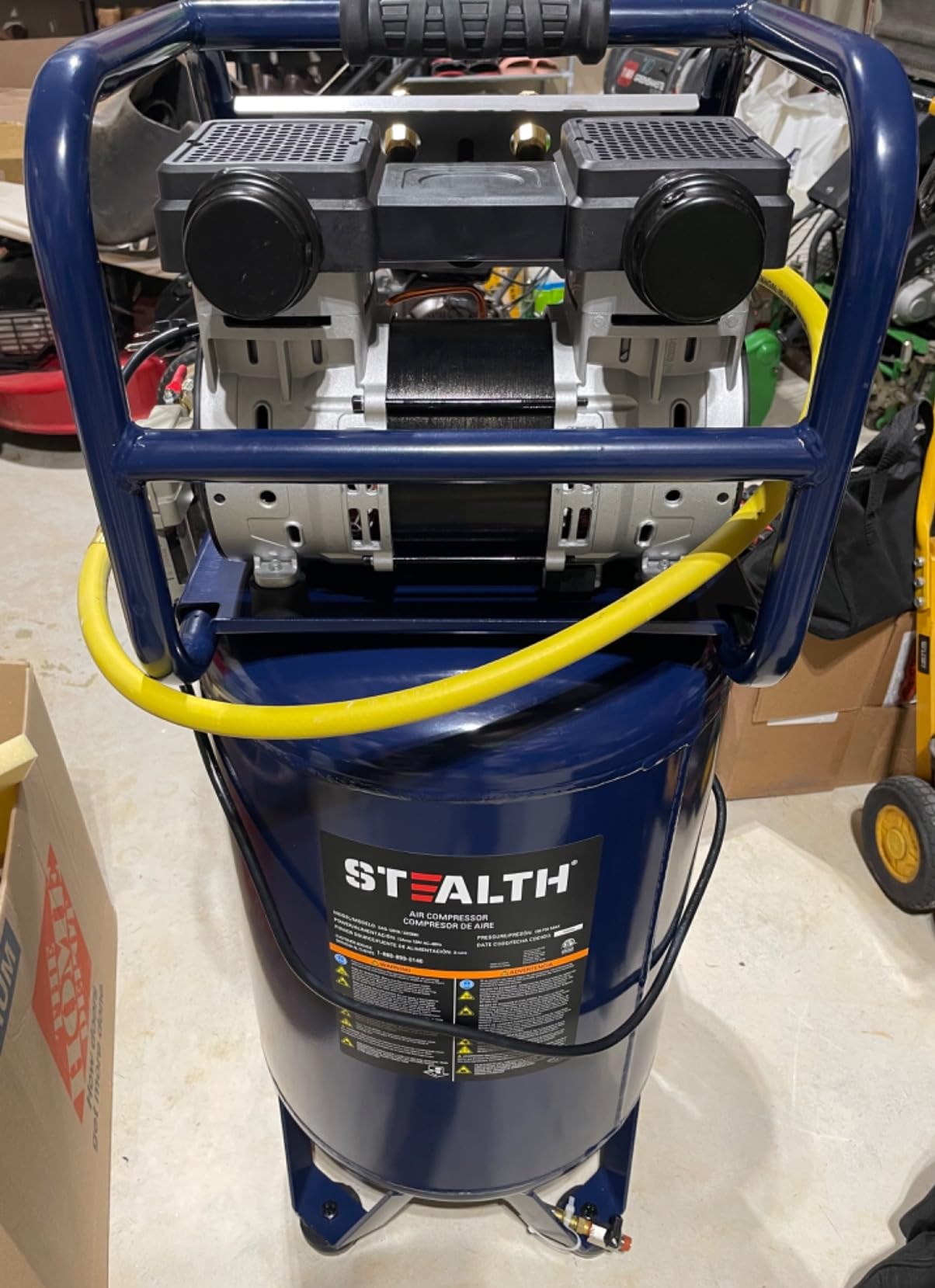

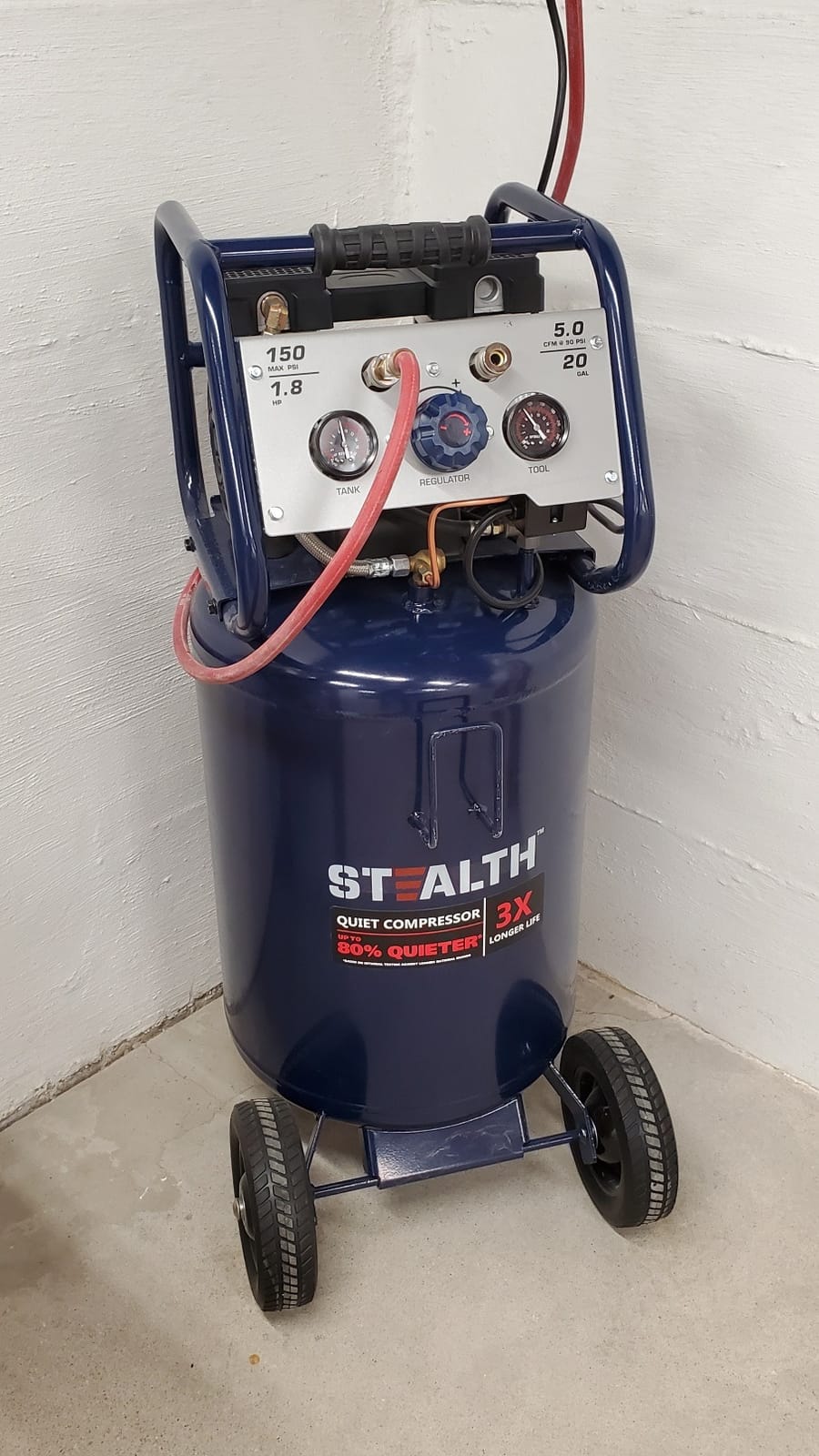

5. Stealth 20 Gallon 68 dB – Best for Quiet Attached Garages
Stealth 20 Gallon Ultra Quiet Air Compressor,1.8 HP Oil-Free Peak 150 PSI 68 Decibel, 5.5 CFM @ 40 PSI 5 CFM @ 90 PSI Silent Long Life Electric Air Compressor W/Wheel for Garage
5 CFM at 90 PSI
20 gallon tank
150 PSI max
68 dB
121.4 lbs
Pros
- Quietest figure in the group at 68 dB with owners measuring 65 dB at 8 to 10 feet
- 20 gallon tank paired with 5 CFM at 90 PSI for long run times
- Oil-free and maintenance-free
- Limited lifetime warranty
- Good pressure holding over long storage periods
Cons
- 121.4 lbs is the heaviest compressor here and awkward to lift
- 150 PSI peak is modest for high torque impact work
- Some owners report early failure and breaker trips on thin wiring
- Customer service described as hard to reach
Noise is the whole pitch, and the number backs it up. Rated at 68 decibels, owners measuring at 8 to 10 feet report landing in the 65 to 78 decibel range and describe the machine as a soft purr rather than the usual clatter. If your garage shares a wall with living space, that difference is the entire buying decision.
Underneath the quiet operation it is a real 20 gallon compressor putting out 5 CFM at 90 PSI, which is enough airflow for a 1/2 inch drive with margin and enough tank for a full rotation without a pause. Two quick couplers mean you can swap tools without going back to the compressor. If you also run air tools for detail work, our airbrush kit guide covers that use case.
The weight is the practical problem. At 121.4 pounds this is the heaviest compressor we ranked, and getting it into a truck bed or over a threshold is a two-person job unless you own a ramp. Twenty gallons on rubber wheels rolls fine across a floor and badly up a step.
Reliability reports are mixed. There is a 12 percent one-star share driven by units that failed to start after roughly two weeks and tripped breakers on undersized wiring, plus descriptions of support being effectively unreachable. It also holds a limited lifetime warranty rather than a long parts warranty, and 20 gallons is the largest tank it offers, which some owners see as a ceiling.
Who the Stealth 20 Gallon suits
It suits a home mechanic in an attached garage, or anyone with neighbours close enough that a 78 decibel compressor becomes a recurring complaint. A 20 gallon tank in a quiet package is a combination the rest of this list does not offer.
It also suits a user who mostly inflates, inflates and services rather than doing continuous high-CFM work, since the quiet motor does not need to cycle constantly.
Who it is not for
It is not for anyone who needs to move the compressor regularly or load it into a vehicle alone, and not for high-torque 3/4 inch or 1 inch drive work. If you have had breaker trips on undersized circuits before, have an electrician look at the wiring first.
6. ECOMAX 6 Gallon 150 PSI – Best Light Duty Starter for a 3/8 Inch Wrench
ECOMAX Air Compressor 6 Gallon 150 PSI Pancake Portable Oil-free Tank with 10 PCS Accessories Kit
3 CFM at 90 PSI
6 gallon tank
150 PSI max
75 dB
34.17 lbs
Pros
- 4.7 average rating across 316 reviews with only 1 percent one-star
- Includes a 10 piece accessory kit with a 25 ft hose and blow gun
- Lightweight at 34.17 lbs with a flip-up carry handle
- Dual quick couplers allow two tools at once
- Dual gauges and cold-weather low-voltage start
Cons
- 3 CFM at 90 PSI is the lowest rated airflow in the group
- 150 PSI ceiling limits high torque pneumatic work
- 6 gallon tank limits continuous runtime
This one is here for a specific job: a 3/8 inch impact wrench on a small car, a 6 gallon tank, and a compressor you can carry from the garage to the driveway with one hand. Three CFM at 90 PSI is exactly what a 3/8 inch drive asks for, which makes this a genuinely capable small wrench setup rather than a compromise.
The included kit is unusually complete. You get a quarter inch 25 foot PVC hose, thread seal tape, a ball foot air chuck, an auto plug, an auto coupler, a tire pressure gauge, a nozzle and a blow gun, which means the compressor is usable the day it arrives without a separate parts run.
Step up to a 1/2 inch drive and you are asking for 4 to 5 CFM, and this pump cannot give it. The tool will still run, but it will visibly slow on a stubborn lug nut, and reviewers consistently position this as a light-duty or occasional compressor rather than one for continuous high-demand pneumatic tools.
The 150 PSI ceiling compounds that for anyone running at maximum torque settings. On the plus side, dual quick couplers let you run a nailer alongside an inflator, and the low-voltage cold-weather start is a small thing that matters in a garage in January.
Who the ECOMAX 6 Gallon suits
It suits a first-time pneumatic tool buyer working on one small car with a 3/8 inch wrench. It also suits a detail hobbyist who wants a portable compressor for a garage bench or a trunk-mounted setup.
If you already own a bigger compressor, this is a useful second machine for inflating and blow-off work away from the main unit.
Who it is not for
It is not for a 1/2 inch drive impact wrench as your primary tool, and not for trucks, heavy equipment or any sustained impact work. Buyers who expect continuous bolt work will be disappointed by the recovery pauses.

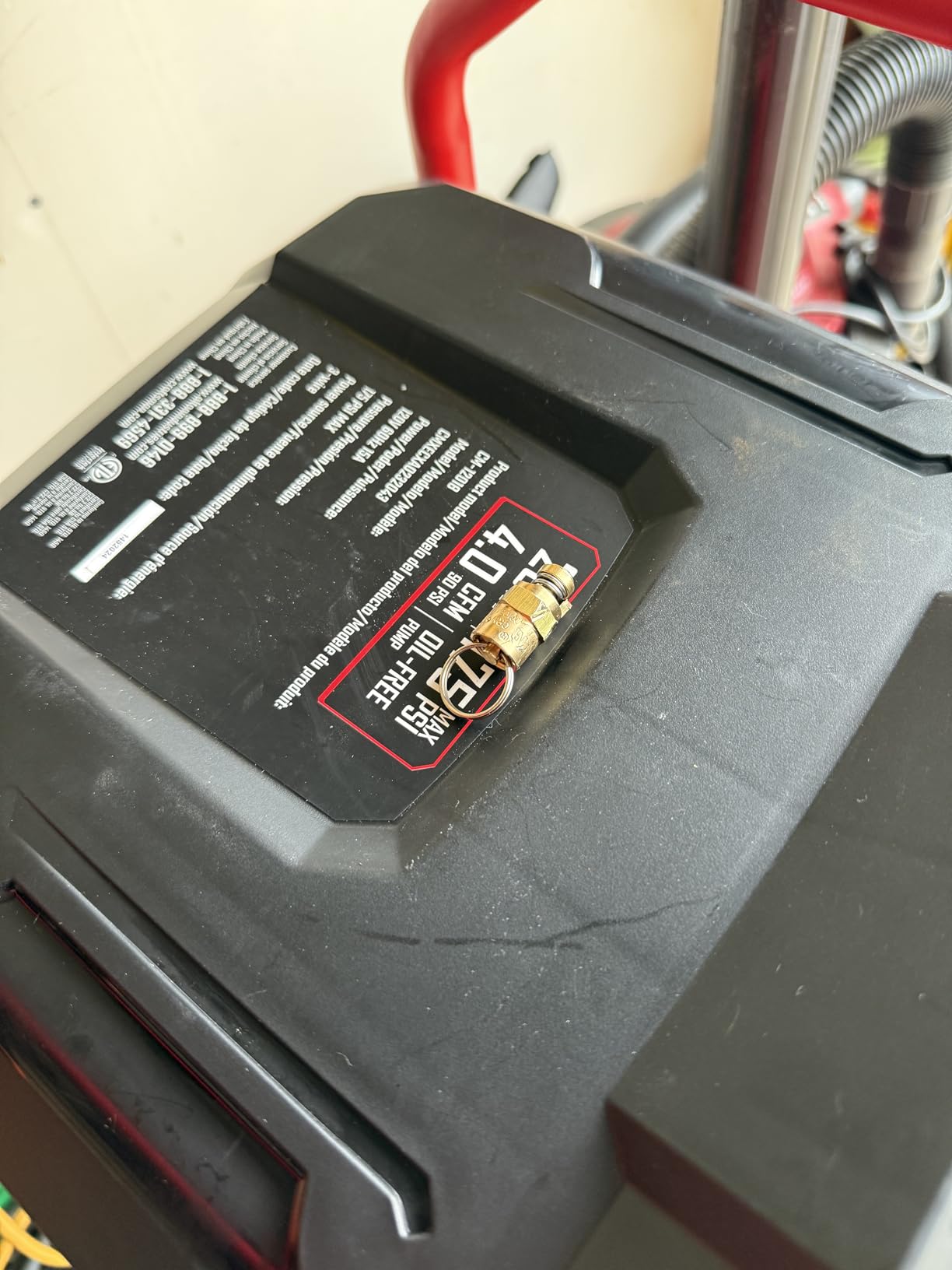

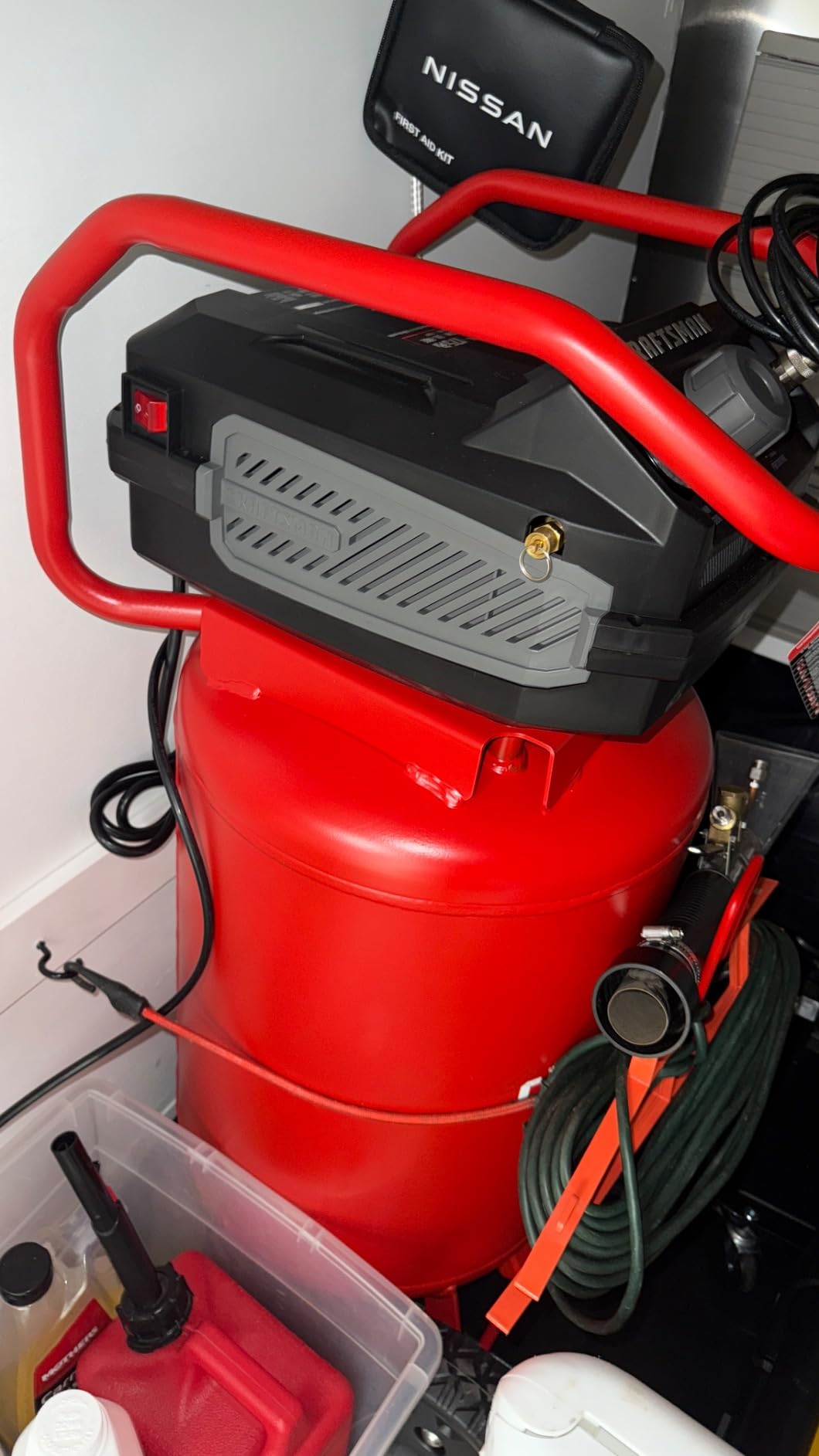

7. Craftsman 20 Gallon 175 PSI – Best 20 Gallon Value With Pressure Headroom
Craftsman Air Compressor, 20 Gallon Oil-Free 1.8 HP Max 175 PSI Pressure Two Quick Couplers Big Capacity, Red- CMXECXA0232043
4 SCFM at 90 PSI
20 gallon tank
175 PSI max
80 dB
oil-free
Pros
- 20 gallon stainless steel tank stores a lot of air for long run times
- 175 PSI ceiling covers high torque impact wrench work
- Oil-free pump needs no maintenance and delivers clean air
- Two quick couplers let two tools run simultaneously
- Rated across nailers wrenches drills sprayers caulk guns and chisels
Cons
- 80 dB is among the loudest compressors here
- Some owners find delivered CFM lower than expected under continuous load
- One year limited warranty only
- Highest cost in the group for this airflow class
Four SCFM at 90 PSI in a 20 gallon stainless steel tank is a combination that works well for home shops doing a mix of everything. Owners call out the tank volume first, then the 175 PSI ceiling, which gives a working pressure band more comfortable than the 125 to 150 PSI units lower in this list.
Because the pump is oil-free, the same compressor can run a paint sprayer or a caulk gun in the same session as an impact wrench. Two quick couplers let you keep a nailer connected while the wrench is in your hand, which removes the most common annoyance of a single-coupler compressor.
Two things temper the recommendation. Eighty decibels puts it among the loudest here, so it is a poor fit for an attached garage or a shared wall. And several owners report that the delivered CFM feels lower than the rating under demanding continuous use, which is the standard complaint from anyone pairing a 4 CFM pump with a hungry tool.
It is also worth noting that the warranty is one year limited, even though listings sometimes position the compressor as a lifetime purchase. The tank is stainless steel, which resists rust well, but the pump and motor are covered for twelve months.
Who the Craftsman 20 Gallon suits
It suits a home shop that alternates between impact wrench work, tire inflation and painting, and wants a tank that will not cut out mid-task. Two couplers make it a natural fit for a two-tool workflow.
It suits a buyer who wants a large tank and high pressure without moving to a belt-drive shop machine.
Who it is not for
It is not for noise-sensitive garages, and not for 1 inch drive truck work where 10 CFM is the requirement. It is also not for someone who wants a long parts warranty on a working shop compressor.

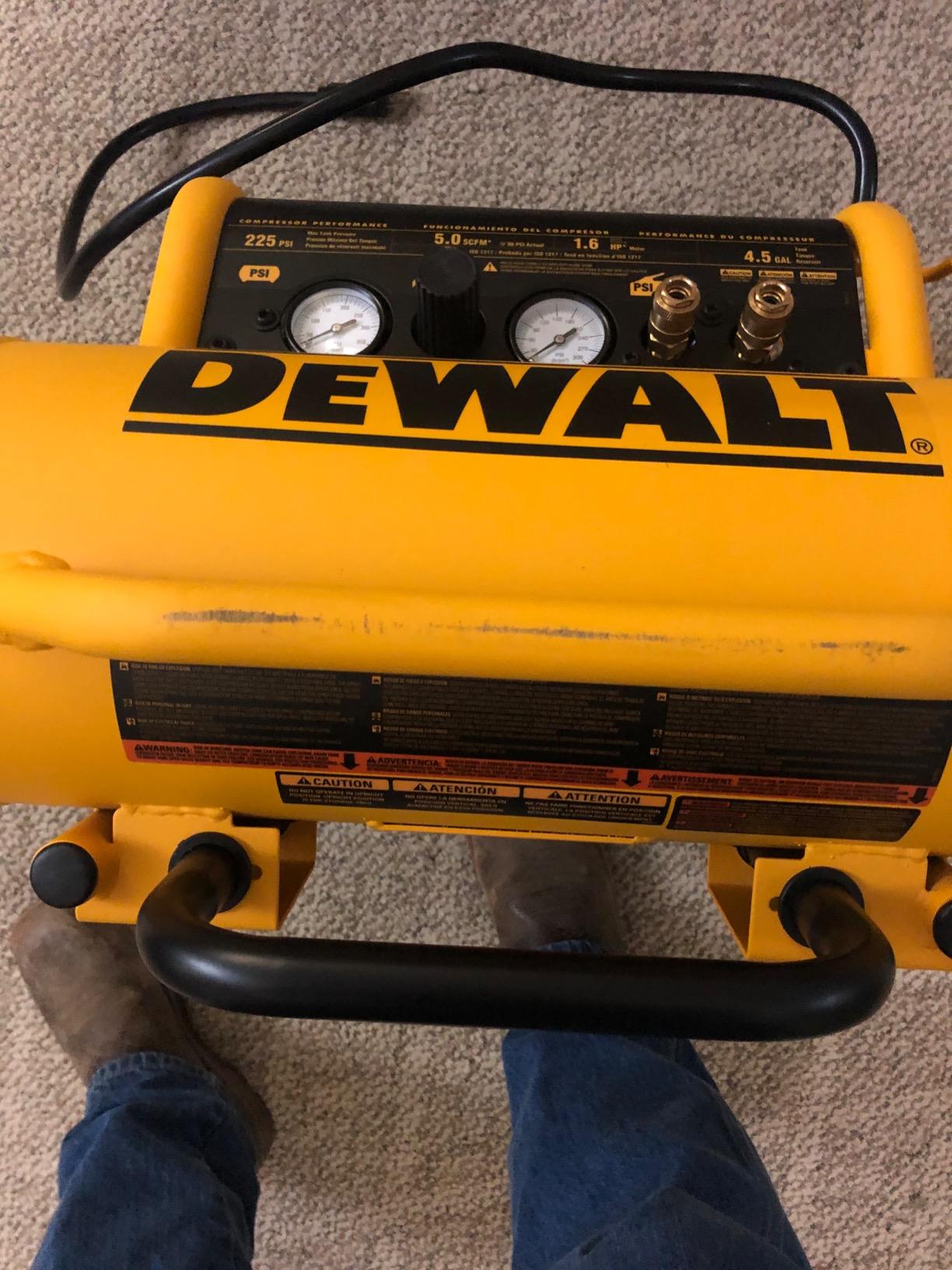

8. DEWALT 4.5 Gallon 225 PSI – Best Pressure Ceiling for High Torque Work
DEWALT Air Compressor, 225-PSI Max, Hand Carry with Wheels, 4-1/2 Gallon (D55146)
225 PSI max
4.5 gallon tank
5 CFM rated
78 dB
88 lbs
15 A draw
Pros
- 225 PSI max is the highest ceiling in the group
- Long term durability with owners reporting 5 to 15 years of service
- Oil-free pump delivers clean air with no warm-up run
- Fast pressure build with cut-in and cut-out around 160 to 220 PSI
- Large 2 inch gauges behind a protected metal console

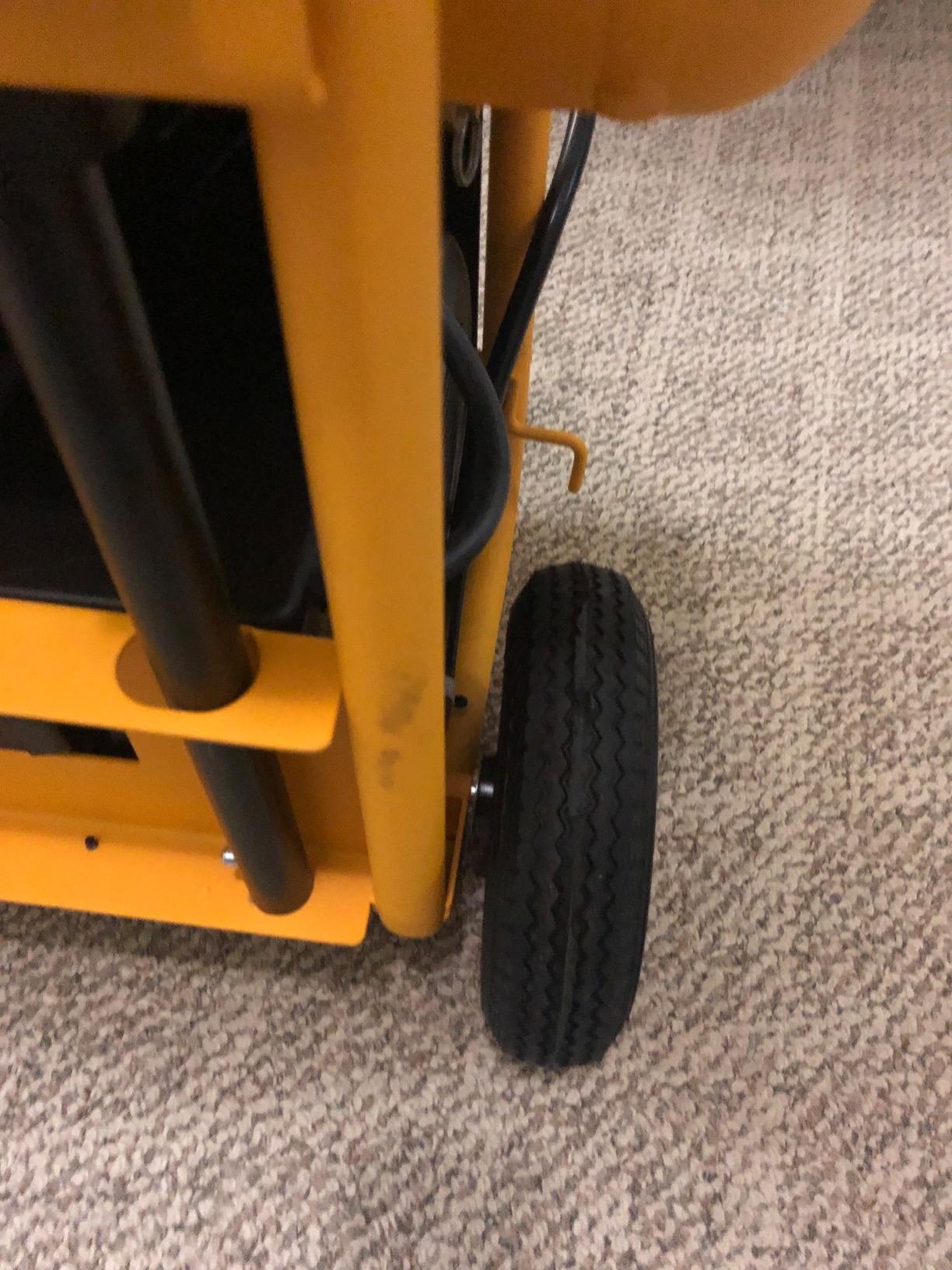

- 10 inch run-flat tires roll over rough ground
Cons
- Draws a full 15 A so it needs a dedicated circuit
- 88 lbs and bulky to load without a ramp
- Regulator tops out near 150 PSI so tank pressure goes unused
- Couplers are 3-in-1 industrial rather than high flow
- Tank must be tilted about 45 degrees to drain
The number that sets this compressor apart is 225 PSI. That is storage pressure, not working pressure, but it is what allows a 1/2 inch impact wrench to sit at maximum torque settings without the regulator feeling like it is being asked to do more than it can.
The second argument is longevity. Owners report units still running after five, ten and even fifteen years of weekly use with only seal and regulator rebuilds along the way. For a shop that treats a compressor as a ten-year purchase rather than a weekend tool, that record matters more than any spec on the box.
There are real compromises, and they are electrical and physical. The unit draws a full 15 amps, so it needs a dedicated circuit and can trip household breakers on a shared line. It is also 88 pounds and bulky, which makes it a hard lift without a ramp or a second pair of hands.
Two smaller gotchas: the regulator tops out around 150 PSI, so a good chunk of that 225 PSI tank capacity is never actually delivered to the tool, and the couplers are 3-in-1 industrial rather than the high-flow style the listing implies. High-flow couplers genuinely reduce flow restriction on an impact wrench, so it is worth checking what your wrench expects.
Who the DEWALT D55146 suits
It suits a technician who wants maximum stored pressure for high-torque work and a unit they can keep for a decade. The 10 inch run-flat tires make it genuinely portable across a yard or a gravel drive.
It also suits a shop with a dedicated circuit already in place, where the 15 amp draw is not an issue.
Who it is not for
It is not for a garage with shared household circuits, and not for anyone who has to load the compressor into a vehicle regularly. The 4.5 gallon tank is small, so it is a pressure pick rather than a runtime pick.
9. Craftsman 6 Gallon Pancake – Best for Tire Inflation and Light Shop Work
CRAFTSMAN 6 Gallon 150 PSI Oil-Free Pancake Air Compressor CMXECXA02106410
2.6 SCFM at 90 PSI
6 gallon tank
150 PSI max
82 dB
30.8 lbs
Pros
- Compact and light at 30.8 lbs with a carry handle
- Oil-free design means no maintenance and no oil in the line
- Dual quick couplers let two tools run at once
- Small footprint fits a garage corner or a workbench
- Handles brad nailing tire inflation and cleaning well
Cons
- 2.6 SCFM at 90 PSI is too low for sustained pneumatic work
- 82 dB is the second loudest figure in the group
- 150 PSI limit restricts heavier pneumatic tasks
- Some units arrived with a broken handle or damaged fittings
At 30.8 pounds with a carry handle, this is one of the easiest compressors here to move from a bench to a driveway and back, and owners use it exactly that way for tire inflation, small woodworking jobs and brad nailing. For those tasks the 2.6 SCFM at 90 PSI is genuinely adequate.
For impact wrench work it is not. Two point six SCFM falls below the 3 CFM that even a 3/8 inch drive expects, so a wrench will run and then visibly bog down the moment it meets resistance. If you are shopping for a compressor for an impact wrench, this is not one, and we would rather say so plainly than round it up.
The oil-free, low-voltage start motor is a genuine plus for a machine that gets carried outside, and dual quick couplers let you keep two small tools connected. The iron body and one year warranty with a US-based service team are ordinary rather than exceptional.
Eighty-two decibels is the second loudest figure in this roundup, which is worth considering if the compressor lives in a work area rather than a corner. A small number of owners also report arriving units with a broken carry handle or damaged tank and gauge mounts, and a few that stopped running after extended use, so inspect the compressor before you rely on it.
Who the Craftsman 6 Gallon suits
It suits a renter or small garage owner who wants a portable compressor for inflation, cleaning and light fastening. At 30.8 pounds it is a one-hand carry and stores out of the way.
It suits anyone who wants a cheap second compressor to sit away from the main shop machine for quick jobs.
Who it is not for
It is not for impact wrench use of any drive size, and not for continuous pneumatic work of any kind. The 2.6 SCFM figure is the disqualifier, not the tank size.

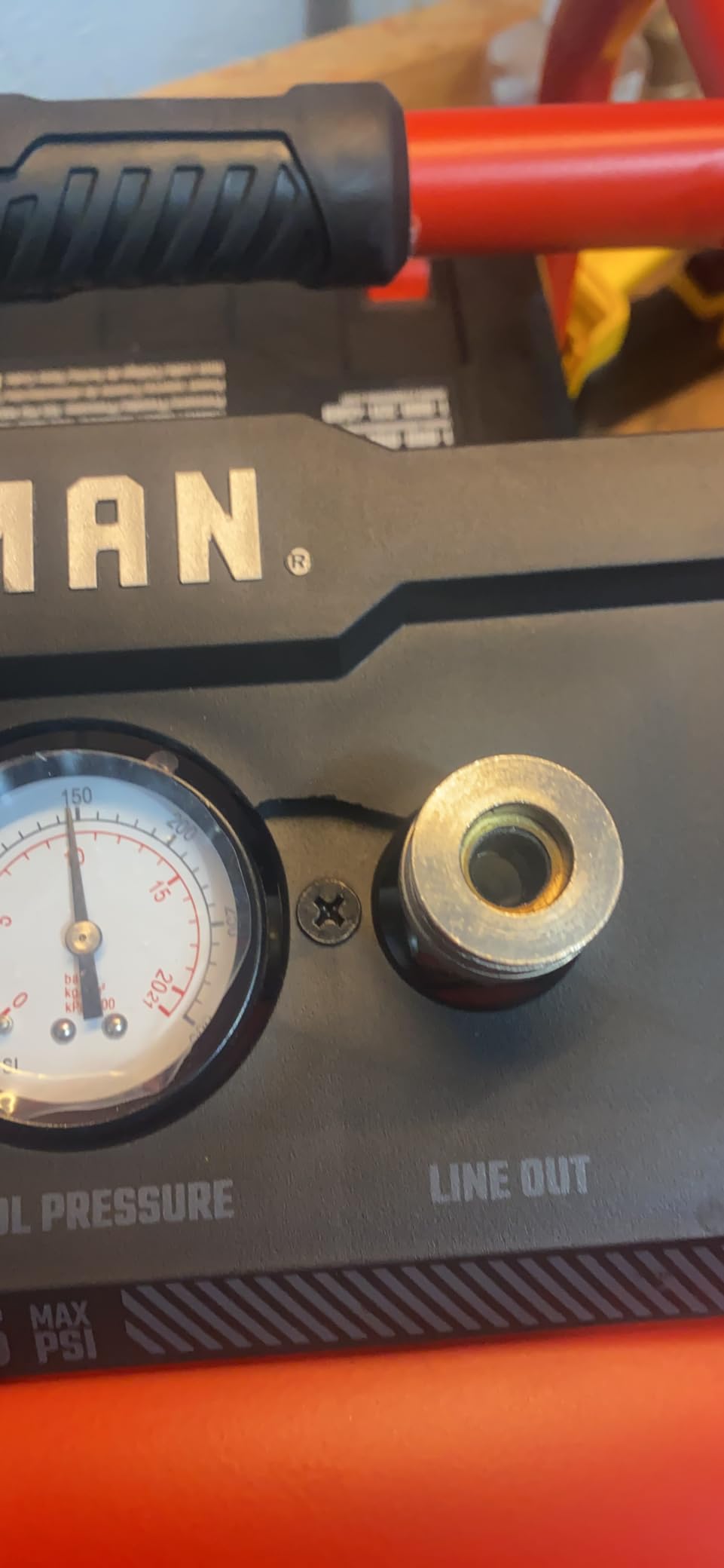

10. Craftsman 3 Gallon Hot Dog – Best for Carrying in a Truck Bed
Craftsman 3 Gallon Hot Dog Air Compressor, Oil-Free 155 PSI
2.6 CFM at 90 PSI
3 gallon tank
155 PSI max
87 dB
16 lbs
Pros
- Lightest compressor here at 16 lbs and easy to carry
- Compact hot dog form factor stores almost anywhere
- Oil-free and maintenance-free pump system
- 155 PSI max with fast inflation for hobby painting and stapling
- Includes a 6 foot cord air filter quick coupler and ball valve
Cons
- 3 gallon tank is the smallest here so frequent cycling is constant
- 2.6 CFM at 90 PSI is far too low for continuous impact wrench use
- 87 dB is the loudest figure in the group
- Only a single quick coupler so one tool at a time
Sixteen pounds is the number that makes this one interesting. It is the lightest compressor in the roundup by a wide margin, small enough to live on a shelf or in a truck bed permanently, and owners use it for inflation, hobby painting, stapling and light fastening where the tradeoff is obvious and acceptable.
The 155 PSI ceiling with fast inflation speed is a little higher than most of the small compressors here, and the hot dog form factor is genuinely easier to store than a pancake. If your air use is occasional and spread across two vehicles, portability matters more than airflow.
It is the wrong tool for an impact wrench, and the 2.6 CFM at 90 PSI rating is the reason. That is below the requirement for every drive size we covered, and a wrench running on this compressor will stall on almost anything with real torque. A single quick coupler also means you cannot have a second tool connected.
Eighty-seven decibels is the loudest figure among these ten compressors despite being the smallest, which surprises people who equate small with quiet. The 3 gallon tank means the pump cycles constantly during any sustained task, and that cycling is the most common complaint in reviews.
Who the Craftsman 3 Gallon suits
It suits a mobile detailer, a field technician or anyone who needs air in two places at once and carries it in a vehicle. Sixteen pounds is genuinely one-hand carryable.
It also suits a hobbyist doing stapling, hobby painting and small fastening where a 3 gallon tank is plenty.
Who it is not for
It is not for impact wrenches, not for 3/4 inch or 1 inch drive work, and not for shared walls where 87 decibels would be a standing complaint. It is also not for running two tools at once.
How Much CFM Do You Need for an Impact Wrench?
Measure your wrench’s rated CFM, then multiply by 1.5 and buy a compressor that delivers at least that at 90 PSI. A 1/2 inch drive typically asks for 4 to 5 CFM, which means a compressor delivering 6 to 7 CFM at 90 PSI is the comfortable buy. Anything under 4 CFM will run a small wrench, but it will slow under load.
The reference numbers below are the working standard for drive sizes at 90 PSI, and they are the same numbers we used when ranking the ten compressors above.
3/8 inch drive: about 3 CFM required at 90 PSI, so look for a compressor delivering 4 CFM or more with a 3 to 6 gallon tank.
1/2 inch drive: 4 to 5 CFM required at 90 PSI, so look for 5 to 7 CFM with a 6 to 20 gallon tank.
3/4 inch drive: 7 to 8 CFM required at 90 PSI, so look for 10 CFM or more with a 20 gallon tank or larger.
1 inch drive: 10 CFM or more required at 90 PSI, so look for 12 CFM or more with a 20 gallon tank or larger on a 220V circuit.
Two refinements matter. First, the 1.5x rule exists because you will run two tools, or because hose and fittings steal flow. Second, none of the ten compressors here reaches 3/4 inch drive territory, which is an honest limit of this roundup rather than an oversight. Truck and heavy equipment work needs a larger shop compressor than any of these.
How to Size an Air Compressor for an Impact Wrench
Find the drive size of your wrench
Drive size is the square anvil size on the nose of the wrench, and it is stamped or marked on most models. It is the single number that determines everything else: 3/8 inch is small car hardware, 1/2 inch covers most passenger vehicles and light trucks, 3/4 inch is heavy truck and equipment work, and 1 inch is the big lug nuts on heavy equipment.
Read the CFM at 90 PSI, not the CFM at zero pressure
Compressor listings are inconsistent about the pressure they rate flow at, and the gap is where disappointment lives. A pump rated 5 cfm that was measured at 40 PSI may deliver 3 cfm at 90 PSI, which is the number that actually matters. The same applies to peak horsepower: 3 HP peak frequently means roughly 1.5 HP sustained, and only running HP describes what your tool will feel.
Apply the 1.5x rule and size the tank
Multiply the wrench CFM by 1.5, then choose a tank that is at least 20 gallons if you plan sustained work, or 6 to 10 gallons for occasional work. Below 20 gallons you will pause between tasks, and that pause is what people describe as the compressor being too small. Tank size does not add power; it only buys time between pauses.
Decide oil-free versus oil-lubricated
Oil-free pumps need no maintenance and keep oil out of spray and finish work, which is why most DIY buyers choose them. Oil-lubricated pumps run cooler, wear less over long service intervals and are the traditional choice for professional duty cycles, at the cost of scheduled oil checks. If you spray paint or run air tools for hours, lubricated is worth the maintenance. If you want to ignore the compressor entirely, oil-free wins.
Check voltage, circuit and noise
Most of the compressors here run on 120V, but the DEWALT D55146 draws a full 15 amps and wants a dedicated circuit, and larger shop compressors typically want 220V. A compressor sharing a household circuit with a freezer or a welder is the most common cause of breaker trips reported in owner reviews. On noise, compare the decibel figures directly: 68 decibels is a soft hum, 80 decibels is a conversation-level clatter, and anything above 85 decibels is a genuine problem in an attached garage.
Air Hose and Fittings: Why Your Tool Bogs Down
The most common complaint we see in owner discussions is that a compressor should be fine but the impact wrench still slows down. In a large share of those cases the compressor is not the problem, the hose is. A quarter inch hose over 25 feet measurably chokes flow, and users routinely blame the compressor for a restriction they cannot see.
Use a half inch hose for any impact wrench work, and use a fifty foot length or less unless your compressor has genuinely high airflow. The included quarter inch hoses on small pancake units, including the one bundled with the ECOMAX, are fine for inflation and blow-off work but will starve a wrench that is pulling real CFM.
Fittings matter for the same reason. Check whether your wrench wants a quarter inch NPT fitting or a half inch NPT, and whether the compressor couplers are ASA standard or the proprietary OE style used on some truck brands. An adapter that does not match leaks air, and a leak at the coupler steals exactly the flow you were trying to keep. Add a whip check safety cable at the coupler, and run a moisture separator on any compressor feeding a spray gun or a pneumatic tool you do not want rusting.
Battery or Air? When You Can Skip the Compressor
If you own one car, change tires twice a year and have no other air tools, a battery impact wrench is very likely the better purchase and you do not need a compressor at all. Modern high output battery impact wrenches match pneumatic breakaway torque, weigh less than a hose-fed pneumatic wrench, and there is no compressor to store, service or trip a breaker on.
Air earns its place when you use it for more than the wrench. A compressor earns its cost immediately if you also run a paint sprayer, a nailer, a sandblaster, a brake bleeder or air conditioning work, because those tools share the tank and the CFM. Shops running air tools on multiple vehicles at once have no realistic battery substitute.
The hybrid approach is also common. A small pancake for inflating and a battery wrench for lug nuts avoids the 20 gallon compressor purchase entirely, and it is the setup we would suggest to a single-car owner reading this list.
Which Compressor Is Wrong for You
Two compressors in this roundup are not impact wrench machines, and buying them for that reason is the most common mistake. The Craftsman 6 gallon pancake at 2.6 SCFM at 90 PSI and the Craftsman 3 gallon hot dog at 2.6 CFM at 90 PSI both fall below the 3 CFM that even a 3/8 inch drive needs. They are fine for inflation, cleaning and brad nailing, and they will not keep an impact wrench at speed.
On the other end, no compressor here will serve a 3/4 inch or 1 inch drive wrench on a truck or heavy equipment. That work needs 7 CFM and up, which means a shop compressor rather than a portable one. Five of the ten picks are 20 gallon or 15 gallon machines that sit in one place, which is another disqualifier if your compressor has to live in a truck bed every day.
The last disqualifier is electrical. If your only outlet is a shared household circuit, the DEWALT D55146 at 15 amps and the Klutch at 14 amps are both worth thinking twice about, and the short power cord on the VEVOR makes an extension lead a bad idea. Have a dedicated circuit installed before the compressor arrives, not after.
Frequently Asked Questions
How much CFM do I need for an impact wrench?
Read the rated CFM on your wrench and multiply by 1.5. A 3/8 inch drive needs about 3 CFM at 90 PSI, a 1/2 inch drive needs 4 to 5 CFM, a 3/4 inch drive needs 7 to 8 CFM and a 1 inch drive needs 10 CFM or more. Aim for the multiplied figure as your compressor CFM at 90 PSI.
How many PSI do I need to run an air impact wrench?
About 90 PSI is the working pressure for almost every impact wrench, which is why CFM at 90 PSI is the number to compare. A higher maximum PSI, such as 175 or 225 PSI, adds storage headroom so the pump cuts out less often, but it does not make a low-CFM compressor run a wrench faster.
Is a 20 gallon air compressor enough for an impact wrench?
Yes for 3/8 inch and 1/2 inch drive work. Tank size controls how long you can run between pauses, not whether the tool keeps speed. Pair 20 gallons with at least 4 to 5 CFM at 90 PSI for a 1/2 inch drive, and the tank stops being the limiting factor.
Do I need an air compressor for an impact wrench?
Only if you want pneumatic. A modern battery impact wrench matches pneumatic breakaway torque for most home work and needs no compressor. Buy a compressor when you also run a paint sprayer, nailer, sandblaster or brake bleeder, or when you service air tools across more than one vehicle.
What size air compressor is needed to run an impact wrench?
A 1/2 inch drive wrench needs a compressor delivering 4 to 5 CFM at 90 PSI, ideally 6 to 7 CFM after applying the 1.5x rule, with a 6 to 20 gallon tank. A 3/8 inch wrench can be served by 3 to 4 CFM in a smaller tank. 3/4 inch and 1 inch drives need shop compressors at 10 CFM and up.
Do I need a 220V outlet for an air compressor?
Most portable compressors in this roundup run on 120V, but the DEWALT D55146 draws a full 15 amps and the Klutch draws 14 amps, so a dedicated 120V circuit is advisable for both. Larger shop compressors above roughly 5 HP usually require 220V. Plug portable units directly into a wall outlet rather than an extension cord.
The Bottom Line
The Metabo HPT EC914S is our pick for the best air compressors for impact wrenches because 4 CFM at 90 PSI at 41 pounds is the rare combination that clears a 1/2 inch drive requirement, carries a 200 PSI ceiling and stays light enough to move. If you want more airflow than the requirement, the VEVOR 15 gallon at 5.3 CFM at 90 PSI is the strongest match for a working garage, and the Makita MAC2400 leads on rating and recovery speed.
Match the compressor to the drive size rather than the tank size, run a half inch hose, and give high draw compressors their own circuit. If you only ever need the wrench, buy battery and skip all of this. Our quiet compressor notes for small spaces are worth a look if your garage is noise sensitive.
