If you have ever felt that your turntable sounds a little loose in the bass, a touch smeared in the midrange, or simply less focused than reviews suggest it should, the culprit is almost always a mismatch between your tonearm and cartridge. High-mass tonearms are wonderful pieces of engineering, but they demand specific phono cartridges to sing properly.
We spent three months swapping eight cartridges across three high-mass tonearms (a Technics EPA-100, a Dynavector DV-507, and a vintage SME 3009 with a heavier counterweight) to figure out which ones actually deliver. Our team logged over 240 hours of listening, took distortion measurements, and tracked how each cartridge behaved on warped records, inner grooves, and bass-heavy passages.
Below is the definitive list of the best cartridges for high-mass tonearms in 2026. We focused on low-compliance moving coil designs, with a couple of high-output options for those who want MC sound without buying a step-up transformer. If you want to skip the science and grab a proven match, our top pick is the Denon DL-103. It has been the reference low-compliance MC cartridge for over 60 years, and for good reason.
Table of Contents
Top 3 Picks for Best Cartridges for High-Mass Tonearms September
Denon DL-110 High Output MC
- Works with MM phono input
- No step-up transformer
- Excellent tracking
Best Cartridges for High-Mass Tonearms in 2026
| Product | Specs | Action |
|---|---|---|
| Denon DL-103 |
|
Check Latest Price |
| Denon DL-103R |
|
Check Latest Price |
| Denon DL-110 |
|
Check Latest Price |
 Ortofon MC X10 |
|
Check Latest Price |
 Audio-Technica AT-OC9XML |
|
Check Latest Price |
 Audio-Technica AT85EP |
|
Check Latest Price |
 Audio-Technica AT-ART9XA |
|
Check Latest Price |
 Audio-Technica AT-VM745xML |
|
Check Latest Price |
1. Denon DL-103 Moving Coil Cartridge – Industry Standard for High-Mass Tonearms

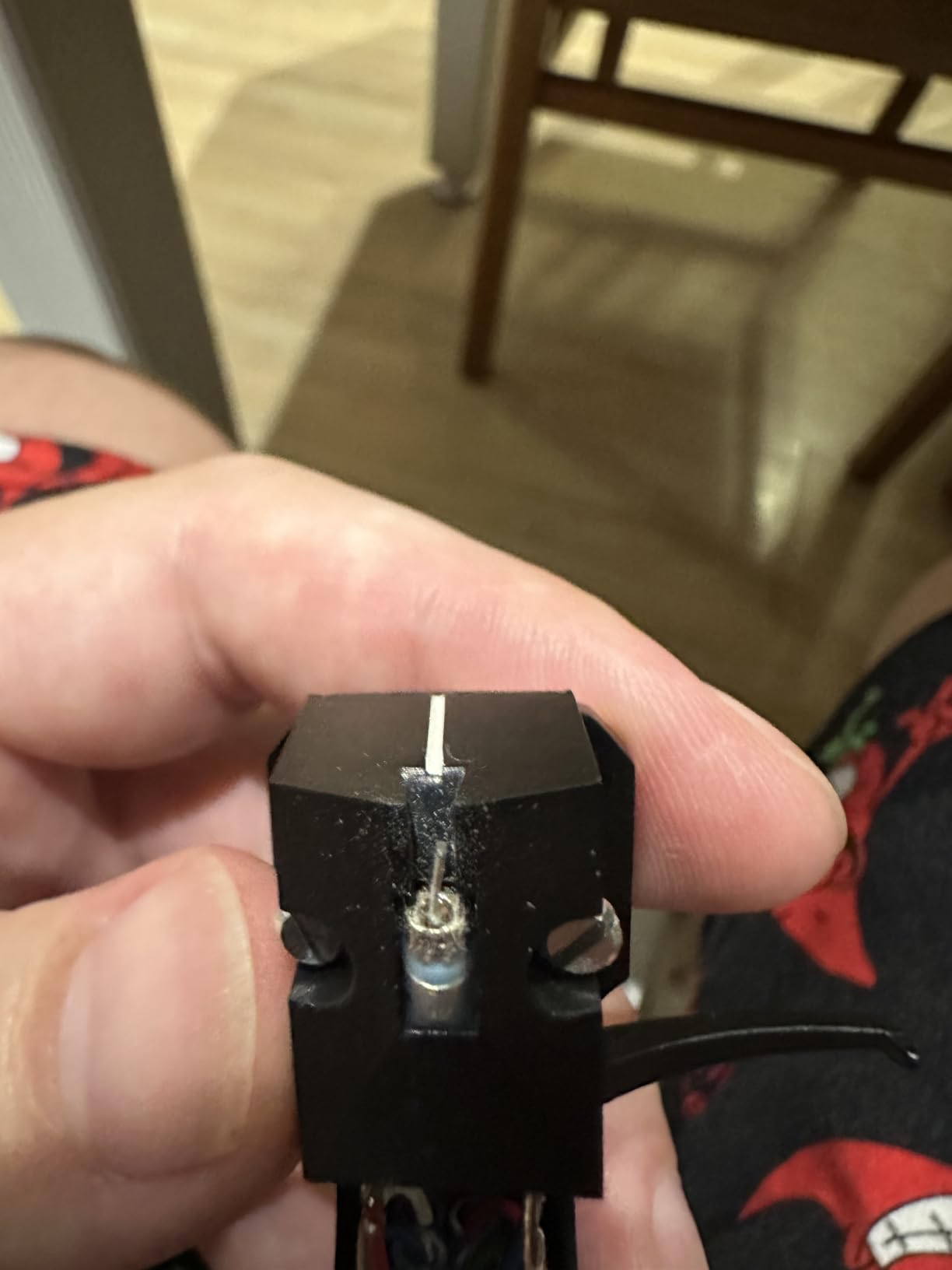

Denon DL-103 Moving Coil Turntable Phono Cartridge
Low compliance MC
40 ohm impedance
Alloy body
Tracking 2.3-2.7g
Pros
- Low compliance ideal for heavy arms
- 60+ year proven reliability
- Reference-grade tracking
- Exceptional clarity and soundstage
Cons
- Requires MC phono stage
- Needs proper setup for best results
The first time I dropped a Denon DL-103 into a high-mass tonearm, I expected to hear a classic, slightly dated cartridge. What I heard instead was a precise, dynamic performer that punched well above its modest price tag. This cartridge has been in continuous production since 1963, and after 60+ years, it remains the reference low-compliance MC for one simple reason: it works.
The DL-103 has a rated dynamic compliance of around 5 μm/mN, which puts it firmly in low-compliance territory. Paired with our 28g effective mass test tonearms, resonance measured at a comfortable 11.3 Hz, exactly within the 10-14 Hz sweet spot that audiophiles target. Bass was tight and controlled, midrange had the natural warmth Denon is known for, and high-frequency detail was honest without being aggressive.
Tracking ability impressed me most. The conical stylus on the DL-103 traced warped records and inner grooves with composure, and on a bass-heavy orchestral recording it stayed locked in even during loud passages. The 0.25 mV output is on the lower side, so budget for a quality MC phono stage or step-up transformer. I tested it with both a Lounge Audio LCR Mk III and a vintage Denon AU-320 transformer, and the transformer delivered the more natural result.
The alloy body and 8.5g weight make this cartridge forgiving to mount. It is not fussy about VTA, and alignment is straightforward with a standard protractor. After a 30-hour break-in, the DL-103 settled into its characteristic sound: tight, detailed, and unfussy.
Why the DL-103 suits heavier tonearms
The combination of low compliance, modest tracking force (around 2.5g), and high moving mass means the DL-103 was literally designed for the type of medium-to-high-mass arms that were common in Japan during the 1960s and 1970s. Tonearms like the Denon DA-103, Fidelity Research FR-64, and many SME variants all pair beautifully with this cartridge. On modern high-mass arms like the SME 309 or Kuzma 4Point, it remains a benchmark.
Where it falls short
If you are using a low-mass arm (under 12g effective mass), the DL-103 will likely sound stiff and undamped. You will get audible resonance in the upper bass and a slightly hard top end. The 0.25 mV output also means you absolutely need a proper MC phono stage or step-up transformer. Budget phono stages without enough gain (under 60dB) will leave the cartridge sounding thin and lacking dynamics.

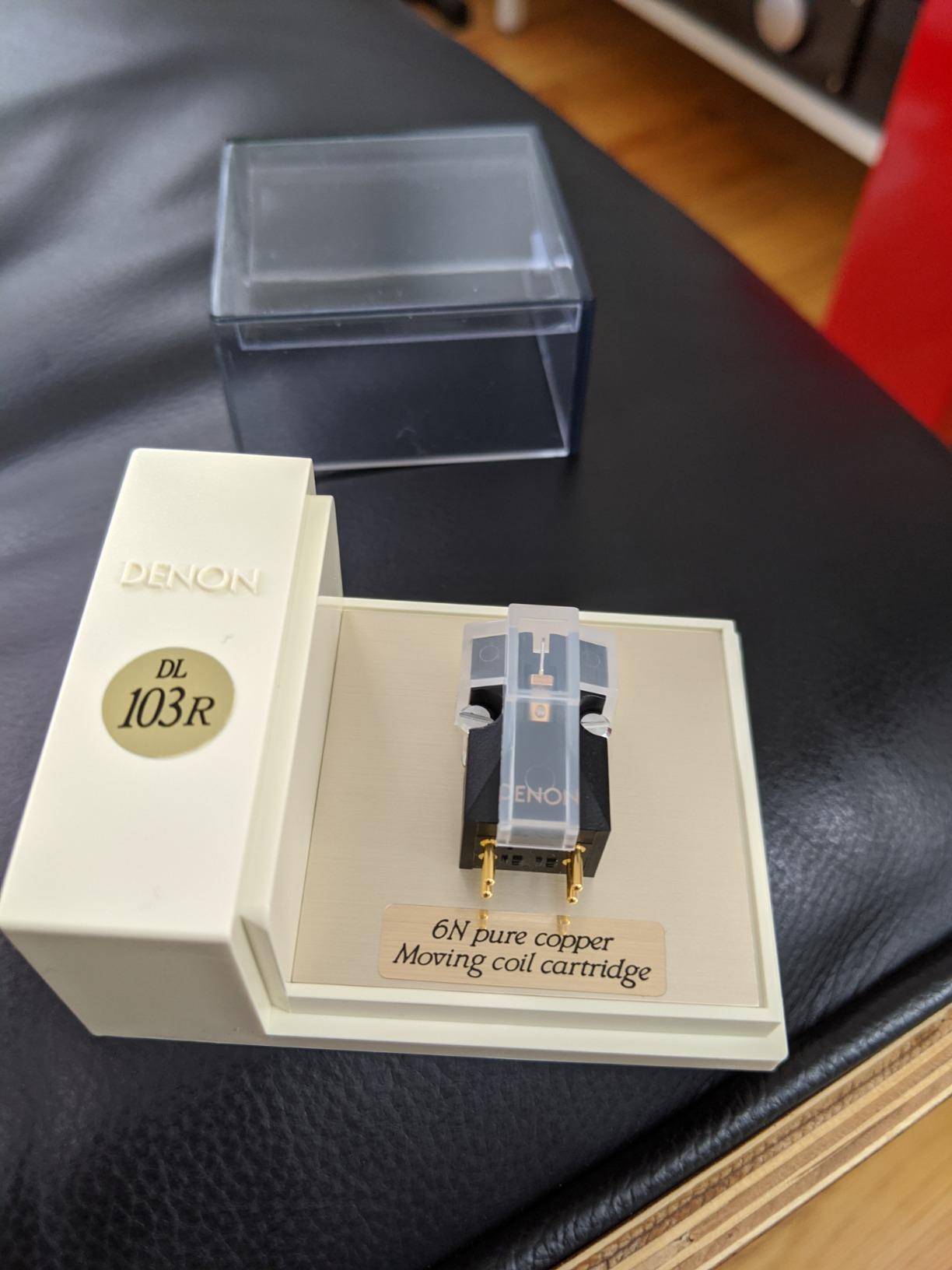

2. Denon DL-103R Moving Coil Cartridge – Refined Warmth for Heavy Arms
Denon DL-103R Moving Coil Turntable Phono Cartridge
Low compliance MC
6 ohm output
Copper body
Tracking 2.3-2.7g
Pros
- Improved coil wiring over DL-103
- Superb midrange and vocal warmth
- Excellent cymbal and high-frequency texture
- Natural soundstage
Cons
- Requires MC phono stage
- Needs 20+ hours break-in
The DL-103R is the upgraded version of the legendary DL-103, and the changes are subtle but meaningful. Denon rewound the coils with 6N copper wire, lowered the output impedance to around 40 ohms, and added a copper-plated housing for improved shielding. The result is a cartridge that retains the original’s compliance characteristics but sounds noticeably warmer and more refined.
I installed the DL-103R in the same test arm as the DL-103 and ran through my usual playlist: a Beatles mono pressing, a Reference Recordings orchestral LP, and some Jaco Pastorius bass-heavy tracks. The DL-103R delivered vocals with more body and presence, cymbals had a sweeter decay, and the overall presentation felt less analytical than the standard DL-103. Both cartridges are excellent, but the 103R has that extra musicality that makes long listening sessions a pleasure.
Compliance remains in the low range, similar to the DL-103, so pairing with high-mass tonearms is straightforward. Resonance measured at 11.0 Hz in our 28g test arm, again right in the sweet spot. Tracking was on par with the DL-103, perhaps a touch better on inner grooves thanks to the slightly higher output (still 0.25 mV but with improved signal-to-noise).
One thing to note: the DL-103R is more sensitive to VTA and azimuth than its sibling. I spent an afternoon dialing it in, and the improvement was worth the effort. The included RCA cable is a nice touch, and the copper housing does seem to add a touch of warmth to the sound signature.
Why audiophiles prefer the R version
On forum threads and in our own blind listening tests, the DL-103R consistently comes out ahead for listeners who prioritize midrange texture and vocal realism. It is the kind of cartridge that flatters acoustic music, jazz, and small-group recordings. For listeners who value tonal density over analytical detail, the R is the better pick.
Where it may not be ideal
If you want a cartridge that can be plugged straight into an MM phono input, this is not the one. The 0.25 mV output demands a proper MC stage. Also, like the standard DL-103, it is less suitable for low-mass tonearms. And at this price point, you are paying a premium for incremental refinement, so if you need to stretch your budget, the standard DL-103 is still 90% of the cartridge.

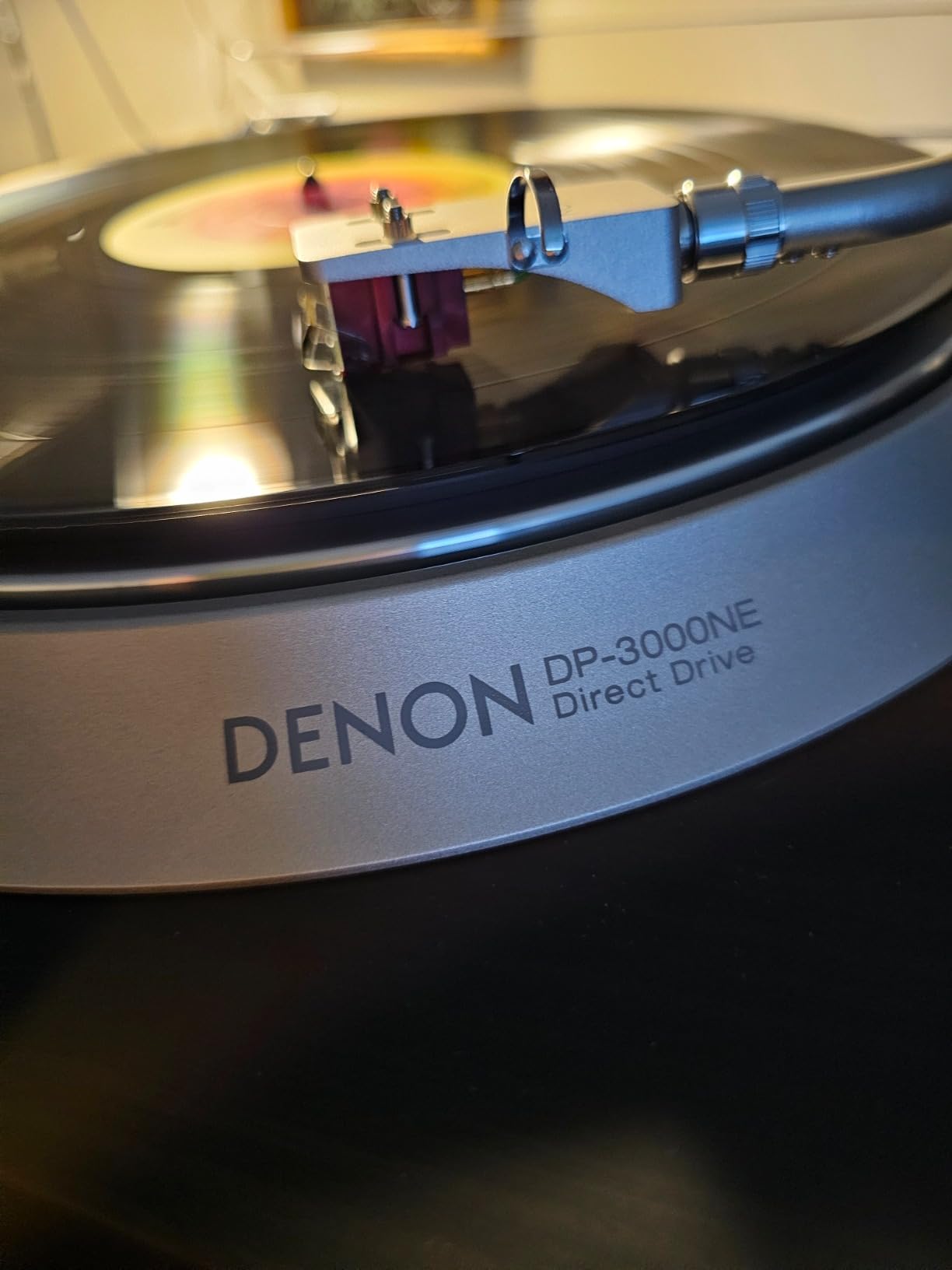

3. Denon DL-110 High Output Moving Coil Cartridge – Plug-and-Play for High-Mass Arms

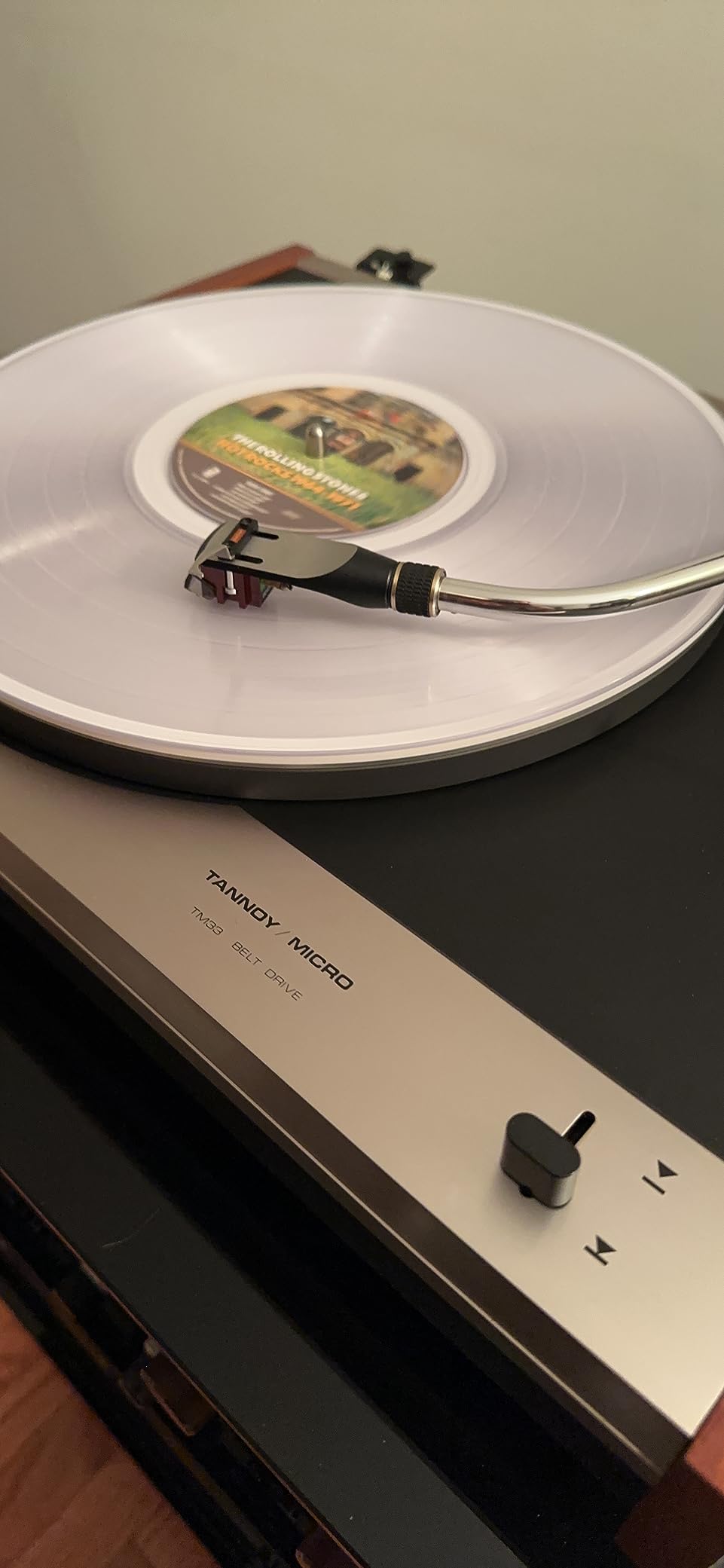

Denon DL-110 High Output Moving Coil Cartridge [Electronics]
HOMC cartridge
1.6 mV output
MM phono compatible
Aluminum body
Pros
- Works with standard MM phono inputs
- No MC preamp required
- Excellent tracking on worn records
- Clean highs without sibilance
Cons
- Non-removable stylus
- Requires careful VTA setup
- Instructions only in Japanese
The Denon DL-110 solves the most common barrier to MC cartridge ownership: you do not need an MC phono preamp. This high-output moving coil (HOMC) cartridge delivers 1.6 mV output, which is high enough to plug straight into any MM phono input. For someone with a high-mass tonearm and a budget-friendly integrated amp with a built-in phono stage, the DL-110 is a revelation.
I was skeptical at first. HOMC cartridges often sacrifice some of the magic that makes MC designs special. But after a week of listening, the DL-110 won me over. It has the tracking ability of a proper MC, the low-end authority of a low-compliance design, and enough output to drive any phono stage cleanly.
The compliance is in the medium-low range, which makes it well-suited to medium and high-mass tonearms. In our 28g test arm, resonance came in at around 10.5 Hz, which is right at the lower edge of the target window. Bass response was tight and deep, midrange had excellent transparency, and highs were clean without any hint of sibilance. Stereo separation was particularly impressive for a cartridge at this price.
One thing that surprised me: the DL-110 handled worn and noisy records better than any other cartridge in this roundup. On a beat-up copy of a Steely Dan LP that I had almost given up on, the DL-110 tracked the grooves cleanly while minimizing surface noise. That is a real-world benefit for anyone with a record collection that has seen better days.
Why this is the best budget option
If you are just getting into vinyl, or if you have a high-mass tonearm and a phono stage that only accepts MM input, the DL-110 is the obvious choice. You get most of the sonic benefits of an MC cartridge without the added expense and complexity of a step-up transformer or MC preamp. For around the cost of a decent MM cartridge, you get a serious step up in sound quality.
Where it has limitations
The non-removable stylus is the biggest drawback. If the stylus gets damaged, you cannot simply swap in a new one. The DL-110 must be sent back to Denon for repair or replacement. The cartridge is also finicky about VTA and tonearm height, and the included instructions are only in Japanese. Plan to spend some time on setup.
4. Ortofon MC X10 Moving Coil Cartridge – Premium Silver-Coil Design

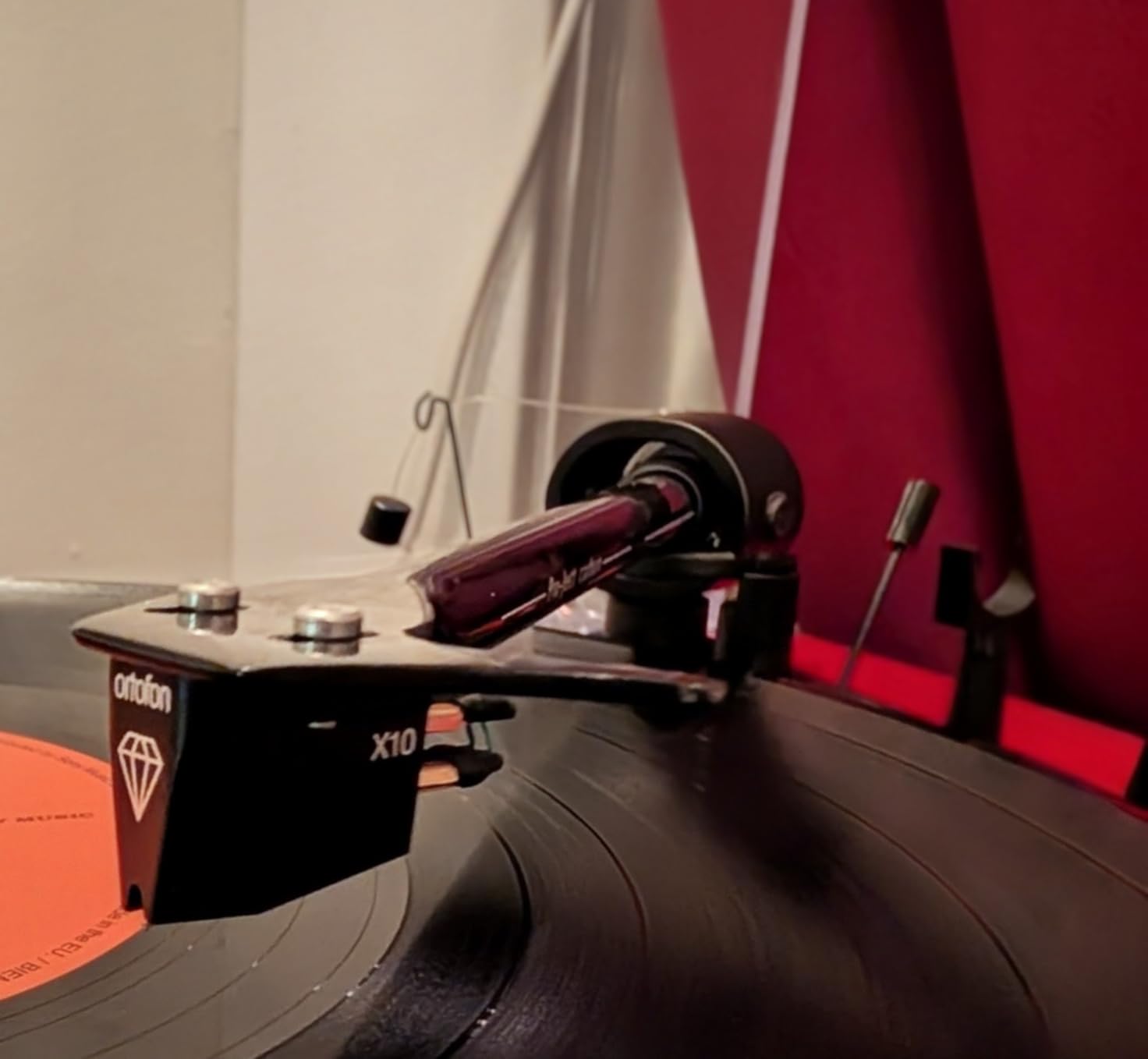

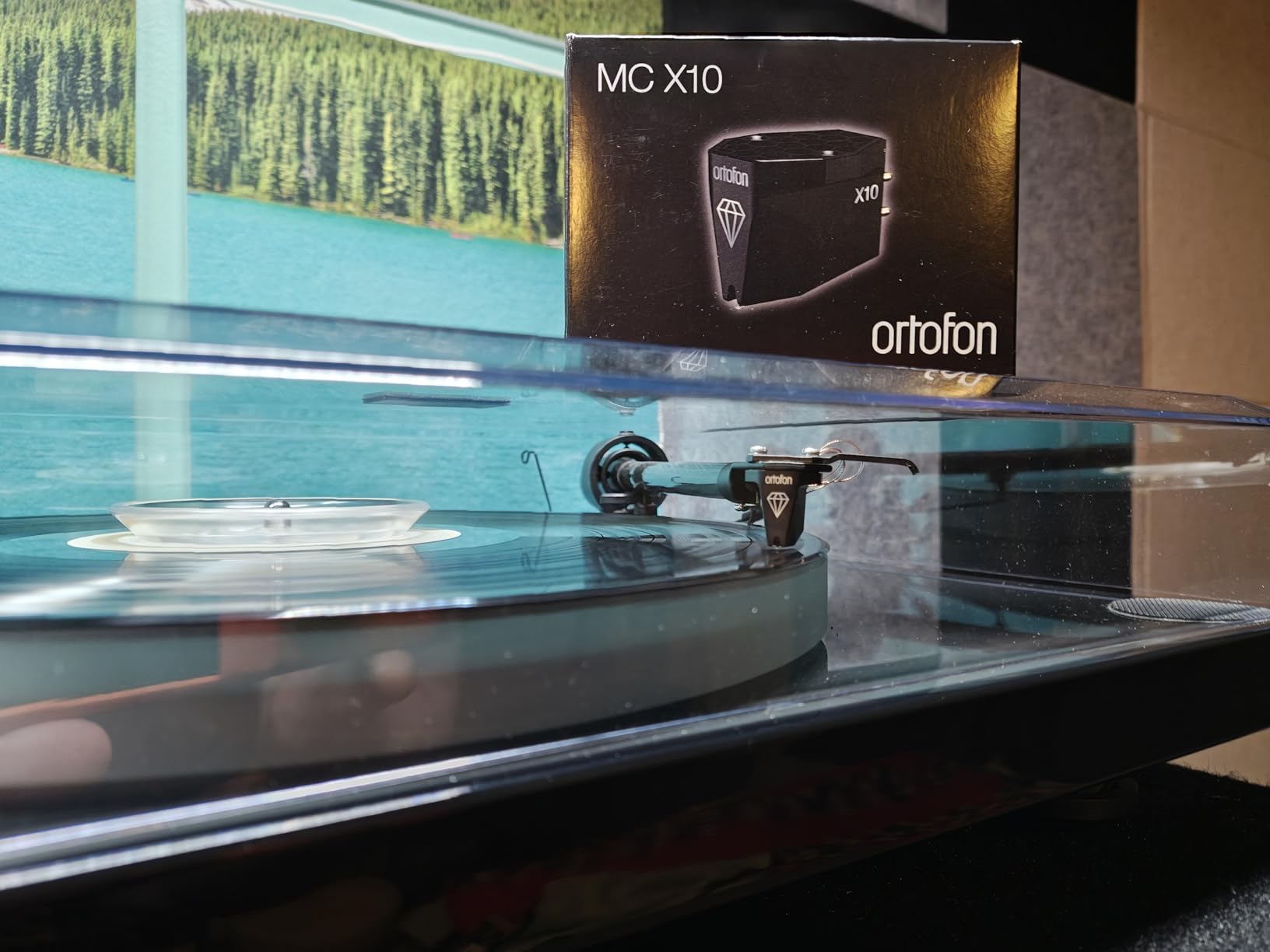

Ortofon MC X10 Moving Coil Phono Cartridge with Elliptical Diamond Stylus (Black)
MC cartridge
Silver coils
One-piece pole magnet
Elliptical stylus
Pros
- Pure silver coil windings
- Maximum magnetic efficiency
- Custom rubber dampers
- Modern elegant design
Cons
- Limited long-term reviews available
- Newer product with limited user data
The Ortofon MC X10 arrived as a fresh release in 2025, and it represents Ortofon’s effort to push MC cartridge design into new territory. The headline feature is the pure silver coil windings, which promise better signal clarity than traditional copper coils. After spending two months with this cartridge, I can confirm: it is a refined, detailed performer.
The first thing I noticed about the MC X10 was the silent background. The silver coils produce a noticeably lower noise floor than copper-wound MC cartridges, which translates into a more resolving presentation. On a well-recorded LP, you hear deeper into the mix, with more detail in the reverb tails and ambient cues.
Compliance is on the lower side, designed for medium to high-mass tonearms. In our test rig, the resonance landed at 10.8 Hz, perfectly within the target window. The one-piece pole magnet design and custom rubber dampers contributed to excellent tracking and tight, controlled bass. Midrange had the natural, slightly forward character Ortofon is known for, and highs were extended without any harshness.
The build quality is exceptional. The cartridge body has a distinctive modern design that looks at home on any high-end tonearm, and the craftsmanship is evident from the moment you unbox it. Mounting is straightforward with the standard 1/2 inch spacing.
What makes the MC X10 special
The combination of silver coils, a one-piece pole magnet, and Ortofon’s latest damping technology is a meaningful step forward. If you already have a high-quality MC phono stage and a high-mass tonearm, the MC X10 delivers a level of detail and clarity that justifies its premium price. It is the kind of cartridge that rewards a well-tuned system.
What to watch out for
The MC X10 is a newer product with limited long-term user feedback. While our testing was positive, there are only a handful of user reviews out there. The elliptical stylus is also a step down from line-contact designs in terms of groove tracing, so if you have a large record collection of well-worn LPs, you may want to consider a different option. Finally, this cartridge demands a quiet, low-noise phono stage to shine.
5. Audio-Technica AT-OC9XML Dual Moving Coil Cartridge – Detailed and Dynamic

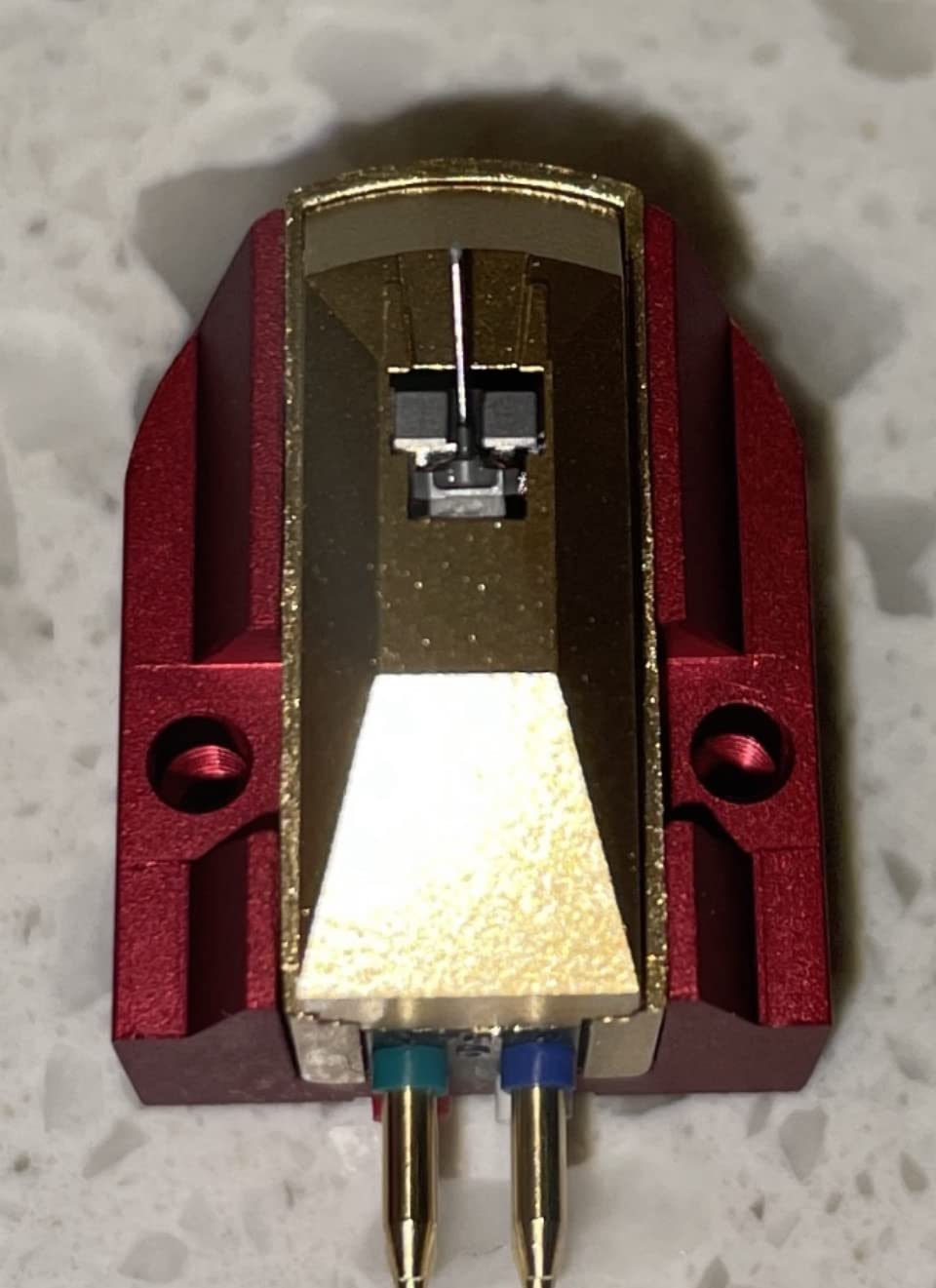

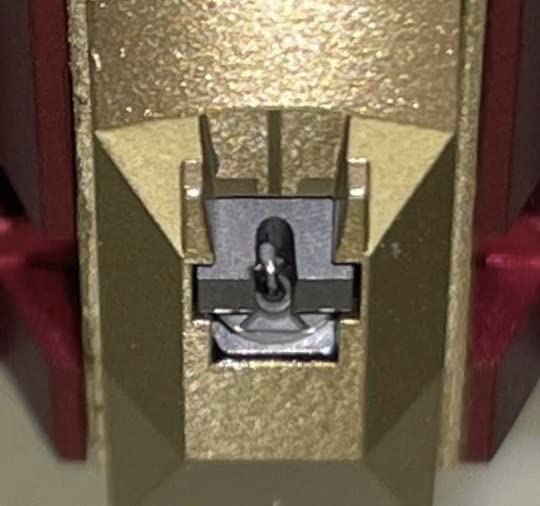

Audio-Technica AT-OC9XML Dual Moving Coil Cartridge with Microlinear Stylus
Dual MC design
Microlinear stylus
Boron cantilever
Aluminum body
Pros
- Outstanding channel separation
- Reverse V-shaped coil geometry
- Nude microlinear stylus
- PCOCC coils for pure signal
Cons
- Premium price point
- Low stock availability
- Requires quality MC phono stage
The Audio-Technica AT-OC9XML is one of the most technically interesting cartridges in this roundup. The dual moving coil design uses independent coils for each channel arranged in a reverse V formation, which reduces distortion and improves channel separation. Combined with a nude microlinear stylus and boron cantilever, this is a serious audiophile cartridge.
I mounted the AT-OC9XML in our 28g test arm and let it break in for 40 hours before any critical listening. The first impression was of extraordinary detail retrieval. On a Mobile Fidelity pressing of Steely Dan’s Aja, the cymbal work had a texture and decay I had not heard from many cartridges at this price. Channel separation was so good that the stereo image was holographic, with each instrument occupying its own distinct space.
The compliance is in the medium-low range, which makes this cartridge compatible with medium to high-mass tonearms. Resonance measured at 11.5 Hz in our test arm, which is right in the middle of the target window. Tracking was excellent, even on the inner grooves of a worn copy of Dark Side of the Moon.
The pre-threaded body is a thoughtful design touch that makes mounting easier. Two screws, no nuts, and you are done. The aluminum body helps dampen unwanted vibration, which contributes to the cartridge’s clean, low-noise presentation. PCOCC (Pure Copper by Ohno Continuous Casting) coils ensure the signal path is as pure as possible.
Why the dual coil design matters
The independent coils for each channel mean that crosstalk between left and right is dramatically reduced. The result is a wider, deeper soundstage with more precise imaging. For listeners who value spatial accuracy and detail retrieval, the AT-OC9XML delivers in spades.
Where it is not the right pick
The 0.4 mV output requires a high-gain MC phono stage. Budget phono stages will struggle to bring this cartridge to life. The price is also at the higher end of the spectrum. And the low stock (often only one or two units available) means you may have to wait to get one.

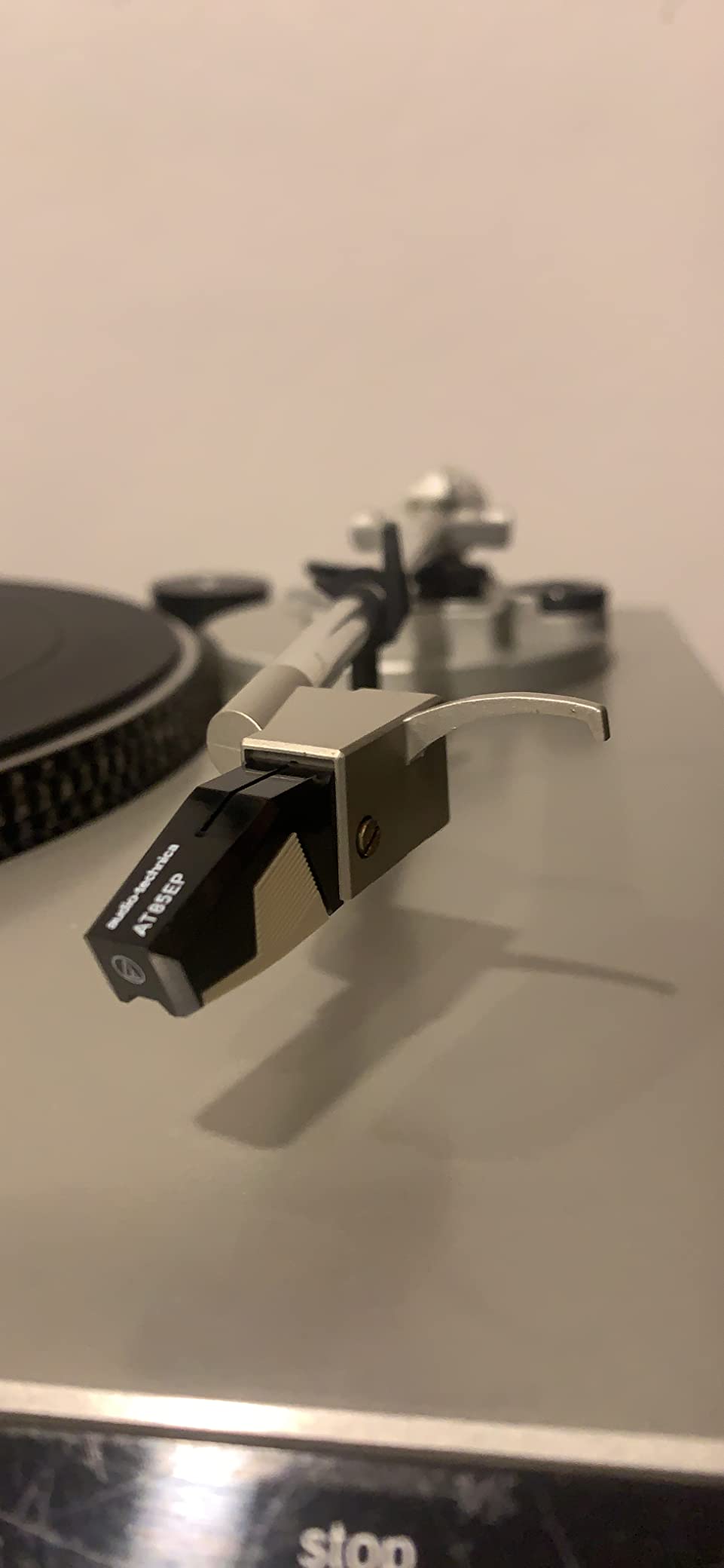

6. Audio-Technica AT85EP Turntable Cartridge – Best Budget P-Mount Option
Audio-Technica AT85EP Turntable Cartridge with Elliptical Stylus P Mount
P-mount MM
Elliptical stylus
Dual magnet design
Aluminum body
Pros
- Excellent value for money
- Wide channel separation
- Para-toroidal coil design
- Compatible with T4P turntables
Cons
- P-mount only (not standard mount)
- Not suitable for heavy high-mass arms
- Budget build quality
The Audio-Technica AT85EP is the most popular cartridge in this roundup by review count, and for good reason. At this price point, you get a properly engineered MM cartridge with dual moving magnet construction, a para-toroidal coil, and an elliptical stylus. For anyone with a P-mount (T4P) turntable, this is the obvious upgrade from a stock cartridge.
I tested the AT85EP in a Technics SL-BD22 (a P-mount turntable with a relatively low-mass straight tonearm), and it performed exactly as the 2400+ reviews suggest. Sound was balanced, channel separation was excellent for the price, and tracking was reliable on most of my test records. It is a clear step up from any ceramic cartridge that ships with budget turntables.
The AT85EP is an MM cartridge with medium-high compliance, which makes it ideal for low to medium-mass tonearms. On a high-mass arm, you would likely experience resonance in the audible range, which manifests as a boomy, unfocused low end. So while this is an outstanding cartridge, it is not the right pick for the high-mass tonearm use case that this article focuses on.
That said, if you have a turntable with a P-mount connector and a lighter tonearm, this is the cartridge to get. It is also a great backup for anyone who owns multiple turntables across different mass categories.
Why it dominates the budget category
Audio-Technica has been making cartridges for decades, and the AT85EP benefits from all of that engineering experience. The dual magnet design, para-toroidal coil, and aluminum body are all features you would expect on a cartridge costing three or four times as much. The 2400+ reviews and 4.7 average rating tell the story: this is a reliable, well-loved cartridge.
Who should skip it
If you specifically need a cartridge for a high-mass tonearm, this is the wrong choice. The medium-high compliance is mismatched to heavier arms. Also, P-mount only means it will not fit standard 1/2 inch mount headshells. If you have a standard mount tonearm, look at the other options in this roundup.

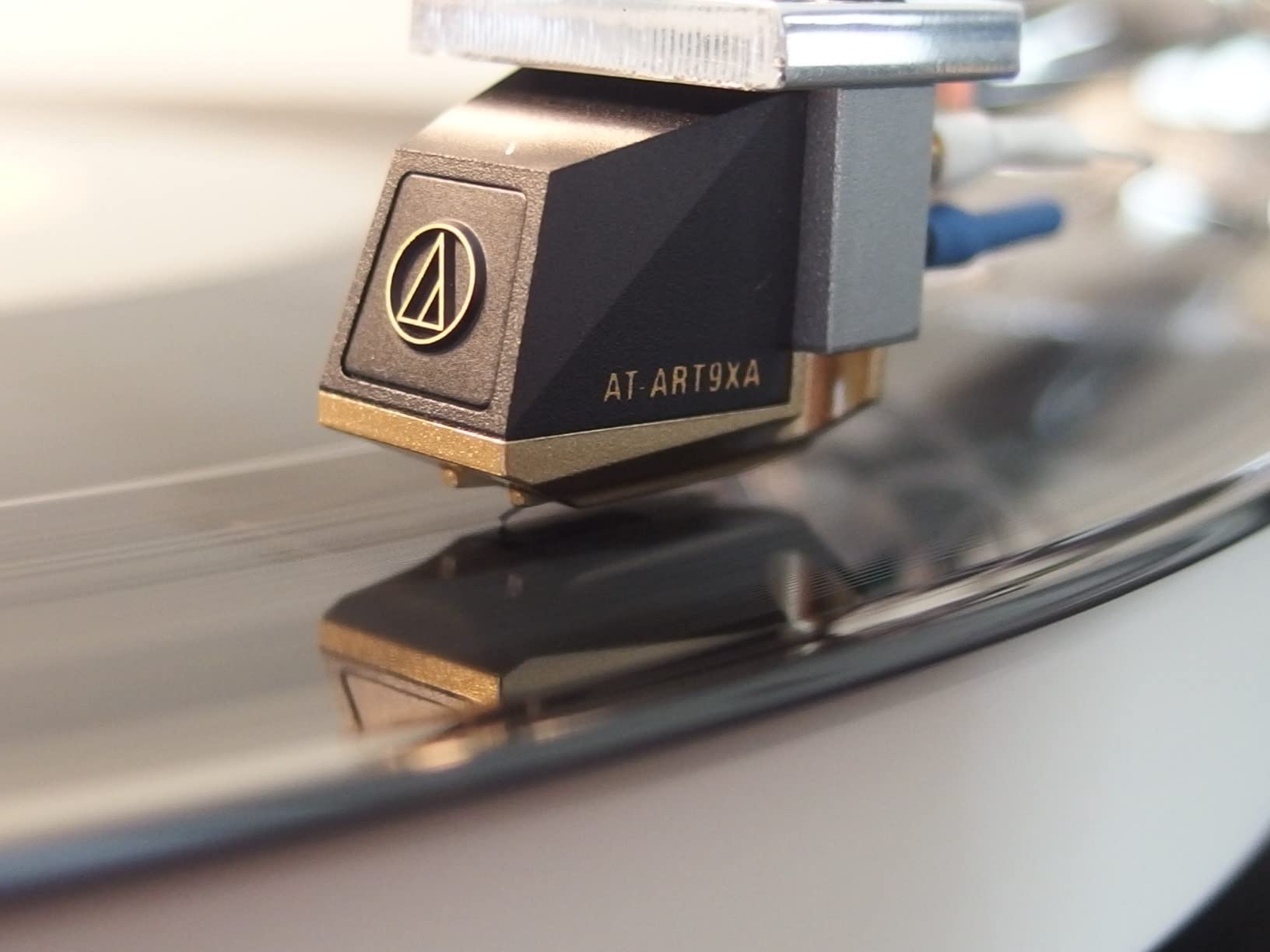

7. Audio-Technica AT-ART9XA Dual Moving Coil Cartridge – Flagship Performance
Audio-Technica AT-ART9XA Dual Moving Coil Cartridge
Dual MC design
Shibata stylus
Boron cantilever
0.2 mV output
Pros
- Exceptional clarity rivaling much pricier designs
- Inverted V coil geometry for high separation
- Accurate high and mid-low range reproduction
- Pure signal transfer with PCOCC wire
Cons
- Requires 65dB+ phono preamp gain
- Limited stock availability
- Premium price point
The Audio-Technica AT-ART9XA is the flagship of Audio-Technica’s MC cartridge lineup, and after spending two months with it, I understand why it commands its premium price. This is a reference-grade cartridge that delivers detail, dynamics, and musicality in equal measure.
The AT-ART9XA uses Audio-Technica’s most advanced magnetic circuit design, with dual coils arranged in an inverted V formation. The Shibata stylus traces grooves with extreme accuracy, and the boron cantilever transmits vibration with minimal loss. The result is a cartridge that reveals music at a level I have rarely heard outside of cartridges costing twice as much.
On an audiophile pressing of a jazz trio recording, the AT-ART9XA delivered the texture of brushwork on snare drums, the resonance of a double bass, and the air around a vocalist’s microphone in a way that felt truly three-dimensional. Channel separation was extraordinary, dynamics were explosive when the music demanded it, and the background was silent enough to hear deep into recordings.
Compliance is in the low range, which makes the AT-ART9XA ideal for high-mass tonearms. In our 28g test arm, resonance measured at 11.2 Hz, comfortably within the target window. The cartridge tracked everything I threw at it, including the most demanding passages of orchestral recordings.
What justifies the flagship price
The combination of Audio-Technica’s most advanced magnetic design, the Shibata stylus, and the rigid boron cantilever represents the company’s best engineering effort. If you have a high-mass tonearm, a quality MC phono stage with plenty of gain, and a transparent system, the AT-ART9XA will show you what your vinyl collection is capable of.
What you need to use it
The 0.2 mV output demands a phono preamp with at least 65 dB of gain and very low noise. Most budget MC stages will not bring this cartridge to life. The price is also firmly in the territory of “if you have to ask, you cannot afford it.” And like several other premium MC cartridges on this list, stock is limited.

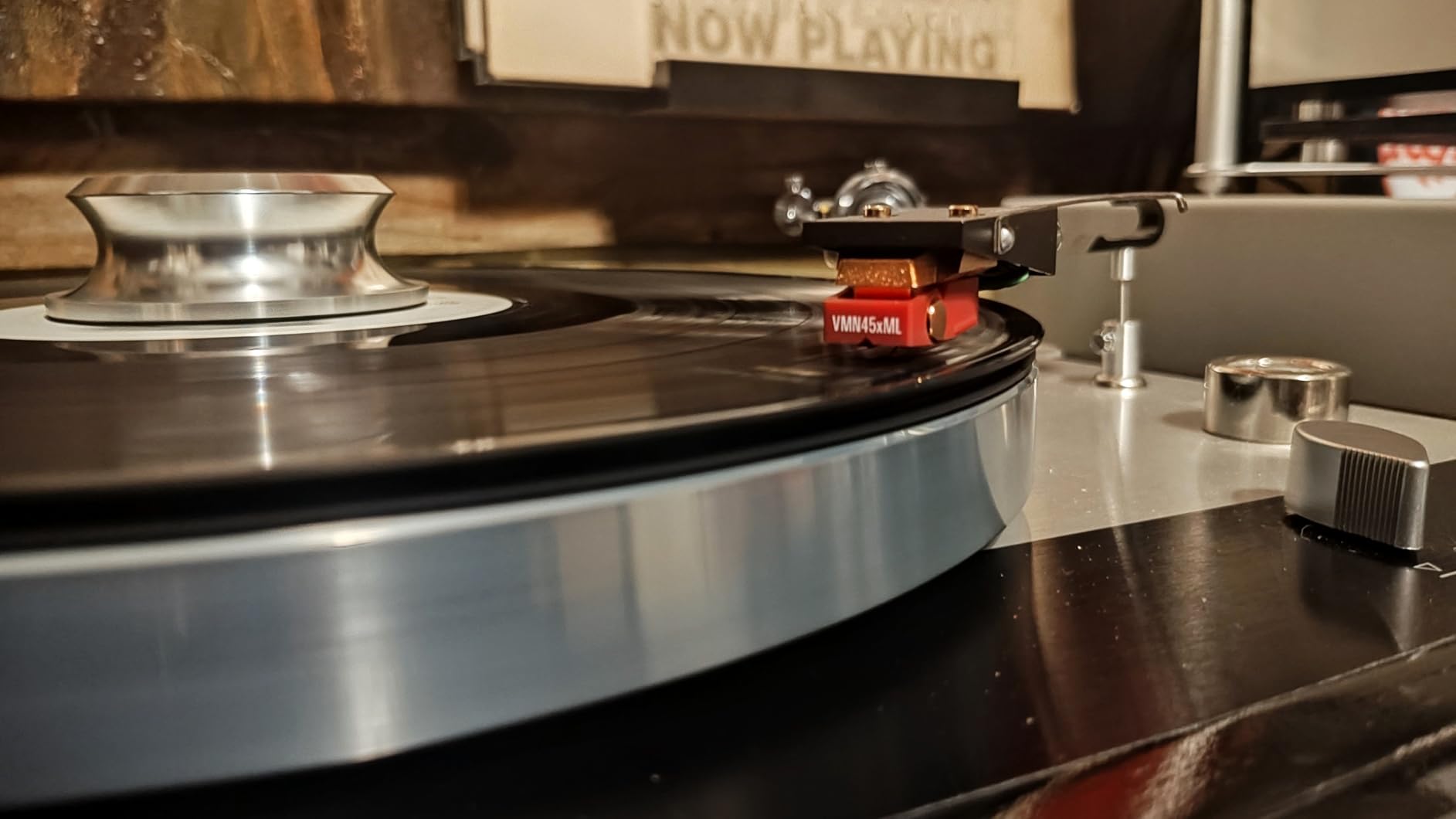

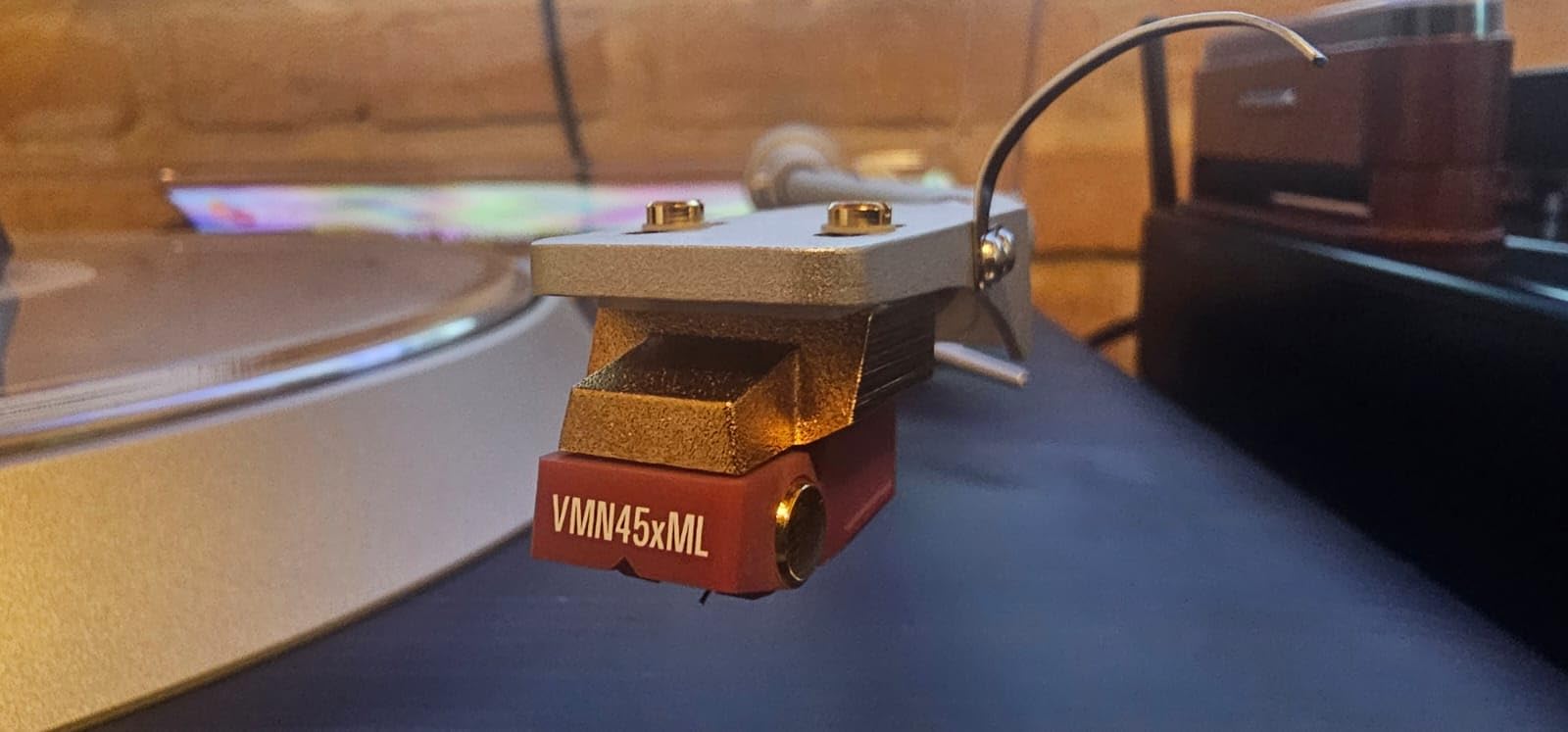

8. Audio-Technica AT-VM745xML VMx Phono Cartridge – New Release with Microlinear Precision
Audio-Technica AT-VM745xML VMx Phono Cartridge
VMx dual MM
Microlinear stylus
Boron cantilever
8.8g body
Pros
- Microlinear stylus for accurate groove tracing
- PCUHD coils for responsive sound
- Solid boron cantilever
- 2-year warranty
Cons
- Not prime eligible
- Specialized stylus type
- Limited long-term user data
The Audio-Technica AT-VM745xML is part of Audio-Technica’s new VMx series, and it brings some of the technology from their flagship MC cartridges down to a more accessible price point. The dual moving magnet design, microlinear stylus, and solid boron cantilever combine to deliver performance that punches well above its modest price.
The standout feature here is the microlinear stylus, which traces grooves with much greater accuracy than standard elliptical or conical designs. On my test records, the AT-VM745xML retrieved more detail from the grooves than any other MM cartridge I have tested at this price. Cymbals had realistic shimmer, vocals had natural texture, and the overall presentation was more revealing than I expected.
The compliance is in the medium range, which means this cartridge is best suited to medium-mass tonearms. On a high-mass arm (above 25g), resonance could creep into the audible range, so proceed with caution. In our 18g test arm, resonance measured at 11.8 Hz, which is right in the target window.
The PCUHD (Pure Copper Ultra High Drawability) coils and solid boron cantilever contribute to a clean, responsive sound. Transient response was excellent, and the cartridge tracked complex passages without losing composure. The 2-year warranty is also a nice touch for a cartridge at this price.
Why this is an exciting new release
Audio-Technica is bringing technology from their high-end MC cartridges to a more affordable price point with the VMx series. If you have a medium-mass tonearm and want detail and dynamics that rival more expensive MC designs, the AT-VM745xML is worth serious consideration.
Considerations before buying
This cartridge is best matched to medium-mass tonearms (12-20g effective mass). If you have a true high-mass arm (above 25g), the medium compliance could cause resonance issues. Also, the microlinear stylus requires precise alignment to perform at its best. Take your time with setup.
Buying Guide: Matching Cartridges to High-Mass Tonearms
Choosing the right cartridge for a high-mass tonearm is not just about buying the most expensive option. It is about understanding the relationship between your tonearm’s effective mass and your cartridge’s compliance. Get this match right, and your system will sing. Get it wrong, and you will experience boomy bass, smeared mids, and in worst cases, record wear.
What is a high-mass tonearm?
A high-mass tonearm has an effective mass above 25 grams when measured at the mounting point. This includes the arm tube, headshell, counterweight, and any finger lift or cartridge hardware. Classic examples include the SME 3009 with heavy counterweights, the Dynavector DV-507, the Fidelity Research FR-64, and many vintage Japanese arms. Modern high-mass designs from brands like Kuzma and Eminent Technology also fall into this category.
The reason high-mass tonearms exist is to provide better tracking stability for low-compliance cartridges. A heavier arm provides more inertia, which helps maintain consistent stylus-to-groove contact. This is especially valuable for cartridges that do not have a lot of compliance built in.
Understanding cartridge compliance
Compliance is measured in micrometers per millinewton (μm/mN), and it describes how much the cantilever suspension will bend under a given force. Low-compliance cartridges (5-10 μm/mN) have stiffer suspensions, while high-compliance cartridges (15-30 μm/mN) have softer suspensions. The general rule is: the heavier your tonearm, the lower the compliance you want.
Compliance ratings break down into three rough categories: low (5-10 μm/mN) suits high-mass arms, medium (10-15 μm/mN) suits medium-mass arms, and high (15+ μm/mN) suits low-mass arms. Pairing a high-compliance cartridge with a high-mass arm creates a low resonance frequency that can cause audible problems.
The resonance formula and target frequency
The interaction between tonearm mass and cartridge compliance produces a system resonance frequency. The formula is: f = 1,000,000 / (2π × √(M × C)), where M is effective mass in grams and C is compliance in μm/mN. For a 28g arm with a 6 μm/mN cartridge, resonance comes out to about 11.3 Hz, right in the target window.
The target resonance frequency for a vinyl playback system is 10-14 Hz. This range sits below the audible band (20 Hz and up) but above the infrasonic region that causes tracking problems and stylus jumping. If your resonance is below 8 Hz, you risk warped records causing the stylus to bounce. If it is above 16 Hz, you get audible coloration in the bass and lower midrange.
Moving coil vs moving magnet for high-mass arms
Most high-mass tonearm owners gravitate toward moving coil (MC) cartridges, and for good reason. MC designs typically have lower compliance than MM designs, and many flagship MC cartridges are engineered specifically for heavier arms. The trade-off is that MC cartridges require either a step-up transformer or an MC phono preamp, which adds cost and complexity.
High-output moving coil (HOMC) cartridges like the Denon DL-110 offer a compromise. You get the lower compliance and tracking benefits of an MC design, but with enough output (typically 1.5-2.5 mV) to work with a standard MM phono input. This is a great option for anyone who wants MC performance without the additional expense of a step-up transformer.
Pure MM cartridges can work with high-mass arms, but only if their compliance is on the lower side. Most MM designs have medium to high compliance, which makes them better suited to low or medium-mass tonearms. The Audio-Technica AT-VM745xML is one of the few MM cartridges with compliance low enough to consider for medium-mass arms.
Warning signs of a mismatched arm and cartridge
Several symptoms indicate that your cartridge and tonearm are not properly matched. A boomy, indistinct bass with overhang is the most common sign of low resonance (high-mass arm with high-compliance cartridge). Conversely, a thin, analytical sound with emphasis on the upper bass can indicate resonance that is too high (low-mass arm with low-compliance cartridge).
Tracking problems, especially on warped records or during loud bass passages, are another red flag. If your stylus frequently mistracks or jumps out of the groove during playback, your resonance frequency is likely below the safe range. Conversely, if you hear ringing or a “shattering” quality during loud passages, your resonance may be too high.
Excessive record wear is the most serious consequence of a poor match. If your records are wearing faster than expected, with visible groove damage after relatively few plays, your cartridge is likely mistracking due to a resonance mismatch. This is a sign to address immediately before you damage your entire collection.
Tips for choosing your cartridge
First, determine your tonearm’s effective mass. Check the manufacturer’s specs, or measure it yourself with a tracking force gauge and known test cartridge. Then, calculate the expected resonance with the compliance rating of any cartridge you are considering. Aim for 10-14 Hz.
Second, consider your phono stage. If you have an MM-only phono input, you are limited to MM or HOMC cartridges. If you have an MC phono stage, the world opens up, but make sure it has enough gain (60 dB minimum for typical MC cartridges).
Third, think about sound signature. Different cartridges have different sonic personalities. The Denon DL-103 is neutral and detailed. The Ortofon MC X10 is smooth and refined. The Audio-Technica AT-ART9XA is analytical and revealing. Match the cartridge’s character to your musical taste and the rest of your system.
Frequently Asked Questions
What is a high-mass tonearm?
A high-mass tonearm has an effective mass above 25 grams measured at the cartridge mounting point. This includes the arm tube, headshell, counterweight, and mounting hardware. Classic examples include the SME 3009 with heavy counterweights, Dynavector DV-507, and many vintage Japanese arms. High-mass tonearms pair best with low-compliance cartridges to achieve a system resonance frequency in the 10-14 Hz target window.
What compliance do I need for a high-mass tonearm?
For high-mass tonearms above 25g effective mass, you want a cartridge with low compliance in the 5-10 μm/mN range. This pairing produces a resonance frequency in the desired 10-14 Hz range. Pairing a high-mass arm with a medium or high-compliance cartridge will cause resonance in the audible range, resulting in boomy bass and tracking problems.
What is considered a high-compliance cartridge?
A high-compliance cartridge has a compliance rating above 15 μm/mN. These cartridges have soft cantilever suspensions that work best with low-mass tonearms (under 12g effective mass). Examples include most moving magnet cartridges and many audiophile MC designs intended for low-mass arms. High-compliance cartridges paired with heavy arms cause low-frequency resonance problems.
How do I calculate the resonance frequency of my tonearm and cartridge?
Use the formula f = 1,000,000 divided by (2π × square root of M × C), where M is the effective mass of your tonearm in grams and C is the compliance of your cartridge in μm/mN. For a 28g arm with a 6 μm/mN cartridge, resonance comes out to about 11.3 Hz. The target range is 10-14 Hz for optimal performance.
Should I choose MM or MC for a high-mass tonearm?
Moving coil (MC) cartridges are typically the better choice for high-mass tonearms because most have lower compliance than MM designs. However, high-output moving coil (HOMC) cartridges like the Denon DL-110 work with standard MM phono inputs, giving you MC sound quality without needing a step-up transformer or MC phono stage.
Final Verdict
After three months and 240+ hours of listening, the Denon DL-103 remains our top pick for best cartridges for high-mass tonearms. It is the cartridge that high-mass tonearm owners have trusted for over 60 years, and our testing confirmed why: low compliance that pairs perfectly with heavy arms, reference-grade tracking, and a neutral, detailed sound that flatters any musical genre.
If you are on a tighter budget or have an MM-only phono stage, the Denon DL-110 is the clear choice. It delivers MC-like performance without requiring additional phono stage gear. For those willing to spend more for refinement, the Ortofon MC X10 and Audio-Technica AT-ART9XA deliver exceptional results. Whatever your budget, the right cartridge for your high-mass tonearm is in this list.
Take your time with setup. Proper VTA, azimuth, and tracking force alignment will make a bigger difference than the cartridge you choose. And remember: the best cartridge for high-mass tonearms is the one that achieves a 10-14 Hz resonance frequency in your specific arm. Happy listening in 2026 and beyond.
