A helical head planer is the machine that changes how you work figured wood. On curly maple, quilted maple, flame birch and black walnut, a straight-knife planer tends to lift interlocked grain fibers and leave tear-out across the board face, while a helical or spiral cutterhead breaks that same cut into dozens of small shearing slices and leaves a surface you can finish directly.
We spent weeks comparing 11 helical and spiral head machines for this roundup, from a 13-inch benchtop unit to a 20-inch shop machine rated at 5 HP. Every pick below has a segmented cutterhead with indexable inserts. No straight-knife planers made the list, even when they rank well in general wood planer roundups, because tear-out on figured material is the only question that matters here.
The short version: the WEN PL1326 is the one most shops should buy, and it is our editor’s choice. Machine selection also depends on what else you run, so our wood lathe guide and router picks cover the rest of a small shop. This article covers cutterhead geometry, tear-out, feed rates, electrical requirements and the honest limits of helical heads on soft figured species.
Table of Contents
Top 3 Best Helical Head Planers for Figured Wood in 2026
WEN PL1326
- 26 rotatable HSS spiral blades
- 15A motor at 10000 RPM
- 26 FPM feed
- 13 in capacity
RIKON 25-135H
- 6-row helical head with 26 two-edge inserts
- Two feed speeds 16 and 26 SFPM
- Threaded 4-post support
- 13 in capacity
JET JWP-208HH
- 20 in width
- 5 HP TEFC motor at 230V
- Two-speed 24/31 FPM gearbox
- 1/16 in height increments
All 11 Helical and Spiral Head Planers at a Glance
| Product | Specs | Action |
|---|---|---|
| WEN PL1326 13-Inch Spiral Benchtop Planer |
|
Check Latest Price |
 JET JWP-13BT 13-Inch Helical Benchtop Planer |
|
Check Latest Price |
 VEVOR 13-Inch Spiral Planer |
|
Check Latest Price |
| RIKON 25-135H 13-Inch Helical Benchtop Planer |
|
Check Latest Price |
| JET JWP-208HH 20-Inch Helical Planer |
|
Check Latest Price |
 Cutech 40600H 13-Inch Spiral Planer |
|
Check Latest Price |
 King Canada KC-13HPC 13-Inch Helical Planer |
|
Check Latest Price |
 JET JPW-15BHH 15-Inch Helical Planer |
|
Check Latest Price |
 Wahuda Tools 13-Inch Spiral Planer |
|
Check Latest Price |

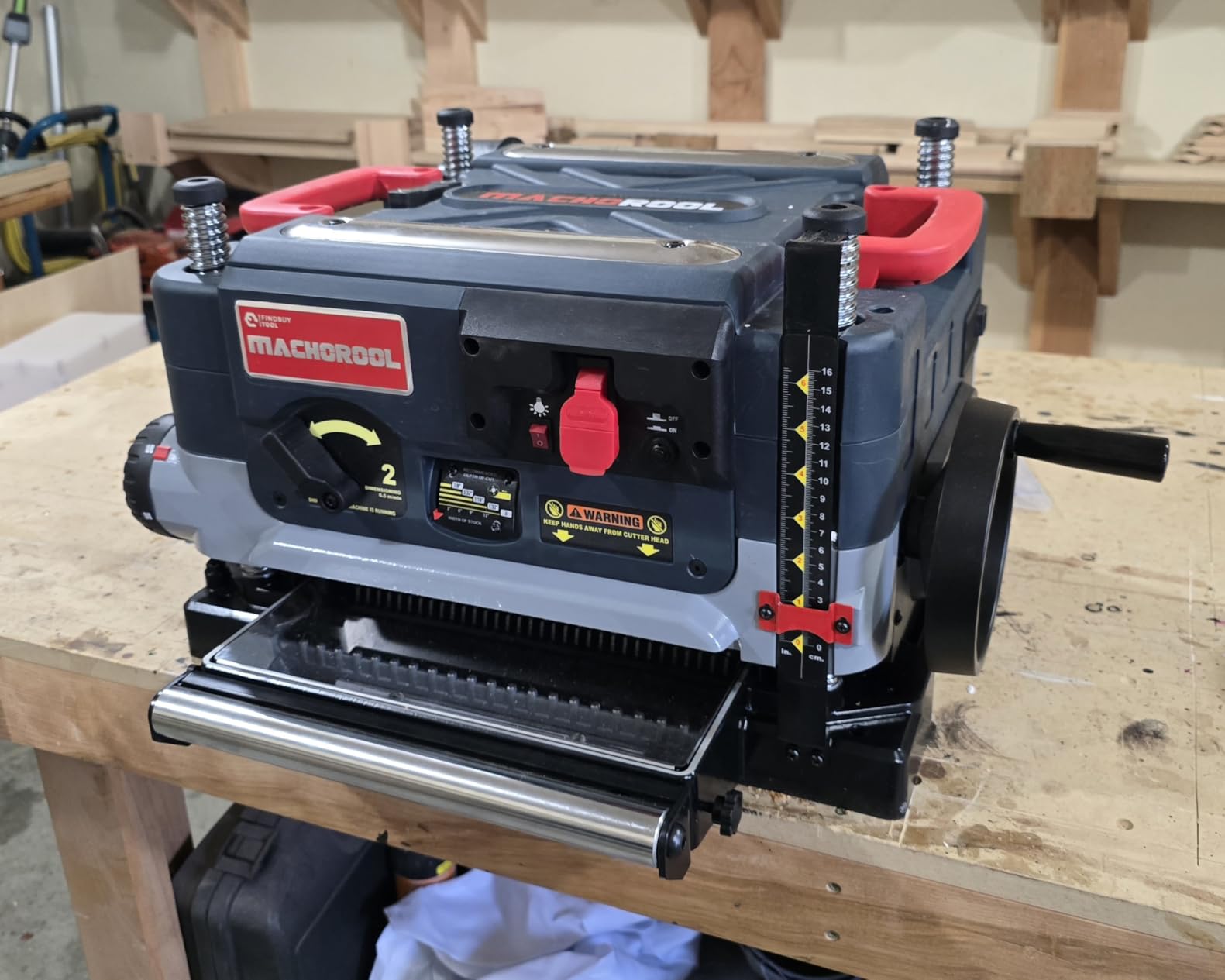

 FindBuyTool 13-Inch Helical Planer |
|
Check Latest Price |

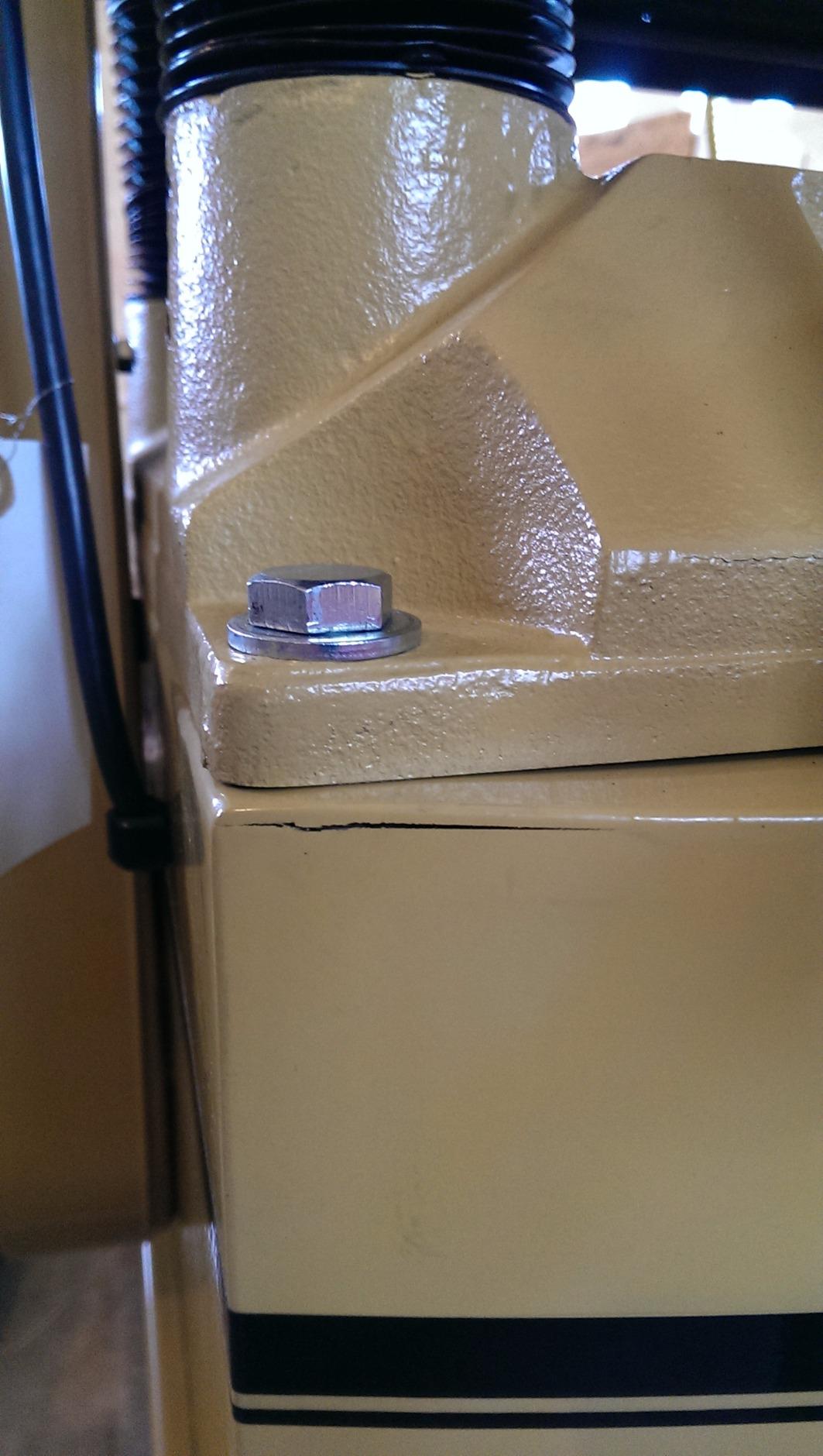

 Powermatic 209HH 20-Inch Helical Planer |
|
Check Latest Price |
1. WEN PL1326 13-Inch Spiral Benchtop Planer – Our Overall Pick
WEN PL1326 15-Amp 13-Inch Spiral Benchtop Thickness Planer
13 in wide by 6 in thick capacity
15A motor at 10000 RPM
26 rotatable HSS spiral blades
26 FPM feed rate
Pros
- Consistently clean finishes on walnut and maple
- Rotatable HSS inserts multiply edge life
- Cast iron table and stable mass
- Largest owner base of any machine here
- Easy setup for a first planer
Cons
- Motor noise rivals a straight-knife machine
- 13 in width caps wide panels
- Center-pin depth indicator rather than full width
- Heavy enough to need two people to move
The WEN PL1326 is the helical head planer we kept coming back to. Owners report a smooth, glass-like finish on figured and hard wood with very little snipe, and at 4.7 stars across 736 reviews it has the largest owner base in this roundup.
The cutterhead carries 26 staggered, rotatable HSS blades running at 10,000 RPM with a fixed 26 FPM feed rate. The single feed speed is the one spec you give up, but 26 FPM is gentle enough that figured boards stay clean as long as you keep the depth of cut shallow on the first pass.
The cast iron table and roughly 36.74 kg of mass do a lot of quiet work here, because a heavy machine does not skate or chatter on a warped figured board. Setup is straightforward, with an onboard material removal gauge and a depth stop included in the box.
What you give up is capacity and noise. Thirteen inches wide and 6 inches thick covers drawer parts, cabinet material and most furniture components, but a wide tabletop glue-up has to be broken down first. Owners also say the motor is about as loud as a straight-knife planer, so this is a quieter-feeling machine rather than a quiet one.
Walnut and flame birch come out of this machine with very little fuzz at normal depths. Soft flame maple is the hard case, and there the honest answer is to lighten the first pass and feed one board at a time.
Why this one works on figured stock
The 26 staggered HSS blades mean roughly 26 small shearing cuts across every inch of board width. On curly and quilted maple, that is the difference between a face you can sand lightly and one you have to fill. The rotatable blades matter over time, since each one flips to a fresh edge before it is replaced.
Where it falls short
Thirteen inches is the ceiling, and if your real work is wide panels or slab boards you will outgrow it quickly. The attached infeed and outfeed tables also need careful adjustment before end snipe disappears, which is normal but worth knowing on day one.
Moving it around the shop takes two people, so plan its location before it arrives. If you already have a benchtop planer, a router is usually the next machine that pays for itself, and our wood router picks cover that pairing.
2. JET JWP-13BT 13-Inch Helical Benchtop Planer – Best for Small Shops
JET 13-Inch Benchtop Thickness Planer for Woodworking, Helical Style Cutterhead with 2-Speed (18 FPM / 26 FPM) Feed Rate, 2 HP, 120V 1Ph (JWP-13BT)
6 rows of 26 quick-change HSS inserts
2 HP at 115V and 10000 RPM
Two-speed 18 or 26 FPM feed
Cast iron bed with four posts
Pros
- Smoother and quieter cut than straight-knife benchtop machines
- Four-post design holds boards flat
- Two feed speeds including a slow 18 FPM pass
- Folding infeed and outfeed tables save space
- Adjustable depth stop for repeat cuts
Cons
- 120V 2 HP motor can labor on wide hard material
- HSS inserts wear sooner than carbide
- Dust hood is the weakest part of the design
- Setup of the folding tables takes patience
The JET JWP-13BT is the pick for a shop where floor space is the constraint. The folding infeed and outfeed tables collapse against the machine, so a full 13-inch helical planer lives in the corner of a two-car garage rather than owning a wall.
Mechanically it is the more serious benchtop machine of the pair. Six rows of 26 quick-change HSS inserts turn at 10,000 RPM, driven by a 2 HP 15-amp motor on 115V. A precision-machined cast iron bed and a four-post design keep wide boards flat and cut down snipe compared with lighter two-post benches.
The two-speed feed is the feature figured-wood workers notice first. You can rough a batch of walnut panel boards at 26 FPM, then drop to 18 FPM for the finish pass across curly maple, which is where a single-speed machine forces you to slow everything down. Buyers consistently credit the smoother and quieter cut relative to straight-knife machines of the same size.
The rating spread tells the honest story: at 4.2 stars, roughly one in nine reviews is a one-star, and those cluster on dust collection and on units arriving with damaged parts. The dust hood is the component owners criticize most.
Why this one works on figured stock
The 18 FPM speed is the honest reason to choose this machine over cheaper single-speed benches. A slow finish pass on quilted maple or flame birch gives the segmented shearing cut more time to break the chip cleanly, which is exactly where single-speed machines fall short.
Four-post head support also keeps the cutterhead from deflecting on wide figured boards, so thickness stays consistent from one edge of a board to the other.
Where it falls short
A 2 HP motor on a 120V circuit will bog down on wide, hard hardwood at full depth, so heavy passes need to come down in two lifts. HSS inserts also need rotating and replacing sooner than carbide heads, and the optional accessories and cast-iron extras push the total well past budget options.
If you already have heavy surfacing duties covered by something else, the JET is a strong buy. If not, read our rough lumber planer comparison to see whether a heavier straight-knife machine is a better base for your volume.

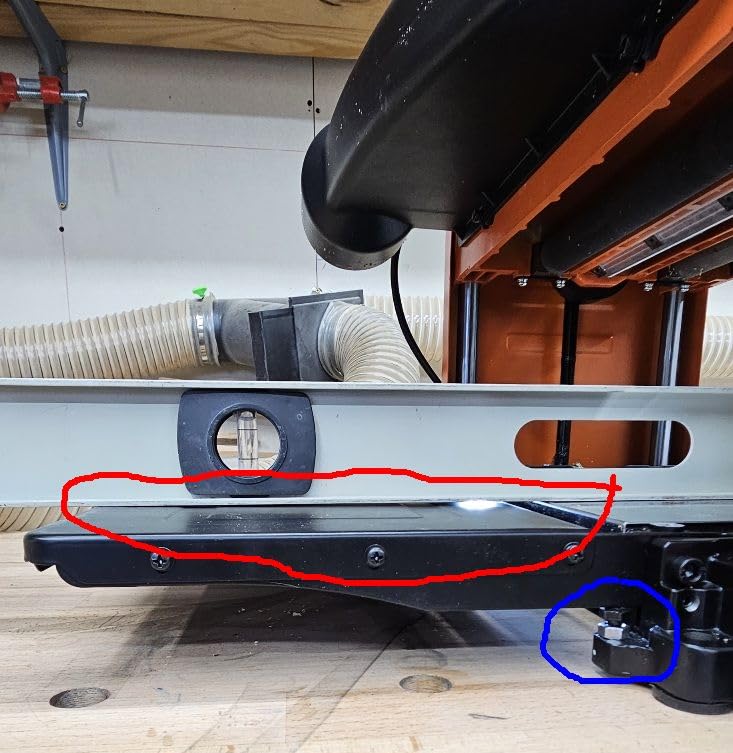

3. VEVOR 13-Inch Spiral Planer – The Budget Pick
VEVOR 13-Inch Spiral Thickness Planer, Woodworking Power Benchtop Planer, with 2000W 23500 RPM Powerful Motor, Single Speed, for Hard & Soft Wood Material
24 spiral alloy blades
2000W motor at 23500 RPM
Up to 8000 cuts per minute
Dual-roller feed system
Pros
- Entry cost among the lowest in the helical category
- 24 spiral alloy blades cut cleanly enough for figured wood
- Dual rollers advance boards with low vibration
- 28.2 in worktable steadies long warped boards
- Handles oak and maple without stalling
Cons
- Alloy inserts dull faster than carbide on figured material
- Aluminum alloy base is less rigid than cast iron
- Single-speed feed with no finishing pass
- 1/8 in depth increments are coarse
- Build and finish quality trail name brands
The VEVOR is an affordable way into a segmented cutterhead, and it is genuinely capable on hardwood. The 2000W motor runs the cutterhead at 23,500 RPM for up to 8,000 cuts per minute, and owners report it handles oak and maple without stalling under load.
Two details set it apart from a bare-bones bench. The dual-roller feeding system advances boards with noticeably less vibration than single-roller designs, and the 28.2-inch worktable gives you enough support for long or warped boards, which is common with rough figured maple.
Owners treat it as capable value hardware rather than a shop-grade machine, and the 3.9 rating reflects that. About 15 percent of reviews are one-star, focused on build consistency and finish quality rather than on cutting performance.
For figuring out whether a spiral cutterhead suits your work before committing to a heavier machine, this is a low-risk way to find out. It also fits a dust hose of either 2 or 4 inches, which is more flexibility than some pricier benches offer.
Why this one works on figured stock
At 8,000 cuts per minute, 24 alloy blades give you a fine-grained shearing cut that handles walnut and moderately figured maple cleanly at shallow depths. The rotational speed is the highest in this roundup, and on figured material that means more small cuts per inch of travel.
The dual rollers are the underrated part. Vibration at the feed is what turns a small tear-out into a visible ridge, and reducing it makes a cheap head look better than it should.
Where it falls short
Alloy inserts dull faster than tungsten carbide, which matters most on the soft figured species that are the reason to buy a spiral head in the first place. The aluminum alloy base is also less rigid than the cast iron beds on several of the machines here, so expect a little more flex on wide boards.
Single-speed feed means no slower finishing pass, and the 1/8-inch depth increments are coarse compared with the fine settings some rivals offer. Treat this as a capable starter machine rather than a curly maple specialist.
4. RIKON 25-135H 13-Inch Helical Benchtop Planer – Best Value Overall
RIKON 25-135H 13-Inch Portable Planer with Helical-Style Cutterhead
26 two-edge HSS inserts in a 6-row head
Two feed speeds at 16 and 26 SFPM
Threaded 4-post head support
13 in wide by 6 in thick
Pros
- Two-speed feed of 16 and 26 FPM
- 26 two-edge inserts cut replacement costs
- 4-post support with repeat-cut control
- Compact 13 in format suits smaller shops
- Dust hood plus 4 in to 2.5 in adapter
Cons
- HSS rather than carbide wears faster on figured material
- Aluminum body less rigid than cast iron
- 13 in capacity limits wide boards
- Needs an adapter for a direct 4 in port
The RIKON 25-135H is our best value pick: the machine we would point to when someone wants one helical head planer and does not want to research further. It covers the two things figured-wood work demands most: a segmented cutterhead and two feed speeds.
The head is a 6-row helical arrangement holding 26 two-edge HSS inserts. Two-edge matters for cost, because each insert offers four usable edges after you account for flipping, so the insert budget over the life of the machine stays low. Feed speeds are 16 and 26 feet per minute.
Four-post threaded head support with a repeat-cut control gives repeatable thickness, which is what you want when surfacing a matched set of drawer parts or a run of cabinet material. Capacity is 13 inches wide and up to 6 inches thick.
Why this one works on figured stock
The 16 SFPM finishing speed is the key number. Slow feed plus a segmented head is the combination that keeps quilted maple and flame birch clean, and this is among the least expensive machines here with both. Owners report clean finishes on walnut and maple.
The 4-post layout also reduces the head deflection that produces uneven thickness on figured boards. That is a build-quality difference you feel in the first hour rather than a spec-sheet difference.
Where it falls short
Aluminum construction is less rigid than the cast iron beds on the JET and King Canada machines, so on a warped figured board you may need lighter passes. HSS inserts also wear faster than carbide on hard figured material, which is exactly where you would prefer carbide.
The 13-inch ceiling is the other hard limit. If your projects include wide panels, step up a width class instead of planning glue-ups around it. Our turning guide covers the other common small-shop machine pairing.

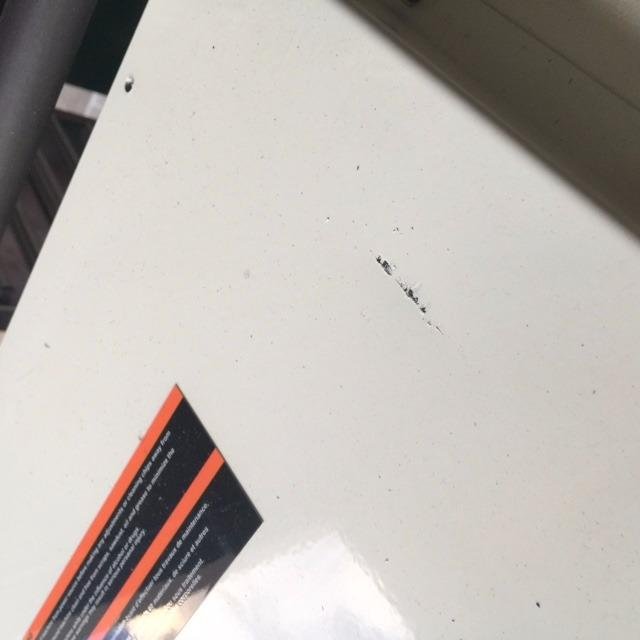

5. JET JWP-208HH 20-Inch Helical Planer – Best for Wide Panels
JET 20-Inch Planer, Helical Cutterhead, 5 HP, 230V 1Ph (Model JWP-208HH)
20 in planing width
5 HP TEFC induction motor at 230V
Two-speed 24 and 31 FPM gearbox
1/16 in height increments
Pros
- 20 in width takes full-size slabs without splitting them
- 5 HP motor plows through thick material without bogging
- Two-speed gearbox matches feed to the cut
- 1/16 in height scale supports very fine passes
- Welded steel base and cast iron tables stay rigid
Cons
- 753 lb weight means it stays put
- 230V single-phase circuit required
- 5000 RPM cutterhead speed is low for the class
- Commercial use cuts warranty from 5 years to 2
- Out of reach for hobby-only shops
The JWP-208HH is the machine to buy when your figured wood arrives as full-width lumber. Twenty inches means a board close to full width, or a wide panel glue-up, goes through in one pass instead of being ripped into strips first.
Power is the story here. A 5 HP TEFC induction motor with V-belt drive turns a cutterhead at 5,000 RPM, and a two-speed gearbox feeds at 24 or 31 FPM with an automatic chain tensioner. That is a different class of machine from the benchtop units, and it shows on thick, hard material.
Shop owners running full-width hardwood rate it highly for power and rigidity, with 85 percent five-star ratings. The 1/16-inch increment height scale is finer than most benchtop depth indicators and makes very light skim passes easy to repeat.
The catch is installation. At 753 pounds it stays where you put it, and it needs a 230V single-phase circuit. Commercial or industrial use also drops the warranty from five years to two.
Why this one works on figured stock
Feed rate is the reason. Running 24 FPM instead of the 26 to 31 FPM typical of a benchtop machine means each insert engages the figure more gently, and the cast iron tables hold a wide figured board flat across the full 20 inches. A wide curly maple panel is the case where a benchtop simply cannot follow.
One-piece welded steel base and cast iron infeed and outfeed tables also mean the bed stays rigid over years of service, which is what keeps thickness repeatable.
Where it falls short
5000 RPM is low compared with the 10000 to 23500 RPM of the benchtop machines here, and on light figure that shows as a slightly coarser finish. The 31 FPM top speed is a roughing speed, not a figured-wood speed, so you live in the lower gear.
None of that matters if your work is narrow enough for a benchtop machine. It also sits above the cost of any benchtop machine here, and the electrical requirement rules it out for a lot of home shops.
6. Cutech 40600H 13-Inch Spiral Planer – Best Carbide Value
Cutech 40600H 13-Inch Spiral Cutterhead Benchtop Planer with 26 Tungsten Carbide Inserts, Single Speed Feed Rate, Snipe Minimizer, and Board Return Rollers (13-Inch Single Speed)
26 two-sided tungsten carbide inserts
6-row spiral cutterhead at 10000 RPM
Four lead screws for snipe reduction
8-position repeat cut stop
Pros
- Tungsten carbide beats four-sided HSS on hard figured wood
- Low motor draw thanks to the shearing cut
- Four lead screws cut snipe without a separate lock
- Two-sided inserts stay aligned more easily
- Board return rollers speed up batch work
- Quieter than straight-knife planers
Cons
- Single-speed feed with no finishing pass
- 13 in capacity limits wider material
- Flip dust hood is awkward to switch between modes
The Cutech 40600H is one of the least expensive machines here running tungsten carbide rather than HSS, and on figured hardwood that single spec decides a lot. Carbide holds an edge through curly maple and flame birch in a way that HSS inserts do not.
The head is a 6-row spiral arrangement with 26 staggered two-sided inserts at 10,000 RPM. The two-sided design with a non-cutting edge on the back resists skewing, which keeps the head aligned without manual knife setting.
Snipe is where this machine earns its reputation. Four lead screws with a patented coupling apply height consistently across the bed, reducing the stepped marks that make a first pass look worse than the machine deserves. The shearing cut also drops motor load noticeably compared with straight-knife planers of the same size.
Board return rollers on top speed up repeated cuts when you are working through a batch of identical parts, and the flip-up dust hood lets you choose a mode depending on whether you are surfacing or jointing.
Why this one works on figured stock
Carbide inserts on a spiral head is the combination figured wood actually rewards. Owners report two-sided carbide outperforming four-sided HSS on hard figured wood, and the low motor draw means the head does not bog on maple.
The four lead screws matter more than most buyers expect. Snipe on a figured surface is as visible as tear-out, and consistent head height across the bed keeps the face even from edge to edge.
Where it falls short
Single-speed feed is the real limitation. There is no slow finishing pass for delicate figure, so you have to control the depth of cut instead. Thirteen inches of capacity is the same ceiling every benchtop machine here has.
The flip dust hood is also awkward to switch between modes, and if your collector is undersized the short chips from a spiral head still pack the port faster than a straight-knife machine would.
7. King Canada KC-13HPC 13-Inch Helical Planer – The Cast Iron Bench Option
13″ Planer – Helical Cutterhead
Cast iron construction and bed
15A motor with thermal overload protection
Four precision-ground head columns
Eight preset depth stops from 1/8 in to 1-3/4 in
Pros
- Cast iron bed resists flex better than aluminum rivals
- Four precision-ground columns give smooth repeatable raises
- Eight preset stops cover most workflows out of the box
- Dual inch and millimetre display with depth indicator
- Thermal overload protects the motor on long passes
Cons
- 120V limits sustained load on wide hardwood
- 13 in capacity only
- Insert availability less established than WEN or JET
- Side-mounted tool box is an add-on
The King Canada KC-13HPC is built around a cast iron body and cast iron bed, the kind of mass and rigidity that separates it from the aluminum benchtop machines. Buyers treat that as the reason the machine produces a stable, flat finish.
The head raises and lowers on four precision-ground columns, which gives smooth and repeatable height changes where a threaded post can bind or develop backlash. A thickness display carries both inches and millimetres, with a cutting depth indicator graduated in the same units.
Preset depth stops run from 1/8 inch through 1-3/4 inch, covering most repetitive thicknessing jobs without any measuring. Thermal overload protection guards the 15-amp motor on long passes, which is worth having on soft figured material where load builds quickly.
Why this one works on figured stock
Stability is the mechanism. A heavy cast iron bed does not shift under the load of a wide figured board, and four precision-ground columns hold the head at a consistent height across the cut. On a warped piece of flame birch, that rigidity shows up as a flat face.
Reviewers describe a clean finish and straightforward setup, and the strong 4.6 rating reflects general satisfaction with stability rather than excitement about the cutterhead itself.
Where it falls short
Insert sourcing is the practical concern: the carbide or HSS inserts for this head are less established in the aftermarket than WEN or JET replacements, which can make a damaged insert harder to replace.
If parts availability is a priority in your shop, confirm insert sourcing before committing. Read our full wood planer roundup for machines with better-supported consumables.

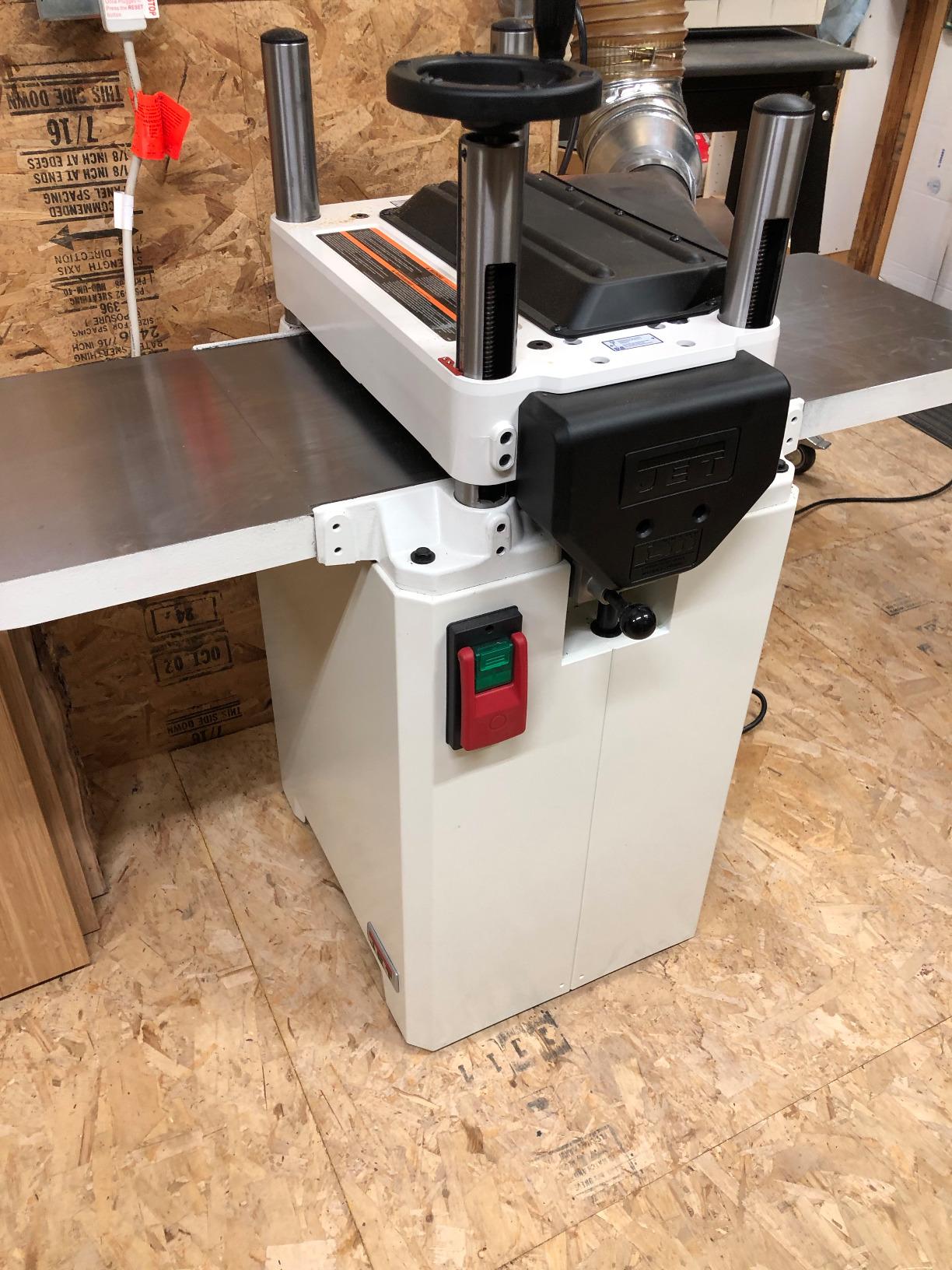

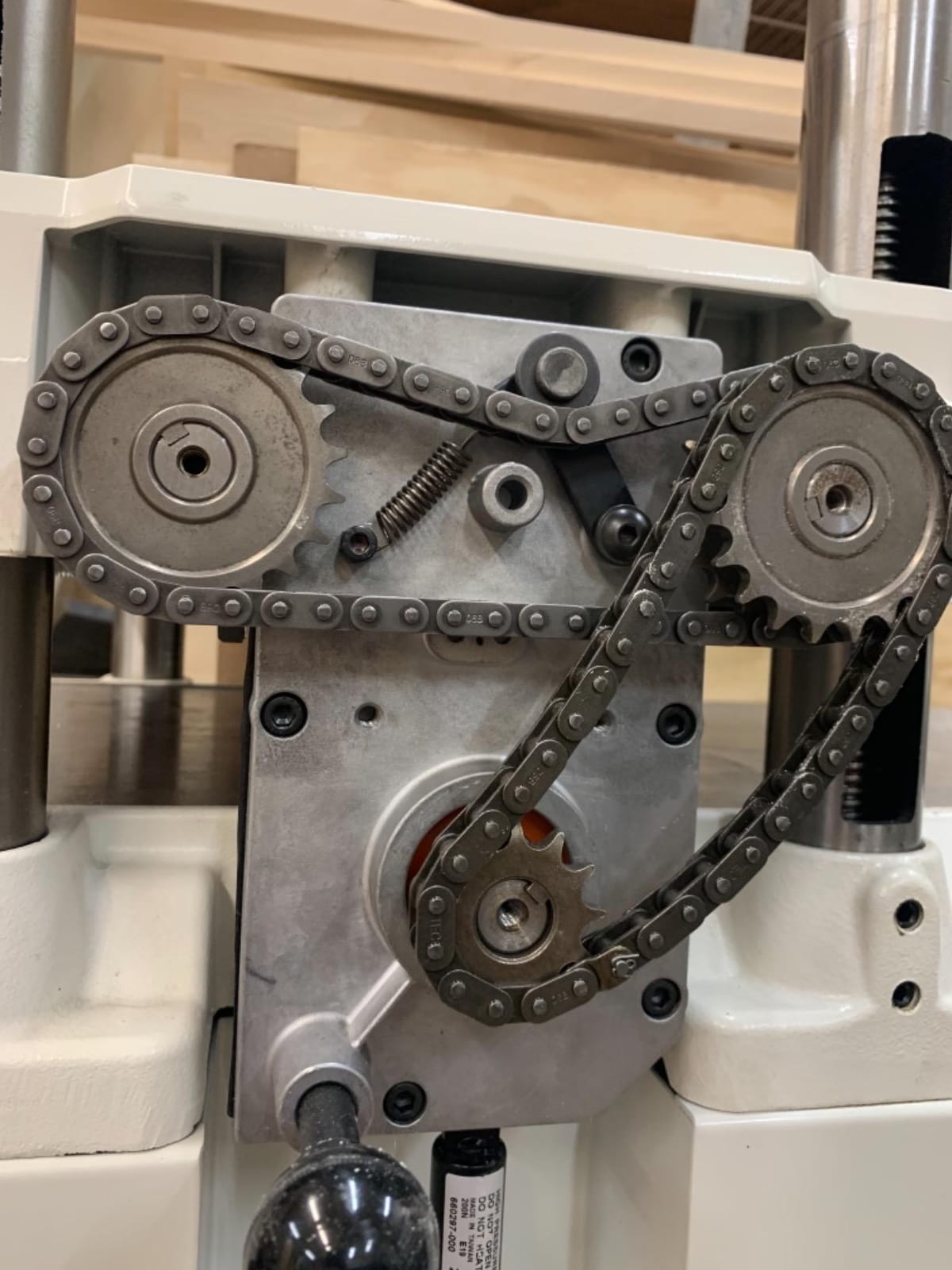

8. JET JPW-15BHH 15-Inch Helical Planer – Strongest Snipe Control
JET 15-Inch Thickness Planer for Woodworking, Helical Style Cutterhead with 2-Speed (16 FPM / 20 FPM) Feed Rate, 3 HP, 230V 1Ph (JPW-15BHH)
48 staggered self-aligning carbide knives
PASS air strut system
3 HP at 230V, 5200 RPM
Two-speed 16 or 20 FPM feed
Pros
- 48 carbide knives self-align with no manual setting
- PASS air strut genuinely reduces snipe
- Markedly quieter than straight-knife machines
- 3 HP motor runs smooth on wide hardwood
- 16 FPM speed suits a fine finish
- Includes cast iron extension tables
Cons
- Small collectors clog the 4 in port quickly
- Surface occasionally needs light sanding
- 285 lb weight and 230V complicate a home shop
- Some machines arrive with damaged feet or missing hardware
- Dust port sits on the same side as the power switch
The JPW-15BHH is the 15-inch answer for a shop that has 230V power and cares most about snipe. Fifteen inches covers most cabinet and furniture panel material without a glue-up, and the helical head means you are not choosing between width and clean surfaces.
Forty-eight staggered self-aligning carbide knives run at 5200 RPM on a 3 HP 230V motor. Self-aligning means there is no manual knife setting to drift, which removes a whole category of setup error on a machine this size.
The Precision Air Strut System is the feature owners single out. It applies upward pressure on the cutterhead to suppress snipe, which is the stepped first-pass mark that helical buyers often blame on the cutterhead when it is really a head-height consistency problem.
Feed speeds are 16 and 20 FPM, and 16 FPM is a genuine finish speed for figured work. The precision-ground cast iron table with four-post design holds wide boards flat, and cast iron extension tables are included.
Why this one works on figured stock
Slow feed and active snipe suppression together. At 16 FPM across a 15-inch width, each carbide knife engages the figure over a longer window, and the air strut keeps head height steady so the first pass is not visibly stepped. Owners describe it as noticeably quieter than straight-knife machines of the same class.
For quilted maple and walnut panels, the practical result is a face you can finish with a light sand rather than a full skim coat.
Where it falls short
At 4.0 stars this machine carries an unusual cluster of assembly and transit complaints, with owners reporting broken cabinet feet, missing hardware and non-working rollers.
The dust port shares a side with the power switch, which is an annoying layout, and small collectors clog the 4-inch port fast because spiral chips are short. At 285.5 pounds with a 230V requirement, it also narrows who can install it.
9. Wahuda Tools 13-Inch Spiral Planer – Best for Portability
Wahuda Tools 13″ Spiral Cutterhead Planer with 4-sided carbide Tips (Two Speed-New)
Four-sided carbide inserts
Two speeds at 26 and 18 FPM
45 in of table extension
77 lb machine, 13 in by 6 in capacity
Pros
- 18 FPM speed suits figured material
- Four-sided carbide inserts rotate four ways before replacement
- Accurate thicknessing on hard maple and red oak
- 77 lb weight makes it easier to move between benches
- 45 in total table length supports longer boards
- Manufacturer resolved a damaged machine with a full refund
Cons
- Infeed and outfeed trays flex with rollers extended
- Some machines arrive with a cracked or misaligned base
- Less established brand with fewer independent reviews
- 120V single-phase motor
At 77 pounds, the Wahuda is one of the few helical benchtop planers you can move without a second person. That suits small shops where the machine comes out of a corner for board prep rather than sitting on a permanent stand.
The cutterhead uses four-sided carbide inserts, and each one rotates four ways before it needs replacing, which spreads the insert cost over a long time. Two feed speeds cover the figured-wood case: 26 FPM for roughing and 18 FPM for finishing.
Pull-out table extensions bring total support length to 45 inches, which helps with longer figured boards. An 8-position preset depth stop and a 4-inch dust port with a 2-1/2-inch adapter are both included.
Why this one works on figured stock
Four-sided carbide plus an 18 FPM finishing speed is the same combination you would want on curly or flame maple, at a fraction of the mass of the 20-inch machines. Owners report standout finishes on hard maple and red oak, and some describe machines that have run for years without needing a blade rotation.
Because the head holds carbide rather than HSS, it stays sharp through the abrasive figured species where a benchtop HSS head starts to fuzz.
Where it falls short
The infeed and outfeed trays feel less rigid with the rollers fully extended, so on a long board you support the ends yourself. Owners also report some units arriving with a cracked or misaligned cast base, so inspect on arrival.
The brand is less established and there are far fewer independent reviews, which makes long-term parts support harder to judge than on a JET or WEN. Our router roundup covers other lighter shop tools.
10. FindBuyTool 13-Inch Helical Planer – Most Inserts and Most Features
FindBuyTool 13″ Benchtop Thickness Planer with Helical Cutterhead (FB132H)
40 indexable carbide inserts
2.5 HP at 15A and 20000 RPM
Two-speed 21 and 12 FPM feed
Ball-screw height adjustment
Pros
- 40 carbide inserts
- more than most 13-inch competitors carry
- 12 FPM slow speed is a real finishing pass for figure
- Ball-screw height adjustment with fine claimed repeatability
- Cast aluminum base reduces vibration and snipe
- Tables extend to 45 in with a 6-position depth stop
- LED work lights and a lockable cutterhead
Cons
- Only 14 reviews leaves durability unproven
- Unknown brand with a limited service network
- 120V corded power only
- Lockable cutterhead adds steps at insert changes
On paper, the FindBuyTool has the richest benchtop specification in this roundup. Forty indexable carbide inserts is more cutting edges than the 24 and 26 insert competitors carry, and the 12 FPM finishing speed is the slowest finish feed any 13-inch machine here offers.
The drive is a 2.5 HP 15-amp motor at 20,000 RPM with two feed speeds at 21 FPM for roughing and 12 FPM for finishing. Height adjustment runs on a ball screw with a claimed repeatability of plus or minus 0.05mm, and the cast aluminum base is heavier than the alloy bases on cheaper benches.
Every one of the 14 posted reviews is five stars, with owners citing smooth finishes and depth control that holds up against machines in higher price classes. The spec sheet also includes extendable tables to 45 inches, a 6-position preset thickness control, LED work lights, a 4-inch dust port and overload protection.
What that review base cannot tell you is durability. Fourteen reviews is a thin sample for a machine with a 20,000 RPM cutterhead, and an unknown brand with a limited service network means parts support is the open question.
Why this one works on figured stock
The 12 FPM finishing speed is the headline. Slower feed means each of the 40 carbide inserts engages the figure for longer, which is precisely the mechanism that keeps quilted maple and flame birch clean. Combined with the claimed 0.05mm height repeatability, thickness stays consistent across repeated passes.
More inserts also means each one carries a smaller share of the cut, so the head stays sharp between rotations longer than a 24-blade head would.
Where it falls short
The evidence base is thin. A 5.0 rating across 14 reviews says owners are happy today, not that the bearings and inserts will last a decade. Ask yourself whether you are comfortable with that uncertainty on a primary machine.
It is also 120V corded only, and the lockable cutterhead adds steps every time you change inserts, which you will do more often than you expect on figured material.
11. Powermatic 209HH 20-Inch Helical Planer – Best for Production Work
Powermatic 20-Inch Thickness Planer for Woodworking, Helical Style Cutterhead with 4-Speed (16/20 / 24/31 FPM) Feed Rate, 5 HP, 230V/460V 3Ph (209HH)
100 four-sided carbide inserts
5 HP at 230V or 460V three-phase
Four feed speeds 16/20 and 24/31 FPM
55.5 in by 20 in cast iron table
Pros
- 100 four-sided inserts give an enormous edge count for shop duty
- Four feed speeds from 16 to 31 FPM
- 20 in width with a 55.5 in table handles full slabs
- Chip breaker and pressure bar reduce snipe
- Integrated casters and lifting rods help move an 801 lb machine
- Chrome handwheel makes thickness changes precise
Cons
- 801 lb needs a dedicated floor location
- 230V or 460V three-phase circuit required
- Highest cost in this roundup by a wide margin
- Only 5 reviews
- so long-term feedback is thin
- 5000 RPM is modest for the insert count
The Powermatic 209HH has the most capable specification in this roundup and the thinnest evidence behind it. It carries 100 four-sided carbide inserts on a 5 HP motor, four feed speeds, and a 55-1/2-inch by 20-inch cast iron table with extensions. For a shop running continuous production surfacing on figured wood, that is an unusually complete machine.
Feed speeds cover the full range figured wood needs: 16 and 20 FPM for finishing passes, 24 and 31 FPM for roughing. A chip breaker and pressure bar work together to reduce snipe on wide boards, and serrated infeed with a smooth outfeed roller controls the board through the cut.
Maximum thickness capacity is 8 inches, deeper than any other machine here, and maximum depth of cut is 1/8 inch. Integrated locking casters and pull-out lifting rods exist specifically because the machine weighs 801 pounds.
All five published reviews are strongly positive, with 84 percent five-star and the remainder three-star, citing smooth and quiet cutting and good power on thick material. That is a sample too small to draw conclusions from, and we want to be clear about that.
Why this one works on figured stock
The 16 FPM speed gives you the same slow finishing pass as the best benchtop machines, on a 20-inch width. A chip breaker and pressure bar combination is what keeps the first pass flat across a wide figured panel, and the 100 inserts mean the head holds its edge through long production runs without a stop.
Eight inches of thickness capacity also means thicker figured material goes through without being ripped down first.
Where it falls short
This is a floor machine. It requires a dedicated location, a 230V or 460V three-phase circuit, and the commitment that it will not be moved casually. For a home shop, the electrical requirement alone disqualifies it.
The five-review base is the other honest caveat. A machine this size should be judged on owner tenure reports, and those do not exist yet at this volume.
How to Plane Figured Wood Without Tear-Out
A helical head removes most tear-out. It does not remove the need for technique, and the workflow below is what separates a clean figured surface from one you sand for an hour.
Flatten one face first. Use a track saw, hand plane or jointer to get a true reference face before the board goes near the planer. Thicknessing a cupped board produces cupped results no cutterhead can save.
Plane in the direction of the figure. Climb grain is where tear-out lives. Feeding downhill means the cutter compresses the fibers instead of lifting them, and it is the single biggest factor in a clean result on curly maple.
Use the slowest feed speed for finish passes. On machines with two speeds, rough at the fast setting and drop to 16 or 18 FPM for the final cut across figure.
Take a light first cut. Shave about 1/16 inch on the first pass over figured boards, then remove the rest in a second pass. Deep cuts on soft figure pull fibers no matter what the cutterhead is doing.
Wax the bed and rollers. A paste wax film on the infeed table stops sticky figured sap from grabbing the board and lifting the grain as it exits.
Inspect every board for metal. Owners on woodworking forums warn that carbide inserts will eat staples, brads and screws without hesitation. Run a detector or look carefully before every feed.
Thicken in glue-ups last. Surfacing individual boards before assembly means one clean pass over a wide panel, which is far easier on the cutterhead than planing a glue-up at full width.
Steps two and four do most of the work. Lightening the depth of cut on the first pass removes the fuzz that a helical head alone still leaves on flame maple.
What Helical Heads Still Can’t Fix
Helical and spiral cutterheads still tear out on soft figured species. Woodworkers on LumberJocks report that softer woods like curly and flame maple are the worst case, and the common recommendation is to demo any helical machine on your own figured material before committing to it.
Cross-grain conditions defeat a segmented head too. If the board is cupped or twisted relative to the feed direction, the last inch of every pass rips fibers regardless of how many inserts engage. Straightening the stock first is the only real fix.
Snipe gets mistaken for a bad machine. Owners frequently blame the planer for a stepped first pass when the real cause is feed rate, board support or a machine that was not bedded in properly. Check table height alignment before assuming the cutterhead is at fault.
Chip packing in the dust port is another genuine complaint. Spiral and helical heads make short, discontinuous chips, and those pile up in a small collector faster than the airflow clears them. A collector sized for straight-knife shavings is usually undersized here.
Very high feed rates finish the list. Feed a 5000 RPM 20-inch head at full speed over figured maple and the inserts have no time to shear a chip before it forms. Slow feeds exist for a reason, and using them is not optional on figure.
Finally, carbide inserts are not free. They are consumables you will replace over the life of the machine, and some brands are easier to source than others. Check insert availability before you buy, not after the first insert chips.
How to Choose a Helical Head Planer for Figured Wood
Match capacity to your widest board
Thirteen inches covers drawer parts, cabinet material and most small furniture. Fifteen inches covers most panel work without a glue-up. Twenty inches handles full-width lumber and slab boards in one pass. The practical rule is to measure your widest typical board before you shop, not your widest aspirational one.
Check the cutterhead and insert type
Carbide holds an edge far longer on soft figured maple and flame birch than HSS does, and four-sided inserts give you the most edges per insert. Helical and spiral geometry perform nearly identically on tear-out, so treat the word choice as marketing rather than performance.
Prioritize a slow feed speed
For figured work, a second, slower feed rate is worth more than horsepower. Two-speed machines let you rough fast and finish slow, and that is exactly the pattern figured wood needs. Single-speed machines are workable but leave you controlling quality entirely through depth of cut.
Work out the electrical requirement first
Most 13-inch benches here run 120V at 15A and will fit an existing circuit. The 15-inch JET and both 20-inch machines need 230V single-phase, and the Powermatic needs 230V or 460V three-phase. Check this before anything else, because it disqualifies machines faster than any spec sheet.
Look at bed material and post count
Cast iron beds stay rigid longer than aluminum or alloy bases, and four-post head support resists the deflection that causes uneven thickness on wide figured boards. Two-post budget machines are more likely to flex under a wide board.
Plan for dust collection
Helical machines need more airflow than straight-knife machines because chips are small and numerous. A 4-inch port is the common standard, and several 13-inch machines need an adapter to reach it. Size your collector accordingly.
Factor in long-term costs
Carbide inserts cost more than HSS but replace far less often, and four-sided inserts extend that further. Against a straight-knife planer, you are trading repeated knife sharpening for insert replacement, which usually works out cheaper over years of service on hard wood.
Frequently Asked Questions
Are helical head planers better?
For figured wood, yes. A helical head planer uses many small angled inserts instead of full-width straight knives, so each insert shears a short segment and the chip breaks before it can lift interlocked grain. On curly maple, quilted maple and flame birch that difference shows up as a face you can finish with a light sand. On clean straight-grained lumber a straight-knife machine is still faster and cheaper.
What is the difference between a spiral and helical planer?
Both use indexable inserts to break the cut into segments. A helical cutterhead sets inserts at an angle of roughly 14 degrees to the drum axis, producing short wedge-shaped chips. A spiral cutterhead sets inserts parallel to that axis, producing a slightly longer shaving. On figured wood the tear-out results are nearly identical.
Are helical cutters worth it?
Yes if you surface hardwood regularly. Carbide inserts stay sharp through abrasive figured species far longer than HSS, and rotating or flipping a single insert costs less than sharpening three long knives. The economics are weaker if you mostly plane clean softwood, where straight-knife machines remain faster and less expensive.
Do helical planers still tear out?
Yes, particularly on soft figured species like curly and flame maple. Owners report tear-out at aggressive feed rates and on cross-grain or cupped stock regardless of cutterhead type. Light first passes, downhill feed direction, a slow feed speed and waxing the bed all reduce it, but none eliminate it on soft figure.
How do I plane a large piece of wood?
Flatten one face first with a track saw or hand plane, then feed downhill with the grain and take a shallow first cut of about 1/16 inch. Use the slowest feed speed available for finish passes, support long boards at the ends, and wax the bed so sticky sap does not grab the board. Boards wider than your machine need glue-ups or crosscutting first.
Final Verdict: Which Helical Head Planer Should You Buy
Buy the WEN PL1326 if you want one answer. It has the largest owner base in this roundup at 736 reviews, a 4.7 rating, a 26-blade rotatable spiral head and a cast iron table, and it sits below most of the alternatives here on cost. For a 13-inch benchtop helical head planer built for figured wood in 2026, it is the safest choice.
Pick the RIKON 25-135H instead if a slow feed speed matters most to you, and the JET JWP-13BT if you need the machine to fold away in a small shop. Choose the Cutech 40600H if carbide inserts at a modest cost are the priority, and the Wahuda if you need to move the machine between benches.
Step up a width class when your figured wood arrives as full panels. The JET JWP-208HH covers 20 inches of width with real horsepower, and the Powermatic 209HH is the production choice for shops with three-phase power. Just confirm the circuit before either one. Whichever you pick, test it on your own figure first, and take light passes.
