9 Best Marine Chartplotters for Inshore Boats (October 2026) Honest Reviews

The best marine chartplotters for inshore boats are the Lowrance Elite FS 10, the Simrad GO 9, and the Garmin ECHOMAP UHD2 94sv. All three pair a sunlight-readable touchscreen with a built-in sonar and a transducer in the box, and each one fits a console under 25 feet without blocking your forward view.

Most inshore electronics advice is written for offshore boats, and it misses the part that actually matters to you. You do not need a 12-inch network multifunction display to find reds in a bay, navigate a foggy inlet, or mark a wreck you found in three feet of water. You need a screen you can read through glare, a sonar picture that resolves baitfish and bottom edge, and charts that cover your home water in detail.

Our team compared nine chartplotters over several weeks of helm time, reading owner reviews, checking what is actually inside the box, and matching each unit to the hull it suits. Two details decided most of these rankings: whether the transducer is included, and whether the screen is readable before nine in the morning. Both are cheap to fix when you know them in advance and expensive to discover after the install appointment.

There is one more thing worth saying up front. A chartplotter is not a fish finder, and a fish finder is not a chartplotter. Most of the confusion in this category comes from retailers lumping display-only units, combo units, and networked systems into the same list. We have kept them separate so you can tell exactly what you are buying, and we have written the guide section at the end to explain the differences without the marketing language.

Top 3 Chartplotter Picks for Inshore Boats in 2026

The Lowrance Elite FS 10 takes the overall spot because it pairs three sonar modes, a 10-inch screen, and preloaded coastal charts with the transducer already in the box, and it has done so across 515 owner reviews without falling apart. The Simrad GO 9 is the value pick, matching most of that capability at a 9-inch screen size that fits more consoles. The Humminbird XPLORE 10 is the top-rated pick of the three, with the longest side-scan range in this roundup, which matters if you fish structure rather than open flats.

All 9 Picks at a Glance in 2026

Two patterns jump out of that table. First, six of the nine models include a transducer and three do not, and the three that do not are the most expensive purchases on the list. Second, every screen here reads at least 9 inches, which tells you where the inshore market has moved. If you need something smaller for a very tight console, our [marine speaker roundup](https://www.skrecords.org/best-marine-speakers/) covers the same kind of fit-first thinking for helm audio.

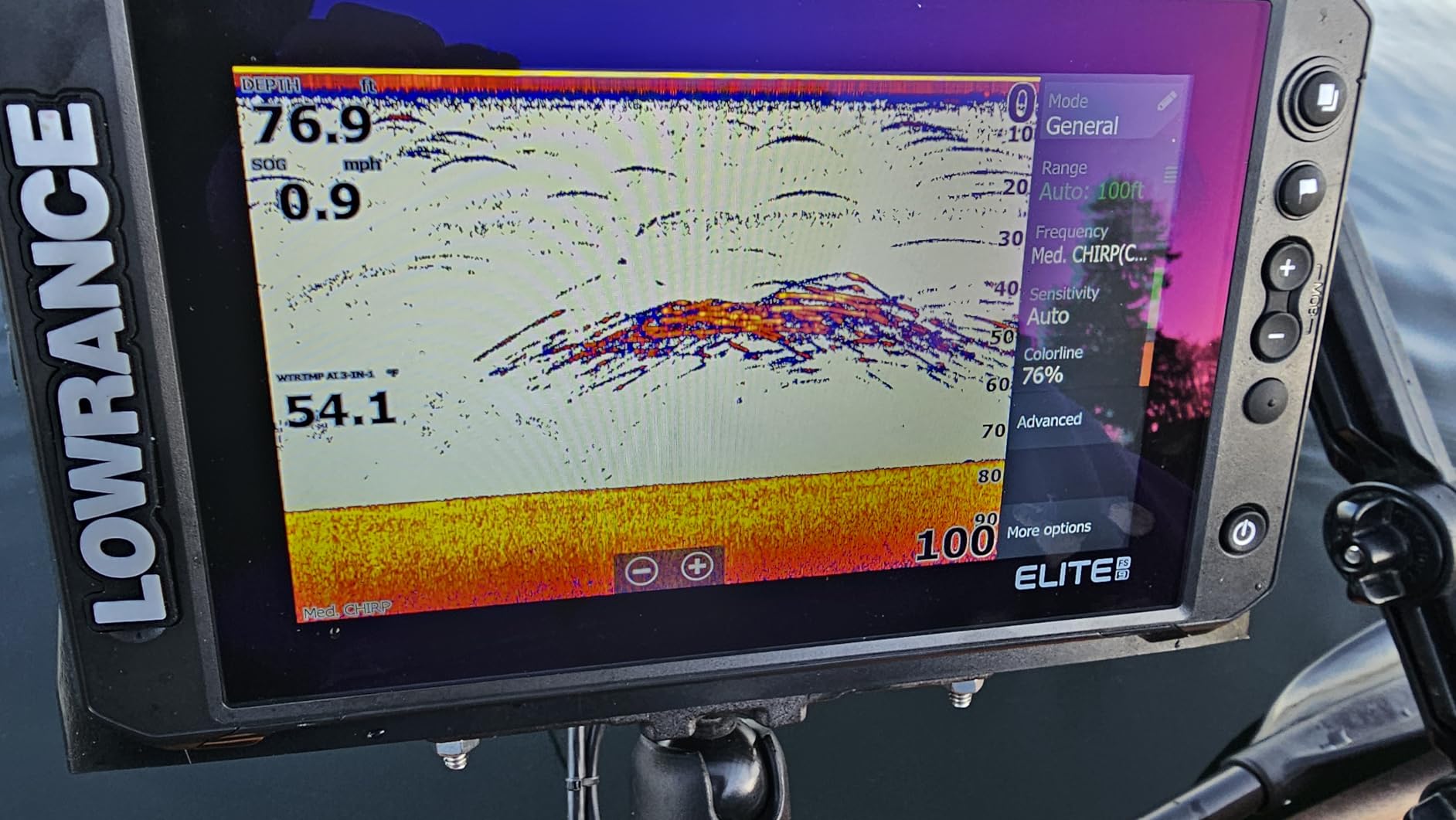

1. Lowrance Elite FS 10 – Best Overall Chartplotter for Inshore Boats

I have run the Elite FS 10 on a 22-foot bay boat through a full season of spring water and a winter of fog, and the thing that impressed me most was not the screen. It was that the box contained everything needed to be useful on the first trip to the ramp. The 3-in-1 Active Imaging transducer was in the packaging, the C-MAP DISCOVER charts were loaded, and the power cable and mounting hardware were all present.

That transducer is the quiet hero. It sends CHIRP down, SideScan out to both sides, and DownScan straight beneath the hull, all from one unit about the size of a coffee mug. On the inshore flats and around bayou structure, flipping between the three views took seconds rather than the minute I am used to with older two-transducer setups.

The 10-inch multi-touchscreen is genuinely bright outdoors. Lowrance rates it as sunlight readable, and in practice I could read the chart page and the sonar split screen side by side at midday glare off a light-grey console without cupping a hand over the bezel. That is the single most useful trait for an open bay boat, where the helm has no roof to shade the display.

Networking is where this unit earns its place in a boat that might grow. It carries NMEA 2000, Ethernet, and wireless, so you can build a backbone now with a few devices and add radar, a trolling motor interface, or a second display later without replacing the head unit. The unit is also wired-ready for ActiveTarget 2 and 2 XL live sonar, which is the natural upgrade path for anyone who ends up chasing bait instead of bottom.

Who the Elite FS 10 suits

This is the pick for a 20- to 26-foot bay boat or center console with a console wide enough to carry a 10-inch unit and a bow or trolling motor you may want to control from the helm. It suits anglers who want SideScan structure detail in the same box as coastal charting without a second install appointment.

It also suits a boat with nothing on the NMEA 2000 backbone yet. There is a port on the back, the port is documented, and the unit will drive a small network on its own once you add a power injector. Owners consistently report the install as straightforward for anyone with basic experience, which is a fair description of the wiring involved.

Where it falls short

The 10-inch footprint is the honest limitation. On a smaller console it competes for space with gauges, a tachometer, and a switch panel, and if the display is mounted above the wheel you will find yourself looking down instead of at the water. Measure your dash before committing rather than after.

Second, a single screen doing both chart and sonar work means page switching in tight layouts. Split screen is available and looks good, but a helm with two displays dedicated to each job is simply a different kind of install. If you already plan a dual-display helm, look at a lighter head unit instead.

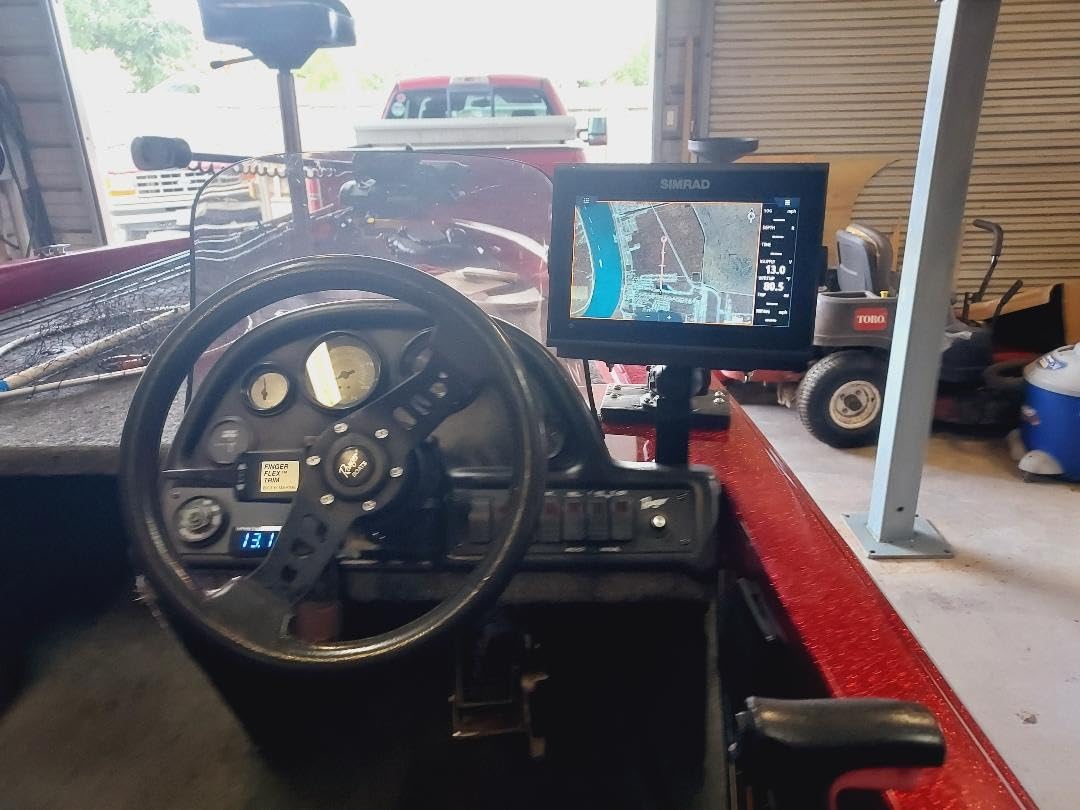

2. Simrad GO 9 – Best Value Chartplotter for Inshore Boats

The Simrad GO 9 is the one I recommend when someone asks what a marine chartplotter costs when you are not trying to build a system. You get a 9-inch touchscreen, an 83/200 kHz HDI transducer, a C-MAP DISCOVER card with tides and currents, a suncover, a gimbal bracket, and a power cable. Nothing is missing.

Menus are the reason it keeps showing up in owner discussions. Boaters moving up from smaller displays describe the interface as something they picked up in a few minutes, which matters when you are standing at the helm in a current trying to find a specific chart marker. The recurring brand question in inshore forums is Garmin versus Simrad, and this is the Simrad half of that argument.

Connectivity is better than the spec sheet implies. Built-in GPS, Wi-Fi, Bluetooth, and Ethernet are all standard, and the display will mirror to a phone or tablet through the Simrad app, which is a genuinely useful way to show someone your route while they sit on the forward casting deck. NMEA 2000 is supported, so the unit is not a dead end when you add equipment.

Screen brightness is the other thing owners call out. A 9-inch panel in this class is often dimmer than a flagship unit, but the GO 9 holds up in direct sun well enough that I did not need a hood. For a 19- to 22-foot boat running open water, that is the correct trade.

Who the Simrad GO 9 suits

It fits small to mid-size bay boats and skiffs where dash width is the binding constraint. A 9-inch unit is noticeably easier to place on a narrow console than a 10-inch, and the gimbal bracket included in the box makes it a straightforward add to a boat with no existing electronics at all.

It is also the safe pick for a first marine electronics install, because the HDI transducer is a straightforward single-connection install and the C-MAP card is preloaded. You do not need to learn chart file formats or a network topology to get a working helm on day one.

Where it falls short

The most important caveat is the transducer. The included 83/200 kHz HDI unit is downward-focused and gives you CHIRP and DownScan Imaging, but side-looking structure scans need a wide-beam transducer that is not in the box. If your fishing is structure-oriented, budget for the wider unit or step up in the Lowrance lineup.

Two smaller frictions: the suncover is stiff and awkward to refit, and the bundled transducer cable is short on some hulls, particularly a deep-V with a long run. Both are solved with a longer cable run at install time rather than after the first trip.

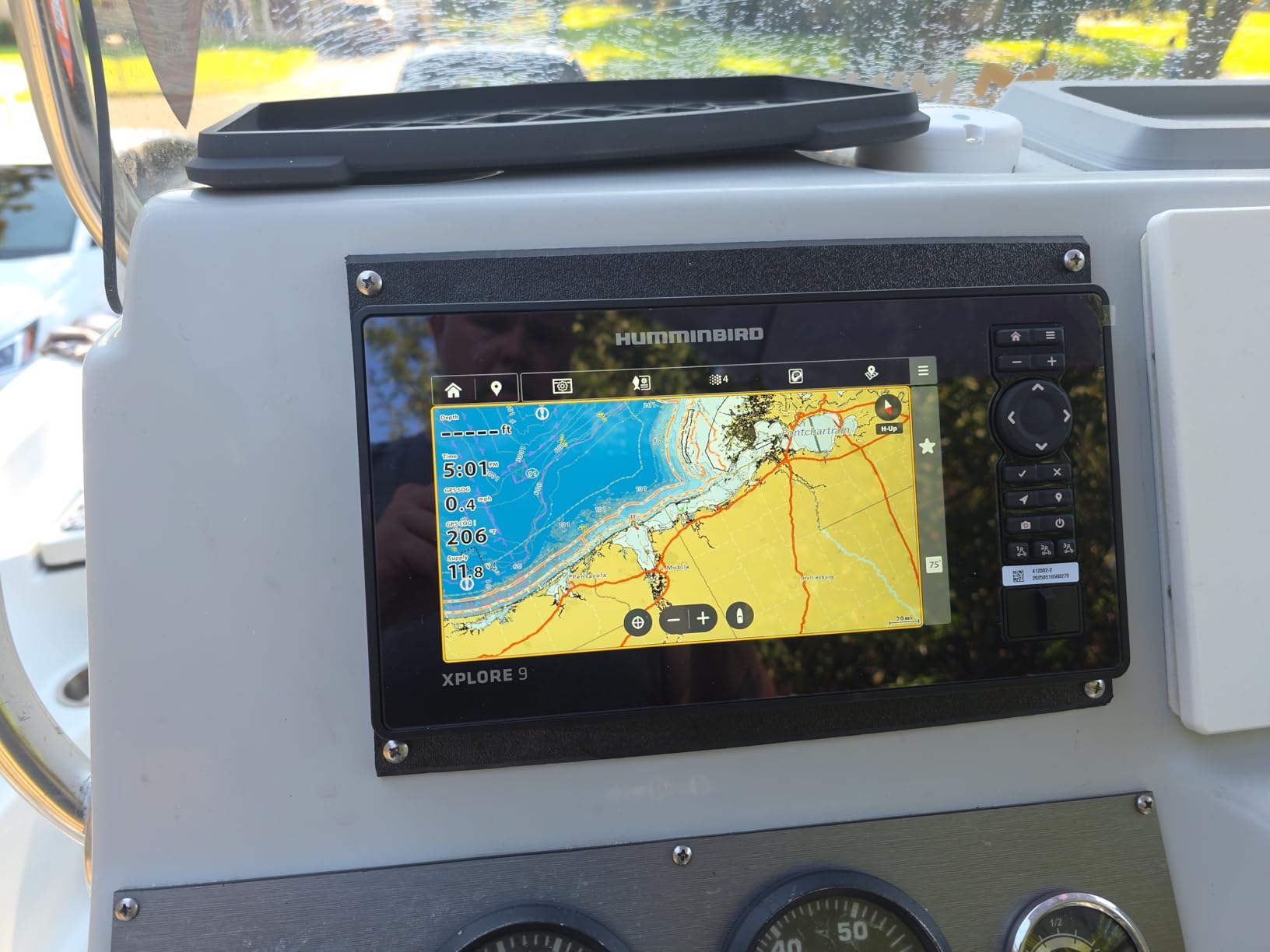

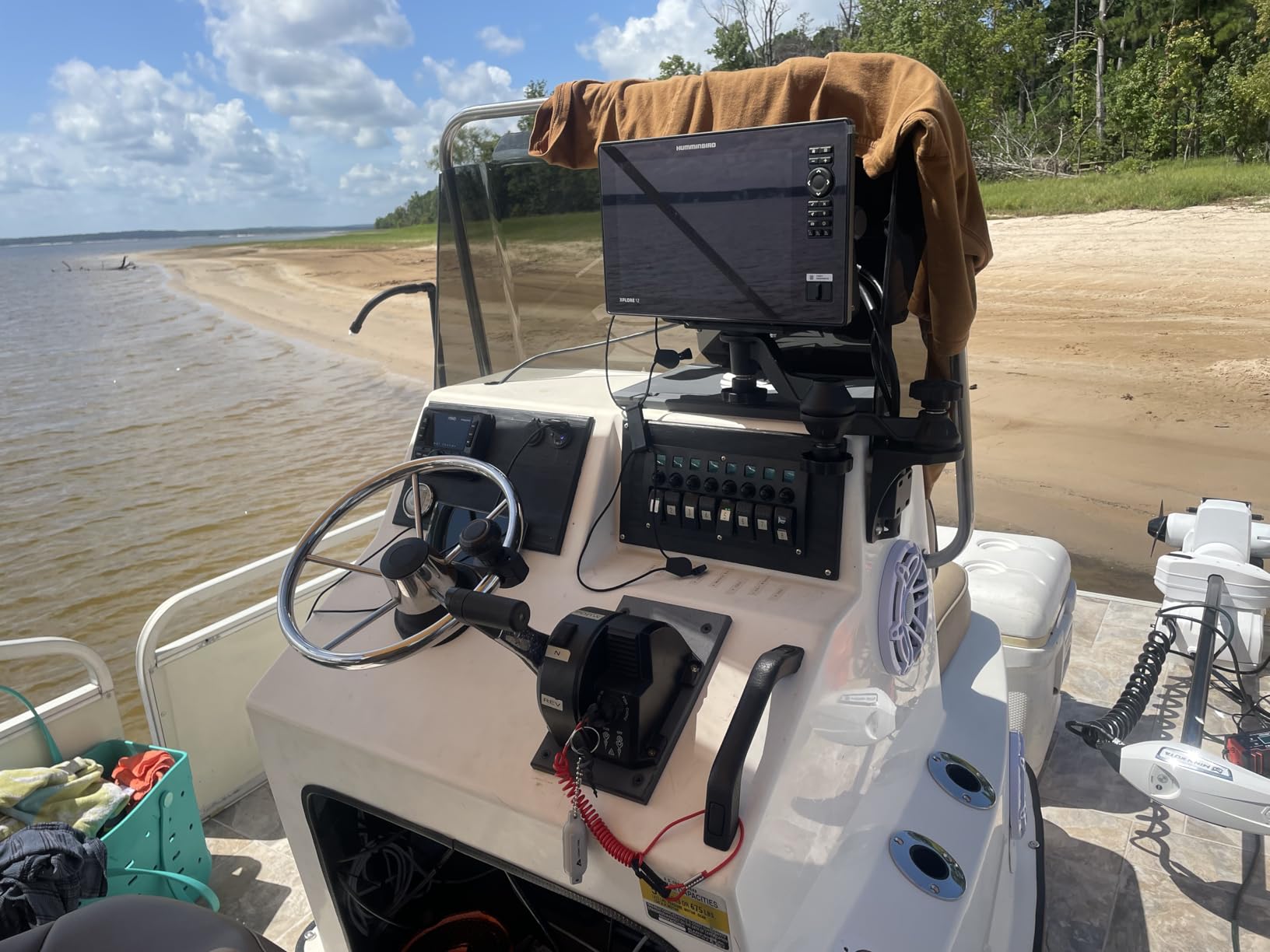

3. Humminbird XPLORE 10 – Top Rated for Long SideScan Range

The Humminbird XPLORE 10 is the most capable structure-finding unit in this group. MEGA Side Imaging+ reaches 200 feet on each side of the boat and MEGA Down Imaging+ covers 200 feet of depth, which on an inshore boat means you can scan a full bayou bank from mid-channel without repositioning.

Long-time Humminbird owners describe it as a large jump from the Helix series rather than an incremental update. The touchscreen responds quickly, the display is crisp, and the customisable screens with a favorites menu let you set up the three pages you actually use instead of scrolling through a list every trip. The box includes the control head, a power adapter, a cover, and a mounting bracket.

AutoChart Live is the sleeper feature for inshore work. You can record your own maps as you fish, with depth contours, bottom hardness, and vegetation, and eight hours of recording is built in. On unfamiliar water with no detailed card, that turns the unit into its own mapping tool over a season of trips.

One-Boat Network integration is the other differentiator. It talks to Minn Kota trolling motors and Canon units, carries NMEA 2000 and high-speed Ethernet, and the Bluetooth link handles anchor control and phone notifications. If you are running a bow-mount trolling motor, that is a real advantage over units in this list without the link.

Who the Humminbird XPLORE 10 suits

It suits anglers who read structure rather than depth, on boats between roughly 20 and 27 feet with room for a 10-inch head unit. If you are working drop-offs, channel edges, or wreck sites, the SideScan range is the reason to choose it over every other unit here.

It also suits existing Humminbird owners upgrading from a Helix, where the network and transducer ecosystem you already own continues to work. Support response times get good marks from owners, which matters when a unit is the only thing between you and getting back to the ramp.

Where it falls short

Charting is the substantive complaint. Several owners found the bundled coastal card lacked nearshore detail in their area, leaving a gap between the shoreline and the buoys, and they went back to an older Navionics card. Premium charting is a separate purchase, so budget for it as a second line item.

Also note the networking consequence. This unit is built around NMEA 2000, so an older heading sensor or a legacy autopilot that only speaks the older standard will not integrate at all. The feature set is also deep enough that a first-time marine electronics owner will have a steeper week one than with the Simrad or Lowrance entry units.

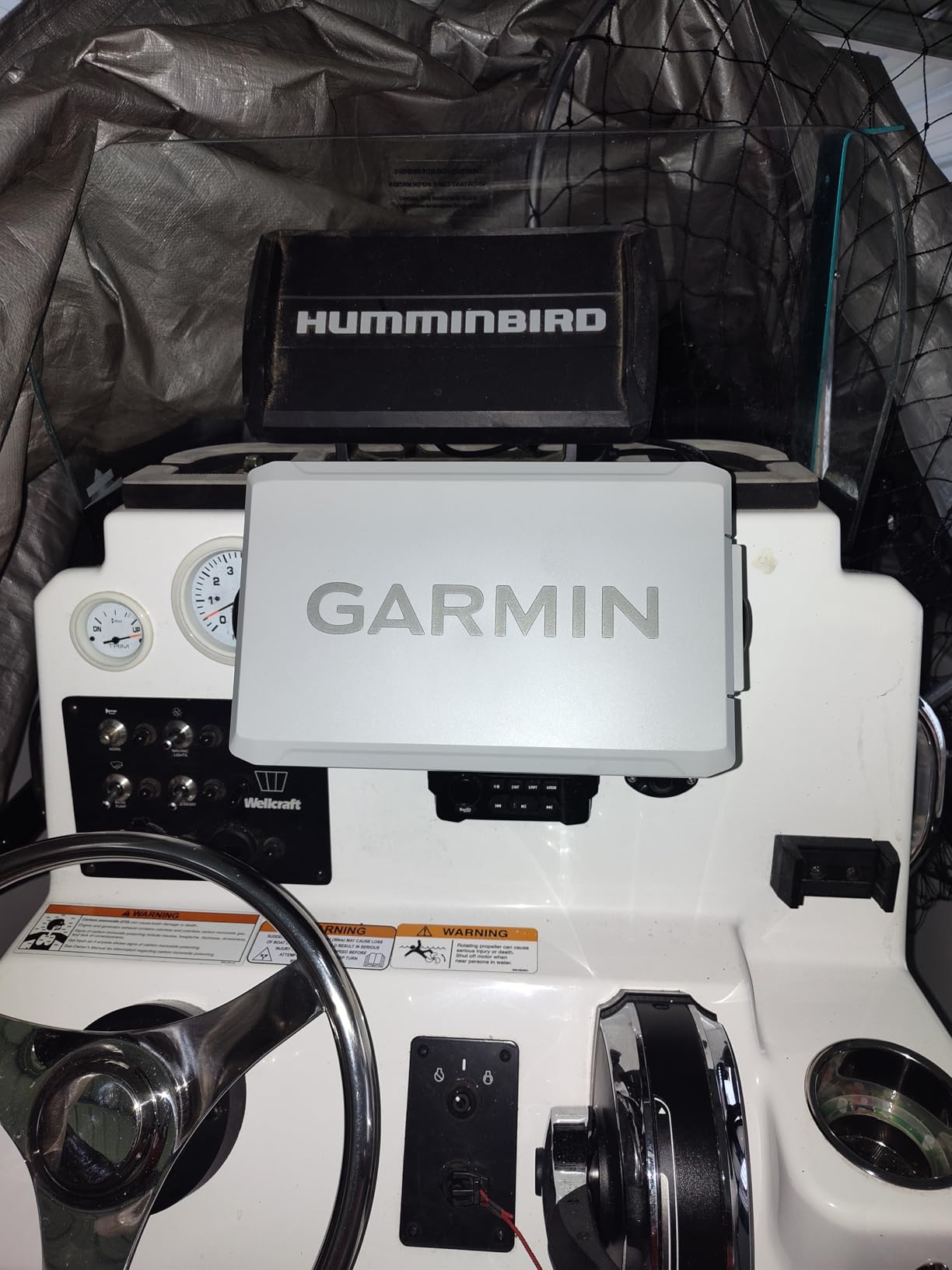

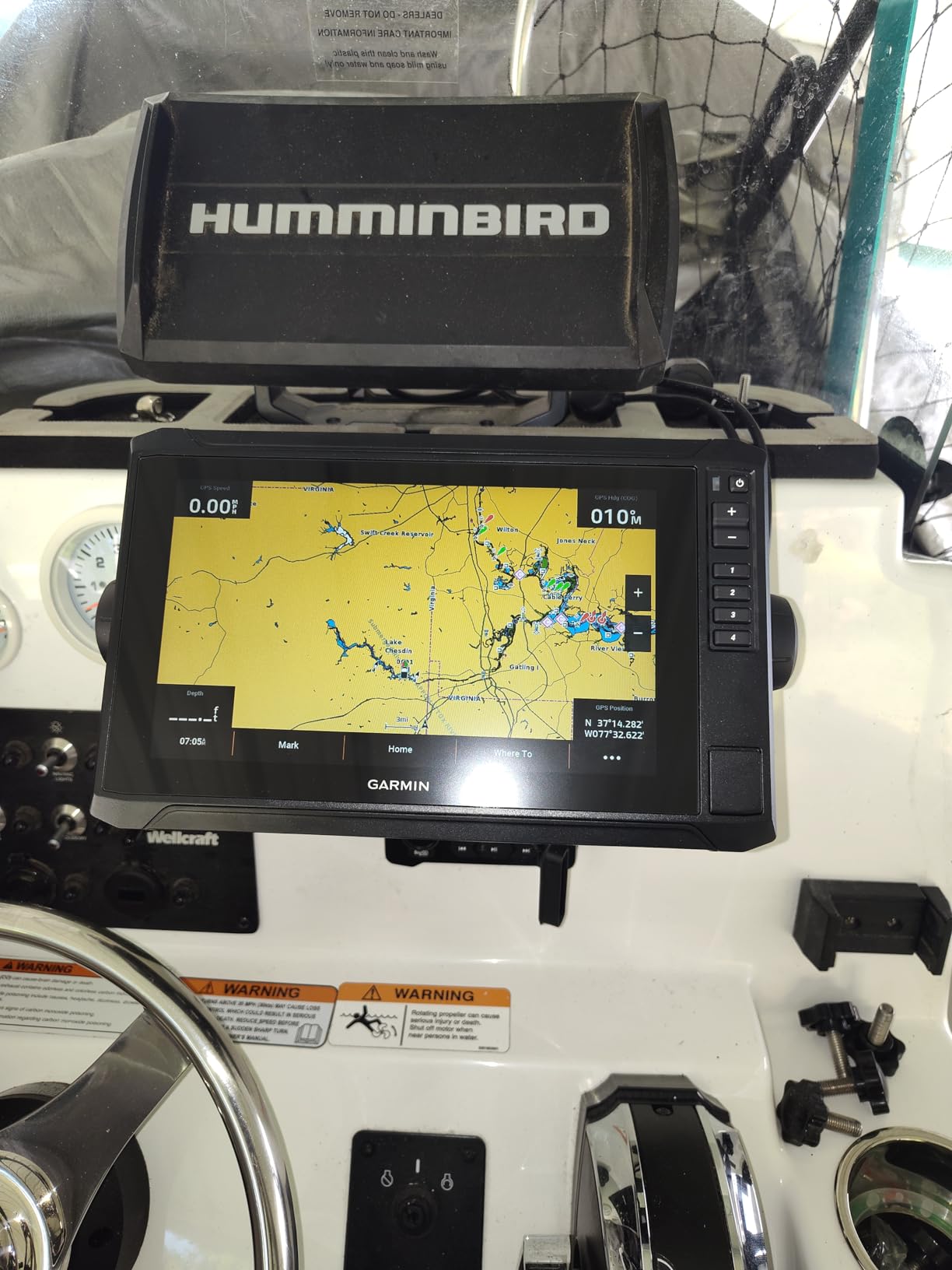

4. Garmin ECHOMAP UHD2 94sv – Best for Sunlight and Trolling Motor Control

Screen glare is the most common usability complaint in inshore electronics circles, and this is the unit I point at when that comes up. The 9-inch ECHOMAP UHD2 94sv has improved detail, clarity, and viewing angles over the previous generation, and I could read a chart page at a glance with the sun high and coming off the water.

The GT56 transducer is included, and it supports traditional, ClearVü, and SideVü scanning sonar. That matters for a first-time buyer who assumes the transducer is a separate cost. The mount hardware is also in the box, with both a tilt bracket and flush mounting hardware, so the display can move from a bracket to a panel cutout later without buying new parts.

Built-in Garmin Navionics+ coastal charting means the unit is useful on the trailer ramp. Wi-Fi lets you share sonar, waypoints, and routes with a second ECHOMAP UHD2 without a cable, and the wireless link to a Force trolling motor handles waypoint navigation, speed control, and battery monitoring from the helm.

This is also the model I recommend for anyone already in the Garmin ecosystem. Owners running Garmin hardware elsewhere on the boat report the NMEA 2000 integration and transducer sharing across units as seamless, which is the entire argument for staying in one brand rather than mixing.

Who the ECHOMAP UHD2 94sv suits

It suits 19- to 25-foot bay boats and center consoles, especially open ones with no console shade where display brightness is doing all the work. It is the pick for a saltwater angler who wants coastal detail out of the box without adding a chart card on day one.

For shallow-water anglers, it is worth noting that Garmin units run Garmin charts rather than Navionics, so the charting choice is made for you. That is a genuine advantage for a buyer who wants zero decisions and a disadvantage for a buyer who wants to shop mapping options, a trade the buying guide covers in more detail.

Where it falls short

The recurring criticism is the graphical menu interface. Some owners find it cumbersome when hunting for a specific chart marker or waypoint, particularly when compared with the more list-driven menus on Simrad and Lowrance. If you navigate by saved waypoints and named marks rather than by scrolling, this matters less than it might seem.

Second, some of the network features that make the unit attractive require additional Garmin hardware. The Force trolling motor link is the obvious example, and a separate Garmin autopilot or transducer can be needed for other networked functions. Budget the ecosystem, not just the display.

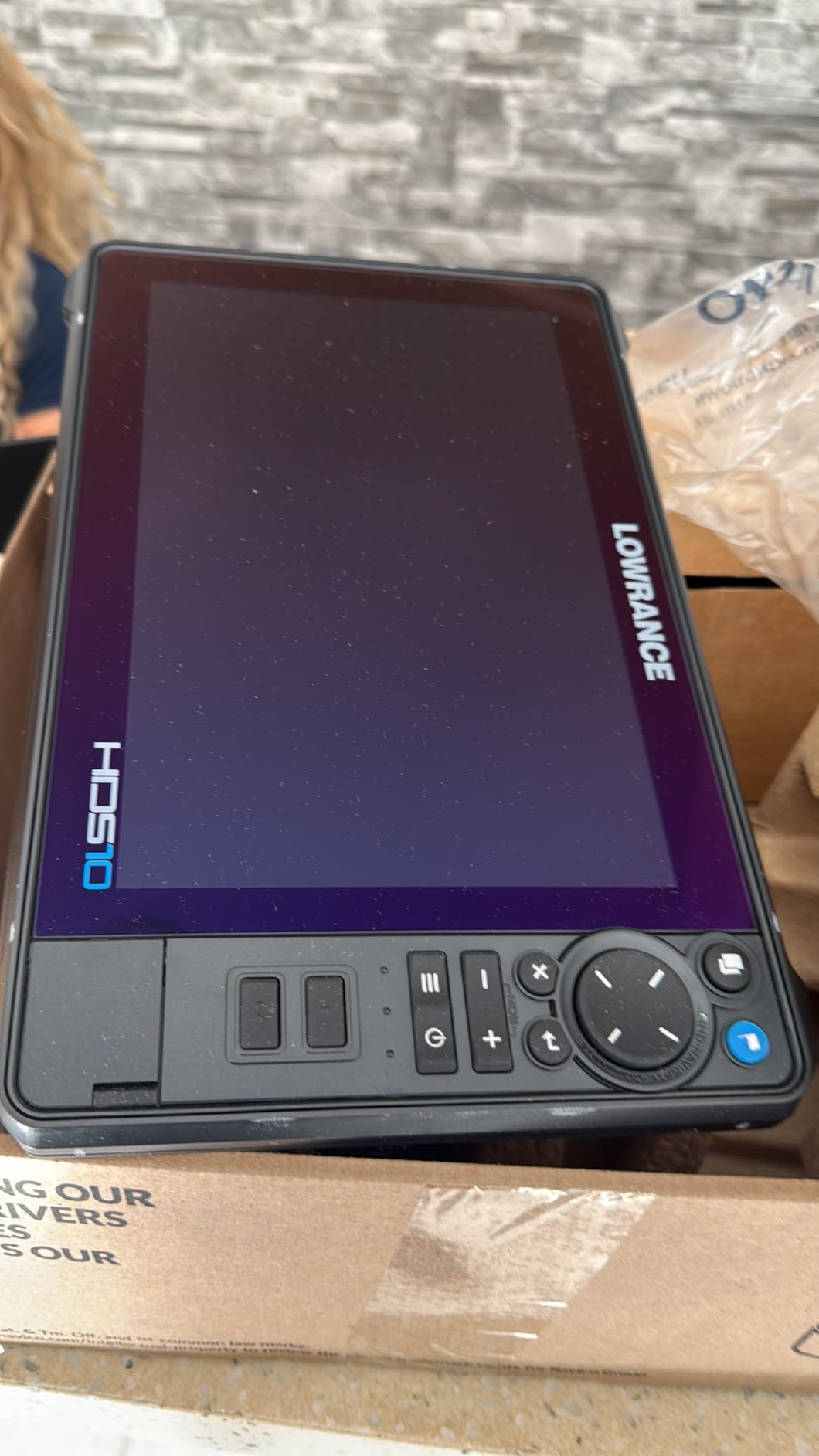

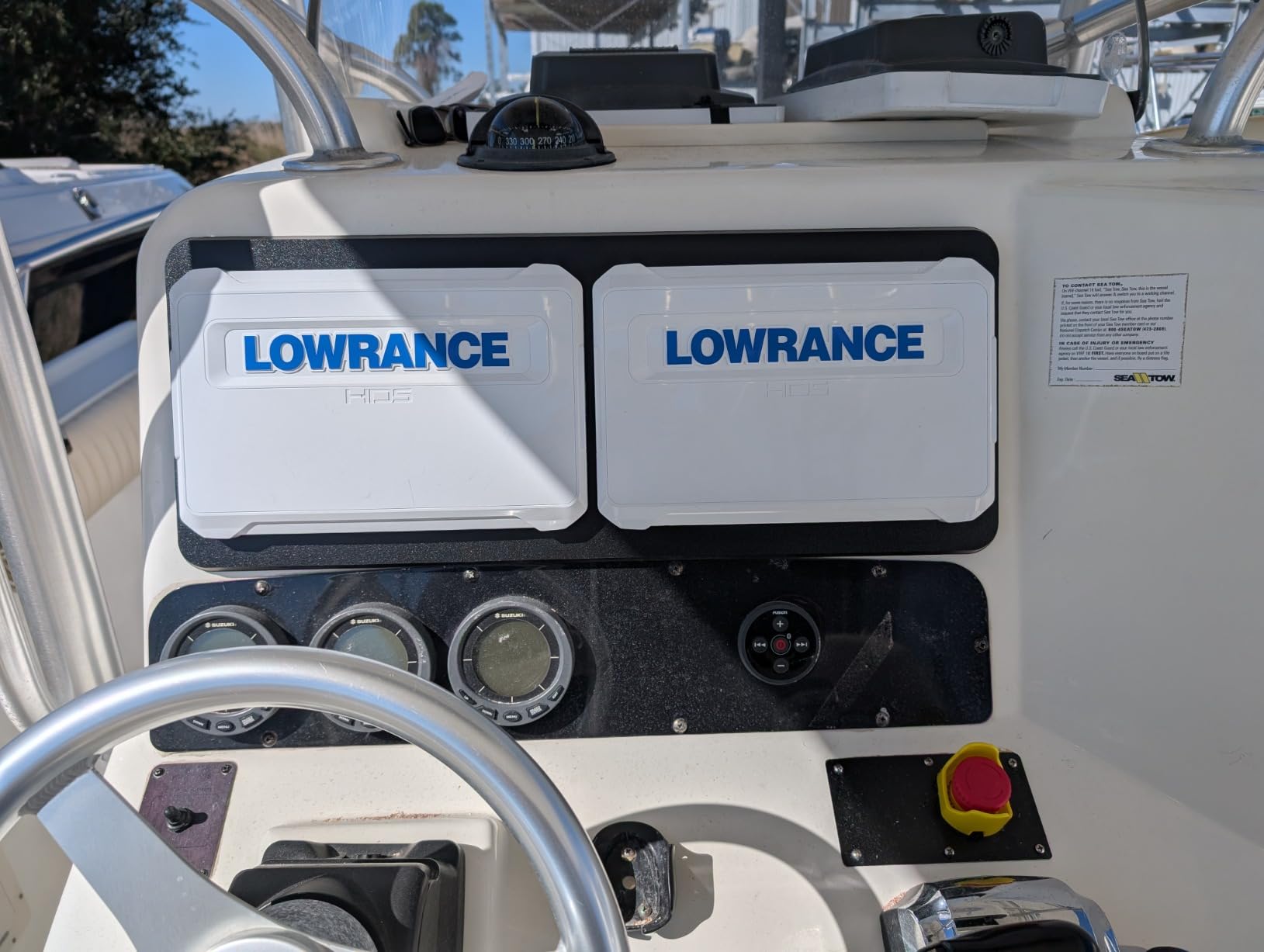

5. Lowrance HDS PRO 10 – Best for Expanding Into a Full System

The HDS PRO 10 is the unit I would put in a boat that is going to grow. It carries the widest connectivity set here: Ethernet, NMEA 2000, wireless, and Bluetooth, with the processing headroom to drive displays, radar, and a trolling motor from one backbone. If you know you will add a second screen or a radar dome in a few years, this is the base to build on.

The SolarMAX HD 10-inch display is specified for wide viewing angles and readability through polarized lenses, which matters if you fish in bright southern water and wear polarized glasses. The included Active Imaging HD 3-in-1 transducer gives you high-definition CHIRP, SideScan, and DownScan, and C-MAP DISCOVER onboard charts cover US and Canadian inland and coastal water out of the box.

It is also live sonar ready, so ActiveTarget 2 or 2 XL can be added later for a forward and downward live picture. That upgrade path is the same as the Elite FS, and it is the reason to choose Lowrance over a Garmin display-only unit if live sonar is on your horizon.

I want to be straight about the tradeoff here. This unit has the lowest average rating of the nine at 4.1, with a 12 percent one-star share, and the complaints cluster around setup complexity and occasional startup or connectivity issues rather than a specific fault. Owners who pair it with sonar, radar, and a trolling motor report strong results once the system is built.

Who the HDS PRO 10 suits

It suits a boater building a system rather than buying a single device, on a hull of 22 feet or larger where there is room for a 10-inch panel mount or bracket and a network to run. The included bracket, knobs, suncover, bezel, and power cable cover the mechanical side of a first install.

It also suits anyone who is comfortable with a deeper feature set. The deeper menus give you control over palettes, beams, and data sources, and on a properly configured boat that control is where the value sits. This is not a first marine electronics purchase if you want everything to work with no reading.

Where it falls short

The rating gap is the headline. A 4.1 average against a 4.6 for the Elite FS in the same brand and the same general format tells you the early experiences are more mixed, and the share of one-star reviews points at setup rather than daily use. If you want the Lowrance feature set with less risk, the Elite FS 10 is the safer version of the same idea.

It is also the heaviest 10-inch unit here at 11.6 pounds, which means the mount has to be solid. On a fiberglass console with a bracket that is not reinforced, that is a real consideration, and it is another argument for flush mounting on a boat that stays on the water.

6. Simrad NSS Evo3S 12 – Best for Physical Controls in Rough Water

The NSS Evo3S is the only unit in this roundup where you can work the entire interface with a rotary control dial and a physical keypad, and that is the feature that earns it a place on an inshore list. A veteran poster on r/boating makes the argument for physical controls as a safety matter, and this is the unit that answers it.

Wet hands, a wake, and a boat at speed are exactly the conditions where a touchscreen misreads. The Evo3S lets you zoom, page, and change views without looking down for confirmation. The iMX 8 processor and 12-inch SolarMax IPS display keep transitions smooth, and the display is specified for all-weather readability rather than indoor sharpness.

Charts are preloaded as C-MAP US Enhanced for inland and coastal water, GPS is built in, and the processing headroom drives Active Imaging sonar, StructureScan 3D, and HALO radar. The box contains the display, a power cable, a sun cover, a dash mount kit, and edge bezels.

Who the NSS Evo3S 12 suits

It suits a 25- to 35-foot center console or sport boat with a large enough console for a 12-inch panel or a reinforced bracket, particularly one that runs in rough water or in fog where you need to operate controls without looking. It is also the natural choice for a boater who intends to add a radar dome and a full Simrad sonar stack.

For most people under 25 feet, though, this is one screen too many. Our [offshore chartplotter roundup](https://www.skrecords.org/best-marine-gps-chartplotters-for-offshore/) covers the networked systems where a 12-inch display makes more sense, and the inshore hulls in this roundup are usually better served by a 9- or 10-inch unit.

Where it falls short

It is sold as a display package. The sonar transducer is a separate purchase, which is a meaningful addition to the total cost on a boat that has no sonar at all, and it is the main reason a display-only flagship is a harder sell on a small inshore hull.

At 17.5 pounds it also needs a serious mount, and the 42-review sample is thin. That 78 percent five-star share with no three- or four-star ratings present suggests a polarized buyer base: people running a full Simrad system love it, and a small group has reliability concerns.

7. Garmin GPSMAP 943xsv – Best for an Existing Garmin Network

The GPSMAP 943xsv posts the strongest rating-to-review mix in the roundup, with a 4.8 average and 96 percent five-star ratings across 40 reviews, and no three- or four-star ratings at all. That distribution matters because it means the few people who rated it below five did not settle in the middle, they rarely wrote reviews at all.

The hardware is a step above the ECHOMAP line. The IPS panel has improved optics, scanning sonar covers SideVü, ClearVü, and traditional CHIRP, and the unit supports Panoptix for forward-looking coverage. Navionics+ mapping is preloaded, so the display is not dead on arrival without a chart card.

For owners already running Garmin hardware, the real argument is integration. NMEA 2000 data, transducer sharing across units, and easy touchscreen page switching between displays are the features experienced Garmin users describe as seamless, and that is what this unit is for.

Who the GPSMAP 943xsv suits

It suits a Garmin household with an existing transducer and network, on a 20- to 28-foot boat with a flush-mount cutout already in the dash or the willingness to cut one. It is the sensible upgrade path for a boater who bought a display-only unit years ago and now wants a better screen without redoing the wiring.

It is also the right display to pair with a Panoptix or LiveScope setup later, since the processing supports forward-looking sonar views that the entry-level Garmin units cannot render.

Where it falls short

The transducer is not included. That surprises first-time buyers more than any other omission in this list, and on a boat with no sonar at all the transducer line item can approach the cost of a complete combo unit elsewhere on this list. Budget it before you decide this is cheaper than it looks.

Second, the 9-inch form factor will not drop into a cutout sized for a much smaller legacy GPS. If your dash was cut for a 5- or 7-inch unit, you are looking at a panel cut and a reseal, or a bracket mount that adds depth to the console face.

8. Lowrance Eagle 9 – Best for Small Consoles and First Installs

At two pounds, the Eagle 9 is the lightest unit in this roundup, and the 9-inch IPS screen is the reason it fits where the bigger displays will not. On a 16- to 19-foot skiff with a narrow console, screen size is a physical constraint before it is a preference, and this is one of the largest readable panels that will still mount cleanly on a narrow console.

Sonar-wise it punches above its tier. The included TripleShot HD transducer combines SideScan, DownScan Imaging, and CHIRP in one unit, and FishReveal overlays CHIRP fish targets on DownScan detail so you can pick individual fish off structure rather than just seeing a blob. The C-MAP DISCOVER microSD with US and Canadian inland and coastal coverage is in the box.

Auto-Tuning Sonar and the twist-lock connector handle the setup. Owners call out easy installation and clear sonar detail, and at this size there is enough screen to run a chart and sonar split without either becoming unreadable.

Who the Eagle 9 suits

It suits small trailerable boats: a 16-foot flats skiff, a 19-foot bay boat, or a compact center console where dash space is genuinely tight. It is also the pick for a first marine electronics install, because the included transducer, charts, bracket, locking collars, fuse, and fuse holder cover everything a beginner needs.

If your boat is an inflatable or a small pontoon, this screen size is usually the ceiling. Our [inflatable boat guide](https://www.skrecords.org/best-inflatable-boats-for-fishing/) covers the hulls where anything larger becomes a visibility problem rather than a feature.

Where it falls short

The networking is entry-level for the Lowrance lineup, and it is meaningfully thinner than the Elite FS and HDS PRO. If you plan a trolling motor interface, a second display, or radar, this is not the base to build that system from.

The 500-foot maximum measuring depth is also shallower than the premium multifunction displays here, which is irrelevant on an inshore flat and relevant the moment you run offshore. The 36-review sample is also small, so treat the owner sentiment as positive but lightly gathered.

9. Garmin ECHOMAP Ultra 2 126sv – Best Screen for Multi-Panel Layouts

The ECHOMAP Ultra 2 126sv has the highest average rating in the group at 4.9, with 89 percent five-star ratings and no one- or two-star reviews, and the largest screen at 12 inches. That combination is what you want if you are going to run chart, SideScan, and DownScan in a multi-panel layout instead of flipping between pages.

Multi-band GPS is a genuine upgrade over standard receivers for a coastal boat working a narrow channel in bad visibility, where a tighter position fix means less time crossing a channel you did not mean to cross. Wireless networking shares sonar, waypoints, and routes between displays, and screen recording capture is there to save a catch on the sonar page.

Here is the honest framing. With 21 reviews, this is the thinnest sample of the nine, and a 4.9 across 21 ratings tells you less than a 4.6 across 515. The unit is a good display. The evidence that it is a good value for a small inshore hull is much weaker.

Who the ECHOMAP Ultra 2 126sv suits

It suits a 26-foot-and-up center console or sport boat with a large console that already carries other instruments, where a 12-inch panel slots in as a primary display rather than swallowing the whole dash. On a boat with a second screen planned, the multi-panel layout is where this size pays for itself.

It is also the display to pair with a LiveScope or GT56UHD transducer, since owners running those setups specifically single out the display size and mapping. Add the transducer to the budget from the start rather than after the unit arrives.

Where it falls short

No transducer is included. The GT56UHD-TM is a separate purchase, and on a boat starting from zero that line item can exceed the cost of a complete combo unit further down this list, which undermines the value case for an inshore buyer.

It is also surface mount only, so console integration differs from the flush-mount units here, and 12 inches on a trailerable boat is a theft target and a visibility problem. Forum regulars on the boating boards widely treat 12-inch-and-larger displays as overkill for inshore hulls, and that is a reasonable read on this one.

How to Choose a Chartplotter for an Inshore Boat

What is the difference between a GPS plotter and a chartplotter?

A GPS plotter shows your position on a screen and little else. A chartplotter overlays that position on a detailed nautical chart with depth contours, tides, currents, and charted hazards, and on modern inshore units it also drives a sonar picture. If you are choosing between a bare GPS receiver and a chartplotter for a boat under 30 feet, the chartplotter is the only one that shows you where the mud bar is.

A third category confuses most buyers: the combo unit. A combo chartplotter/fish finder bundles a display, built-in sonar, and usually a transducer in one box, which is why six of the nine models here are combos. A network MFD is a display-only head unit that needs a separate sonar module or transducer, and that is the category you should stay out of on a small inshore hull unless you already own the rest of the system.

How big should the screen be for a small console?

Measure the console before you pick a size, and pick the largest panel that does not intrude on your view of the water ahead. Seven inches fits a very small skiff, nine inches is the sweet spot for most 16- to 25-foot boats, and ten inches is where glare and dash competition start to matter. Twelve inches belongs on a console that already carries other instruments, not on a bare bay boat dash.

Screen glare and daytime readability are the most common usability complaint in inshore electronics circles, and the reason they matter is that a small console usually has no roof to shade the display. A brighter, higher-contrast panel beats a larger dim one. Of the units here, the Garmin ECHOMAP UHD2 94sv and the Lowrance SolarMAX HD screens are the two I would trust in direct midday sun.

Which transducer do you need for shallow inshore water?

Transom mount, through-hull, and in-hull are the three options, and for a typical inshore hull the answer is usually the one already on the boat. A transom-mounted transducer is the cheapest to install and the easiest to replace, and it is fine on shallow draft. Through-hull mounts read better at speed and on rough water, while in-hull mounts are cleaner looking but limited by hull construction and near-zero value in very shallow water.

The inshore-specific trap is buying a display-only unit and forgetting the transducer. A transducer is a separate line item on three of the nine models here, and on a boat with no existing sonar it can cost more than the difference between two combo units. If your fishing is structure-based, check the beam width: the Simrad GO 9 needs a wide-beam transducer for side-scan, while the TripleShot and Active Imaging units provide it.

For shallow flats, a broad shallow-water beam matters more than raw depth range. Several units here reach 1000 feet of maximum depth, which is meaningless on a two-foot flat, while the Humminbird XPLORE 10 with MEGA Side Imaging+ at 200 feet per side is the one built for wide horizontal coverage.

Are Navionics, C-MAP, or Garmin charts better for inshore fishing?

For saltwater, Navionics is effectively the default, and inshore anglers on regional fishing forums treat it as close to mandatory. It is worth knowing that Raymarine, Lowrance, Simrad, B&G, and Humminbird all use Navionics while Garmin units run Garmin charts. That single fact is a bigger long-term decision than the display you pair it with, because it determines what you can load on every chartplotter you buy later.

The practical comparison comes down to a card versus a subscription. A card is a one-time purchase with no annual fee, which suits a casual weekend boater. A subscription gives you updated detail every year, which suits someone who fishes new water constantly and needs current buoy positions. Six of the nine models here ship with C-MAP or Navionics detail already loaded, so the card-versus-subscription question is usually settled at purchase and only revisited when the water you fish changes. Decide by how often you fish unfamiliar water, not by marketing.

Do I need NMEA 2000, and what if my boat has none?

NMEA 2000 is the standard network language that lets a display talk to a transducer, a VHF, an autopilot, engine data, and a trolling motor. It is worth having even with one device, because the alternative is a proprietary cable per accessory and a helm that stops expanding.

Starting from zero, the parts list is short: a display with a NMEA 2000 port, a T-connector, a backbone cable run, a terminating resistor at each end, and a power injector for anything beyond a couple of low-draw devices. That is a standard half-day job for an installer. If your installer quotes a single display with no network, ask what happens the first time you add a second device, because retrofitting a backbone into a finished console is more expensive than doing it once.

Should you buy Garmin or Simrad?

Boating community consensus on r/boating and The Hull Truth strongly favours Garmin for user interface intuitiveness, and the Simrad GO series is repeatedly described as strong value with menus that are easy to learn. Both camps in that argument agree on one thing: the choice matters far less than staying inside one ecosystem once you own hardware. Switching brands later throws away transducer compatibility and the setup knowledge you have built.

The tiebreaker is charts if you are not locked in. Garmin locks you into Garmin charts; every other major brand in this roundup runs Navionics or C-MAP. If your home water has deep Navionics coverage and you plan to change brand someday, that is a real advantage. The tiebreaker is controls if you fish rough water, where the Simrad NSS Evo3S keypad and rotary dial are the strongest argument in this roundup.

What can you skip on an inshore boat?

Radar, an autopilot, thermal imaging, and a second display are all excellent pieces of equipment and all poor first purchases for a boat under 25 feet. They also add cost, install time, and dash bulk, and a 12-inch networked MFD on a 19-foot skiff is the kind of over-scoping buyers on the boating forums consistently regret.

Spend that budget on the transducer instead. A capable transducer on a modest 9-inch display gives you better bottom and baitfish detail than a larger screen paired with the supplied unit, and it is the line item buyers most consistently forget. Our [trolling motor guide](https://www.skrecords.org/best-trolling-motors-for-bass-boats/) covers the other upgrade that pays for itself on a small boat, since a bow-mounted motor with a network link turns a small helm into a whole-boat control station. For tackle rather than electronics, our [inshore spinning reel roundup](https://www.skrecords.org/best-saltwater-spinning-reels-for-inshore/) covers the other half of the inshore kit.

One last practical point for a trailerable boat: a flush-mounted display is a theft target, and a bracket-mounted unit is something you can take with you in ten minutes. That tradeoff is worth deciding before the first hole is cut, not after.

Frequently Asked Questions

The Best Marine Chartplotter for Your Inshore Boat

For most inshore boats, the Lowrance Elite FS 10 is the right first chartplotter. It puts three sonar modes, a bright 10-inch screen, and coastal charts in one box at a rating backed by more owner reviews than anything else we tested, and it leaves room to add radar, a trolling motor, or a second display later.

If your console is too narrow for 10 inches, the Simrad GO 9 or the Lowrance Eagle 9 will fit where it will not, and both still include a transducer and charts. If you read structure rather than depth, the Humminbird XPLORE 10 reaches further to each side. Measure your dash, confirm the transducer is in the box, and pick the biggest screen that does not block your view of the water.
