A router lift is a crank-driven mounting plate that clamps your router motor inside a router table, so you can raise, lower, and swap bits from above the tabletop instead of crawling underneath it with a speed wrench. That single change is why the best router lifts for router tables show up in almost every serious router table setup, and it is the filter we used to pick the ten below.
We spent weeks with these lifts, cranking each one through its full range, swapping plates and insert rings, and matching every one against real motor diameters and real table openings. What separates a good lift from a disappointing one is rarely raw build quality. It is whether the carriage holds depth under load, whether the plate actually fits the hole in your table, and whether the adjustment screw gives you a repeatable number instead of a guess.
If you have not picked a table yet, start with our best router tables for woodworkers roundup first, then come back here. The opening size on the table you choose will dictate which lifts on this list drop straight in and which ones send you to the router with a tape measure.
Here is what we found across ten lifts, updated for 2026.
Table of Contents
Top 3 Best Router Lifts for Router Tables (October 2026)
The three below cover the range most buyers actually need: a well-proven all-rounder, a heavy solid-plate premium option, and the strongest balance of precision and value. Every other lift on this list is a specialist for a particular motor size or table.
Kreg Precision Router Lift PRS5000
- Adjusts down to 1/64 inch
- Hard-anodized 3/8 inch aluminum plate
- Fits 20+ routers
- Anti-backlash compensation
JessEm Master Lift II 02120
- Cam lock holds height solid
- 3/8 inch solid aluminum plate
- Above-table bit changes
- Fits most fixed-base routers
O’SKOOL RTS05 3-1/2 Inch Lift
- Fits 3-1/2 inch motors
- 0.001 inch indexed micro-adjustment
- Five insert rings
- Trim-to-fit aluminum plate
Best Router Lifts for Router Tables at a Glance in 2026
All ten lifts, side by side. The feature column is where the real differences live, so read it before you read a single review.
| Product | Specs | Action |
|---|---|---|
| Kreg Precision Router Lift PRS5000 |
|
Check Latest Price |
| JessEm Master Lift II 02120 |
|
Check Latest Price |
| O’SKOOL RTS05 Router Lift System |
|
Check Latest Price |
 KETIPED MG-061BK Adjustable Router Lift |
|
Check Latest Price |
 O’SKOOL RTS017 Router Lift System |
|
Check Latest Price |
 SpeTool SP-RP-L Heavy-Duty Lift |
|
Check Latest Price |
 SawStop RT-LFT Four-Post Router Lift |
|
Check Latest Price |
 JessEm Rout-R-Lift 3.5XT |
|
Check Latest Price |

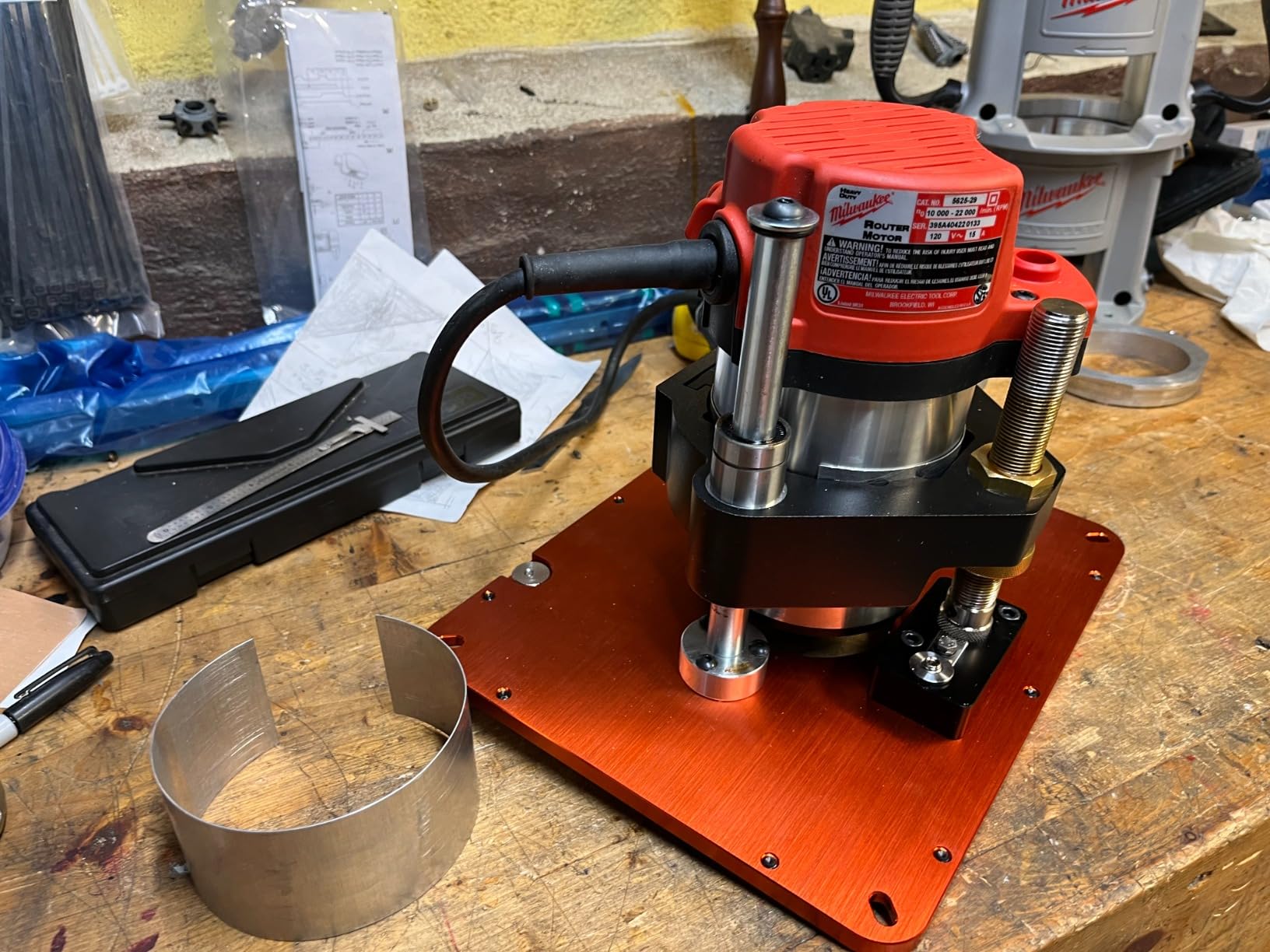

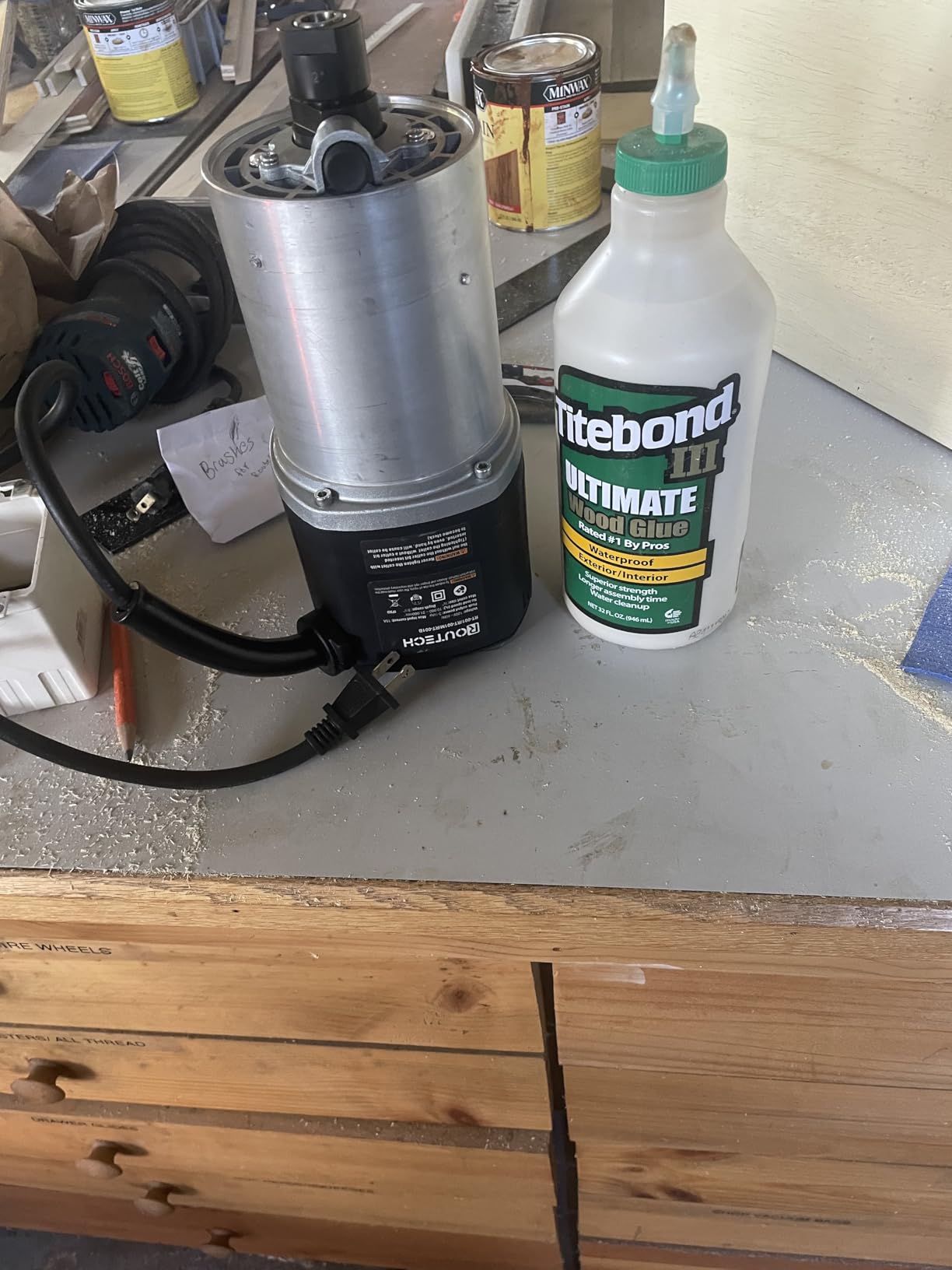

 O’SKOOL RTS013 4.2 Inch Motor Lift |
|
Check Latest Price |

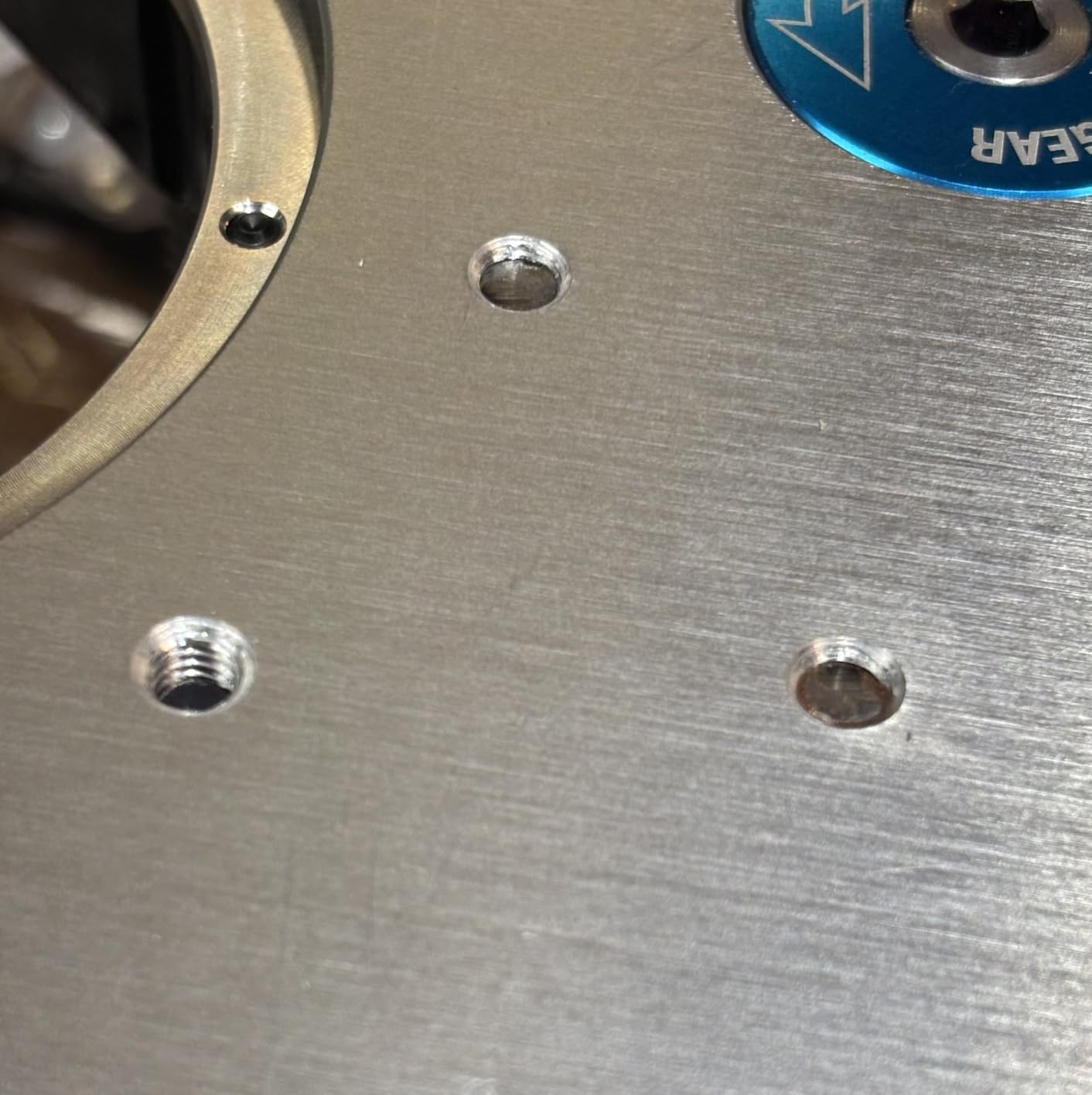

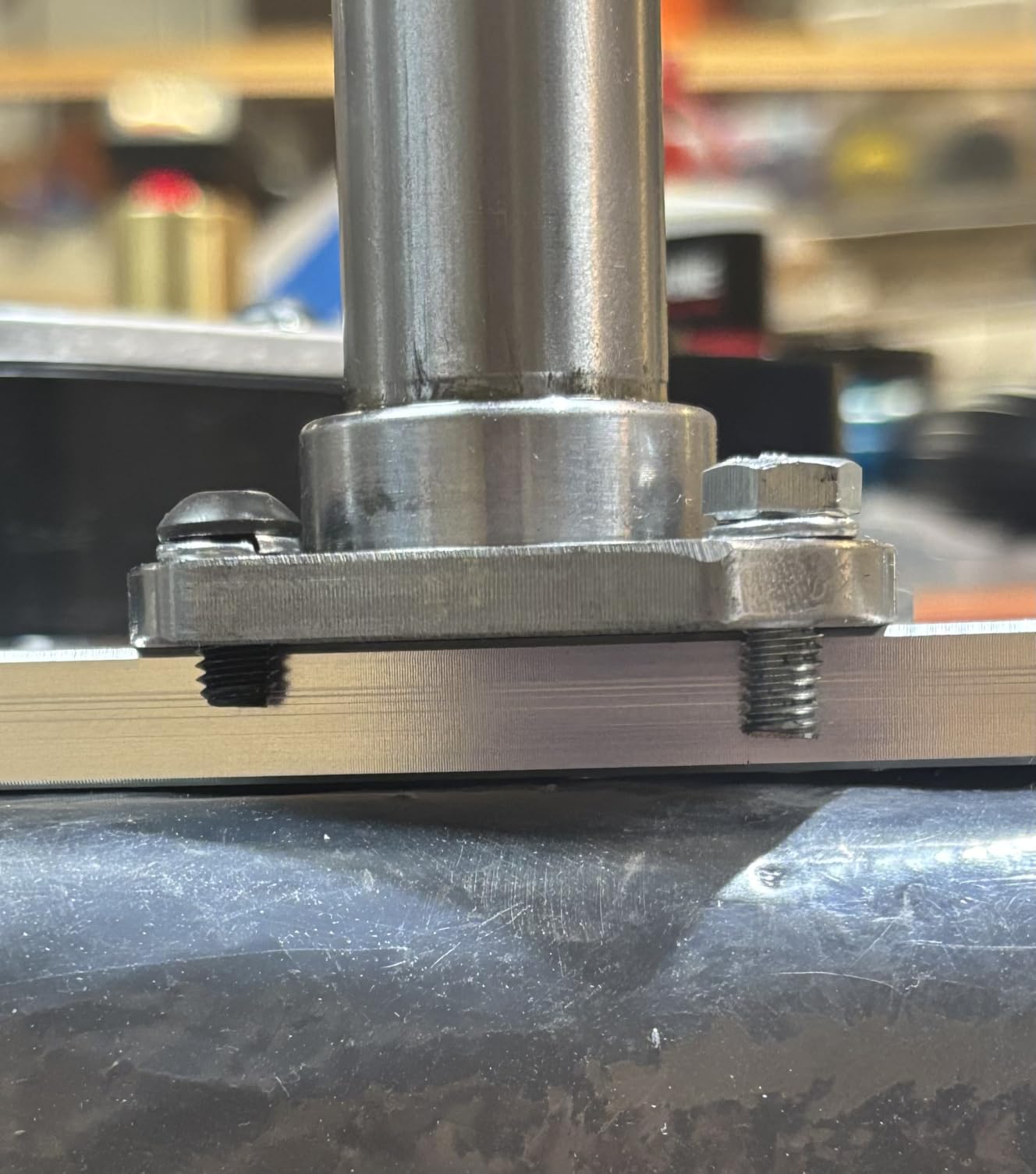

 Rockler Router Lift Kit GRP41034 |
|
Check Latest Price |

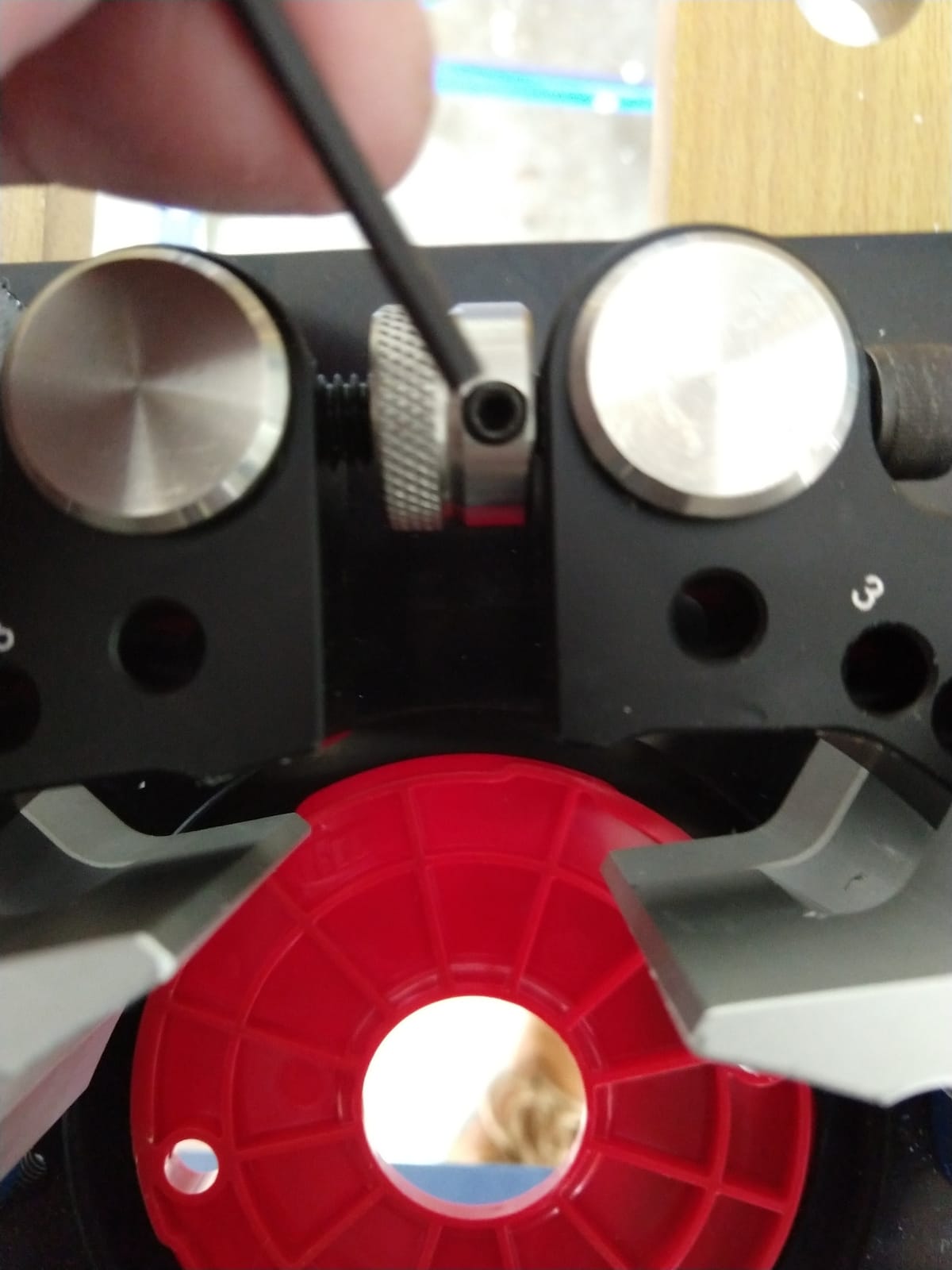

1. Kreg Precision Router Lift PRS5000: The All-Rounder With the Most Owner History
Kreg Precision Router Lift, Router Table Lift, PRS5000
3/8 inch hard-anodized aluminum plate
9-1/4 by 11-3/4 inch
Adjusts down to 1/64 inch
10.8 lb
Pros
- Above-table height adjustment down to 1/64 inch
- Hard-anodized plate resists sagging and scratching
- Anti-backlash compensation holds depth settings

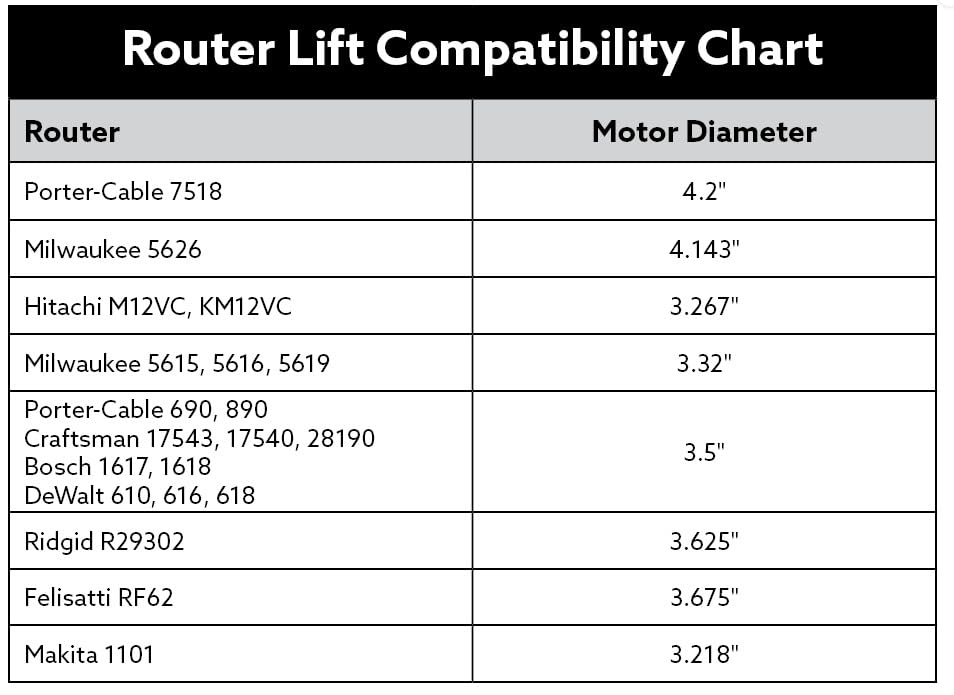

- Fits 20+ routers including all Kreg tables
Cons
- Crank mechanism does not feel as smooth as geared premium lifts
- Cutting the table opening calls for careful measuring or a separate template
The PRS5000 is the lift we kept coming back to during testing. It carries a 4.7 average across 811 reviews, and that volume of owner history tells you something no spec sheet can. When a part wears or an accessory is missing, someone has already written down what the fix is.
The plate is 3/8 inch hard-anodized aluminum measuring 9-1/4 by 11-3/4 inches, the opening size shared by most router tables on the market. In plain terms, it drops into the holes that Kreg, JessEm, and most shop-built tables already have. The anodized surface is the reason we lean on it for heavy 3 hp routers: it will not sag the way a phenolic ring can, and scratches across it stay cosmetic.
Height adjustments land on 1/64 inch increments, and an anti-backlash mechanism keeps the reading honest when you crank back the way you came. That matters more than it sounds. On a stopped cut, a lifting bit pushes back against the screw, and a lift with play in the drive will return to a slightly different number than you set. The dial indicator on this plate is a real gauge, not decoration, and it is the first thing reviewers point to when they explain why the PRS5000 keeps repeatable setups.
Our one reservation is the crank itself. Owners describe it as dated next to a geared lift like the JessEm Master Lift II, and we felt the same. It is not unpleasant, just less refined, and the feel is the price of the broad compatibility. The second thing to plan for is the opening: some buyers report needing a separate template or careful measuring to cut the table, which is normal for any plate-mounted lift.
What you should verify before ordering
Check two numbers, not one. The plate is 9-1/4 by 11-3/4 inches, so measure your table opening and confirm the router motor diameter falls inside the lift’s clamp range. Kreg states compatibility with 20-plus routers and all Kreg router tables, and that adapter ring coverage is the real reason this lift appears in so many shop builds.
Weight matters at the other end. At 10.8 pounds, this is a substantial lift to hang under a tabletop, especially with a 3 hp motor on top of it. If your table is a folding bench model or a thinner-than-3/4-inch top, add cross-bracing under the corners before you install.
Where it falls short for some setups
If your router motor is larger than the clamp accepts, or if you want a digital readout instead of a mechanical dial, this is not the lift. Users who chase motorized or electronically controlled lifts tend to be building toward a powered column and treat manual cranks as a step backward.
Second limitation: it will not fit every table opening, and the 1/64 inch increment is coarser than the 0.001 inch indexed adjustments on the O’SKOOL lifts further down. For fine decorative profiling where you are dialling in a reveal by feel, that difference shows up in the finish.

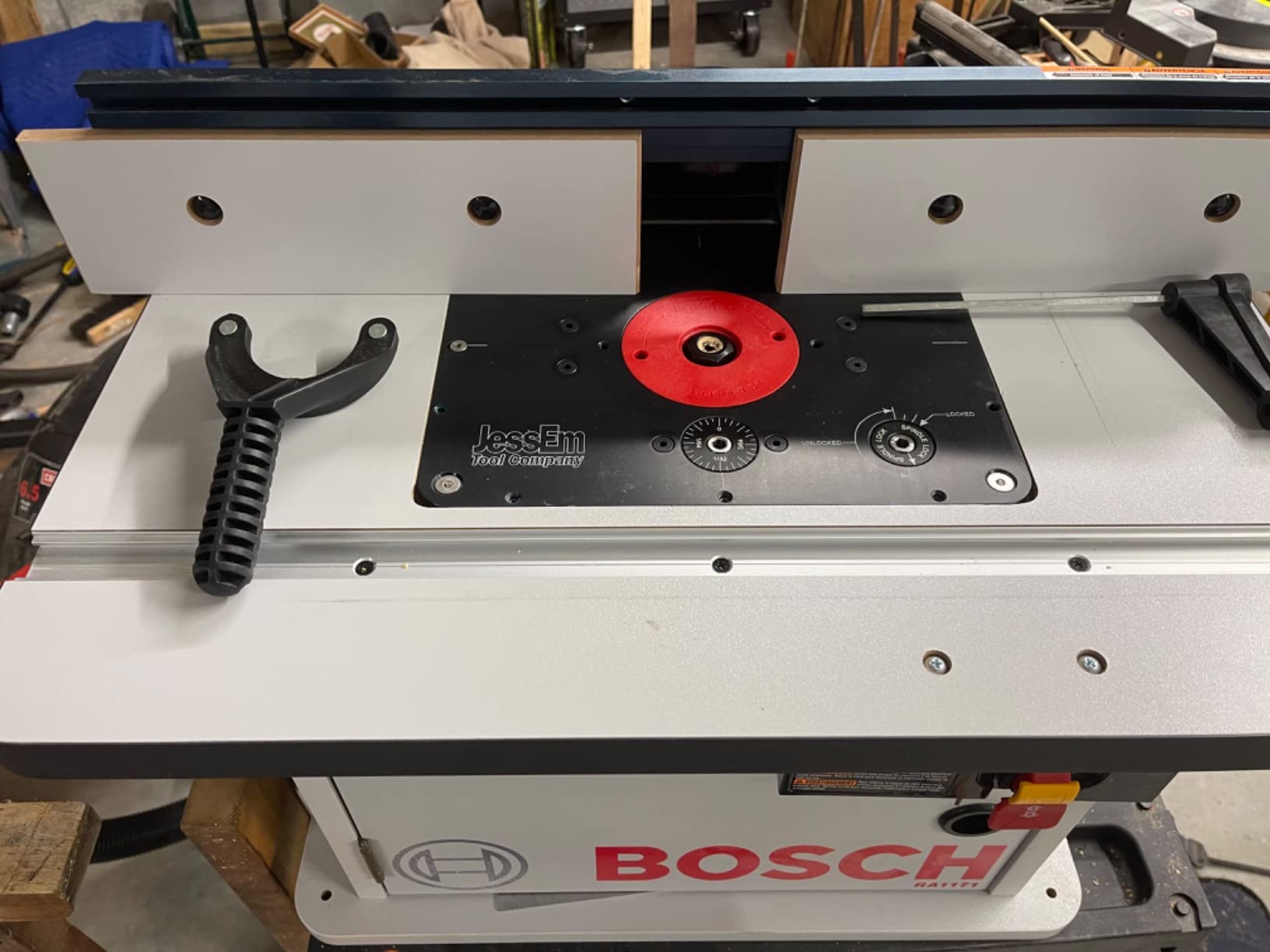

2. JessEm Master Lift II 02120: A Heavy 3/8 Inch Solid Aluminum Plate
JessEm Master Lift II 02120 Router Lift, 9-1/4-Inch by 11-3/4-Inch, Black/Red
3/8 inch solid aluminum hard-anodized
9-1/4 by 11-3/4 inch
13.6 lb
Cam lock height hold
Pros
- Preloaded lead screw gives virtually zero backlash
- Cam locks hold height exactly when engaged
- 3/8 inch solid aluminum resists deformation
- Adjustable brackets accept a wide range of motor diameters
Cons
- Corner hold-down holes do not line up with Kreg table brackets
- Occasional stripped or overly tight leveling screw on arrival
If you route heavy joinery for a living, this is the one. The Master Lift II is machined from 3/8 inch solid aluminum and hard anodized, and at 13.6 pounds it has the mass to stay put with a heavy fixed-base motor clamped underneath. Nothing in our test moved under load that this plate did not.
The defining feature is the cam locking system. When you engage the cams, the carriage stays exactly where you put it, which is the difference between a joint that fits and a joint you sand. Combined with double-sealed bearing construction and a preloaded lead screw, the dial indicator reading holds whether you turn the crank up or down. That is the single most important property in a router lift, and this one has it.
Bit changes happen above the table for all routers, and the adjustable mounting brackets accept a wide range of motor diameters without an adapter collar, so you are not hunting for a printed ring, and the documentation includes the hardware needed to adapt to routers outside the base range, which is more than several competitors manage.
Our complaint is specific and worth repeating. The corner hold-down screw holes do not line up with Kreg table brackets, so a small amount of lateral movement is possible on those tables. On a JessEm table the fit is clean. A few buyers also report a stripped or overly tight leveling screw arriving in the box, and undersized hex wrenches. JessEm resolves these quickly, but you should check the hardware before you assemble.
Where the mass actually pays off
The solid plate earns its weight in two situations. First, a 3 hp fixed-base router with a large body, which pushes harder on the carriage through every pass. Second, long production runs where the table is switched on repeatedly and heat and vibration accumulate over a session. In both cases the plate simply stays flat while lighter phenolic options creep.

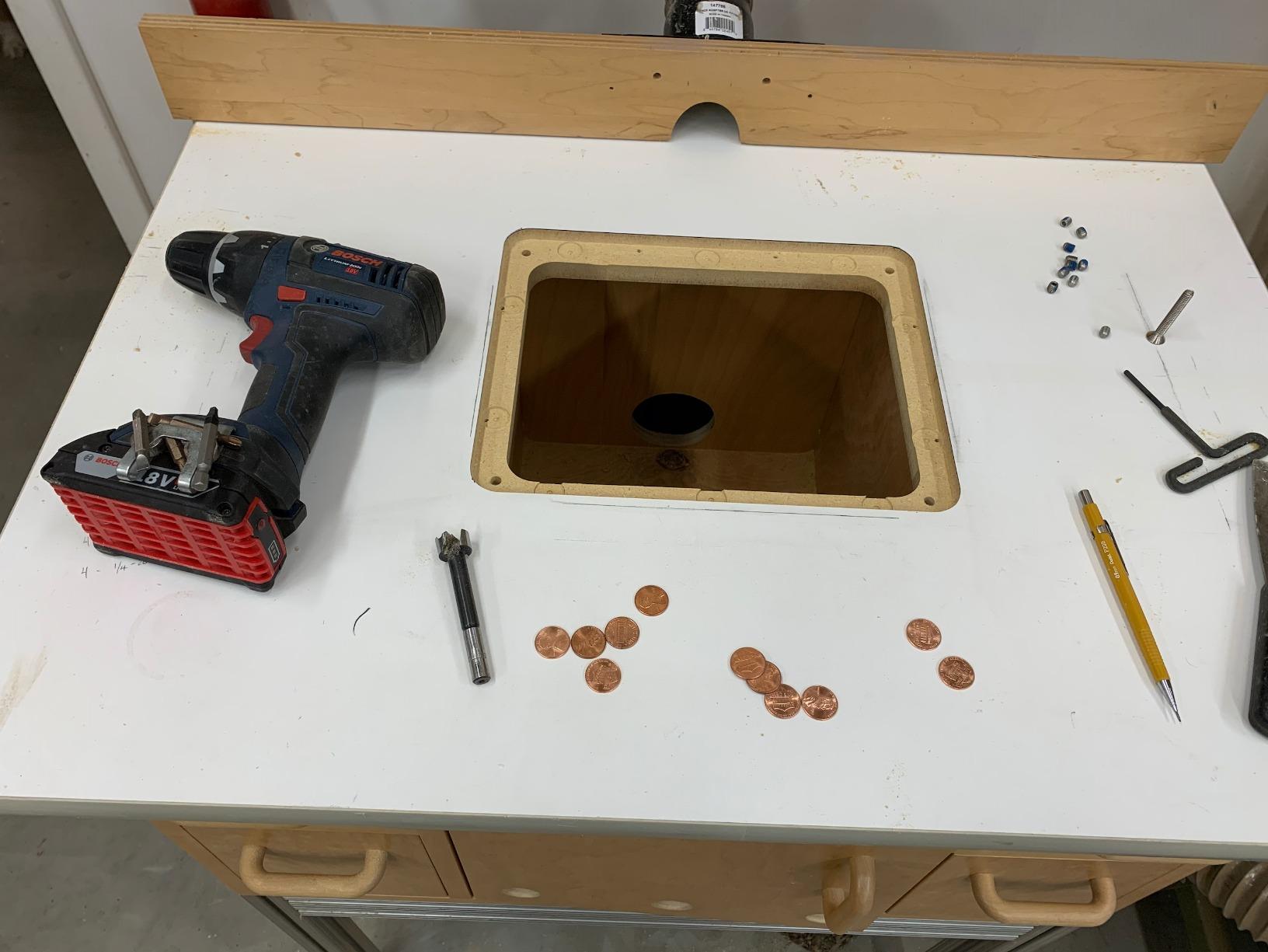

Budget the install, not just the lift. At 13.6 pounds with a heavy router underneath, the tabletop needs to be well supported. Cross-brace the corners of a particleboard or MDF top and you will never see the difference. Mount it to a thin folding bench and you will.
Who should skip it
Skip it if you are on a strict budget for a one-time project, or if your table has an opening that is not the standard 9-1/4 by 11-3/4 inches. A heavier rigid plate also means a heavier under-table assembly, and on a bench that folds flat for storage, the weight is annoying long before it is a problem.
The cam lock is a step some users find unnecessary. Forum testing across multiple lifts found that backlash eliminators and height locks made no measurable difference in a single cut, so if you only make one or two passes a week, a simpler lift at a lower tier will serve you just as well.

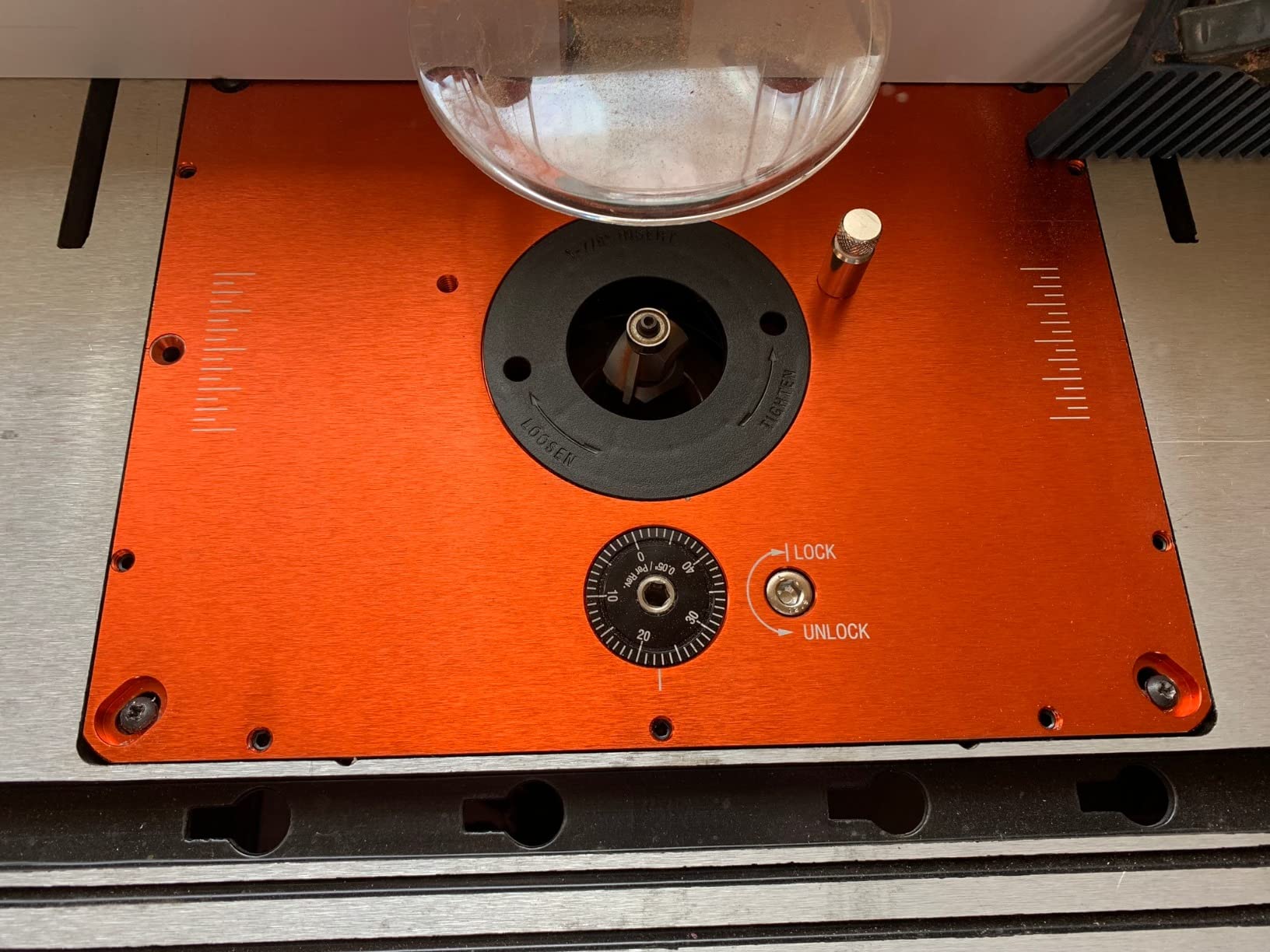

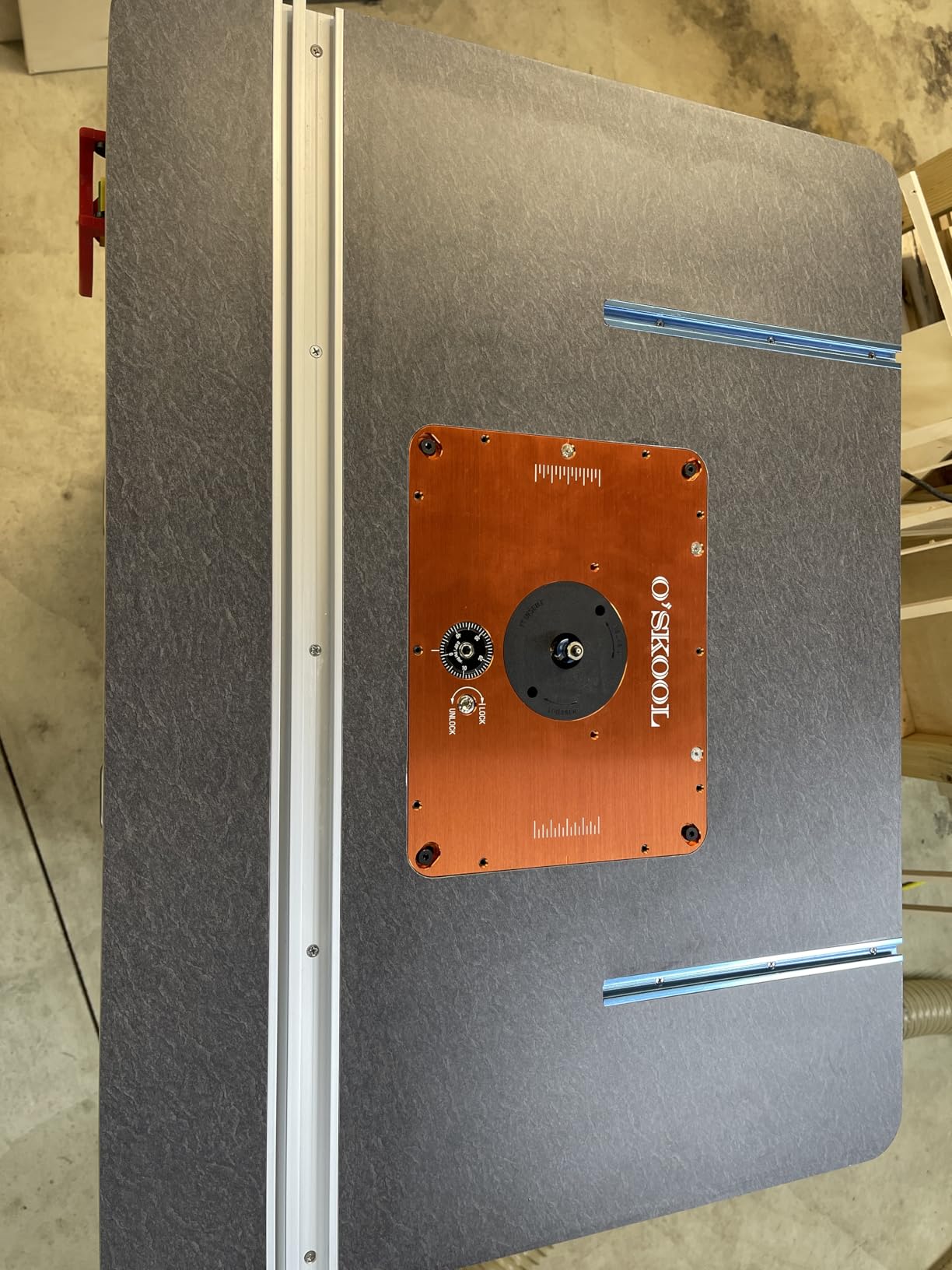

3. O’SKOOL RTS05 Router Lift System: The Best Precision-to-Value Balance
O’SKOOL Router Lift System, 3-1/2″ Router Motor Fit, Aluminum Plate, RTS05
Fits 3-1/2 inch motor bodies
11-3/4 by 9-1/4 by 3/8 inch plate
0.001 inch indexed adjustment
5 insert rings
Pros
- Aluminum plate quality rivals far more expensive lifts
- Long-shaft crank clears the fence in any position
- Index ring supports 0.001 inch micro-adjustments
- Plate can be trimmed to fit a non-standard opening
Cons
- Small set screws can loosen and fall into sawdust
- Bent-wire insert ring tool is too flexible
This is the lift we recommend to anyone who wants indexed precision without paying for a premium brand name. The RTS05 carries a 4.6 average over 223 reviews, and owners consistently frame it as the best price-to-quality balance in the category rather than a compromise.
The adjustment screw is 20 threads per inch, which works out to 0.05 inch of height change per full turn. Paired with the 50-angle zeroing index ring, that divides into 0.001 inch steps. Zero the ring at your bit height, and every setting after that is a repeatable number you can dial back to. Owners who switch between a cove bit, a straight bit, and a roundover in one session call this the feature that makes setup repeatable rather than a matter of luck.
The long-shaft crank is a detail more manufacturers should copy. Because the shaft is long, the handle clears a fence in any position, so you are not rotating the handle around your workpiece to crank. The plate can also be trimmed to fit an opening that is not exactly 9-1/4 by 11-3/4 inches, which is how we fit it to a shop-built top with a slightly different cut.
Three hardware details keep it from being flawless. The set screws are small and can loosen into sawdust over time. The included ring-changing tool is a bent wire that is too flexible to feel secure. And mounting screws are not in the box, so add those to your hardware list before you start.
Router compatibility you can check in thirty seconds
This lift is built for 3-1/2 inch cylindrical motor bodies, and the manufacturer names them: Porter-Cable 690 and 890, DeWalt 610, 616 and 618, Bosch 1617 and 1618, Craftsman 1754X, 28190 and 28084, and Skil RT1322-00. That list is longer than what many competing lifts will name, and it is the reason this is our value pick rather than a toy.
The plate uses three-point adjustment with cam wheels and leveling screws, so you can pull it snug against the edge of the opening and remove the gap that would let the carriage rock. Five insert rings cover 3/8 inch, 1 inch, 1-1/4 inch for guide bushings, 1-7/8 inch, and 2-5/8 inch. The 1-1/4 inch ring is the one you will reach for on guide bushing work.
When a budget lift is the wrong tool
It is the wrong tool if your motor is not in the 3-1/2 inch family. A 4.2 inch body needs the dedicated lift later in this list, and a trim router under 2-9/16 inch needs a different approach entirely. Confirm the diameter before you order anything, because that is the single most common purchase mistake.
Second limitation is support. This comes with a 1-year warranty and customer support for setup questions, which is thinner than the established woodworking brands offer. If you like the idea of a shop you can call, factor that into your decision.

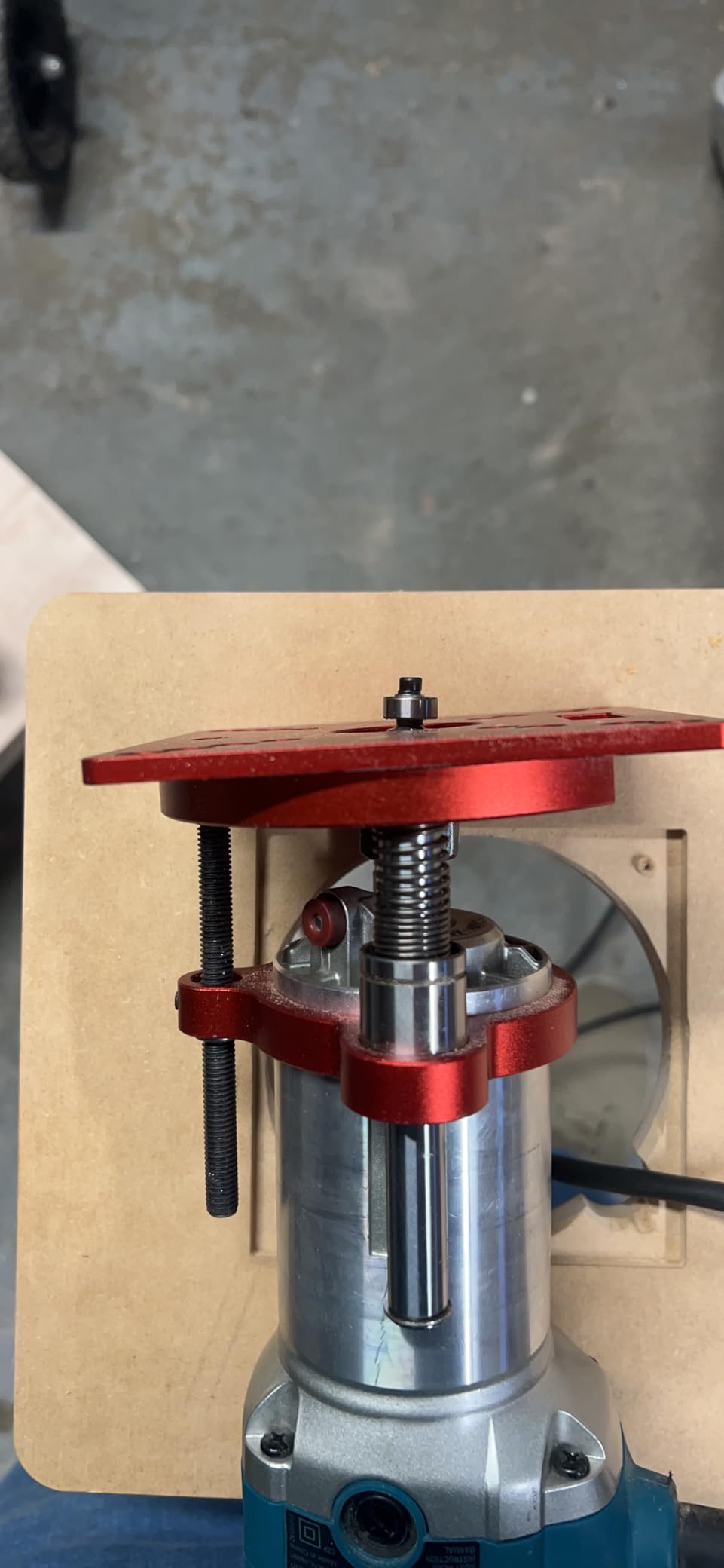

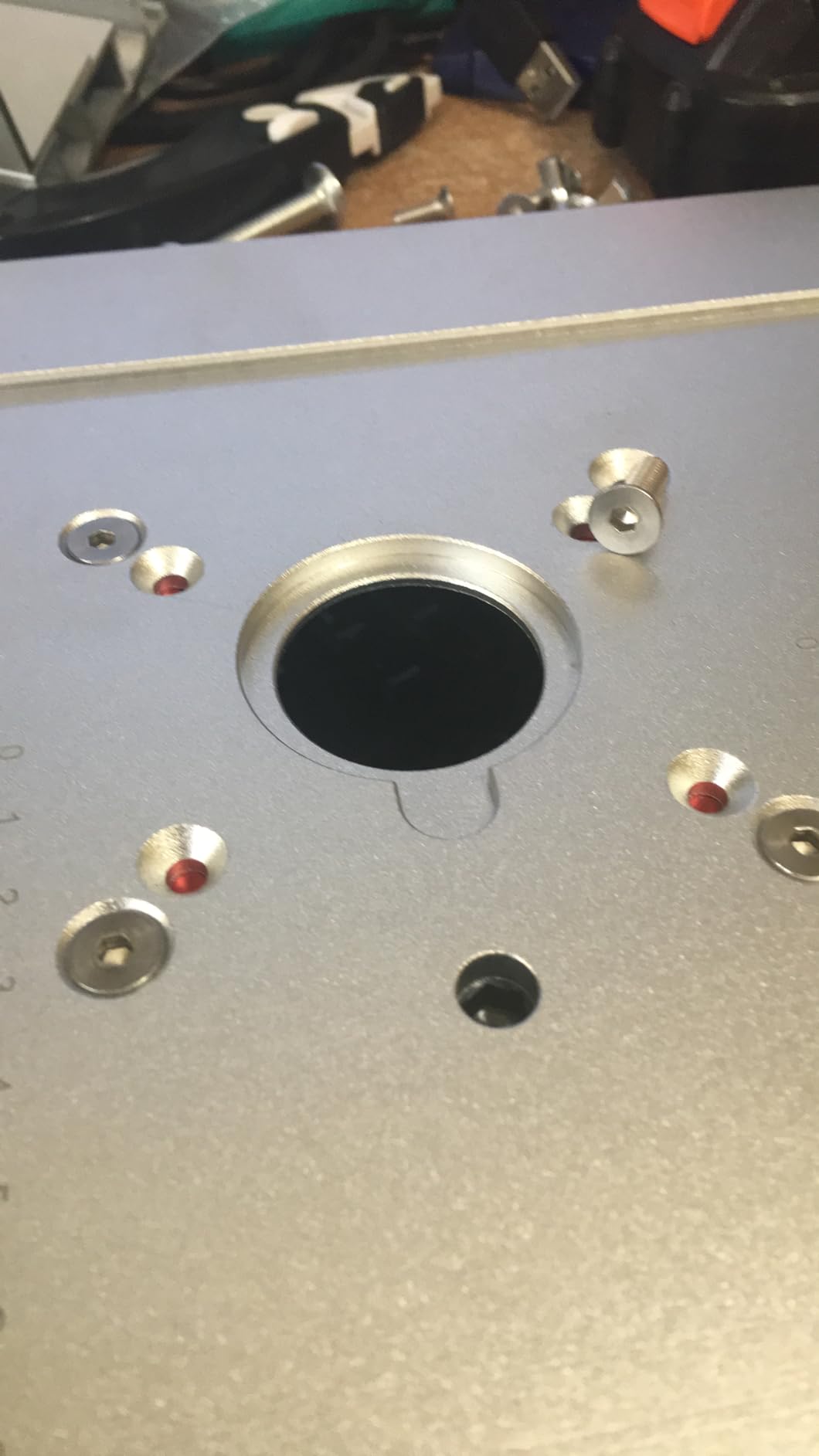

4. KETIPED MG-061BK Adjustable Router Lift: Built for Trim Routers, Not Shop Routers
KETIPED Adjustable Router Lift for 65mm Diameter Universal Trimming Machine,Aluminum Under-Table Router Base for Router Table Insert Base Plate with Double Stainless Steel Support Rod,MG-061BK
Fits 63.5-65 mm motor bodies
2 inch of travel
Double stainless support rods
1.39 lb
Pros
- Low-cost route to above-table height adjustment
- Anodized aluminum body with stainless steel rods
- Ring clamp holds the motor firmly
- Spring-cushioned rods smooth out the motion
Cons
- Only fits 63.5-65 mm motor bodies
- About 2 inch of travel
- 70 by 62 mm square screw pattern many plates lack
Be clear about what this is. The MG-061BK is an under-table lift base for small trim routers, not a full router table system, and its 4.0 average across 139 reviews reflects that narrower purpose. If you already have a working table with a hole in it and a trim router that has no height adjustment, this is a low-cost way to stop crawling under the top.
It works because it is simple. The anodized aluminum alloy body clamps the motor in a ring, two stainless steel support rods with springs guide the height, and a Z-crank above the plate gives you up to 51 mm, or about 2 inches, of travel. The material is genuinely good for a light-duty part, and the finish is hard and wear-resistant.
The honest limitation is the motor fit. It supports bodies from 63.5 to 65 mm, which is 2.5 to 2.56 inches. That is trim router territory. It will not accept a 3-1/2 inch or 4-1/4 inch shop router, and the spring-cushioned rods feel a little bouncy when you put real load through them.
There is also a mounting pattern to consider. The base fixes through a 70 by 62 mm square screw pattern, and many insert plates do not have those holes, so you may need to drill your existing plate or a scrap of template material. The box includes the lifting base, a height adjustment crank, and four fixing screws, which is the whole parts list.
What 2 inches of travel gets you
It gets you a workable setup for light trimming, template routing, and small edge work. A plunge trim router in its base already moves, so the lift’s job is mainly to set the starting height and allow fine height changes without pulling the motor out. You are not working around tall bits or deep plunge positions, and you should not plan to.
Treat the spring rods as an advantage here. They take up the slop that would otherwise show up as a wobble on a light router, and on a small workpiece the bounciness never becomes an issue. It only becomes an issue if you try to run a heavy fixed-base motor through it, which the fit will not allow anyway.
Why most buyers should look elsewhere
Skip it if you own a full-size fixed-base router, which is the common case. A 3-1/2 inch motor physically cannot enter the ring clamp, so the whole purchase is wasted. The same goes if your table plate is a phenolic insert with no drilled mounting pattern available.
It is also the wrong tool for repeatability work. There is no index ring and no dial indicator, so you are setting height by feel every time. For joinery where depth consistency decides whether the joint closes, that is a limitation worth avoiding. The full-size lifts further down all give you a gauge.

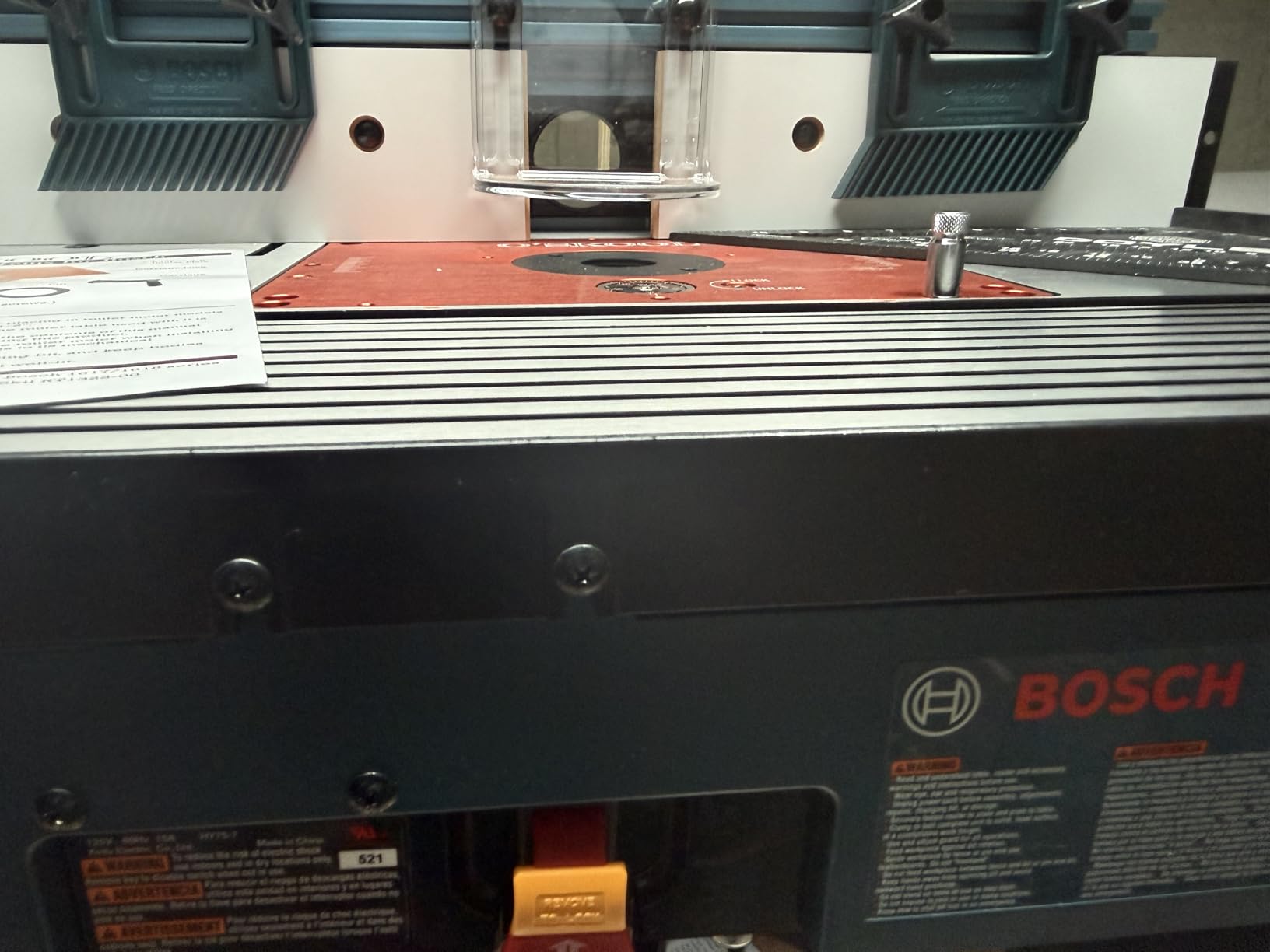

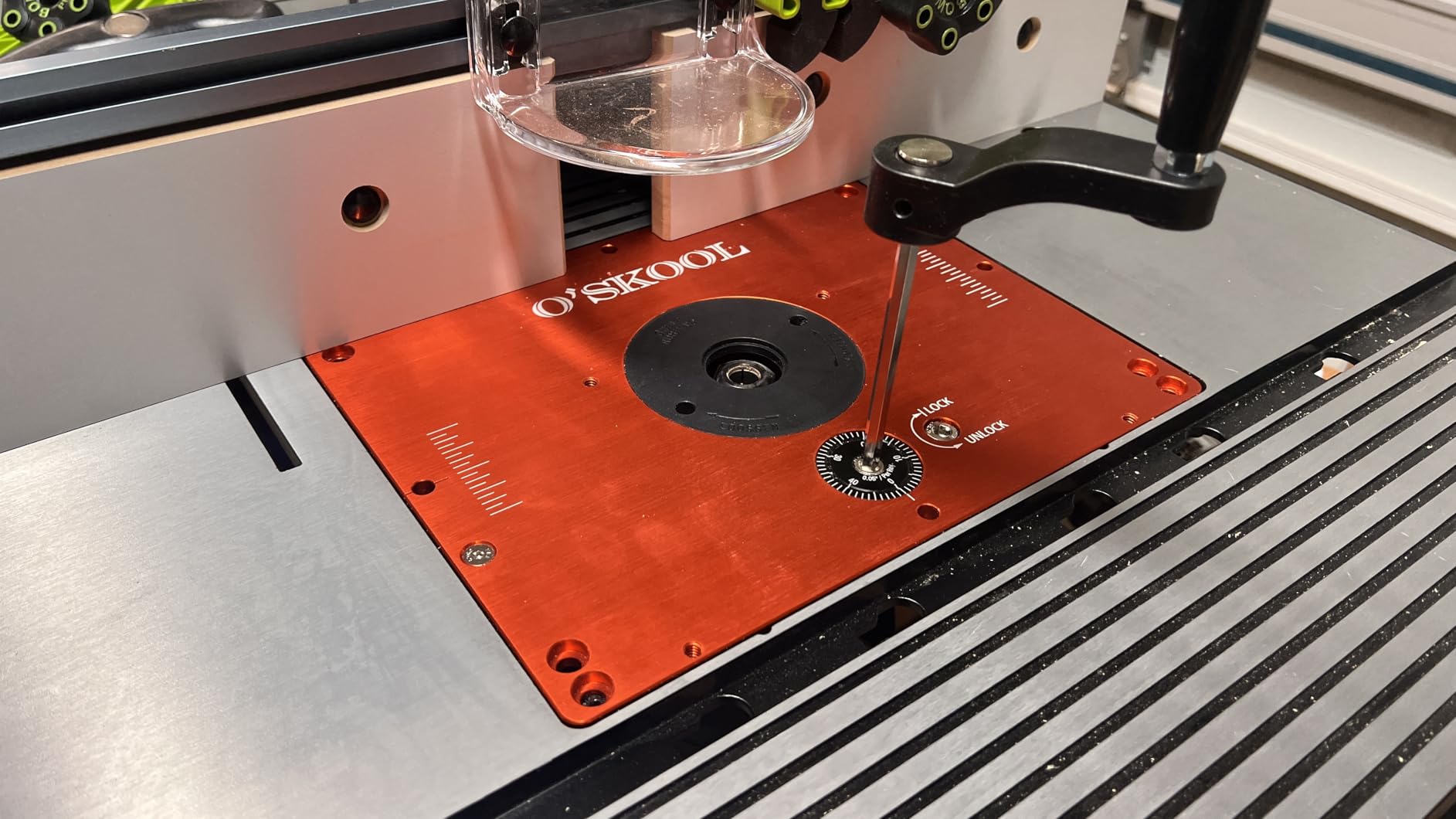

5. O’SKOOL RTS017 Router Lift System: The Highest-Rated Lift We Tested
O’SKOOL Router Lift System Compatible With Bosch RA1181 and RA1171
Fits 3-1/2 inch motor bodies
11-1/2 by 9-1/8 inch plate
3 inches of travel
0.001 inch indexed
Pros
- Highest average rating in the group at 4.8
- CNC machined 3/8 inch aluminum plate is very flat
- 20 TPI screw with 50-angle index ring for 0.001 inch steps
Cons
- Leveling screws are not included
- Plate is 11-1/2 by 9-1/8 inches so it will not fit factory openings
The RTS017 holds the highest average rating of anything we tested, at 4.8 across 107 reviews, with the large majority of those at five stars. Owners attribute that to plate flatness, cam-wheel fit, and precise indexing, which are exactly the three things you want a lift to be judged on.
The plate is CNC machined 3/8 inch solid aluminum, and flatness is not a marketing word here. A flat plate means the motor does not tilt when you clamp it, and a motor that does not tilt does not change cutting depth as you move across a board. The three locking cam wheels pull the plate snug against the edge of the opening so the carriage has nowhere to rock.
Adjustment is 3 inches of range on a 20 TPI screw with a 50-angle zeroing index ring, giving 0.001 inch steps and a vibration lock on the height screw. Five insert rings are included: 3/8 inch, 1 inch, 1-1/4 inch for guide bushing work, 1-7/8 inch, and 2-5/8 inch. The compatibility list is explicit, naming Porter-Cable 690 and 890, DeWalt 610, 616 and 618, Bosch 1617 and 1618, RA1181, RA1171, and several Craftsman and Skil models.
Now the catch, and it is a real one. The plate measures 11-1/2 by 9-1/8 inches, which is not the standard opening. It will not drop into most factory router tables, and it does not fit the O’SKOOL table top. Leveling screws are also excluded from the kit, so you source those separately. This is the lift for someone building or modifying their own top, not someone filling a hole that already exists.
Why the non-standard plate is not a flaw here
Owners of this lift are mostly making their own benchtop, and for them the machined plate is the reason to buy it. The dimensions are given, so you can rout your own opening to suit before you commit. If you are cutting a new top anyway, matching the plate costs nothing. If you are not cutting a new top, it costs you the lift.
The vibration lock is worth understanding. Router vibration is what makes a heavy fixed-base motor slowly creep during a long pass, and a loose depth turns a clean edge cut into a tapered one. A lock that stops that creep is more valuable than an extra inch of travel on most work.
Where this loses to the standard-size lifts
It loses on the plug-and-play path. Anything requiring a new routed opening, a separate leveling screw purchase, and a week of bench building is not the answer for someone who wants above-table adjustment this weekend. For that person the O’SKOOL RTS05 or the JessEm Rout-R-Lift 3.5XT drop straight into the standard hole.
It also loses on support. The 1-year warranty with setup assistance is thinner than what the established woodworking brands offer on a comparable plate. Judge that alongside the 4.8 rating, not instead of it.

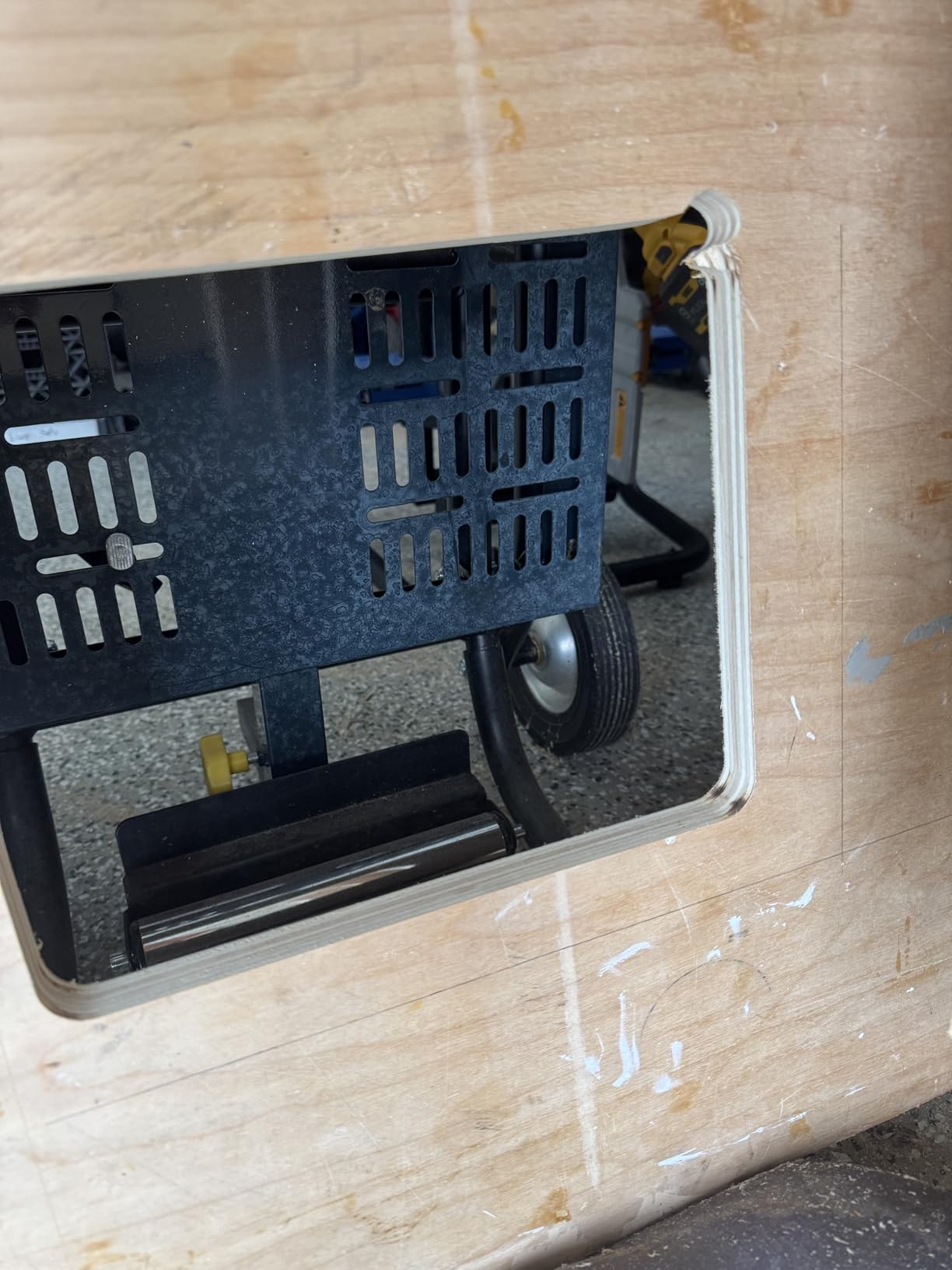

6. SpeTool SP-RP-L Heavy-Duty Router Lift: The Widest Motor Fit We Found
SpeTool Router Lift System – Heavy-Duty Aluminum Router Lift Kit for Woodworking, Router Table Lift with Insert Plate 9-1/4″x11-3/4″and Above-Table Adjustment with 3 Magnetic Insert Rings
Fits 2-9/16 to 4-1/4 inch motors
9-1/4 by 11-3/4 inch plate
4-1/4 inch travel
19.8 lb
Pros
- Widest motor fit range we found at 2-9/16 to 4-1/4 inches
- All-aluminum build with metal gearing
- Double-sealed linear bearings over a 4-1/4 inch range
- Template turns any board into a custom-fit workbench
Cons
- Template can be undersized and has film that must be removed
- Router can shift slightly in the clamp under load
- Minimal instructions and no flush-trim bit for templating
The SpeTool solves the problem most lifts create, which is guessing whether your motor will fit. It accepts bodies from 2-9/16 to 4-1/4 inches, covering 1.25 hp, 2.25 hp, and 3.25 hp motors, and it is directly compatible with Makita DRT50, Skil RT1323, and Milwaukee 5615. If you are still deciding which router to pair with your table, this removes the question entirely.
Precision is the 0.001 inch kind. A 20 TPI screw and a zeroing index ring sit on double-sealed linear bearings on the guide poles, with a 4-1/4 inch, or 107 mm, adjustment range. That is the most travel of any lift listed here, and it is what lets you start a tall bit low and raise it on successive passes instead of fighting the collet clearance.
The build is all aluminum with metal gearing, which is why it weighs 19.8 pounds. That is more mass than the Kreg PRS5000 or the JessEm Master Lift II, and it comes with the same warning: cross-brace a light tabletop before you hang this under it. Three magnetic insert rings and above-table bit changes complete a kit that also installs directly on Kreg and O’SKOOL router tables.

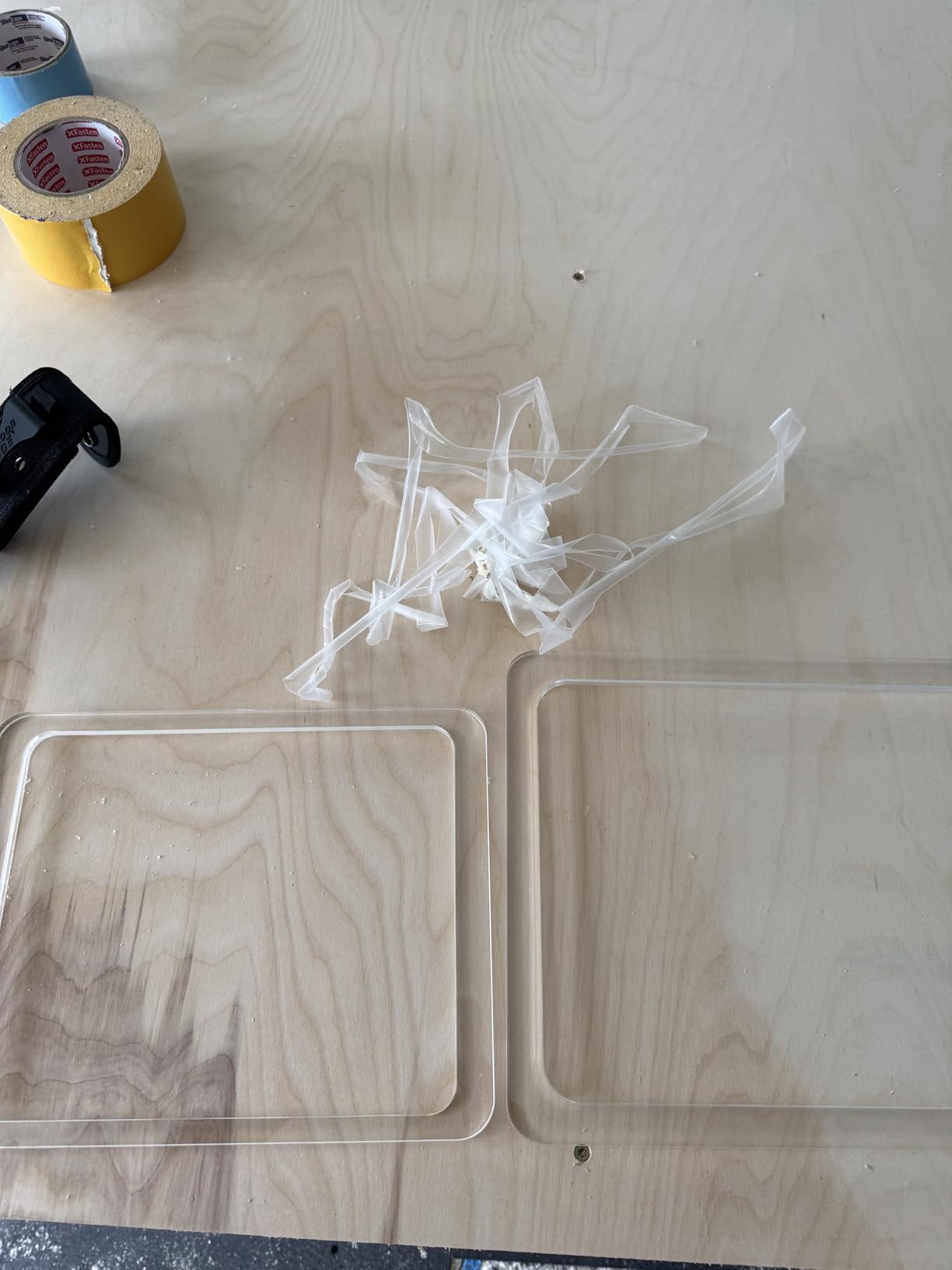

The most common complaints are practical rather than fundamental. The template can be undersized for some tables and arrives with a protective film that has to be peeled before you tape it down. Instructions are minimal, and a correctly sized flush-trim bit for following the template is not included. A few owners report the router wandering slightly inside the clamp even when the lock knob is tight, which is worth watching on a large router.
When the extra travel genuinely helps
Long travel is not a luxury when you are working with tall bits. A large flush-trim bit or a tall profile bit can have the collet close to the top plate in its lowest position, which makes it awkward to start on a sacrificial board. Four and a quarter inches of range means you can set the bit low, get past the starting point, and walk it up to the final depth in two or three passes.
That range also makes this a good match for plunge router work on a fixed base, where you are bringing the bit up to height in stages rather than diving straight to depth. Anyone running long production cutting sessions on one router will feel the difference between three inches and four.
Where weight and paperwork become problems
At 19.8 pounds this is the heaviest lift we carried, and that is a problem for a folding or mobile bench. Plan the support structure before the lift arrives, because retrofitting bracing under an installed 20 pound assembly is much worse work than adding it first.
The template and instructions are the real friction. If you are not comfortable measuring and routing your own opening, either budget a template trace and a trim bit of the right diameter or choose a lift that includes what you need. Being precise and being handed the tools are different things.

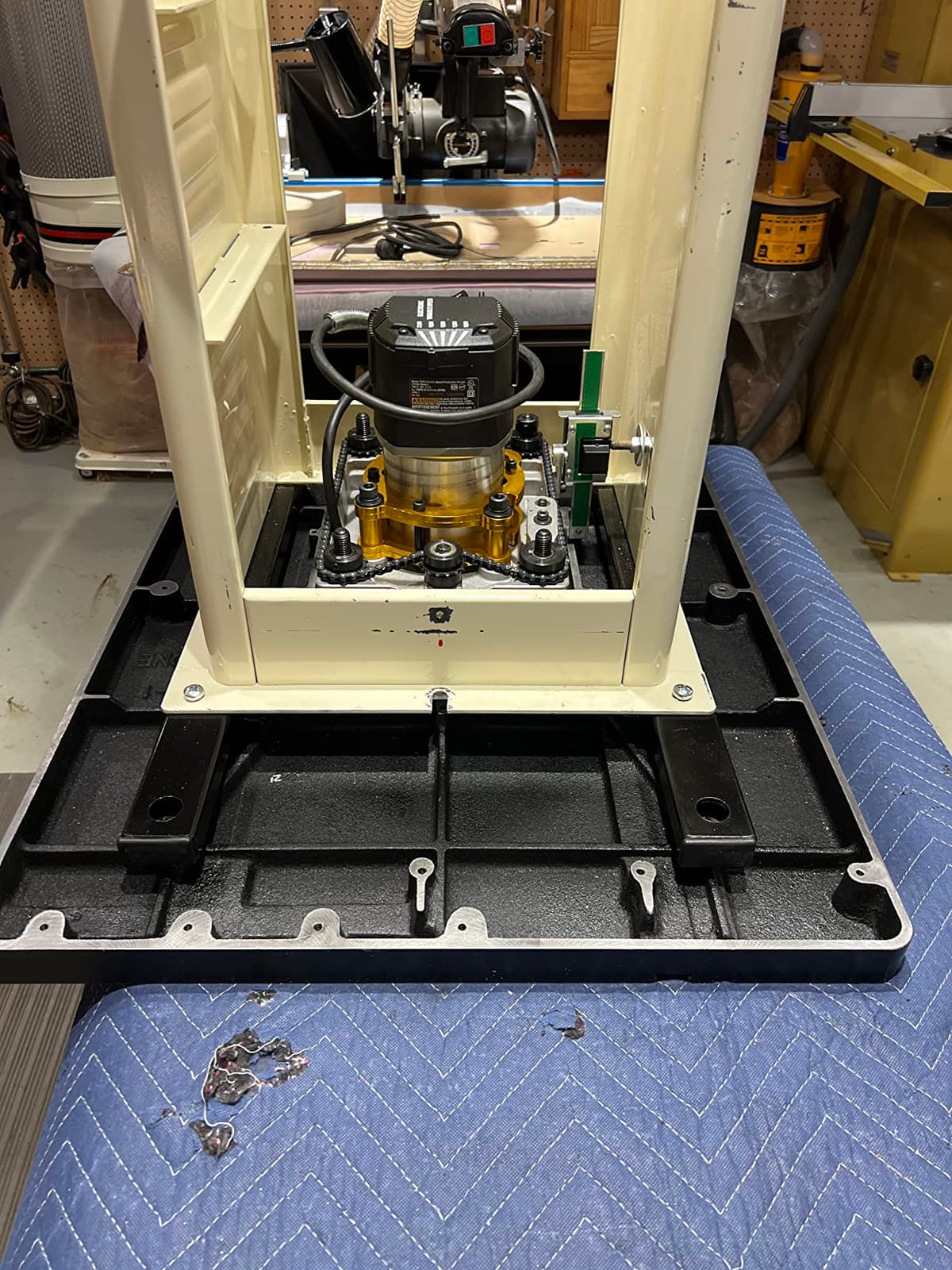

7. SawStop RT-LFT Four-Post Router Lift: Built for Rigidity Under Heavy Loads
SawStop RT-LFT Four-Post Router Lift with Lock
Four-post design with positive lock
3-1/4 to 4-1/4 inch motors
Phenolic 3-3/4 inch insert ring
16 lb
Pros
- Four-post design with a positive lock resists deflection
- Accepts a broad 3-1/4 to 4-1/4 inch motor range
- Includes 3-1/4 and 3-1/2 inch reducer collars
- Full set of hex wrenches plus insert wrench in the box
Cons
- Lowest average rating among the premium lifts here at 4.3
- Phenolic insert ring can mark a workpiece more readily
- Heavy installation at 16 pounds
Where most lifts use a single central column, the RT-LFT spreads the load across four posts and locks with a positive mechanism. Under a heavy fixed-base motor taking side loads against a fence, that geometry is the reason it stays put. The included reducer collars for 3-1/4 and 3-1/2 inch bodies broaden what it accepts to 3-1/4 through 4-1/4 inches.
It is a complete kit. You get the lift, a 1-1/2 inch phenolic insert ring, both reducer collars, an insert wrench, and 2.5 mm, 3 mm, 4 mm, and 6 mm hex L-wrenches. Nothing needs a second trip to the hardware store, and that is worth something on a Saturday install.
Our reservations start with the phenolic insert ring, which is more likely than an aluminum plate to mark a finished surface, so plan a scrap or face-frame piece under it on visible work. Its 4.3 average also points to value for money complaints and to occasional hardware or damage issues on arrival.
SawStop owners do confirm that the brand’s lift works with the SawStop router table extension, which matters if that table is already in your shop. If you bought a SawStop setup for the saw, this keeps the ecosystem consistent and the support path simple.
Choosing between a post lift and a plate lift
Decide by how hard you push and how often. A four-post design with a positive lock is the safer choice when you are running a 3 hp fixed-base router, taking heavy passes in hardwood, or doing production work where a depth shift ruins a batch of parts. The extra mass is a liability on a portable bench and an asset on a stationary one.
A single-column or plate-mounted lift is lighter, cheaper, and plenty accurate for cabinet work, moldings, and dovetails at moderate feeds. The dial readings on these are still repeatable. The question is whether you need resistance to side load, and only you know how hard you work.
Where the value argument gets thin
Value is the weak point. Its 4.3 average sits below the aluminum-plate lifts in this roundup, and buyers who expected a premium result are the ones leaving the critical reviews.
It also is a heavy installation at 16 pounds, and the phenolic ring is a step down in surface toughness from the anodized aluminum plates on the Kreg, JessEm, and O’SKOOL lifts. Phenolic is hard and dimensionally stable, but it marks a finished surface more readily, so plan a scrap or face-frame piece under it on visible work. If your work includes finished faces that cannot be sanded, think twice.

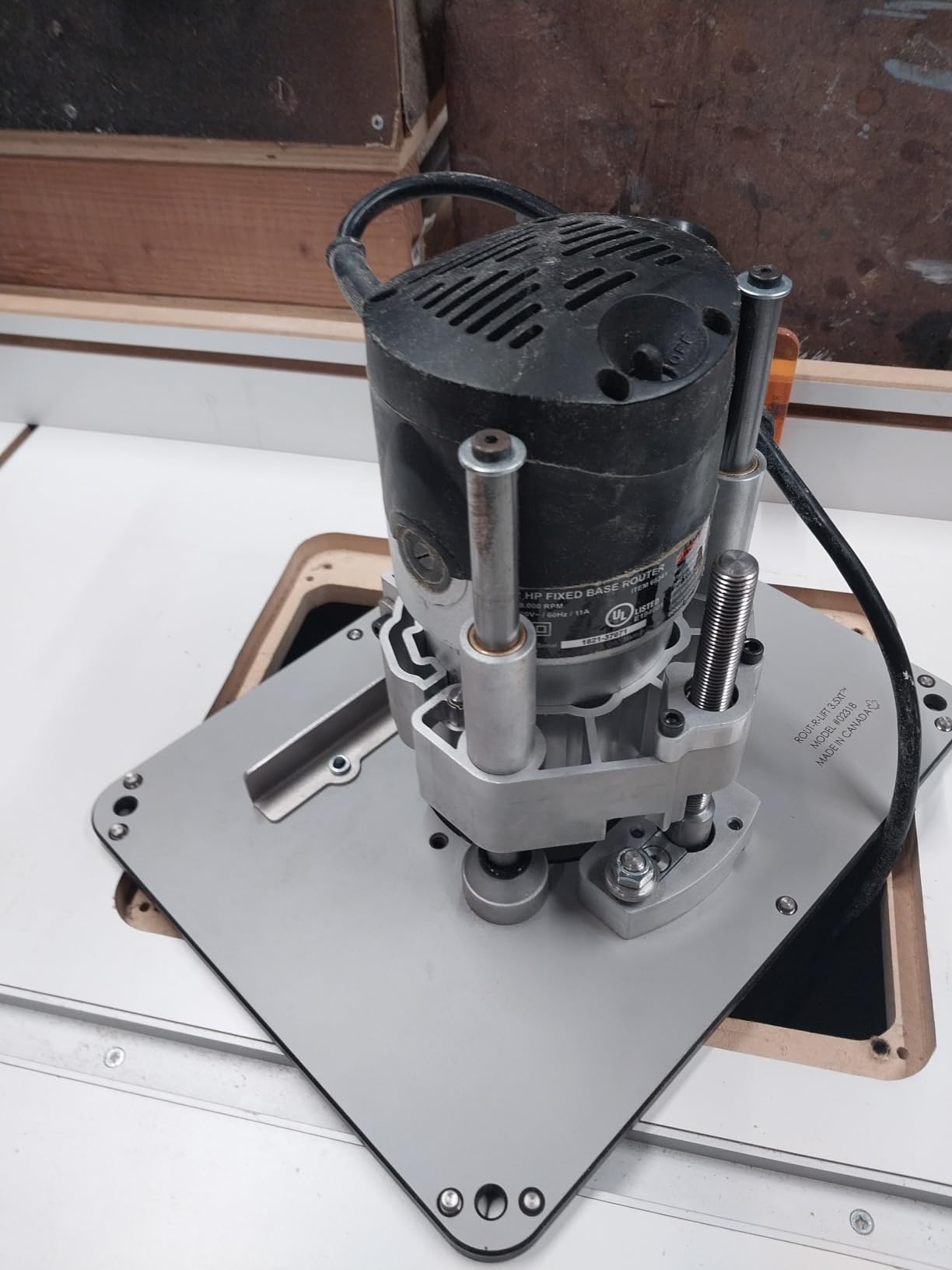

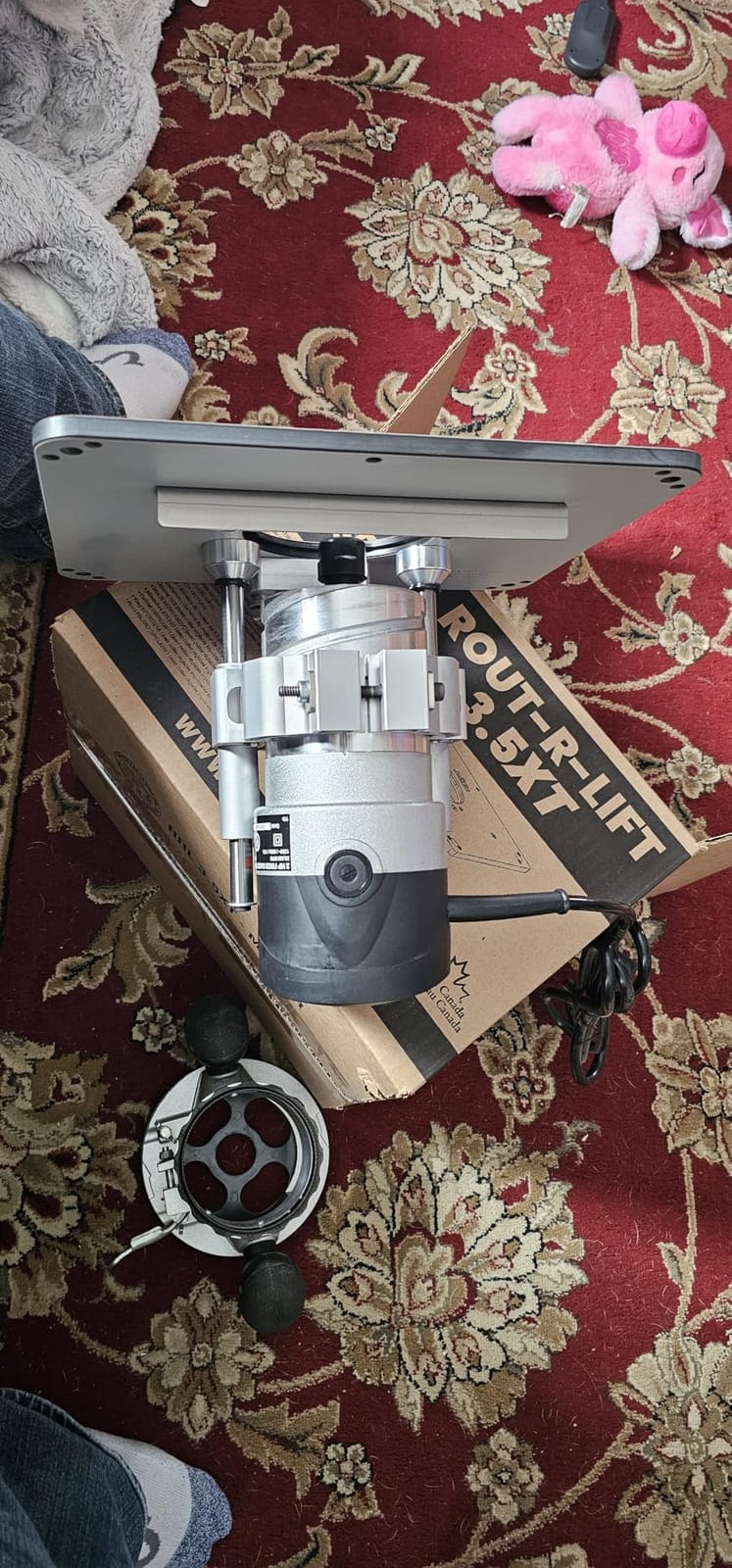

8. JessEm Rout-R-Lift 3.5XT: The Direct Drop-In for Standard Tables
JessEm Rout-R-Lift 3.5XT Router Table Lift System for 3-1/2″ Motors
Fits 3-1/2 inch motors
9-1/4 by 11-3/4 inch plate
Above-table bit changes
Double-sealed bearing spindle
Pros
- Smooth operation with quality hardware
- Drop-in fit for the standard 9-1/4 by 11-3/4 opening
- Double-sealed bearing spindle runs with no backlash complaints
- Shafts pressed into oversized mounts and bolted to the top plate
Cons
- Phenolic resin plate may sag over a heavy motor over time
- No template included for cutting the opening
This is the lift for anyone with a hole in their table right now. The 3/8 inch insert plate drops straight into the standard 9-1/4 by 11-3/4 opening found in JessEm, Kreg, and most shop-built router tables, so there is no routing a new opening and no template work at all.
It clamps 3-1/2 inch motors directly, naming Porter-Cable 690 and 890, DeWalt 610, 616 and 618, Bosch 1617 and 1618, and Skil and Craftsman fixed-base bodies, with no adapter needed. Makita 1101 and Hitachi M12VC fit using an optional printed collar, which is the print-it-yourself approach JessEm takes for the odd diameters rather than a machined part.
Because the shafts are hydraulically pressed into oversized mounts and then bolted to the top plate, the spindle resists the twisting force a wide bit applies to it. CNC machined in Canada, it is a stiff, no-frills design from a manufacturer that has been building lifts long enough to know where the metal needs to be thick.
Owners report that setting bit height from above the table and changing bits without crawling underneath runs roughly three times faster than working under the table. Three twist-out insert rings at 1-3/8, 2, and 2-1/2 inches cover most setups. The limitation is the plate material: phenolic resin can sag over time under a heavy motor, which is why a stabilizer angle and ten leveling inserts are included to mitigate it.
What you get for a mid-tier budget
You get a double-sealed bearing spindle that runs cleanly with no backlash complaints, which is the same core component quality that justifies the premium Master Lift II. What you give up is the solid aluminum plate, the cam lock, and the fine-adjustment dial. The adjustment here is direct crank, smooth, but without a graduated gauge on the plate itself.
That matters if you are running production joinery where you want to return to a recorded depth. If you set a bit once a week for decorative work, the smoothness alone is enough and the missing dial will not bother you.
Where it falls short
Long-term sag on the phenolic plate is the honest weakness, and it is worth weighing if your router is at the heavy end. If you know you will be running a large 3 hp motor every weekend, the O’SKOOL RTS05 or the SpeTool with a solid aluminum plate is a better bet for the same money class.
Two smaller annoyances: no template is included for cutting the opening, which some owners have worked around by printing their own, and a few buyers reported damaged arms on arrival from thin packaging. Inspect the arms before you start assembling.
9. O’SKOOL RTS013 4.2 Inch Motor Lift: The Route for Large Motor Bodies
O’SKOOL Router Lift System,4.2″ Motor Fit, Aluminum Plate
Fits 4.2 inch motors
11-3/4 by 9-1/4 by 3/8 inch plate
3 inch travel
1/512 inch dial steps
Pros
- Direct fit for 4.2 inch motors such as the Porter-Cable 7518 and Triton
- Ten leveling screws plus three cam wheels give a flush fit
- Micro-adjustment dial offers 1/512 inch per scale line
- Height screw lock stops creep from router vibration
Cons
- Smallest review base in the group at 26 reviews
- Does not fit 3-1/2 inch motors without a separate adapter collar
Several lifts in this category are built only for a 3-1/2 inch motor body. If you own a Porter-Cable 7518, a Triton, a Woodpeckers, a Bora, or an MLCS body in the 4.2 inch family, the RTS013 is built for exactly that and names each one. The compatibility list also includes Woodpeckers 1015420 and MLCS 9564.
The plate is the standard 11-3/4 by 9-1/4 by 3/8 inches with a 3/4 inch corner radius, so it matches the common table opening. Ten leveling screws plus three cam wheels push it snug against the edge of the hole, and the height screw carries a locking device that prevents movement from router vibration during a cut.
Adjustment is 3 inches with about plus or minus 1/16 inch per full turn, divided by 32 scale lines on the micro-adjustment dial, which works out to 1/512 inch per line. That is finer than the 0.001 inch steps on the other O’SKOOL lifts in this roundup and it is the reason to look here if you are dialing in delicate profiles. Centerlines on both sides of the plate simplify fence and bit alignment.
Be clear-eyed about two things. This has the smallest review base of anything here at 26 reviews, which means its durability is less well documented than for the Kreg or JessEm lifts. And 3-1/2 inch routers need a separately sold 4.2 inch to 3.5 inch adapter collar, so it does not double as a general-purpose lift if your motor changes later.
Confirm two measurements before you order
First, measure the motor body diameter, not the base plate and not the collet. The difference between a 3-1/2 inch and a 4.2 inch motor is not something you can eyeball reliably, and buying the wrong family means the carriage will not close.
Second, measure the table opening. It should be 11-3/4 by 9-1/4 inches, or you will need to trim the plate or modify the top. Five insert rings are included, covering 3/8 inch, 1 inch, 1-1/4 inch for guide bushings, 1-7/8 inch, and 2-5/8 inch.
When this is the wrong choice
It is the wrong choice if you might change routers later. Being tied to one motor diameter family is a real constraint in a shop where routers get traded in or borrowed. The 2-9/16 to 4-1/4 inch fit of the SpeTool is more forgiving of that uncertainty.
Second, with 26 reviews you have less field history to lean on. For a one-project buyer that is fine. For someone committing a heavy motor and a professional bench to this decision, the review base of the Kreg, JessEm, or O’SKOOL RTS05 is more reassuring.
10. Rockler Router Lift Kit GRP41034: Two-Speed Cranking and Tool-Free Ring Changes
Rockler Router Lift Kit with Aluminum Plate 8-1/4 x 11-3/4
8-1/4 by 11-3/4 inch aluminum plate
Quick-Gear plus precision gear
Snap-Lock insert ring change
0.001 inch final height
Pros
- Quick-Gear fast raise with a precision gear for fine work
- Snap-Lock releases the insert ring with a button press
- 3/8 inch aluminum plate will not sag
- Complete kit with plate and insert ring included
Cons
- 8-1/4 inch plate is narrower than the 9-1/4 inch standard opening
- Only one 1-1/2 inch insert ring is included
The idea here is simple and genuinely good. The Quick-Gear raises the router fast, then you downshift to the precision gear for the final setting, and the Snap-Lock releases the insert ring by pushing a button instead of hunting for a tool. On a table with sawdust everywhere, not losing a small ring wrench between cuts is a real quality-of-life gain.
That is how bit changes work in practice. You lower the bit, press the button to release the ring, snap the correct one in, then use the fine adjustment gear to set final height to within 0.001 inch. The plate is 3/8 inch thick aluminum, which will not sag, and the kit ships with the plate, a 1-1/2 inch insert ring, and a set of hex keys on a key chain.
What holds it back is the plate width. At 8-1/4 by 11-3/4 inches it is narrower than the 9-1/4 by 11-3/4 opening used by most router tables, so it will not simply drop into the hole you already have. The fix is trimming or modifying the opening, which is a routing job, and that is a meaningful amount of work before you can use a lift whose selling point was convenience.
The 4.0 average across 30 reviews comes with 15 percent of reviews at one star, and only a single 1-1/2 inch insert ring is included, so any other bit diameter needs a separate purchase. With so thin a review base, long-term durability is not well documented for this mechanism.
Why a two-speed gear changes the workflow
On a single-speed lift, getting a bit from well below the table to a few inches above it takes a long, slightly tedious crank. The Quick-Gear handles the coarse travel in seconds, and the precision gear handles the last fractions. For a shop doing many short bit changes in a session, that is a real reduction in setup time, and it is why buyers who like this lift tend to like it a lot.
The tool-free ring change is the second half of the idea and it is the one that shows up in daily use. Nothing to drop into the sawdust, nothing to lose, and the ring change happens with the bit in the collet rather than after.
Where the narrow plate decides it
If your table opening is already cut to the 9-1/4 by 11-3/4 standard, this lift is a poor fit regardless of its features, because you would be modifying a table that works. Trimming the top to accept it, or building a new one, reverses the convenience the Snap-Lock was designed to deliver.
The single included insert ring is the other practical limit. Multi-bit sessions on other lifts in this roundup include three to five rings, and buying them separately here partly closes the gap in the price advantage you were expecting. Judge the kit on the total, not the lift alone.
How to Choose a Router Lift for Your Router Table
Most lift regrets come from ordering on features and ignoring geometry. Work through the five checks below before you buy anything, and you will probably narrow the list to two or three options immediately.
Measure your router motor diameter in four steps
Owners consistently name this as the most common purchase mistake, and it is the one step that can waste a purchase outright. Four measurements are enough.
1. Find the widest part of the motor body, which is the cylindrical housing that the lift clamps, not the base plate and not the collet nut. 2. Measure across it with a caliper, or with a tape measure taken twice for a sanity check.
3. Write the number down next to the lift’s stated minimum and maximum. 4. Buy only when your number sits inside that range, with no guessing.
For reference, the diameters you will meet most often are roughly 3.218 inches on the Makita 1101, 3.267 inches on the Hitachi KM12VC, 3.32 inches on the Milwaukee 5615, 3-1/2 inches on the Bosch 1617 and DeWalt 618 families, and 4.2 inches on the Porter-Cable 7518. The Bosch and Porter-Cable confusion is the second most common one, and they are on opposite ends of the fit range.
Match the lift plate to your table opening
The standard opening is 9-1/4 by 11-3/4 inches, and most factory router tables use it. The Kreg PRS5000, JessEm Master Lift II, JessEm Rout-R-Lift 3.5XT, O’SKOOL RTS05, O’SKOOL RTS013, and SpeTool SP-RP-L all use or adapt to that size. Two in this roundup do not: the O’SKOOL RTS017 at 11-1/2 by 9-1/8 inches and the Rockler kit at 8-1/4 by 11-3/4 inches.
If your opening is not standard, you have three options. Trim the plate if it is aluminum and oversize, modify the top, or buy a matched table and lift as a set. Many owners discover this only after the lift arrives, which is why the measurement belongs before the purchase, not after it.
Carriage travel: why 3 inches is the practical floor
Roughly 3 inches of carriage travel is the practical minimum. It lets you start a tall bit low enough to clear the workpiece, then raise it on successive passes until you reach the final depth. Below that you are fighting collet clearance every time you start a cut.
Compare the ranges here: the SpeTool gives 4-1/4 inches, the Kreg, JessEm Master Lift II, and JessEm Rout-R-Lift 3.5XT sit in the middle of the pack, the O’SKOOL lifts give 3 inches, and the KETIPED gives about 2 inches, which is enough for a trim router and not much else.
Weight, sag, and cross-bracing
The heavier lifts listed here range from 10.8 pounds for the Kreg to 19.8 pounds for the SpeTool, and the phenolic-plate options weigh less. Add a 3 hp motor above that and you have a real load hanging under a tabletop. Cross-brace the corners of any particleboard, MDF, or thin-laminate top before you install, and you remove the sag problem permanently.
Plate material follows the same logic. Solid aluminum, whether anodized or machined, will not deform over years. Phenolic is dimensionally stable and perfectly serviceable, but it can creep under a heavy motor that stays installed, and it marks finished surfaces more readily than aluminum. Steel exists at the top end and is heavier again.
Setting the right table height and the right adjustment
For table height, the rule most experienced builders follow is simple: set the router table top a little below elbow height for a standing build, and roughly level with your hip when seated. That keeps the work flat, controls the feed direction, and reduces the arm fatigue that ends a session early. If you are working at a lower, kid-sized bench, the sturdy low-slat tables in our best kids train tables roundup show the kind of stable platform a small router top needs.
For adjustment, the real question is whether you can return to a recorded depth. A lift with a zeroable dial indicator or an index ring gives you a number. One without gives you a feel, and a feel drifts after a heavy cut. Forum testing across multiple lifts found every one of them held vertical play under 0.003 inch and shifted under 0.002 inch through a full cut, so the differences show up in convenience and repeatability rather than in raw accuracy.
Dust collection and maintenance
Route your dust port before you install, because reaching a hose in under an installed lift is awkward. A flexible hose with a swivel at the port and a collar that seals against the plate will keep fines out of the crank mechanism, and a sawdust-filled crank port is one of the most commonly reported annoyances among owners.
On maintenance, the routine is small: keep the adjustment screw clean and lightly oiled, check the set screws every few months, and confirm the insert ring is seated flat. None of the ten calls for anything beyond an occasional hex wrench, which is part of why manual lifts remain the standard in most shops.
What Router Table Owners Report About Their Lifts
Across woodworking forums the same themes keep coming up, and they line up closely with what we measured. The JessEm Rout-R-Lift II comes up most often as a budget entry, with owners calling it “more than happy” at its price point, and the quick-release design is often cited as the reason one router can be shared between handheld and table use.
The JessEm Master Lift II is praised for smooth, quiet operation and for carrying routers heavier than the lift itself, with batteries included and a top-mounted crank that clears the fence. The Kreg PRS5000 and Kreg PRS3000 come up constantly among people already in the Kreg ecosystem, partly because the adapter rings cover more than 20 routers without extra pads.
Buyers who dislike plastic insert rings gravitate toward Incra-style magnetic inserts, which change without removing screws. SawStop users confirm that JessEm, Woodpeckers, and SawStop all make lifts compatible with the SawStop router table extension, which settles that question for anyone with that table already installed.
One more piece of hard data worth knowing: an independent hands-on test across several lifts found every model tested had under 0.003 inch of vertical play and under 0.002 inch of shift after a full cut, and that backlash eliminators and height locks made no measurable difference. Buy for fit, rigidity, and travel, not for exotic mechanisms.
Frequently Asked Questions
What is the difference between a router table and a router lift?
A router table is the cabinet or bench that holds your router underneath a solid top with a hole in it. A router lift is the mechanism inside the table: a mounting plate with a crank-driven carriage that clamps the router motor and raises or lowers it. The table gives you support and a fence; the lift gives you above-table height adjustment and above-table bit changes.
What size router lift do I need?
Match the lift to your motor diameter and your table opening. Most shop routers use a 3-1/2 inch motor body, which fits the majority of lifts. Large 4.2 inch bodies such as the Porter-Cable 7518 need a dedicated lift, and small trim routers under 2-9/16 inches need a compact base. The table opening should be the standard 9-1/4 by 11-3/4 inches.
Does any router fit any router table?
No. A lift clamps a specific range of motor body diameters, and a plate only fits a specific opening size. Before buying, measure the widest part of your motor body with a caliper and measure your table opening diagonally and across. If both numbers fall inside the lift’s stated range, it fits without modification.
How much travel does a router lift need?
At least 3 inches of carriage travel is the practical minimum, so a tall bit can start low and be raised on successive passes. The SpeTool in this roundup gives 4-1/4 inches, several others give around 3 inches, and a compact trim-router lift gives about 2 inches, which suits light work only.
What are the best router table accessories?
The most useful add-ons are a quality straight-edge fence, a roller stand or bench dogs for feeding stock, feather boards for edge work, a dust port with a swivel hose connection, and spare insert rings in the diameters you actually use. A dial indicator for zeroing your lift readout and a set of feeler gauges for plate level are worth adding before a second router.
The Bottom Line on Router Lifts in 2026
The Kreg Precision Router Lift PRS5000 is the pick we would buy first. It fits the standard table opening, drops down to 1/64 inch with anti-backlash compensation on a hard-anodized plate, fits more than 20 routers, and carries 811 reviews and a 4.7 average, which is more proven history than anything else here.
Go with the JessEm Master Lift II if you want the most rigid plate and you route heavy joinery. Go with the O’SKOOL RTS05 if you want indexed 0.001 inch steps and a trim-to-fit plate without a premium brand name. The JessEm Rout-R-Lift 3.5XT is the fast path if you want a drop-in and nothing else.
Whichever one you choose, measure the motor diameter and the table opening before you order, and brace the tabletop if the lift is heavy. Those two steps prevent nearly every complaint we read about router lifts, and they cost you an afternoon. Once it is installed, check the current price and the latest owner reviews for your exact router model before you commit.
