A 1 HP to 1.5 HP single-stage or compact cyclone dust collector delivering 500 to 1300 CFM is the right choice for a small woodworking shop. That range balances real chip-holding airflow against a footprint you can live with, and it covers everything from a table saw in a one-car garage to a planer in a two-car space.
That is the honest answer, but it is only half of it. The other half is that the collector is one layer of a three-layer dust control system: capture at the tool, separate the chips before they reach the filter, and filter the fine dust out of the air you breathe. Get the first layer right and the rest is a rounding error. Get it wrong and no filter on earth will save your lungs or your floor.
We spent weeks comparing the ten collectors below against each other on the criteria that actually decide whether a small shop is happy with its purchase: airflow at the port rather than on the box, static pressure headroom for duct runs, how the filter ages under real sanding dust, how much floor or wall space the thing eats, and how loud it is when you are standing next to it. Every model here is a genuine fit for at least one small-shop scenario, and every one of them has a scenario where it is the wrong choice.
If you are still working out your layout, our wider dust collector roundup for woodworking shops covers larger shops and more machine-specific picks.
Table of Contents
Top 3 Best Dust Collectors For Small Woodworking Shops (October 2026)
POWERTEC DC5371 560 CFM
- 1 HP induction motor
- dual 120V/240V
- 1 micron reusable bag
- wall mounted
Shop Fox W1826 537 CFM
- 537 CFM at 7.2 inch static pressure
- 2.5 micron bag
- all steel wall mount
The POWERTEC DC5371 takes the top spot because it does the two things a small shop cares most about and almost nothing else in the lineup does at the same time: a 1 micron bag as standard equipment rather than an upsell, and a wall mount that returns the floor to the machine.
The Shop Fox W1826 is the value pick, with 7.2 inches of published static pressure, which is the number that tells you whether it can pull through a real hose run instead of only a short stub. The WEN DC1300 covers the opposite end of the problem, moving enough air to serve two machines at once or a CNC router without straining.
Dust Collectors for Small Woodworking Shops in 2026
| Product | Specs | Action |
|---|---|---|
| POWERTEC DC5371 560 CFM Wall Mount |
|
Check Latest Price |
| Shop Fox W1826 537 CFM Wall Mount |
|
Check Latest Price |
 WEN DC1300 1300 CFM Mobile |
|
Check Latest Price |
 WEN DC3401 660 CFM Compact |
|
Check Latest Price |
 WEN DC3474 600 CFM Rolling |
|
Check Latest Price |
 BUCKTOOL DC50 750 CFM Auto-Start |
|
Check Latest Price |
 PSI DC725 725 CFM Tabletop |
|
Check Latest Price |
 BUCKTOOL DC30A-1 550 CFM Remote |
|
Check Latest Price |
 JET DC-1100VX-CK 2 Micron Canister |
|
Check Latest Price |
 JET DC-1100VX-5M 5 Micron Bag |
|
Check Latest Price |
The short version of that table: three wall-mounted options for shops where floor space is the binding constraint, four rolling units for shops that need to move collection to whatever machine is running, and two professional 1.5 HP machines for shops that run a planer or a CNC router.

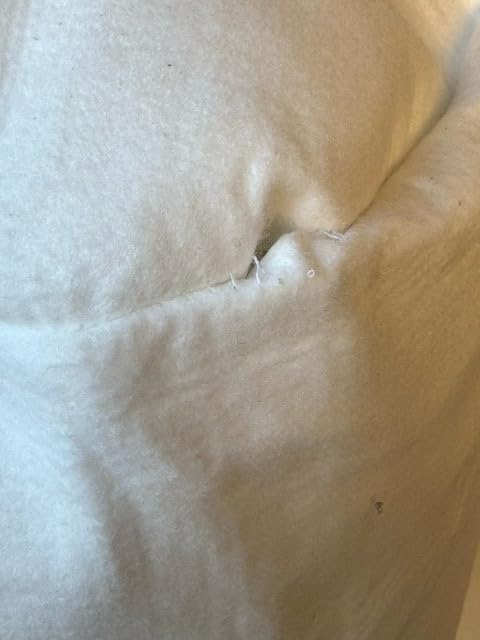

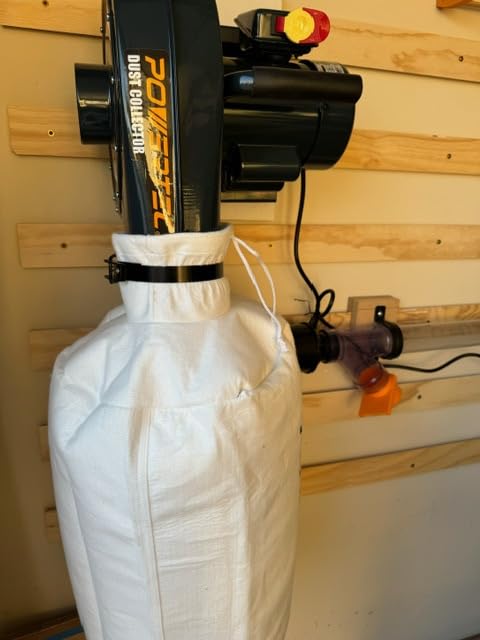

1. POWERTEC DC5371 – Best Wall-Mounted Collector With 1 Micron Filtration Standard
POWERTEC 1 HP, 560 CFM Wall Mount Dust Collector with 1 Micron Dust Collector Bags, Dust Collectors for Woodworking Dust Collection System (DC5371)
1 HP induction motor at 560 CFM
3450 RPM, 120V/240V dual voltage
1 micron reusable bag with window
35.5 lbs, wall mounted
Pros
- 1 micron bag included rather than sold separately
- Reusable bag with a fill window and disposal zipper
- Vortex Base design improves dust removal
- Wall mount frees the whole floor
- 4 inch port with protective grate
Cons
- Inlet grate needs periodic cleaning
- 80 dB operating noise
- 35.5 lbs needs solid wall backing
The thing that separates this unit from the other wall mounts in the group is the filter. Most competitors ship a 5 micron felt bag or a 2 micron bag sold separately, which means sanding dust ends up in the room and in your lungs. The DC5371 comes with a 1 micron reusable bag that has a clear window so you can see the fill level instead of guessing, and a zipper along the bottom so emptying it does not involve shaking a cloud of dust into the air.
Airflow is rated at 560 CFM from a 1 HP induction motor running at 3450 RPM, and the motor is dual voltage, drawing 12 amps on 120V or 6 amps on 240V. That matters more than it sounds: a lot of small shops have a 15 amp circuit already committed to a table saw and a planer, and a dual-voltage motor lets you run this on 120V now and move it to a dedicated 240V circuit later without replacing the machine.
The Vortex Base design at the bottom of the unit is marketed as guiding airflow in a controlled pattern for up to 10 percent better dust removal than comparable designs. Whether you hit that exact figure in your shop or not, the practical effect is that chips pack down in the bag instead of clinging to the housing, which cuts the frequency of the filter being rinsed or swapped.
Owners consistently report suction that feels out of proportion to a one-horsepower motor in a compact body, and the wall bracket is what makes it usable in a 10 by 14 shed where every square foot of floor is spoken for. At 35.5 pounds it is light enough that one person with a stud finder and a couple of lag screws can mount it, but you still need real framing behind it, not drywall.
Is the 1 micron bag worth the extra filter maintenance?
Worth it if you do a meaningful amount of sanding. One micron is the threshold where fine airborne dust gets trapped in the bag rather than exhausted into the shop, and once you have worked without it, going back to a 5 micron bag feels like going back to a shop with no collection at all. Plan to inspect the bag rather than run it indefinitely, because the finer media loads faster.
The one recurring complaint is on the intake side. The 4 inch port has a protective grate, and that grate catches long shavings, especially from a jointer, and progressively reduces airflow if you never look at it. Two minutes of inspection before each heavy session prevents the problem entirely.
Is this the right collector for a basement or shared-wall shop?
It is the quietest class of machine in this roundup by motor type, since an induction motor does not have the commutator brush noise of a universal motor. But the published noise level is 80 dB, which is not basement-quiet, and in a shop below living space the floor joists will carry that sound regardless of the motor.
If sound transmission is your main worry, look at the WEN DC3474 or the BUCKTOOL DC30A-1, which both use induction motors and can be wall mounted away from the work surface. If filtration is your main worry, stay here.
2. Shop Fox W1826 – Best Value for Shops Short on Floor Space
Shop Fox W1826 Wall Dust Collector, 2.5 Micron Filtration,White
537 CFM at 7.2 inch static pressure
1 HP 110V/220V, prewired 110V
2.5 micron cloth bag
19.5 x 18 x 44 inches
Pros
- Publishes static pressure
- which is the number that matters
- Runs stronger and quieter than a shop vac of similar size
- All steel construction
- Locking screw wall bracket
- Easy to empty zippered bag
Cons
- Intake safety cage traps shavings
- Exhaust port diameter not published
- Packaging often arrives damaged
- 85 dB noise level
Almost every competitor listing in this category gives you CFM and nothing else. The W1826 gives you 537 CFM at 7.2 inches of static pressure, and that single extra number tells you more about real-world performance than the airflow figure alone. Static pressure is what your hose run, your blast gate, and your flex hose connections eat into, so a collector that can hold 7.2 inches at its rated flow will still be pulling hard after 20 feet of 4 inch hose and two elbows.
The motor is a 1 HP single-phase unit rated 110V/220V and prewired for 110V, drawing 7 amps on 110V and 3.5 amps on 220V. At 800 watts it is not a high-draw appliance, which means it can share a general purpose circuit in most small shops without any electrical work.
Reviewers repeatedly compare it head to head against a shop vacuum of similar price and find it both stronger and quieter, and several note that it pairs well with a downstream separator if you later want to pre-empt chips before they reach the bag. That pairing matters more here than with the 1 micron POWERTEC, because the 2.5 micron cloth bag included with this unit is a coarser filter that will load faster on sanding dust.
The build is all steel, the wall bracket uses a locking screw rather than friction fit, and the zippered bag empties without inverting anything. At 19.5 by 18 by 44 inches it hangs neatly above a bench or in the corner above the table saw without stealing workspace.
Should I remove the intake safety cage?
Many owners do, and reviews describe the same cause every time: long planer and jointer shavings wrap around the cage and choke the inlet, so airflow drops without any obvious symptom other than a weaker cleanup. Removing it is a five minute modification with basic tools, and most owners who do report no regrets.
If you would rather not modify the machine, keep it and check it every time you change material. Either way, do not step the 4 inch hose down to a smaller diameter any earlier than you have to, because that is the single most common reason people think this collector underperforms.
What does the W1826 leave on the table?
Two things. It ships with a 2.5 micron bag rather than 1 micron, so if sanding is a large part of your work you will be replacing media sooner than you would with the POWERTEC. And the exhaust port inside diameter is not published, so if you plan to duct the exhaust out of the shop you will need to measure it yourself before ordering fittings.
Packaging is the other recurring complaint. Units frequently arrive with dented shrouds or bent mounting plates, so inspect the carton before the box is opened all the way and photograph any damage immediately.

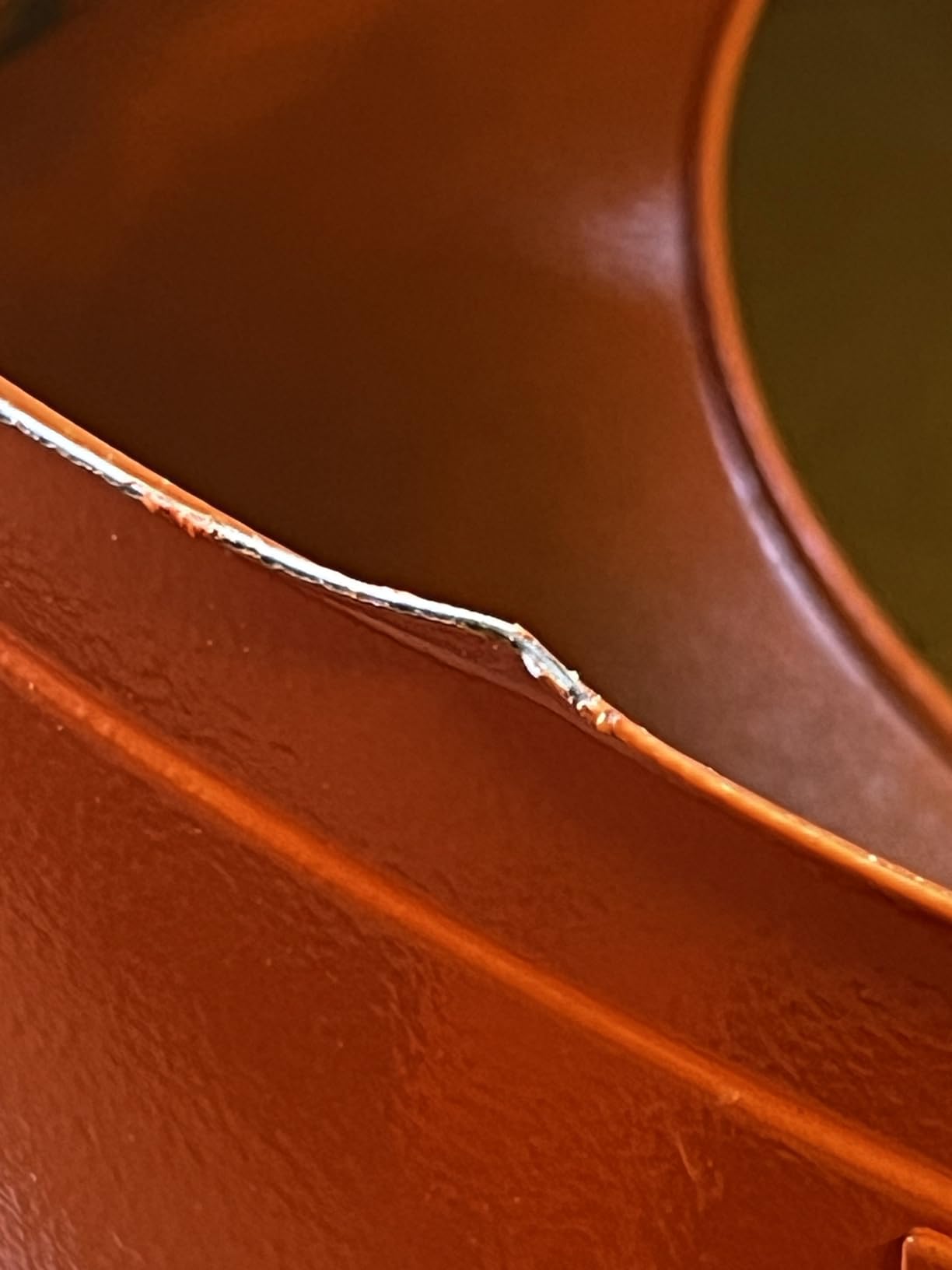

3. WEN DC1300 – Best for Table Saws, Planers and Two Machines at Once
WEN DC1300 1,300 CFM 14-Amp 5-Micron Woodworking Dust Collector with 50-Gallon Collection Bag and Mobile Base , Black
1300 CFM airflow
14 amp motor with 10 inch steel impeller
Dual 4 inch inlets
50 gallon 5 micron vertical bag
Pros
- Highest airflow figure in this roundout
- Dual inlets run two tools simultaneously
- 50 gallon bag means infrequent emptying
- Four swivel casters roll easily
- Steel impeller rather than plastic
Cons
- Bag support posts and upper arm feel underbuilt
- Arm height is not adjustable
- Instructions sequence bag installation awkwardly
- Metric hardware can complicate assembly
At 1300 CFM this is the only machine here that answers the question of whether a 10 by 14 shed is too small for a serious collector. It is not. The unit is driven by a 14 amp motor turning a 10 inch steel impeller up to 3450 RPM, and the extra headroom is what lets it keep pulling when you run a planer through thick stock or a table saw through a full depth rip.
The dual 4 inch inlets are the feature that changes daily workflow. Most owners run one machine at a time, but the second port means a table saw and a bandsaw can be connected simultaneously, or a track saw can be hooked up while the planer is still in use. That is the difference between a collector that gets used and one that sits switched off.
The vertical 50 gallon bag is the largest capacity in the group and it is mounted on a mobile base with four swivel casters. Emptying it is a matter of rolling the whole machine to the door, unclipping the loop over the upper post, and walking the bag outside, which is a small quality of life difference when you are doing it after every planer run.
Owners report that it captures the large majority of table saw and CNC dust with strong airflow and infrequent bag changes, and that it runs quieter than the equivalent of two shop vacuums running at once, which is the comparison people actually make.
Is 1300 CFM overkill for a small shop?
Not for the machines this machine is built for. A 1300 CFM collector is genuinely excessive on a benchtop sander in a 200 square foot shed, where the DC3401 would be a better match, but it is the correct call for anyone running a thickness planer, a jointer, or a CNC router. Match the collector to the dustiest tool, not to the size of the room.
The tradeoff is footprint. This is a tall vertical machine and it needs real floor area to park, so if your shop is tight on floor rather than on airflow, the wall-mounted units will serve you better even though they move far less air.
How long does the bag hardware hold up?
That is the honest weak spot. The vertical bag support posts and the upper arm are the parts owners flag, and the arm height is not adjustable, which can clash with overhead ducting if you plan to run the exhaust through the ceiling. The bag loop can also slip off the upper post if the bag is not seated carefully.
None of that undermines the airflow. It just means you should check the bag is seated and the loop is on the post every time you change it, which takes seconds once it becomes habit.
4. WEN DC3401 – Budget Pick for Shops With Almost No Room
WEN Woodworking Dust Collector, 5.7-Amp Motor with 12-Gallon Bag, Mobile Base, and Optional Wall Mount (DC3401)
660 CFM from a 5.7 amp brushed motor
6 inch impeller, 4 inch dust port
12 gallon 5 micron zippered bag
17 lbs, 34.25 x 13 x 14.2 inches
Pros
- Largest review count in the roundup
- 17 pounds and genuinely compact
- Lockable swivel casters plus optional wall mount
- Better throughput than a canister vacuum
- Two year warranty included
Cons
- Brushed motor and carbon brushes wear over time
- Inlet screen clogs with planer shavings
- Modest suction under heavy load
- Audible outside the shop
At 17 pounds and 34.25 by 13 by 14.2 inches, this is the collector you can carry with one hand, stash behind a bench, or mount on a wall when you need the floor. It is also the least expensive machine in the roundup, and with 676 ratings behind it, the most reviewed one, which makes it the easiest unit to sanity check against long-term owner reports before you commit.
The 5.7 amp brushed motor and 6 inch impeller deliver up to 660 CFM through a 4 inch dust port, which is a real step up from a canister vacuum of comparable size. The 12 gallon 5 micron zippered bag empties at the bottom, the swivel casters lock so it stays put, and there is an onboard carrying handle plus an optional wall mount.
The defining compromise is motor type. A brushed universal motor is cheaper and lighter than an induction motor, but it is louder, it draws more power for the same airflow, and its carbon brushes wear. Reviewers report the brushes needing replacement at roughly 250 hours, which is not dramatic, but it is a maintenance item the induction machines do not have.
Second is suction under load. Owners are clear that this unit will not push through heavy resistance or large shavings the way the induction-motor machines will, and the inlet screen clogs quickly with planer and jointer output. For a table saw, a bandsaw, and sanding work it does the job well.
Is the DC3401 good enough to replace a shop vac?
For most small shops, yes, and the review base reflects that. The common owner view is that this is a large upgrade from a shop vacuum for ordinary sawdust and chip collection, with better air throughput and a bag that costs far less to replace than a vacuum filter. Where it stops is high-volume planer work and anything where you need suction at a distance through long duct runs.
If you already own a decent wet dry vac and your dustiest tool is a random orbit sander, this is still worth it, because the dedicated collection bag and the wall mount change how often the machine comes into play.
What should I check before running planer shavings through it?
Remove or clear the inlet screen frequently, and be realistic about how you are using the machine. The screen is designed to stop large objects entering the impeller, which means it catches long shavings exactly where they get generated, so cleaning it after each planer session is part of owning this collector rather than an occasional task.
Also factor in the noise. Several owners note it is audible outside the shop, which in a basement or attached garage can be a daily annoyance even though the machine itself is fine.

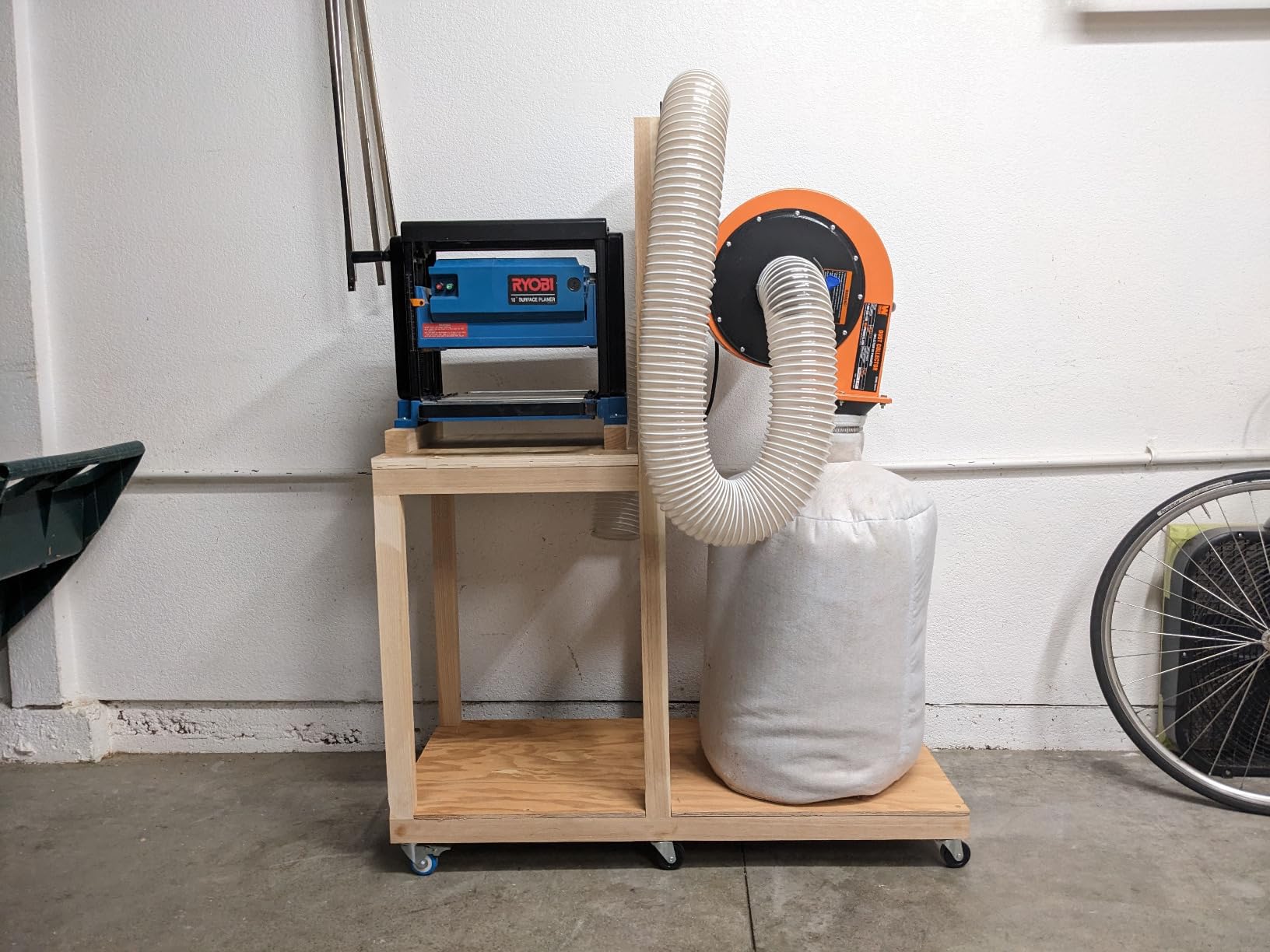

5. WEN DC3474 – Best Induction Motor for a Tight Garage Shop
WEN Woodworking Dust Collector, 7.4-Amp Induction Motor with 15-Gallon Bag, Mobile Base, and Optional Wall Mount (DC3474)
600 CFM from a 7.4 amp induction motor
9 inch impeller, 4 inch dust port
15 gallon 5 micron zippered bag
41.1 lbs with optional wall mount
Pros
- Induction motor is quiet and efficient
- Wall mount option keeps casters attached for mobility
- Handles long 4 inch duct runs
- Carrying handle and compact footprint
- Two year warranty
Cons
- Supplied 5 micron bag is thin and leaks fine dust
- Non-locking casters roll when switched on
- Inlet guard clogs on jointer shavings
- Discharge direction is fixed
This is the machine to look at if your shop shares a wall with living space or sits under a bedroom. The 7.4 amp induction motor with a 9 inch impeller is the quiet-running type, and owners repeatedly single it out for operating more efficiently and at a much lower power draw than a shop vacuum doing the same job.
Airflow is rated up to 600 CFM through a 4 inch dust port, and owners report strong suction through 30 feet of 4 inch ducting on a table saw, jointer, and planer. That is a real claim to test yourself, because most collectors in this class lose a large share of their rated flow over that kind of run, and this one holds up according to the people who use it.
The wall mount option is the reason this earns a place in a small shop. You can hang it on the wall with the swivel casters still attached, which sounds minor until you have a 41.1 pound machine that you would otherwise have to drag around a one-car garage. When you need it at the planer instead of the table saw, you unlock it and roll it.
The 15 gallon 5 micron zippered bag, the onboard carrying handle, and a two year warranty round out a package that feels more considered than the price point suggests.
Should I replace the supplied filter bag?
Probably. Reviewers consistently describe the supplied 5 micron bag as thin and prone to leaking fine dust, and they recommend an aftermarket filter or a heavier bag before doing serious sanding work. The seam and zipper durability also draw complaints, so treat the bag as a consumable rather than a permanent part.
That is the pattern across this whole price tier: the motor is the durable asset, the bag is what you will replace. Budget for one or two spare bags in your first year.
Will this quiet machine work under living space?
It is the best candidate in the roundup, but understand what that means. Induction motors reduce mechanical noise and this unit runs at a lower power draw than a shop vacuum, so the sound character is less harsh. It does not make a 1 HP collector silent, and structure-borne vibration still travels through floor joists.
If you are in a basement, place it away from the stairwell opening, mount it on a wall rather than the floor, and use flexible hose with short, straight runs. Those three changes do more for perceived noise than any single machine choice.
6. BUCKTOOL DC50 – Best for an Auto-Start Workflow With Two Bags Included
BUCKTOOL 750 CFM Auto-Start Dust Collector,1.2HP 13-Gallon Capacity
750 CFM from a 1.2 HP 120V motor
3450 RPM, 6.5 amps full load, CSA listed
Auto-start tool outlet rated to 7A
29.53 x 20.19 x 65.01 inches
Pros
- Auto-start outlet runs the machine from one tool switch
- 750 CFM at only 6.5 amps full load
- Hose and five reducers included in the box
- Portable base of 16.5 by 26.375 inches
- PET bag clamp does not pinch hands
Cons
- Lowest average rating in the group at 4.0
- Accessory bags and filters are proprietary to the brand
- Ten percent one-star share points to build friction
The auto-start feature is the reason this machine is worth knowing about even though it is the lowest rated collector we included. A built-in power outlet on the collector lets your power tool trigger the dust collector from the same switch, up to 7 amps, which means one switch at the table saw turns on both the saw and the collection.
On paper the motor is strong for the class: 1.2 HP at 120V, 3450 RPM, 750 CFM, 6.5 amps at full load, and CSA listed. At 56 pounds with a 29.53 by 20.19 by 65.01 inch footprint on a portable base of 16.5 by 26.375 inches with caster wheels, it is stable without being enormous.
The accessory package is unusually complete, with five reducers, a 5 foot length of 4 inch flexible hose, a plastic lower bag, a cloth lower bag, a 2 micron cloth upper filter bag, and a PET bag clamp. That matters in a category where hose and adapters are frequently sold separately, and it removes the most annoying surprise in a first purchase.
The two lower bag design also lets you swap bags quickly, and the soft PET clamp is a small quality of life detail that most owners mention approvingly because it does not cut your hand when you are changing bags under pressure.
Is the 4.0 rating a reason to skip it?
It is a signal to read the reviews rather than an automatic no. The 4.0 average comes with 58 percent five-star ratings but also a ten percent one-star share, which points to build and support friction rather than a machine that does not perform. Reviewers still acknowledge the 750 CFM figure and find the auto-start outlet genuinely useful.
The practical thing to weigh is the proprietary accessory sizing. Replacement bags and filters are brand-specific, so once you are committed, you are committed, and if you run heavy volumes you will buy spares from one place.
How does the auto-start outlet actually work in practice?
You plug the tool into the outlet on the collector body and turn both on together, or in the sequence your tool requires, and the 7 amp ceiling on the outlet sets the limit on what you can run. A table saw, bandsaw, and most sanders fall within that. A large planer or a saw with a higher draw does not, so you switch those back to a normal circuit.
It is the closest thing in this roundup to the convenience of a dust extractor wired into the machine circuit, without needing an electrician.

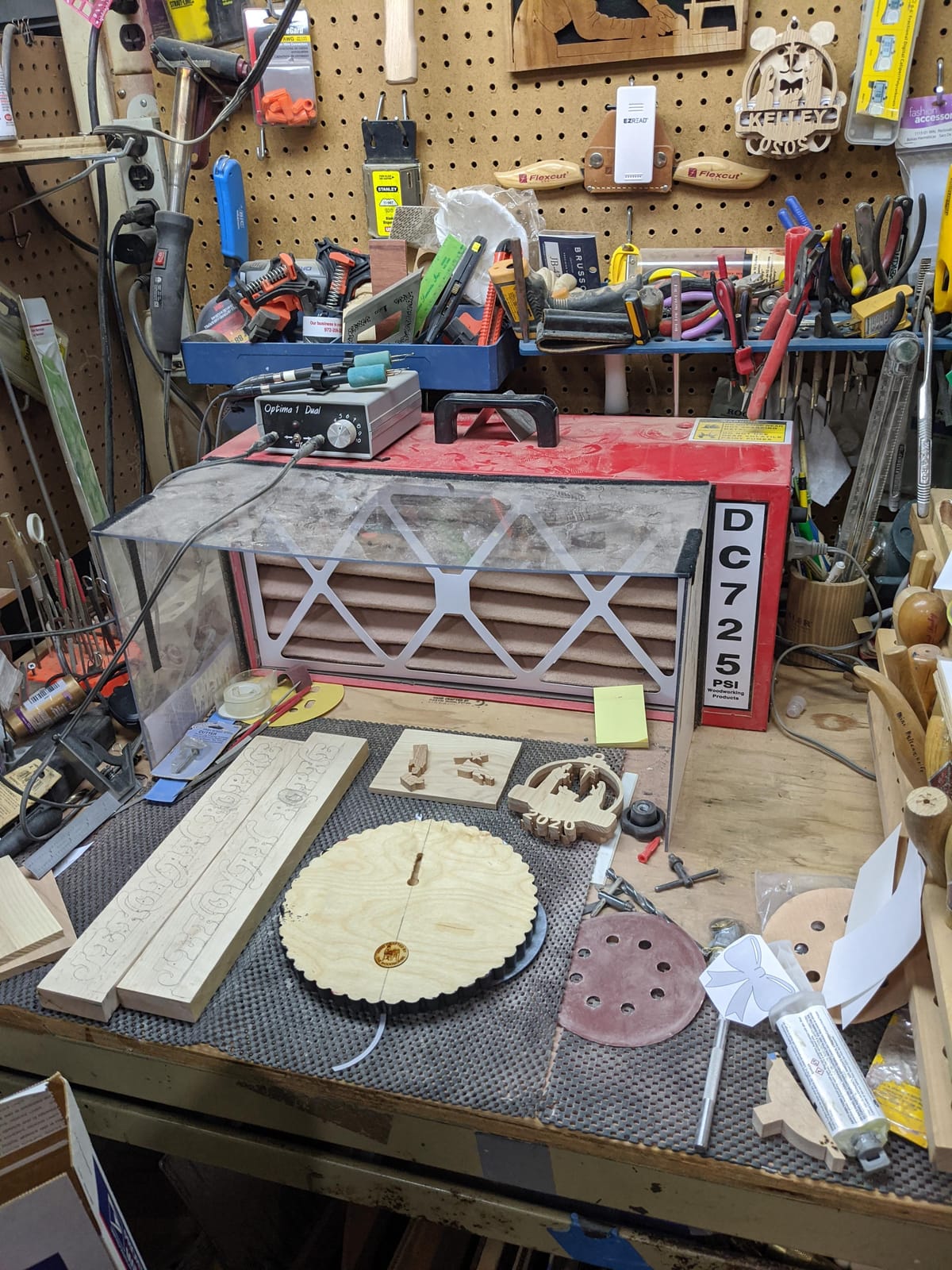

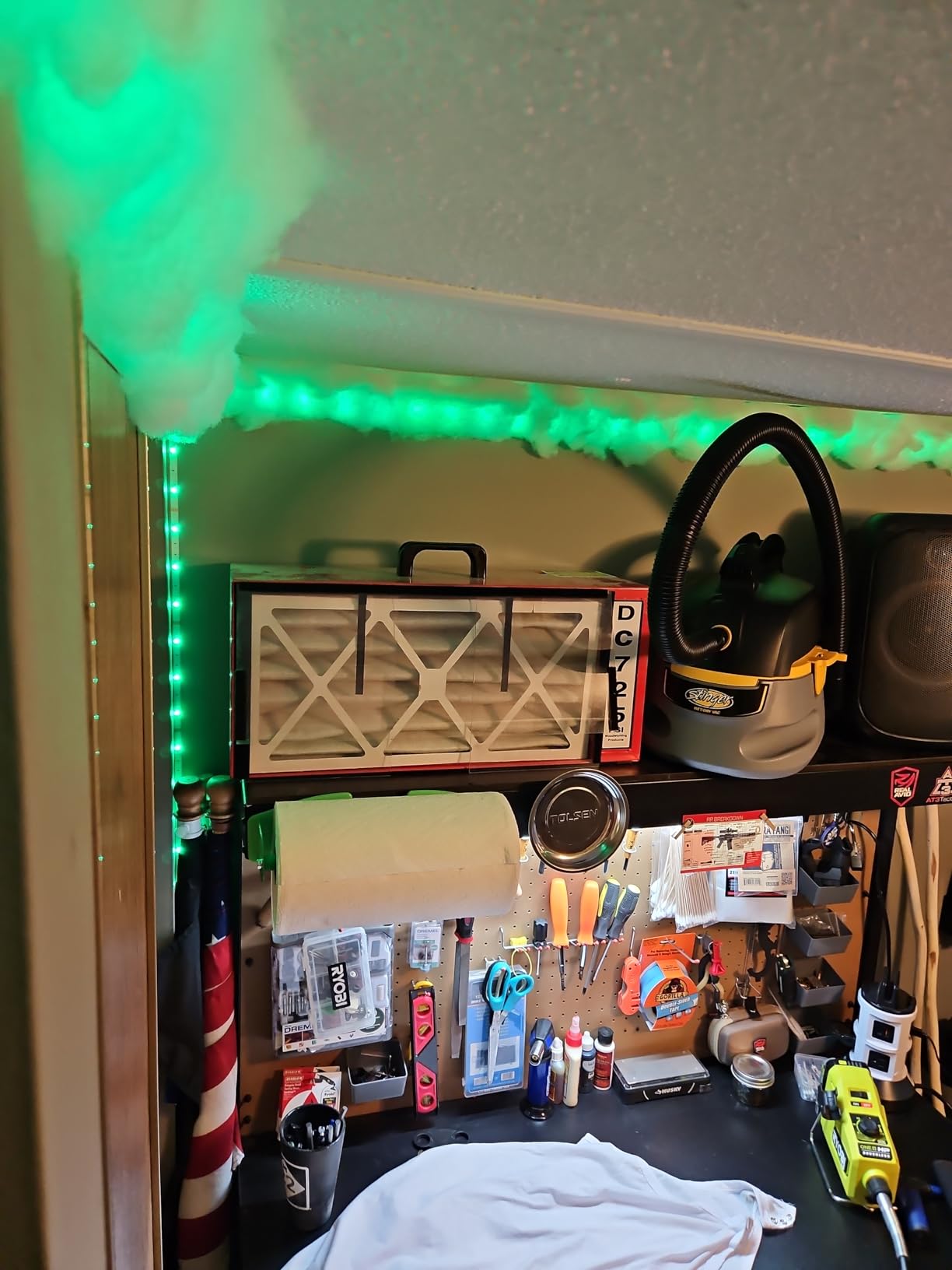

7. PSI DC725 – Best for Carving, Grinding and Small Lathe Work
PSI Woodworking DC725 Portable Tabletop Dust Collector
725 CFM maximum from three variable speed fans
Total running draw of 1.29 amps
23 by 8 inch footprint, 10.5 inches tall
25.4 lbs, two year warranty
Pros
- Tabletop and portable
- 725 CFM from a 1.29 amp draw
- Variable speed control
- Two grounded 115V outlets on the side panel
- Long production run and two year warranty
Cons
- Low current draw means less raw suction under load
- Not built for large chip or heavy shavings
- Only one filter included
This is the odd one out in the roundup and it deserves the space. Instead of a single impeller and a cloth bag, the DC725 uses three computer-grade maintenance-free fans behind an adjustable clear polycarbonate hood and side doors, each running on its own 110V variable speed motor, with a total running draw of 1.29 amps and a maximum airflow of 725 CFM.
That architecture is not a substitute for a 1 HP impeller when you are pulling shavings off a jointer, and owners say so plainly. What it is very good at is carving, sanding, grinding, wood burning, and small tabletop lathe work, which is where fine dust at low volume matters more than raw CFM.
The clear polycarbonate hood and doors are more useful than they sound, because you can watch the airflow direction and adjust the hood to match the shape of the work. Combined with the variable speed control, that lets you dial down to a trickle for a chisel or open up for a sanding disc without standing up to change settings.
Two grounded 115V outlets on the side panel remove the need for an extension splitter, the top carrying handle makes it a genuine portable device rather than a fixed box, and at roughly 24 to 25 pounds with a 23 by 8 inch footprint and a height of 10.5 inches it moves between a bench and a job site easily.
Why does a 725 CFM rating not mean 725 CFM of suction?
Because CFM across multiple small fans and clear openings is not the same as CFM through a restricted 4 inch hose under static pressure. Three quiet fans move a lot of air when the path is open and much less when you clamp a hose on and introduce resistance, which is exactly the condition you are in when you are collecting at a machine.
Read this machine as a variable-speed intake for bench work rather than as a stationary collector. If your main need is a table saw or planer, choose one of the impeller machines in this roundup instead.
Is a 2007-era design still worth buying in 2026?
The production run has been long and the design has not needed changing, which tells you something about how simple it is. It carries a two year warranty under normal use, and 141 ratings averaging 4.5 with only a one percent one-star share is a strong satisfaction profile for any product.
The practical thing to check is filter supply. Only one 2 by 10 by 20 inch filter is included, so have a spare on hand, and treat the filter as a consumable in your planning.
8. BUCKTOOL DC30A-1 – Best Wall Mount With a 49 Foot Remote
BUCKTOOL 1HP 6.5AMP Wall-mount Dust Collector with Remote Control and 2-micron Dust Filter Bag 550CFM Air Flow DC30A-1
550 CFM from a 1 HP TEFC induction motor
6.5 amp draw, 120V, steel impeller
Wall bracket or braked caster wheels
49 ft remote control
Pros
- TEFC induction motor is quiet and maintenance free
- Dual mounting on wall or braked wheels
- Remote means no walking back to switch it on
- 550 CFM at only 6.5 amps
- Solid demand for the category
Cons
- 2 micron bag is recommended rather than included
- 550 CFM is modest for running two tools
- Remote adds a failure point versus a switch
The remote control is the feature that changes how you use this machine. With a 49 foot range you can start the collector from the machine you are standing at, which means a wall-mounted collector at the far end of the shop is actually usable rather than something you switch on once at the start of a session and leave running.
The motor is a TEFC induction unit, which means totally enclosed and fan cooled, permanently lubricated, no brushes to wear, and lower noise than a universal motor of the same size. It draws 6.5 amps at 120V and moves 550 CFM through a steel impeller, which is a sensible efficiency point for a shop running on a shared circuit.
Mounting is genuinely dual purpose. It ships with both a wall bracket and braked caster wheels, so you can hang it above the table saw on a day when the saw is the workhorse and roll it to the planer when the job changes. At 43.1 pounds it is heavy enough to stay put without locking and light enough for one person to reposition once the casters are unlocked.
Owners highlight the quiet motor, the flexible mounting, and the remote as the three reasons they keep the unit, and it sits at a solid demand position in the category, which matters when you want replacement parts to be easy to find.
Is 550 CFM enough for a small shop?
For one machine at a time, yes. A table saw at 550 CFM is workable, a bandsaw is comfortable, and a benchtop sander is fine. It is on the modest side if you plan to run a jointer or a planer through it, or if you want to keep two machines connected simultaneously, which is the situation the WEN DC1300 is built for.
Because the inlet is 4 inch, keep the run short and direct. Every extra elbow and every unnecessary length of flex hose costs you airflow you cannot get back.
Should I budget for a separate filter bag?
Yes. The 2 micron filter bag is a recommended pairing rather than an included item, so the useful comparison is against the POWERTEC, which ships with a 1 micron bag in the box. If you do a lot of fine sanding, that included media is a meaningful difference in total cost over a couple of years.
Also weigh the remote as a small risk. It is more convenient than a wall switch, and it is one more component that can fail, so know where the manual on-off control is before you need it.

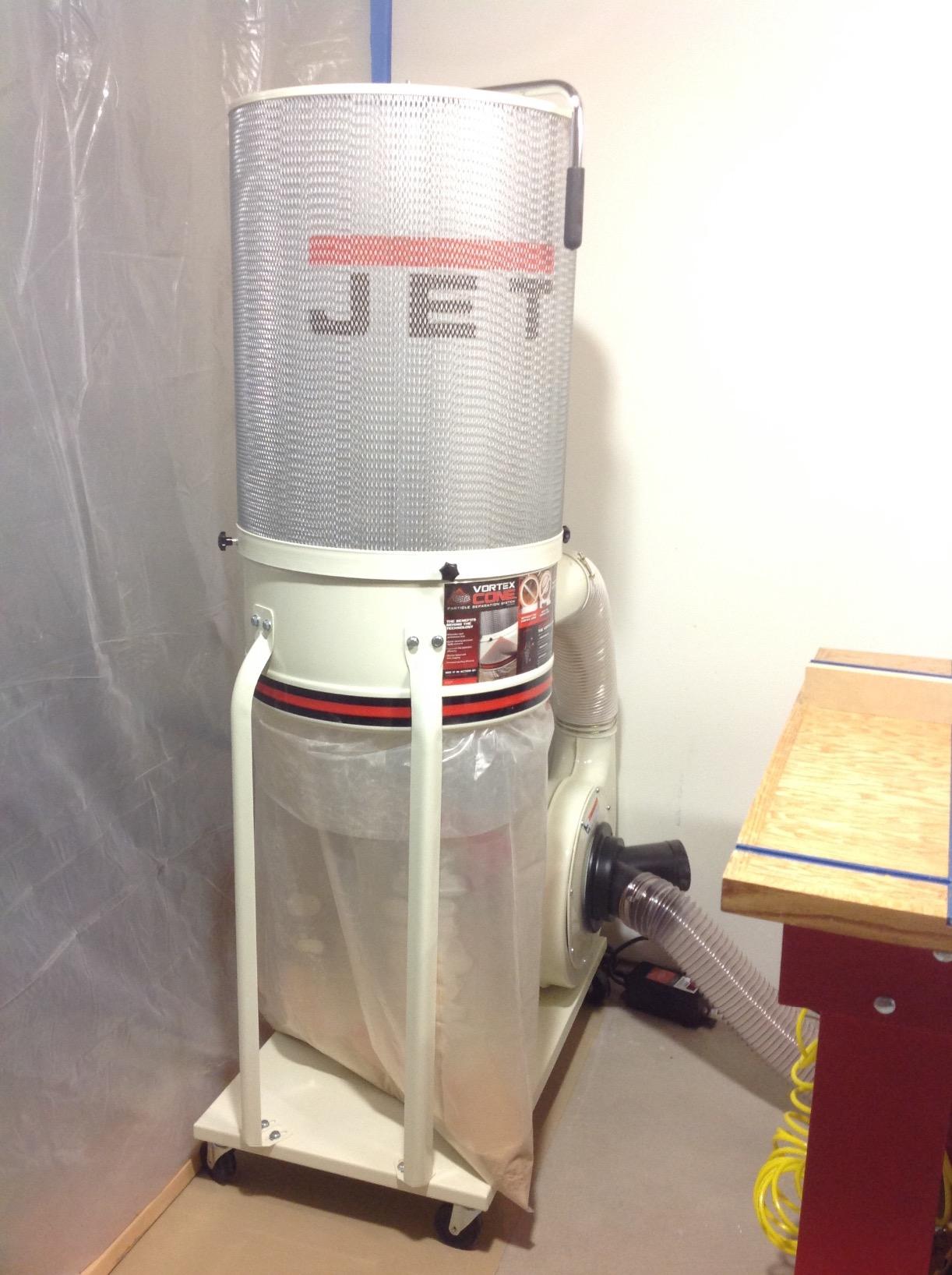

9. JET DC-1100VX-CK – Best 2 Micron Canister Filtration for Fine Dust Work
JET Vortex Cone Dust Collector with 2-Micron Canister Filter, 1-1/2 HP, 115/230V 1Ph (DC-1100VX-CK)
1.5 HP continuous duty TEFC motor
115/230V single phase operation
2 micron canister filter kit
Vortex Cone separation, four casters
Pros
- 2 micron canister filters cleaner than bag designs
- Vortex Cone packs chips away from the filter
- Continuous duty motor rated for long service
- Quick connect elastic band bags
- Five year residential warranty
Cons
- Most expensive machine in the roundup
- Single stage cannot match a cyclone on fines
- 80 dB noise level
- Bulky for very small shops

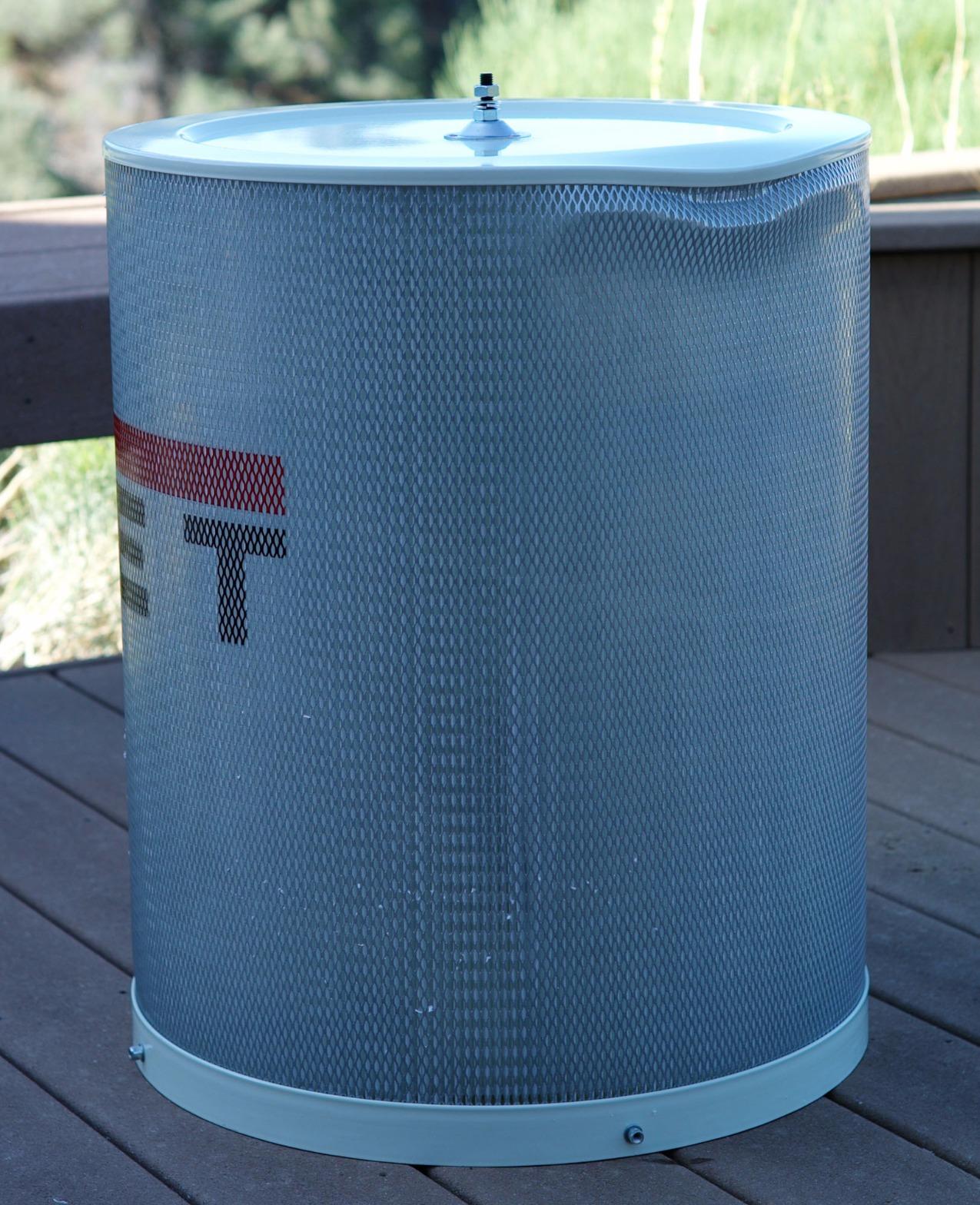

Filtration is the whole argument for this machine. A 2 micron canister filter returns noticeably cleaner air than a felt bag design, and in a shop where sanding and finishing happen in the same airspace as the machines, that difference is the whole point. The canister kit includes the handle, the canister filter, a snap ring, five collector bags, and the hardware.
The motor is a 1.5 HP permanently lubricated, totally enclosed, fan cooled design rated for continuous duty, operating on 115/230V single phase. That rating matters in a shop that runs machines for long stretches, because it is a different class of component from a general purpose shop motor.
The Vortex Cone is the other signature feature. It improves chip separation and bag packing efficiency, which means the heavy material stays in the lower bag and only fines reach the canister, delaying the point at which the filter stops performing. Collection bags attach with a quick connect elastic band, so a change takes seconds rather than a wrestling match with drawstrings.
Four casters are included, and while a 1.5 HP machine is never genuinely portable, having them changes how you move it around a shop. The warranty is five years for residential use, dropping to two years if it is used commercially or industrially.
Is a canister filter worth the step up in cost?
It depends on what you do. If your work is mostly cutting solid wood and you clean up with a broom, a 5 micron bag collector will serve you for years and cost far less to maintain. If you finish in the same room you sand in, handle MDF, or have anyone in the household with a respiratory condition, the canister pays for itself in air quality.
Remember that this is a single-stage design. It separates chips and coarse dust well, but it does not pre-separate fines the way a cyclone does, so a lot of your fine dust still reaches the canister.
Can a 1.5 HP machine work in a small shop?
It can, but it will dominate the space. This is a heavy, tall piece of equipment and the practical limit is often floor area rather than airflow. In a one-car garage it will feel oversized; in a two-car garage or a dedicated outbuilding it is comfortable and leaves headroom for a planer or jointer to be added later.
It is also the most expensive machine in the roundup, so if you are furnishing a shop from scratch on a fixed budget, a wall-mounted unit plus a separate ambient air filtration unit is often the better use of the same money. Our picks for those are covered in the shop machine buying guides alongside the rest of our equipment coverage.

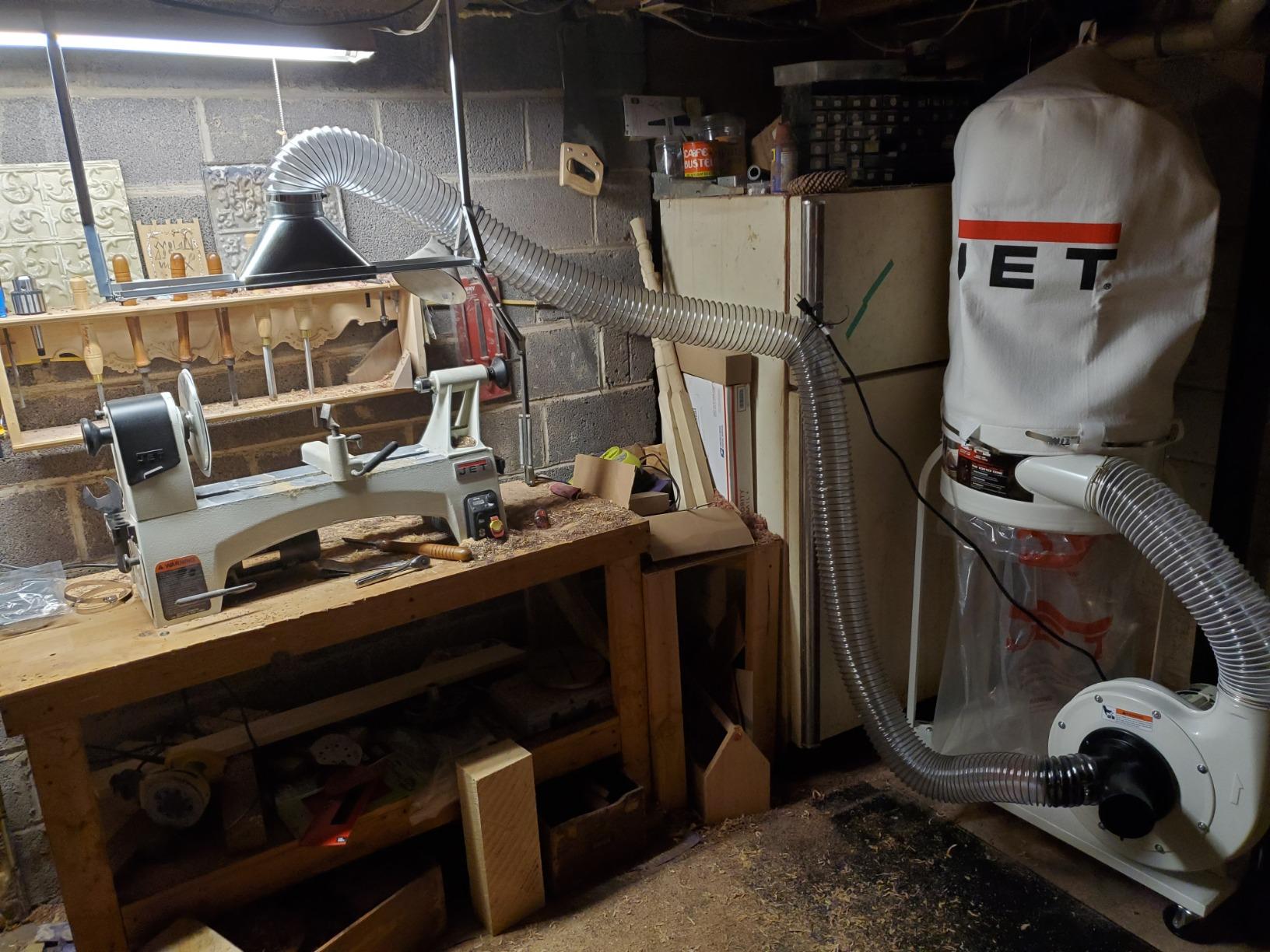

10. JET DC-1100VX-5M – Best for a Table Saw and Planer in One Machine
JET Vortex Cone Dust Collector, 5-Micron Bag Filter, 1-1/2 HP, 115/230V 1Ph (DC-1100VX-5M)
1.5 HP TEFC motor on 115/230V single phase
5 micron bag filtration
Vortex Cone separation
130 lbs, 37 x 22.5 x 79 inches
Pros
- Very strong suction on saws
- planers and jointes
- Vortex Cone packs chips tightly
- Quieter than a shop vac with rare bag changes
- Quick connect bags and included hardware
- Four casters and five collector bags in the box
Cons
- 130 lbs and 79 inches tall is a large footprint
- Replacement bags are hard to source in the right size
- Vortex cone fins clog with damp wood
Where the canister version filters hardest, this one moves the most air into a simple and forgiving bag system. The Vortex Cone packs chips tightly so the bulk stays in the lower pail and only fines reach the upper filter bag, which owners confirm gives a large jump in suction over entry-level wall collectors on a table saw, planer, bandsaw, or lathe.
Underneath is the same continuous duty 1.5 HP permanently lubricated, totally enclosed, fan cooled motor on 115/230V single phase, described as a high air velocity design. It is single-stage, which the manufacturer is upfront about, so you get economical and quiet operation rather than cyclone-level fine dust separation.
The package is generous for the price tier: four casters, five collector bags, the filter bag, and the hardware. Quick connect bags with an elastic band make changes fast, and owners report rarely needing a bag change compared with smaller collectors, which is the practical payoff of the cone geometry.
At 130 pounds and 37 by 22.5 by 79 inches, this is the largest machine we included, so plan the footprint before you plan the rest of the shop.
What is the replacement bag problem everyone mentions?
Finding collection bags in the correct size is the most common complaint, and it drives the 15 percent one-star share, which is the highest among the well-reviewed models in this roundup. Measure the bag and its attachment points carefully before ordering replacements, and search by the part number rather than by general dimensions.
If you think you will change bags often, the canister version in the previous section avoids some of that friction because the canister filter itself is a standard cylindrical format rather than a bag sized to the cone.
Do I need a separate air filtration unit with this?
Yes, and it is the point most roundups miss. A collector captures dust at the source, which is the correct first layer, but fine particles already airborne from sanding and from the exhaust port will keep circulating. A ceiling-mounted air filtration unit handles that suspended dust and is what keeps a small shop genuinely clean between sessions.

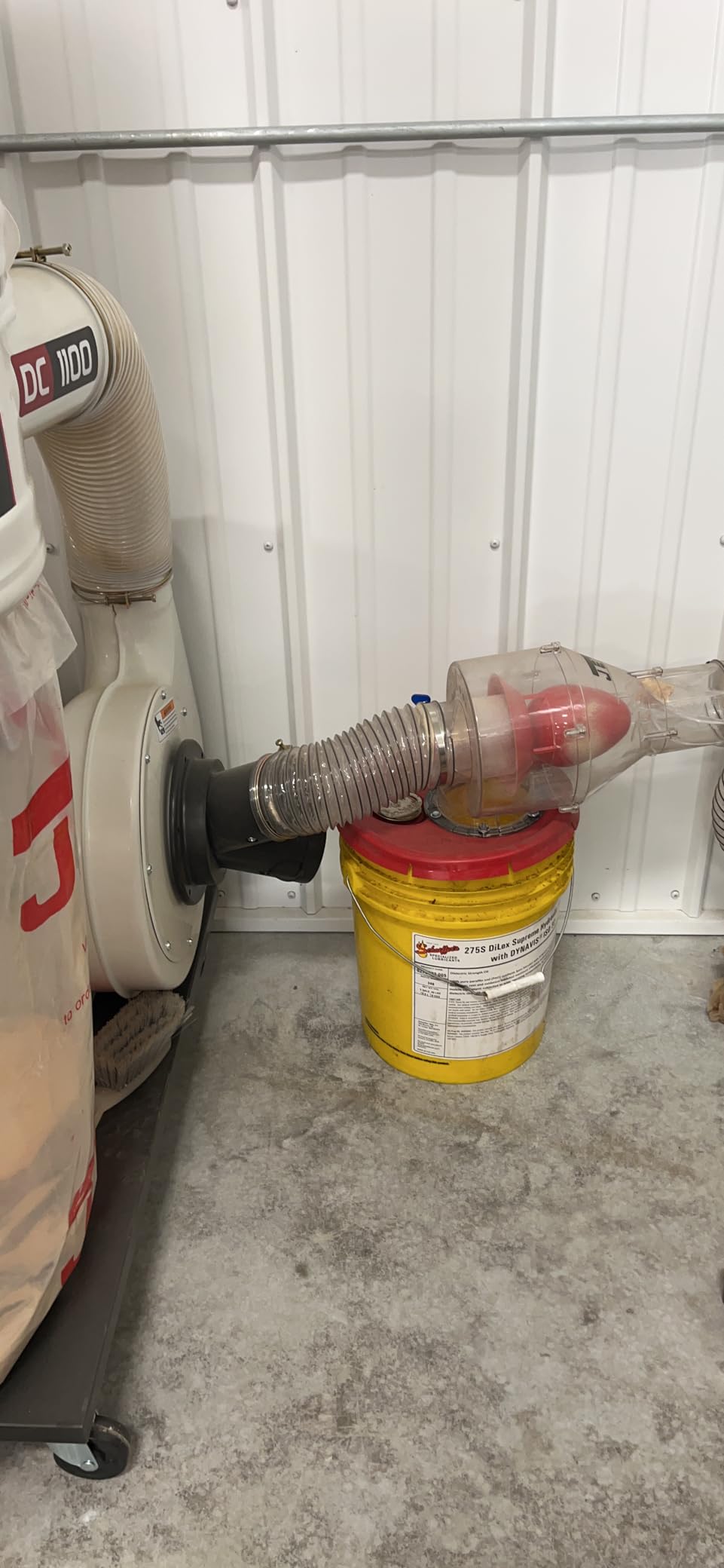

Many owners pair it with a cyclone separator when sanding regularly, because the Vortex Cone fins can clog with damp wood, and cyclones handle wet material more gracefully. Our broader belt sander guide covers the sanding side of that workflow.
How We Evaluated These Collectors?
We ranked these machines on six things, in this order: rated airflow against the dustiest tool you actually own, published static pressure where the manufacturer provides it, filter specification and whether the stated media is included, motor type, physical footprint including mounting options, and the pattern of complaints in owner reviews rather than the headline rating.
Two of those deserve explanation. Airflow alone is misleading, so we gave extra weight to the few listings that publish static pressure, because that number predicts how a collector behaves after 20 feet of hose and a blast gate. And we read the one-star and two-star share in each review profile as a signal about build and support, which is where several otherwise capable machines separate from the durable ones.
Where owner reports conflict with a spec sheet, we trusted the owners and said so in the review. Where manufacturer claims cannot be verified without lab equipment, we described them as claims rather than measurements.
What to Look for in a Small Shop Dust Collector?
Start with the CFM your dustiest tool demands
Match the collector to the worst machine in the shop, not to the size of the room. A table saw typically wants 350 to 450 CFM, a jointer or thickness planer wants 500 to 700 CFM, and a CNC router sits at the top of any list. Sanders produce less volume but the finest dust, so for them you should prioritize filtration over airflow.
For shop air circulation, the calculation is simple and reusable. Multiply your floor area by your ceiling height to get the room volume in cubic feet, then multiply that volume by six to eight to get the total CFM needed for six to eight air changes per hour. A 200 square foot shop with an 8 foot ceiling is 1600 cubic feet, which works out to roughly 9600 to 12800 CFM of total air movement, so you need several machines or one very large unit to clear that air continuously.
Choose wall mount when floor space is the constraint
Wall mounting is the single biggest quality of life change in a small shop. Three of the ten machines here ship with a wall bracket, and two more include an optional wall mount with casters left attached. Every foot of returned floor is a foot you can put a bench, a lumber rack, or an infeed table on.
Rolling units win when your dustiest tool moves. If you are building one machine at a time in a garage, a caster base with locking wheels means you follow the work instead of rebuilding the ducting every week. Shop Fox model numbers confuse people because several look similar: W1727 is a portable unit, W1826 is the 537 CFM wall mount at 7.2 inches of static pressure, W1666 is a 2 HP machine in a different class entirely, and W1844 sits above it. Match the model to the mounting style and airflow you need rather than the number.
Pay for filtration only as far as your dust requires
Standard cloth bags capture particles around 5 microns, which handles sawdust and shavings well. Fine sanding dust needs 1 micron or better. A HEPA rating at 0.3 microns is usually only found on dust extractors and air filtration units, not on collectors meant for chip volume.
Moving up a tier is not automatically better. Finer media loads faster and costs more to replace, so a 1 micron bag on a collector that only ever sees sawdust is money spent for nothing. Upgrade where the fine dust actually comes from.
Treat motor type as a noise decision
Induction and TEFC motors run quieter, need no carbon brushes, and draw less power for the same airflow. Universal brushed motors are cheaper and lighter but louder and wear over time. In a basement or attached garage, motor type is often the biggest single lever on how loud your shop is.
Published noise figures are measured at a fixed distance in a lab, so treat them as relative rather than absolute. The real question is how the sound reaches you, which depends on where the machine sits and what it is bolted to. If you work in a one-car garage, our guide to fixing dust and static problems in a small workspace covers the related housekeeping that keeps collection working properly.
Know when a shop vac is the right answer
A shop vac is the correct tool for handheld sanders, a track saw, cleanup, and jobsite work. A collector is the correct tool for stationary machines, because a vacuum hose is typically 2.5 inches and a collector runs 4 inch, and the difference in airflow at the port is decisive on a table saw or planer.
The most common upgrade path is a cyclone separator. Add one between the machine and a shop vac and the filter sees far less material, so it lasts much longer and suction holds up under load. The alternative is a dust extractor, which is a small high speed collector with automatic filter cleaning designed for handheld tools.
Add the second layer, because one collector is never enough
Capture at the source handles dust you can see. Fine airborne particles from sanding and from the exhaust port need a ceiling mounted air filtration unit sized for six to eight air changes per hour, placed in the middle of the room rather than in a corner. That second layer is what makes the difference between a shop that is tidy on Saturday and one that is hazy on Monday.
One safety point that roundups usually skip: wood dust is combustible, and MDF dust carries the resins that make that risk higher. Do not let dust accumulate on motor housings, keep the collector away from heat sources, and never exhaust MDF into an enclosed space without thinking about where that air goes.
What Owners Actually Recommend on Woodworking Forums?
Woodworking forums dominate the search results for this query, so we read what owners are actually buying rather than what manufacturers are listing. The pattern is consistent enough to be useful, and it does not exactly match any of the ten machines above.
The Grizzly G0583Z 1 HP canister collector comes up repeatedly on Reddit’s beginner woodworking forums as a garage shop recommendation that handles both shavings and fine dust. The Oneida Supercell is named often on r/woodworking as a buy once upgrade for one-person and basement shops. The Steel City 1 HP with a 1 micron bag is a long running Fine Woodworking suggestion for very small shops running a single machine.
Harbor Freight’s Bauer 35 gallon 2 micron canister gets strong endorsement on beginner forums, and the Harbor Freight 1 HP induction motor unit is praised on Lumberjocks as far quieter than a shop vacuum, which supports the motor type point above. The Oneida Dust Deputy is described on Reddit as the original and still the best separator for shop vacs, and Clear Vue’s CV1800 is recommended on NC Woodworker for small to mid sized shops.
The consistent advice in those threads is the same: buy the quietest motor you can afford, keep the collector close to the machine with short straight hose runs, and add a separator before you upgrade the collector again.
Frequently Asked Questions
What size dust collector do I need for a small shop?
Match the collector to your dustiest tool rather than your floor area. A table saw needs roughly 350 to 450 CFM, and a jointer or thickness planer needs 500 to 700 CFM. For shops under 600 square feet, a 1 HP unit in the 500 to 800 CFM range covers most situations, while planers, jointers and multiple machines running at once call for 1.5 HP and 1000 CFM or more.
Is a shop vac enough for small woodworking shop dust collection?
Yes for handheld tools, sanders, track saws and cleanup, because those produce low volume and fine dust rather than chip volume. No for a table saw, planer or jointer, since a typical 2.5 inch vacuum hose cannot move enough air through the port to capture that load. The usual upgrade is a cyclone separator between the machine and the vac, which extends filter life and holds suction better.
Can you turn a shop vac into a dust collector?
You can, with three changes. Add a cyclone separator so chips never reach the filter, replace the standard filter with a 1 micron or HEPA element so fine dust is captured, and add a large collection bag so you are not emptying a small drum constantly. The result handles sanders and handheld tools well, but it will not match a dedicated 4 inch collector on a table saw or planer.
Are cyclone dust collectors worth it for a small shop?
They are worth it if you sand heavily or run MDF, because a cyclone pre-separates chips and keeps the fine dust filter clean for far longer, which holds suction up as the filter loads. For a shop that mostly cuts solid wood, a good single stage collector with a 1 micron bag is simpler and cheaper. The cheapest path to cyclone performance is a separator on a shop vac you already own.
How much CFM does a small shop dust collector need?
For air circulation, multiply your shop volume in cubic feet by six to eight to get the CFM needed for six to eight air changes per hour. A 200 square foot shop with an 8 foot ceiling is 1600 cubic feet, which works out to roughly 9600 to 12800 CFM moved continuously. For a single machine, a table saw needs about 350 to 450 CFM and a jointer or planer needs 500 to 700 CFM.
Final Verdict for Small Shop Dust Collection
The best dust collectors for small woodworking shops are not one machine, they are three answers to three different questions. If floor space is what you are short of, wall mount and take the POWERTEC DC5371, because a 1 micron bag in the box is the difference between collecting dust and merely moving it. If you want the most airflow per dollar of floor space and you run a saw and a sander, take the Shop Fox W1826, whose published static pressure is the number that proves it will still pull through a real hose run.
If you run a planer, a jointer, or a CNC router, the WEN DC1300 is the only one of the ten with the airflow to serve two machines at once, and the 50 gallon bag means you empty it when you want to rather than when it is full. The JET units earn their place when fine dust filtration or continuous duty construction justifies the step up, and the BUCKTOOL DC50 earns its place when starting the machine from the tool switch is the workflow you want.
Answer the three questions that narrow this down. What is your dustiest tool, because that sets your CFM. How many square feet do you have, because that sets whether you wall mount or roll. And what is your real budget across filters and bags for the first two years, because a cheaper collector with expensive consumables is more expensive than it looks.
Then add the layer nobody sells you: a ceiling mounted air filtration unit sized to your shop volume. A collector you own is the best dust collector for small woodworking shops only when the air in the room is clean when you turn the lights off.
